Pinpoint Test H: Solenoid Mechanical Failure

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Repair all other DTCs before repairing the following DTCs: P1714, P1715 and P1740.

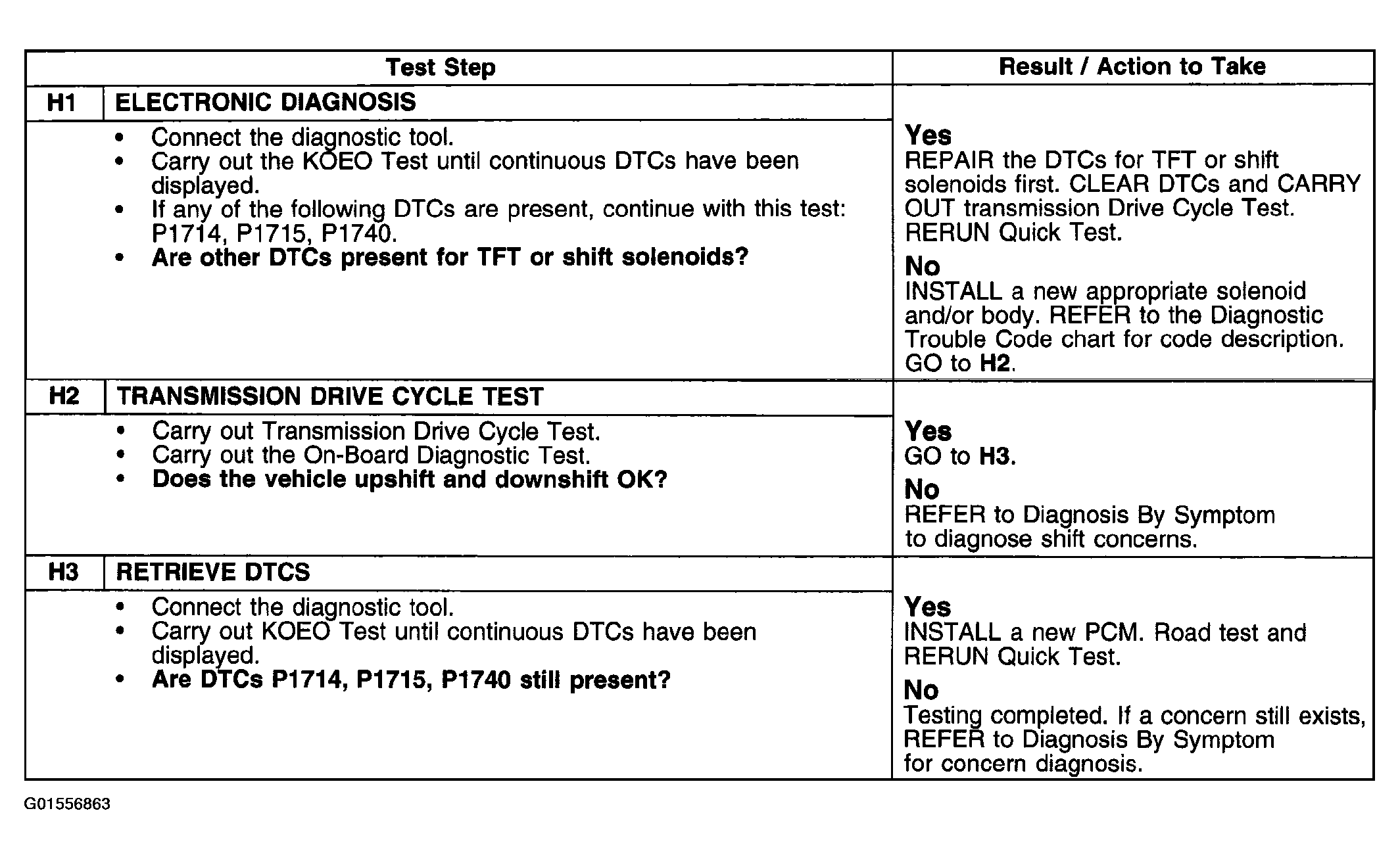

Fig 1: Pinpoint Test H: Solenoid Mechanical Failure
G01556863Courtesy of FORD MOTOR CO.
