Pinpoint Test F: Turbine Shaft Speed (TSS) And Output Shaft Speed (OSS) Sensors

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Output Shaft Speed (OSS) Sensor Connector illustration. See Figure.

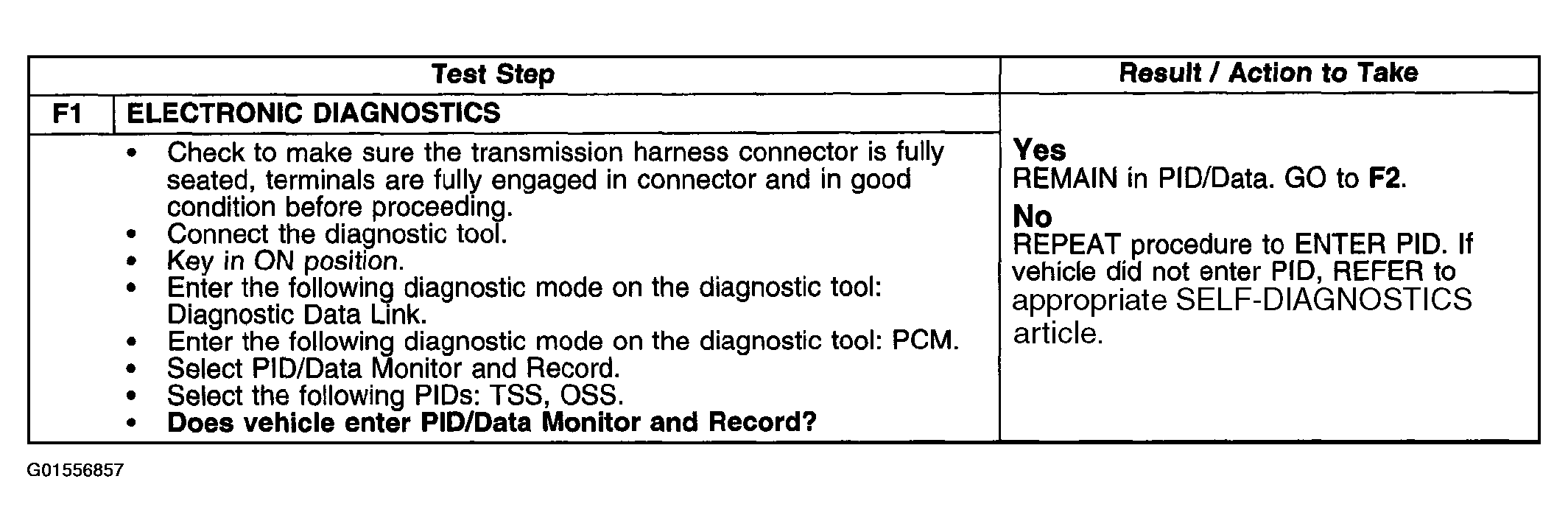

Fig 1: Pinpoint Test F: Turbine Shaft Speed (TSS) And Output Shaft Speed (OSS) Sensors (Step F1)

Courtesy of FORD MOTOR CO.

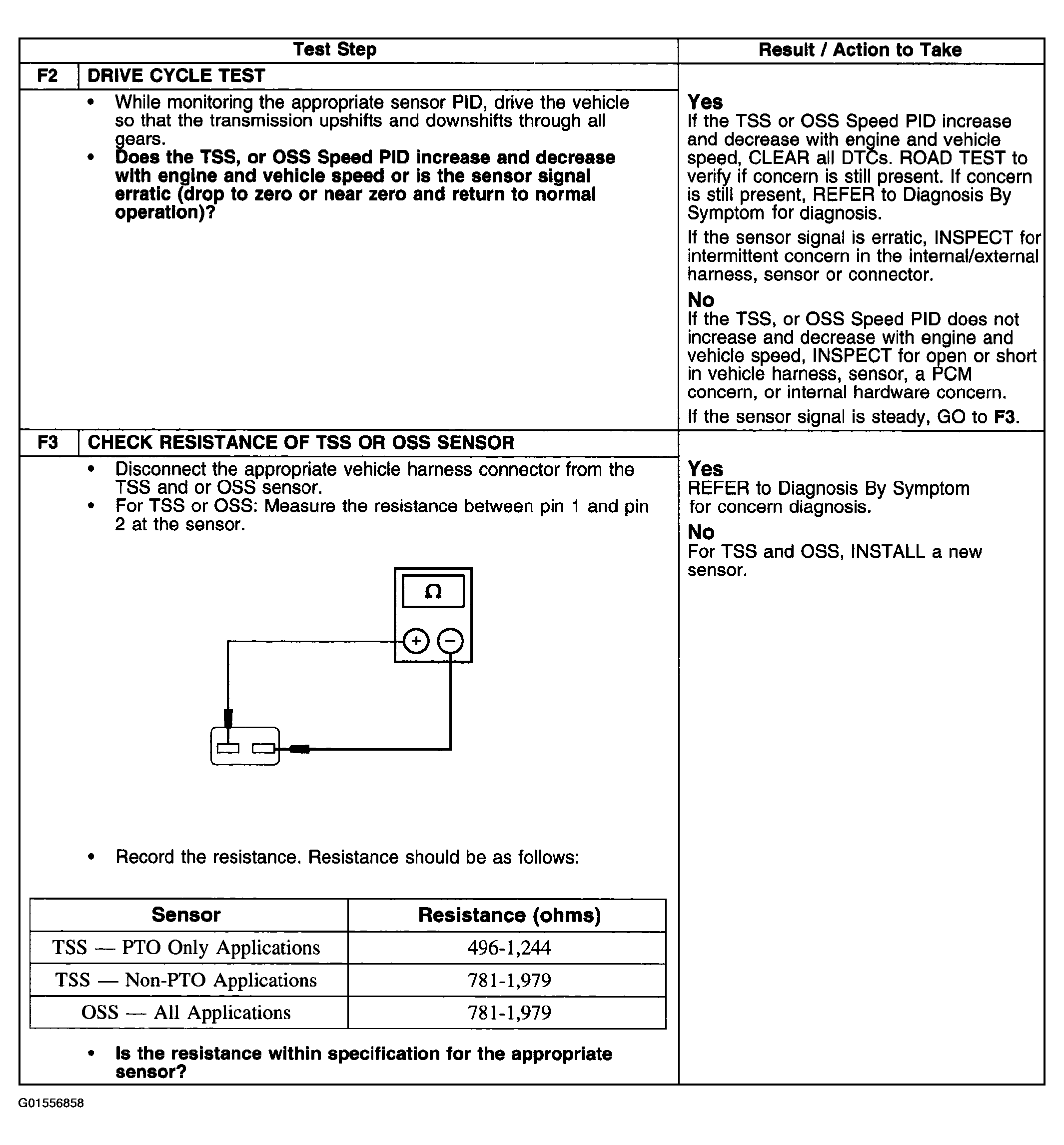

Fig 2: Pinpoint Test F: Turbine Shaft Speed (TSS) And Output Shaft Speed (OSS) Sensor (Steps F2-F3)

Courtesy of FORD MOTOR CO.
