Pinpoint Test E: Digital Transmission Range (EPC) Solenoid

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Transmission Vehicle Harness Connector illustration. See Figure.

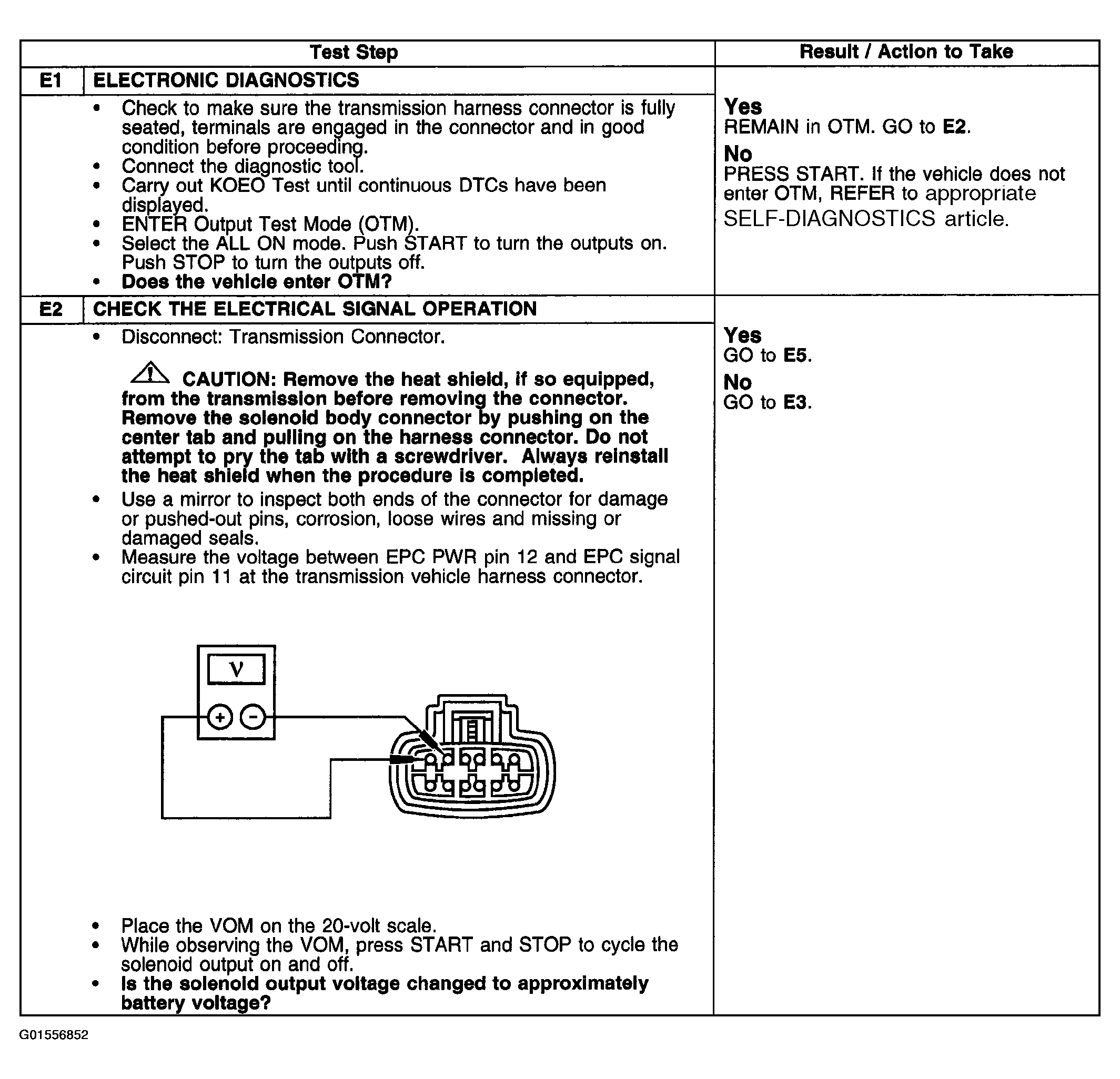

Fig 1: Pinpoint Test E: Digital Transmission Range (EPC) Solenoid (Steps E1-E2)
G01556852Courtesy of FORD MOTOR CO.

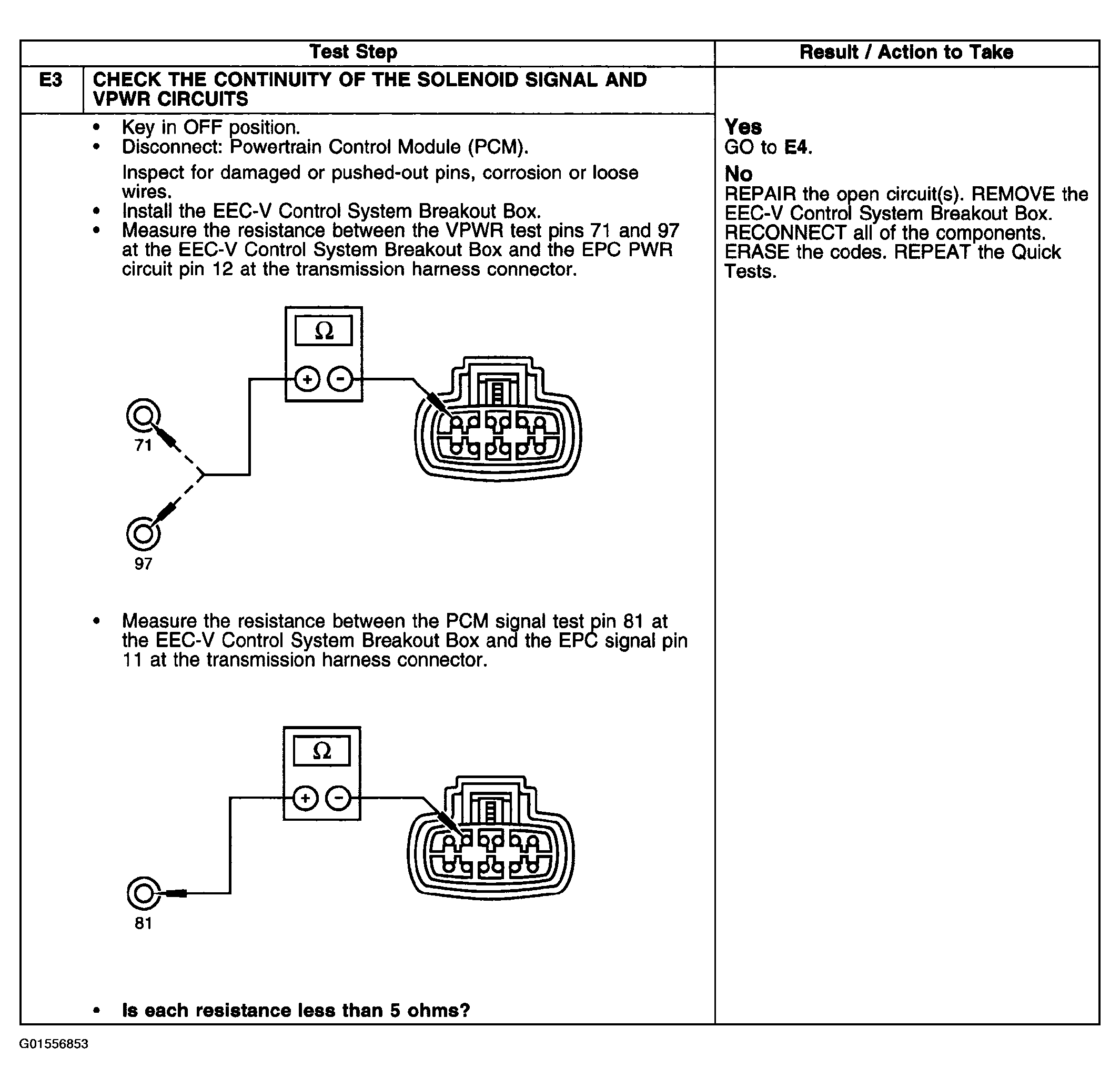

Fig 2: Pinpoint Test E: Digital Transmission Range (EPC) Solenoid (Step E3)
G01556853Courtesy of FORD MOTOR CO.

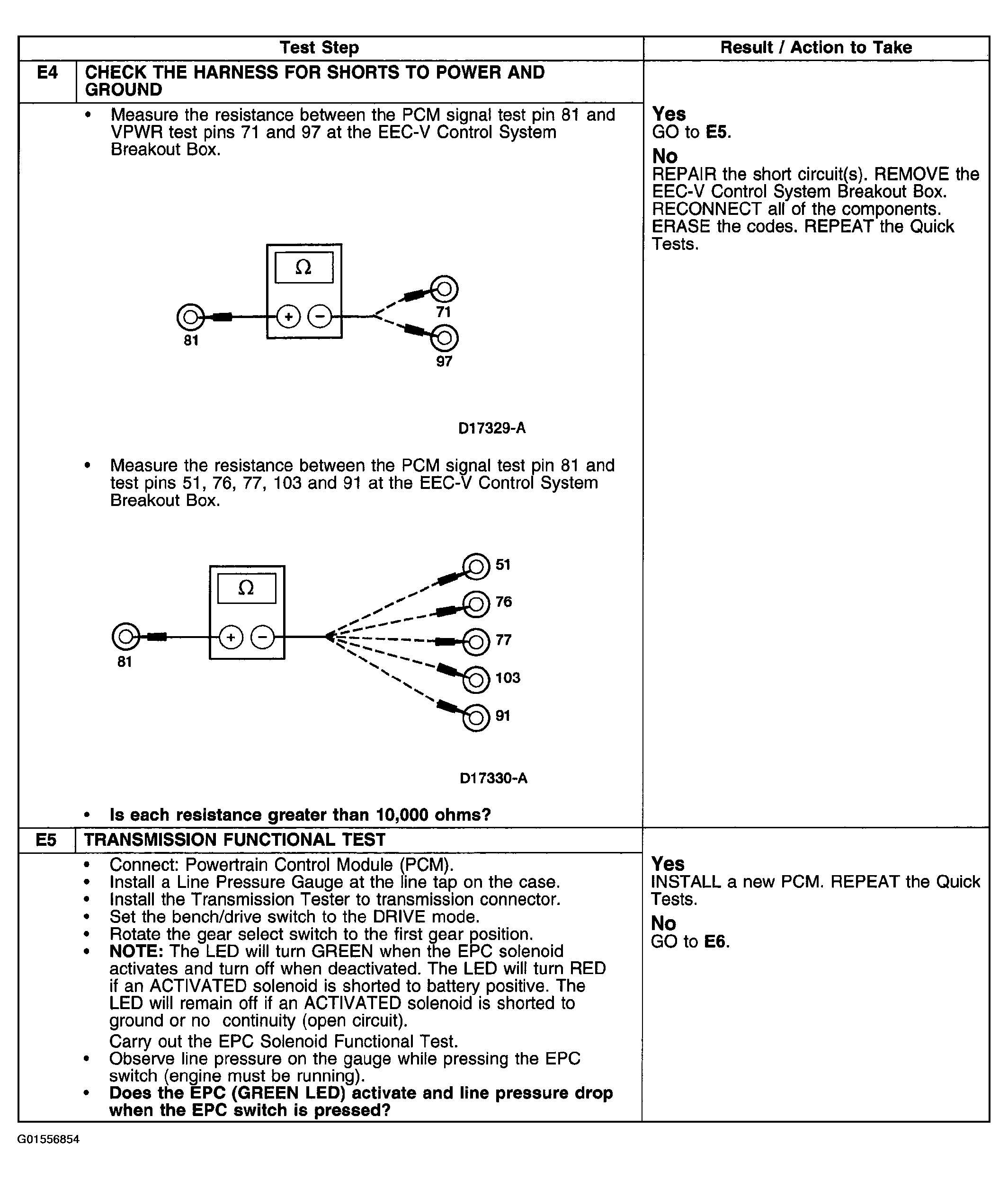

Fig 3: Pinpoint Test E: Digital Transmission Range (EPC) Solenoid (Steps E4-E5)
G01556854Courtesy of FORD MOTOR CO.

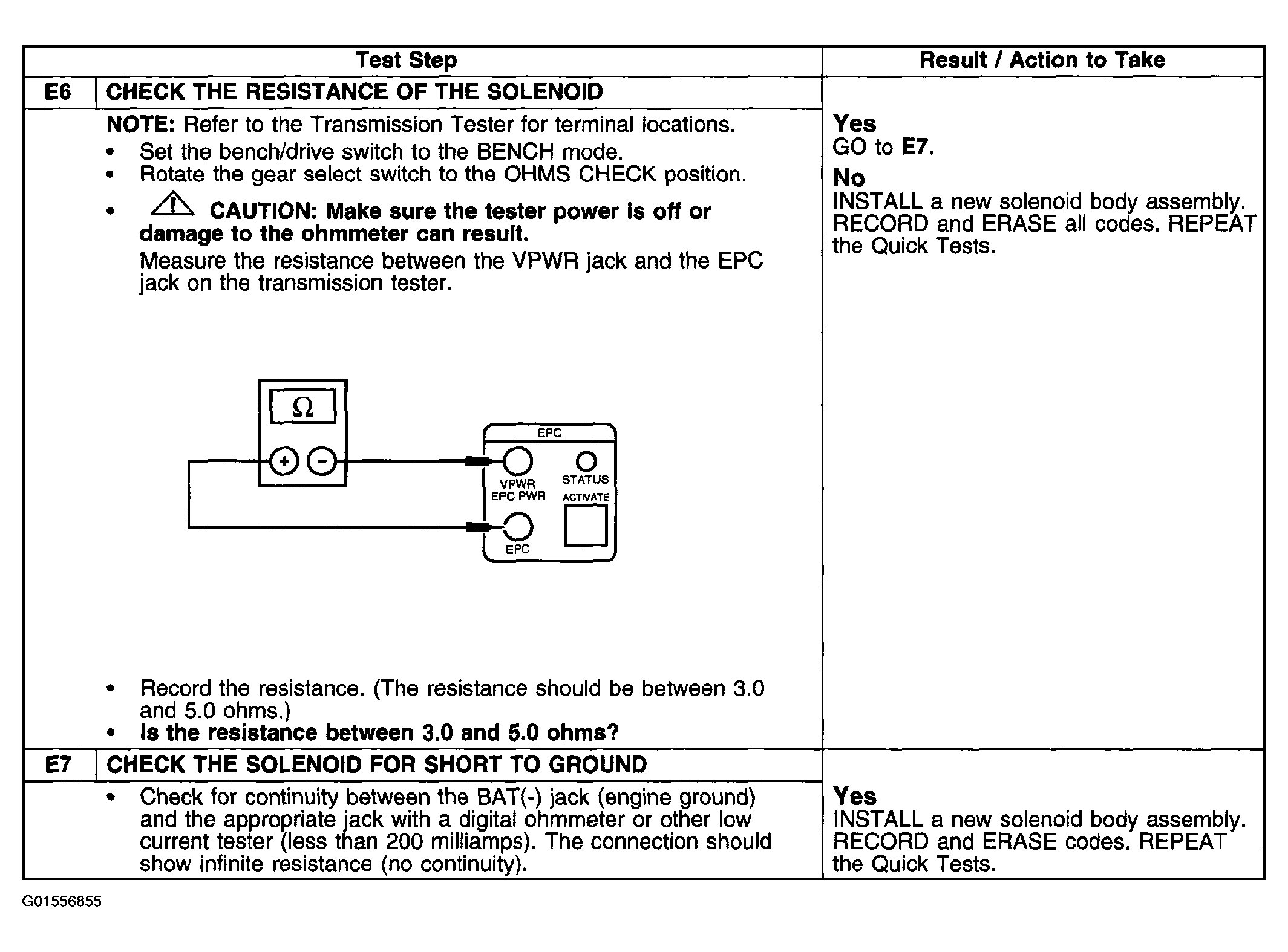

Fig 4: Pinpoint Test E: Digital Transmission Range (EPC) Solenoid (Steps E6-E7 )
G01556855Courtesy of FORD MOTOR CO.

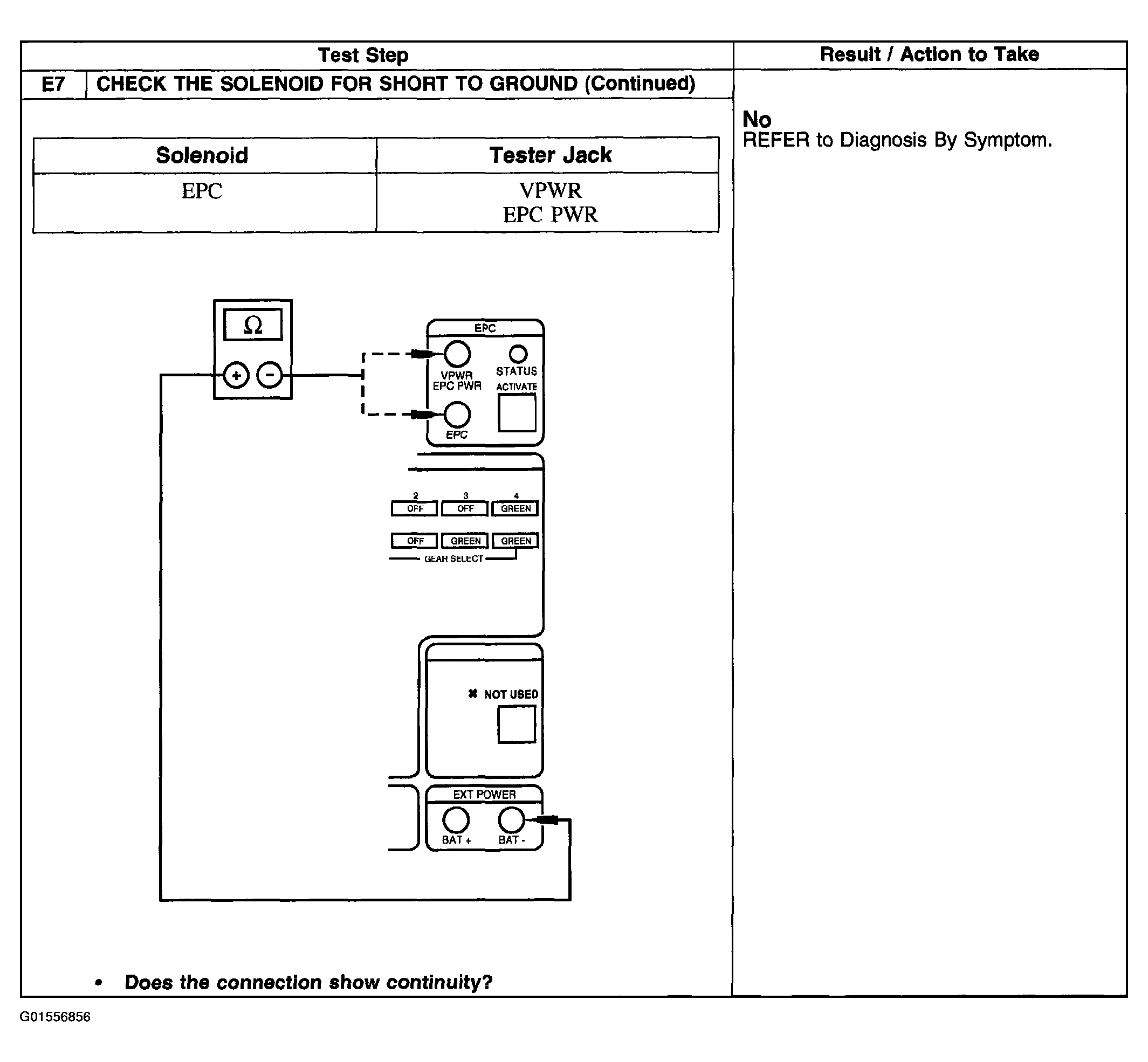

Fig 5: Pinpoint Test E: Digital Transmission Range (EPC) Solenoid (Step E7 Cont.)
G01556856Courtesy of FORD MOTOR CO.
