Pinpoint Test D: Digital Transmission Range (TR) Sensor

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

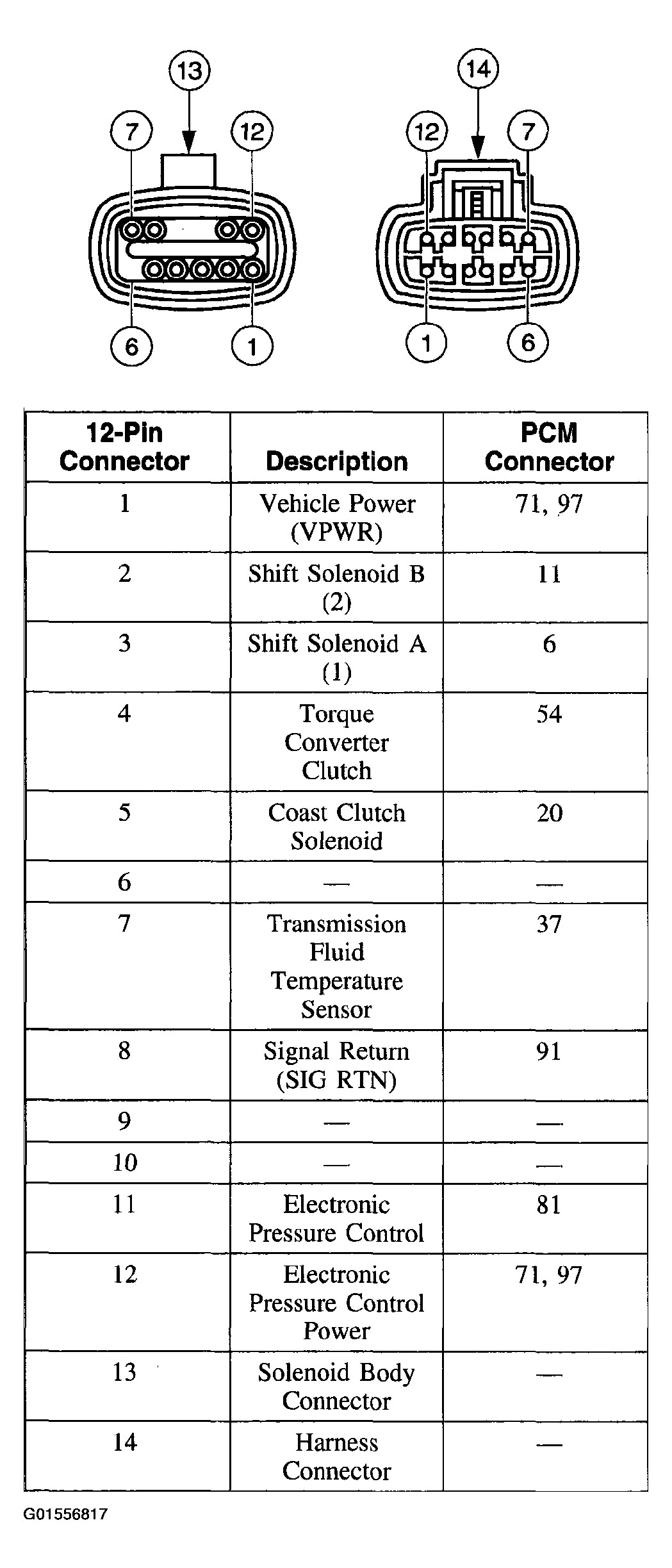

NOTE: Refer to the Transmission Vehicle Harness Connector illustration. See Figure.

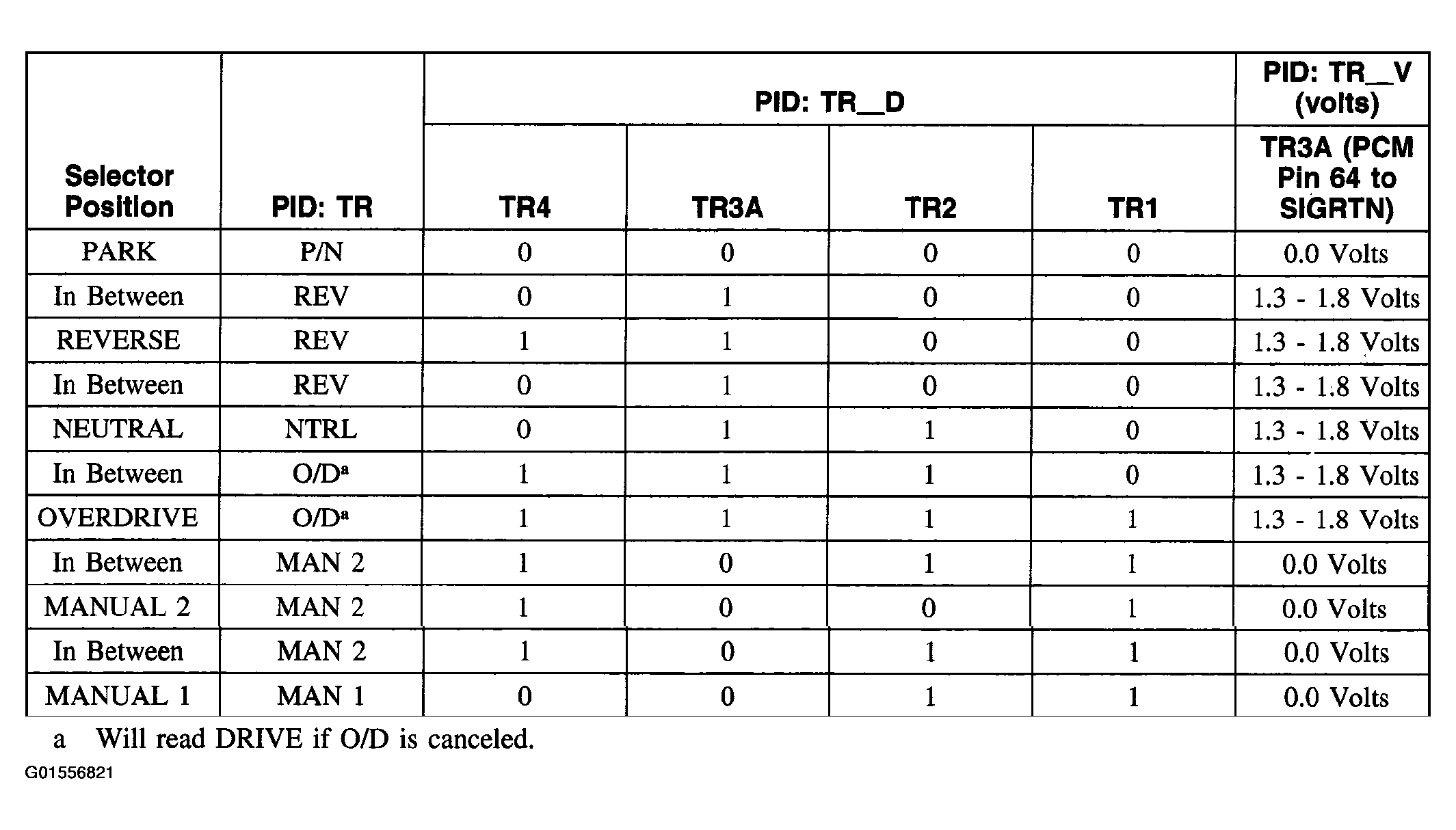

NOTE: Refer to the Digital Transmission Range (TR) Sensor Diagnosis Chart. See Figure.

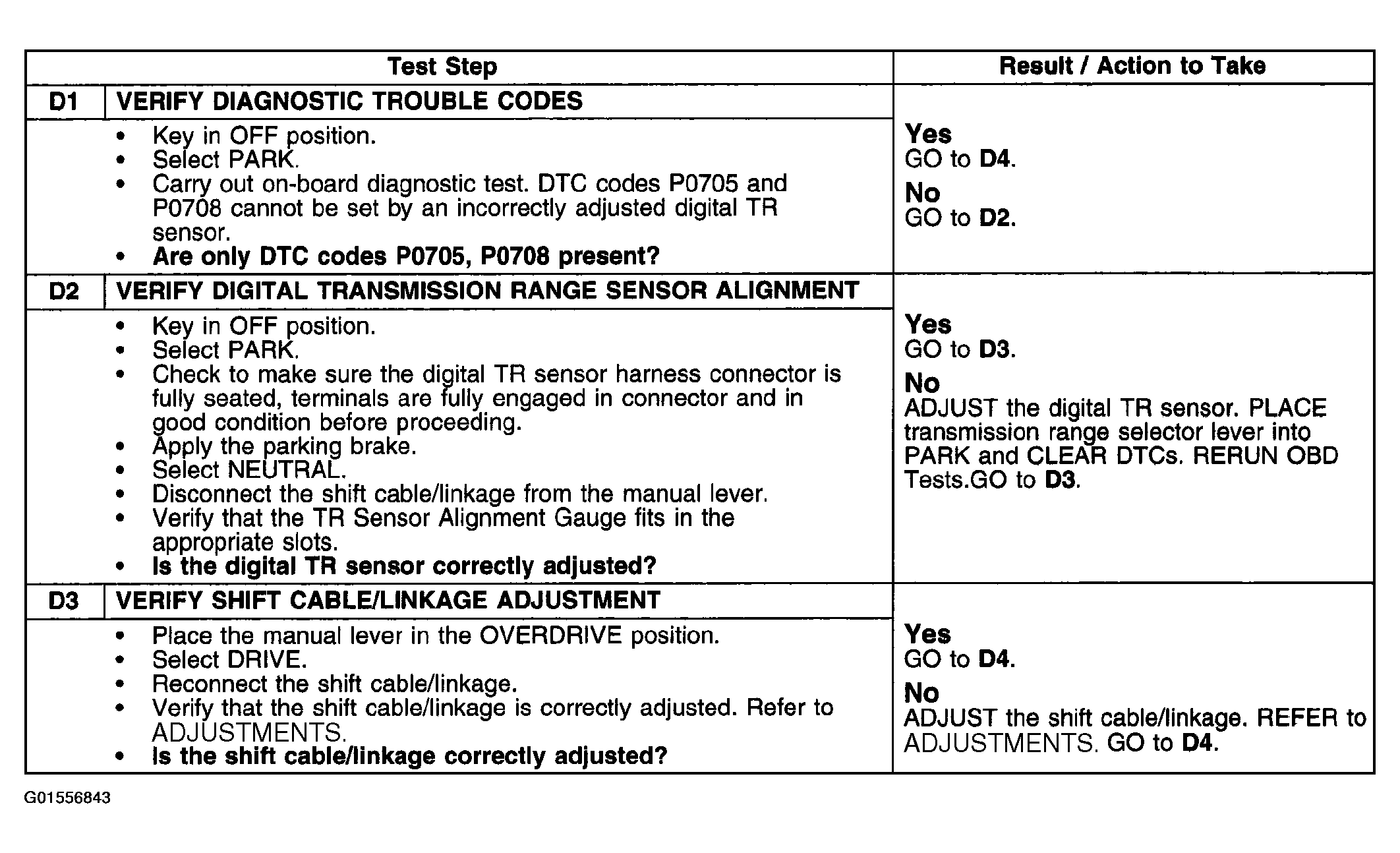

Fig 1: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Steps D1-D3)

G01556843

Courtesy of FORD MOTOR CO.

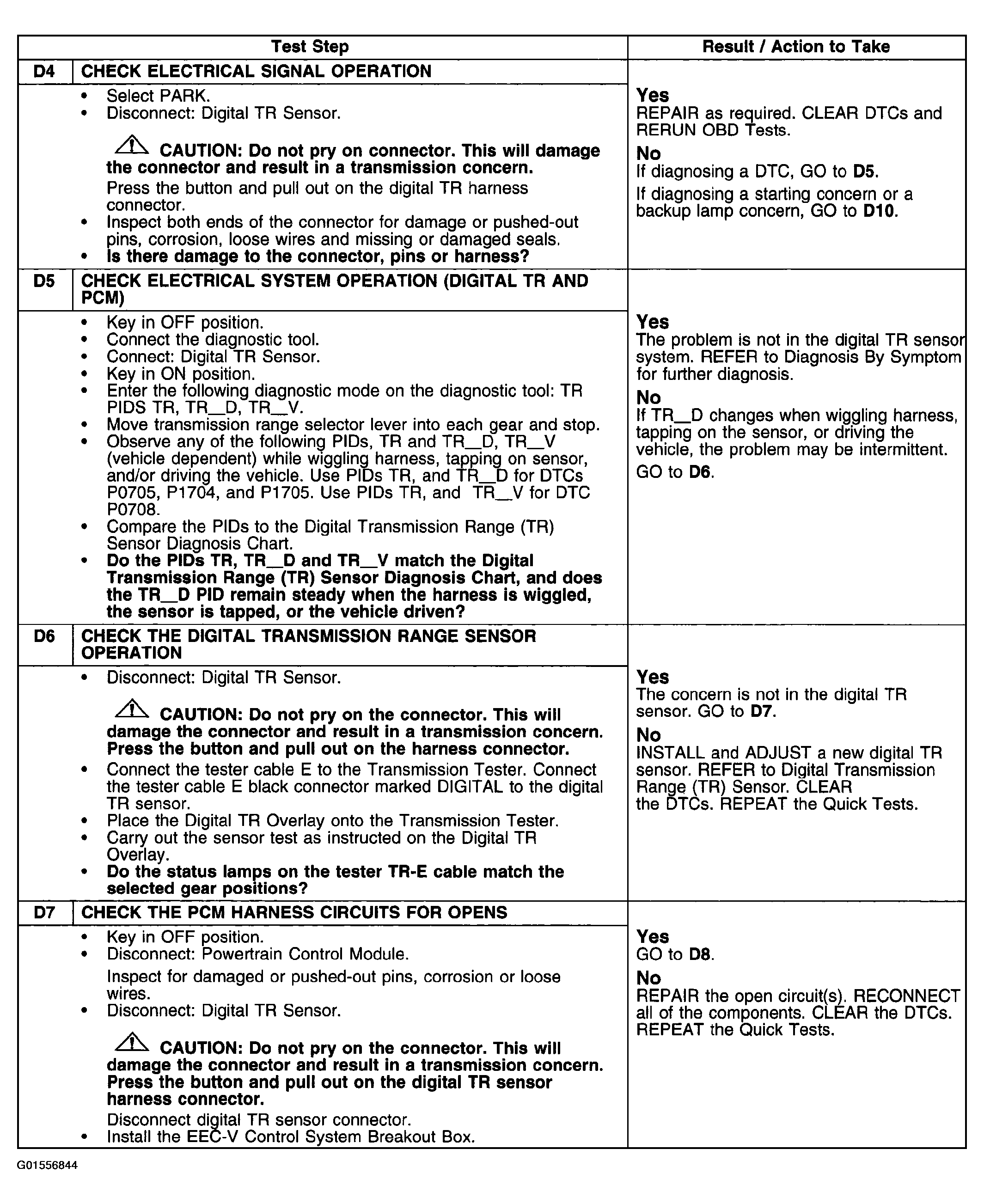

Fig 2: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Steps D4-D7)

G01556844

Courtesy of FORD MOTOR CO.

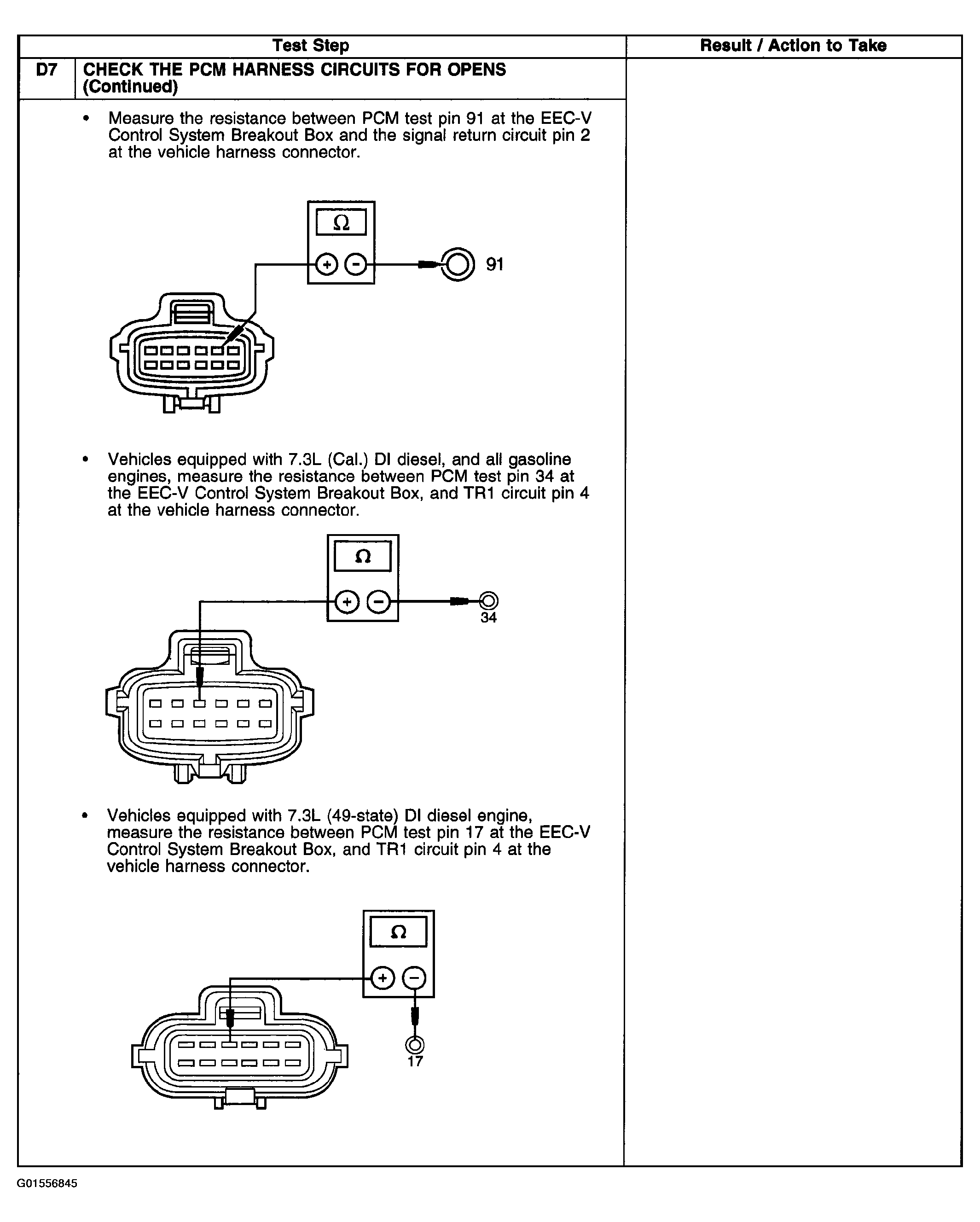

Fig 3: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Step D7 Cont.)

G01556845

Courtesy of FORD MOTOR CO.

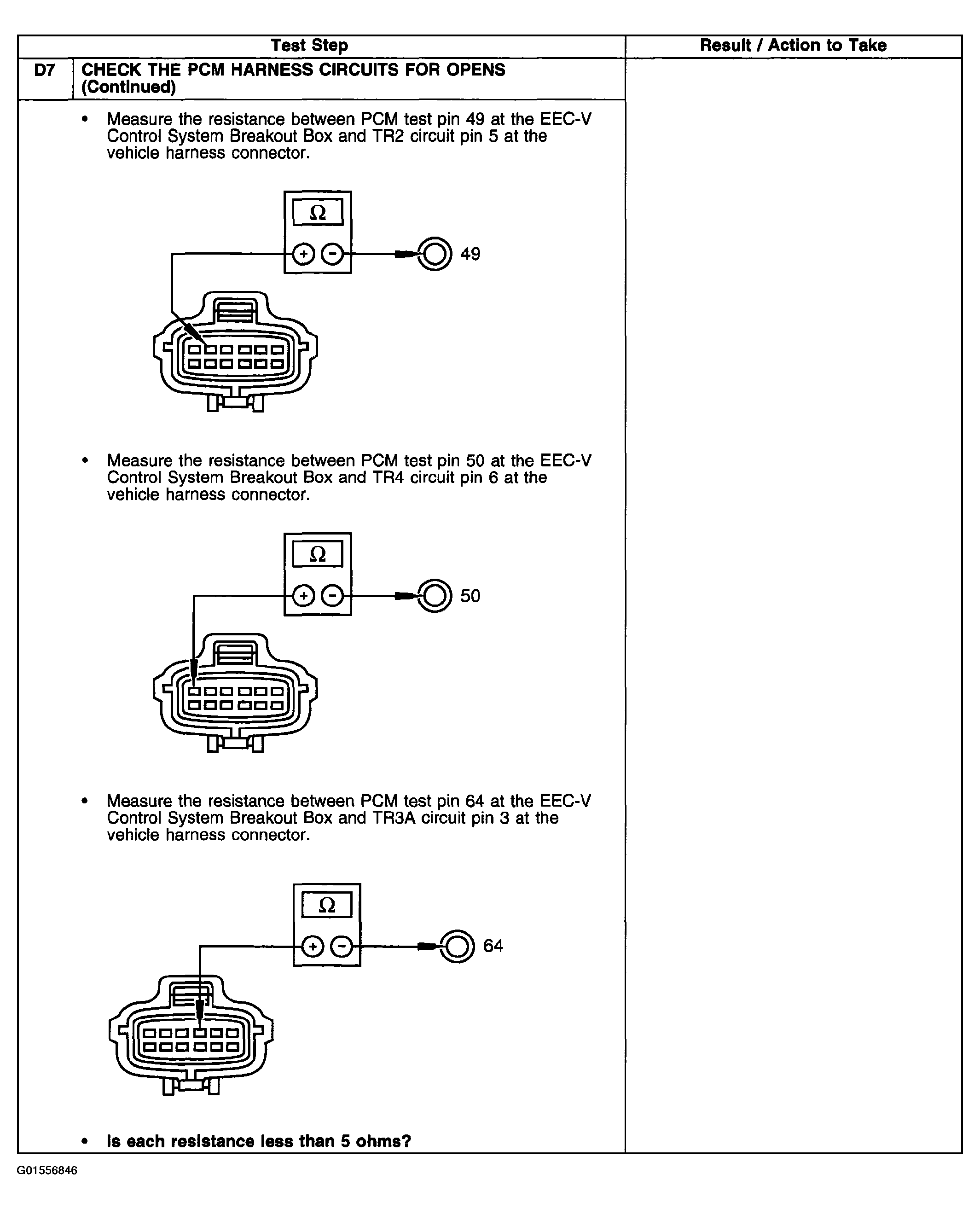

Fig 4: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Step D7 Cont.)

G01556846

Courtesy of FORD MOTOR CO.

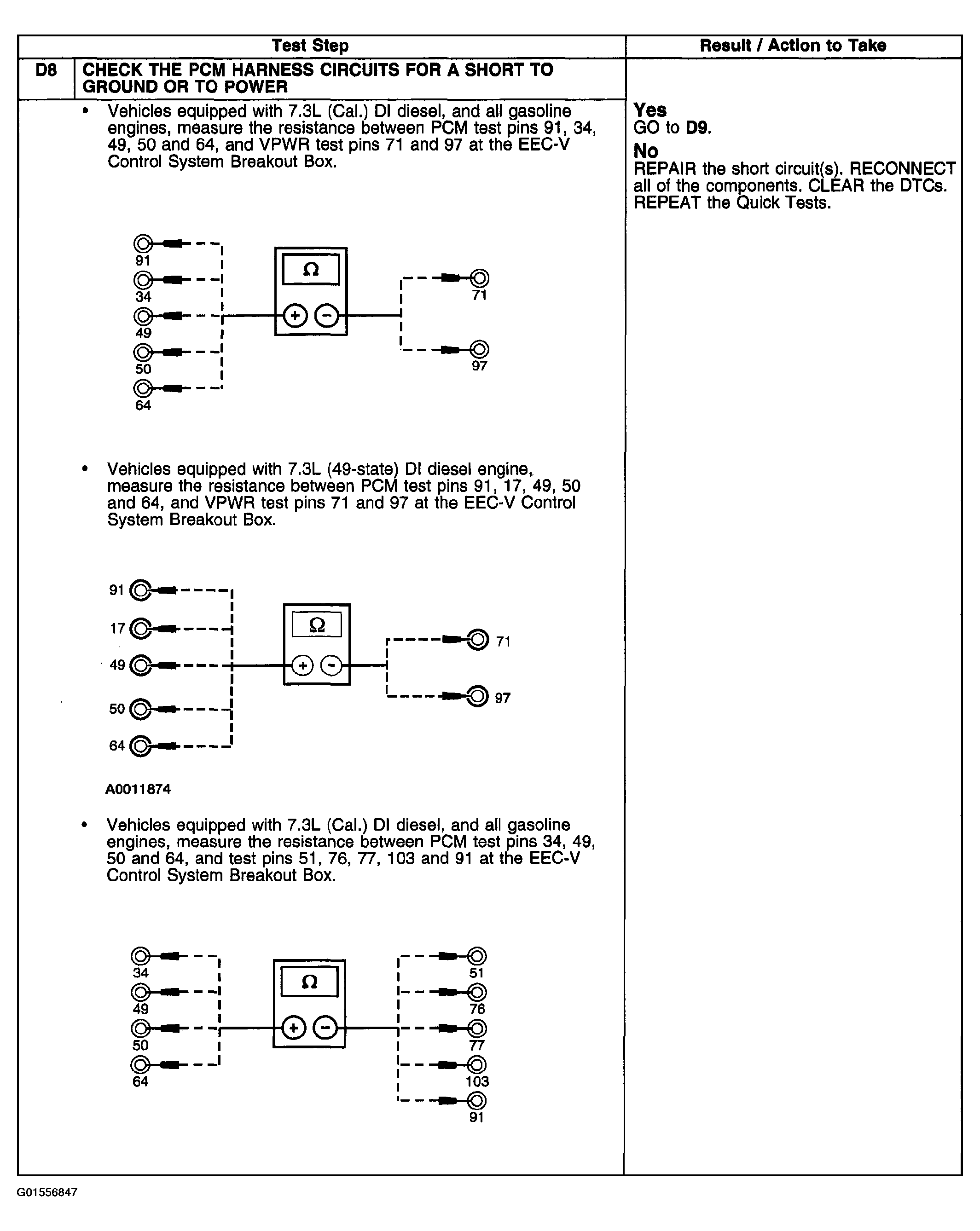

Fig 5: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Step D8)

G01556847

Courtesy of FORD MOTOR CO.

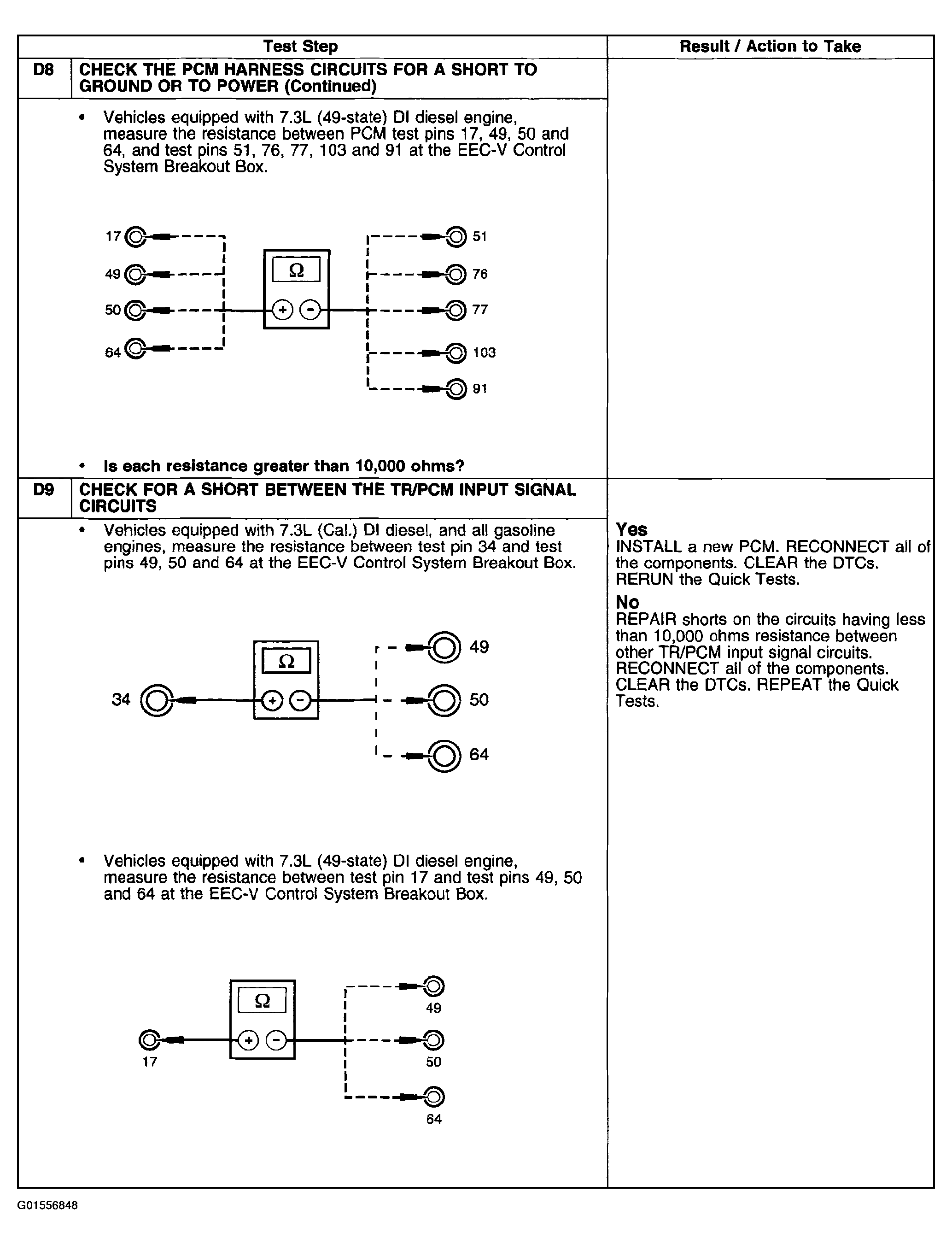

Fig 6: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Steps D8 Cont.-D9)

G01556848

Courtesy of FORD MOTOR CO.

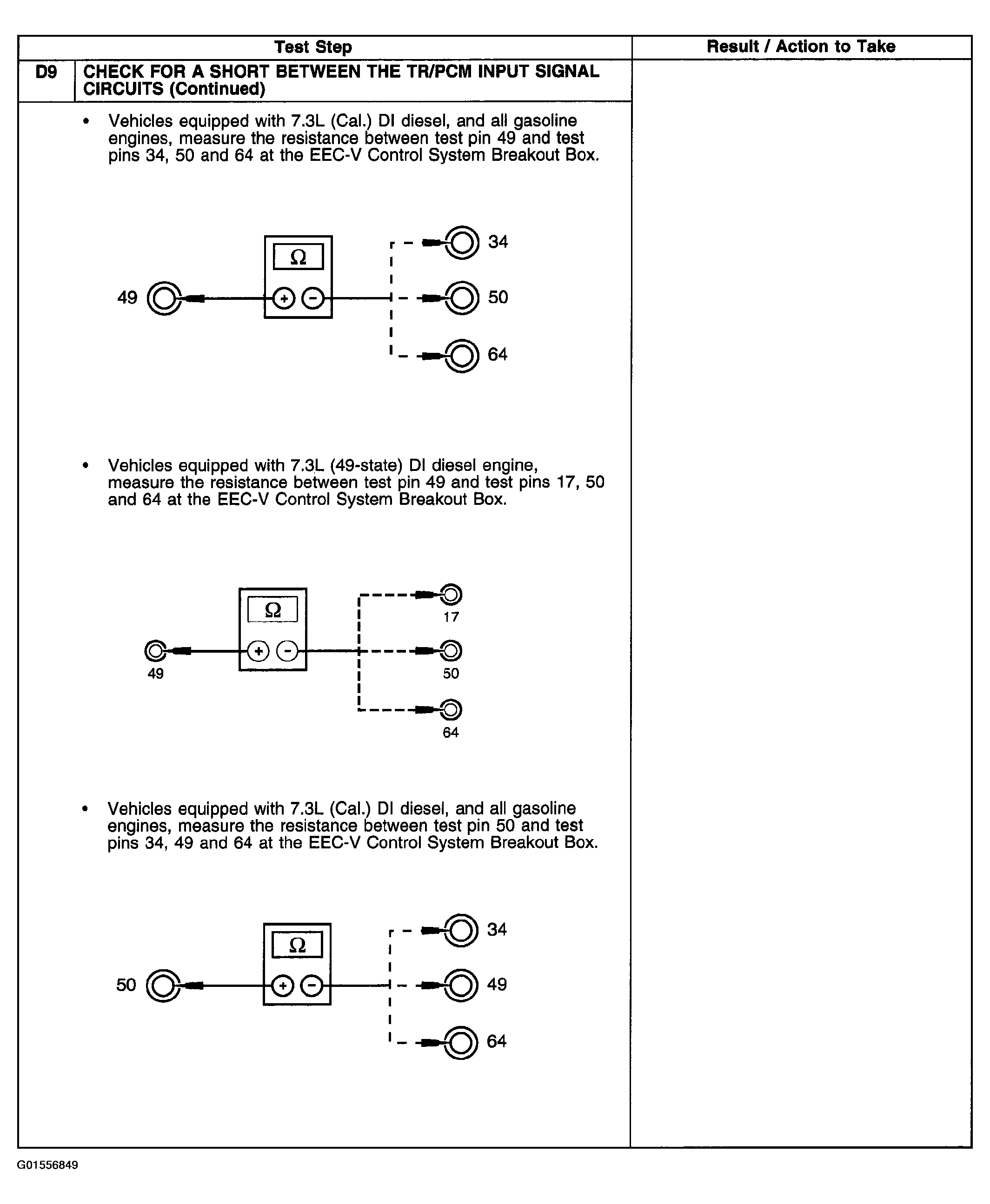

Fig 7: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Step D9 Cont.)

G01556849

Courtesy of FORD MOTOR CO.

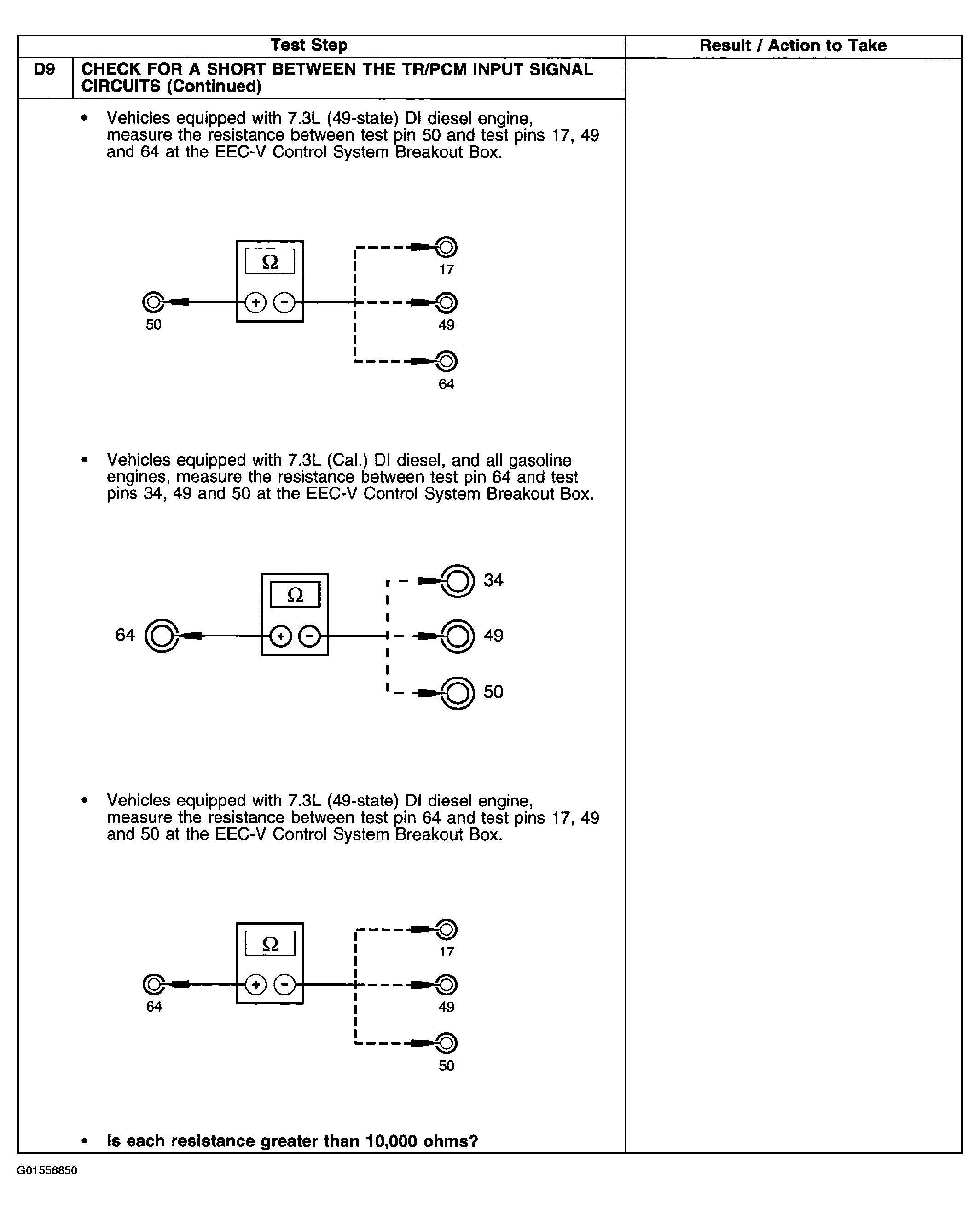

Fig 8: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Step D9 Cont.)

G01556850

Courtesy of FORD MOTOR CO.

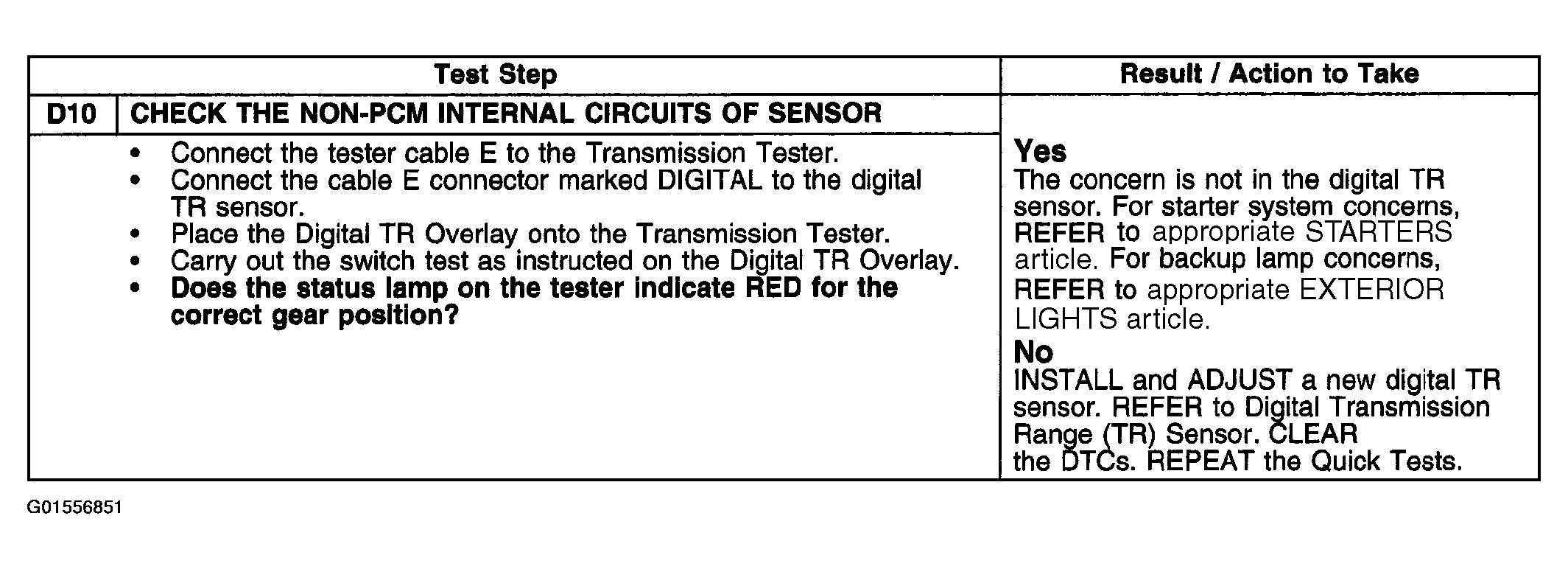

Fig 9: Pinpoint Test D: Digital Transmission Range (TR) Sensor (Step D10)

G01556851

Courtesy of FORD MOTOR CO.
