Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Transmission Vehicle Harness Connector illustration. See Figure.
NOTE: This vehicle is equipped with a transmission fluid temperature gauge in the dash. The transmission fluid temperature gauge may be used as a quick reference to the operating temperature. It should not be used as a diagnostic tool to tell the temperature of the transmission. The WDS, NGS or transmission tester should be used to obtain the actual temperature of the transmission.

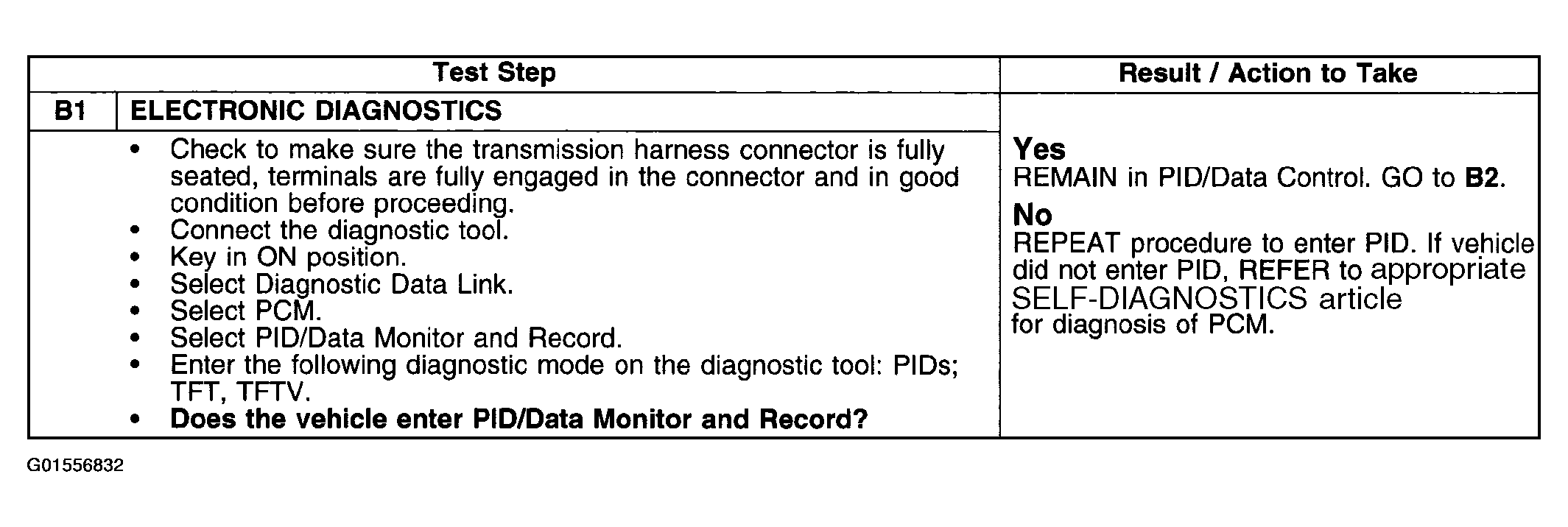

Fig 1: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (Step B1)
G01556832Courtesy of FORD MOTOR CO.

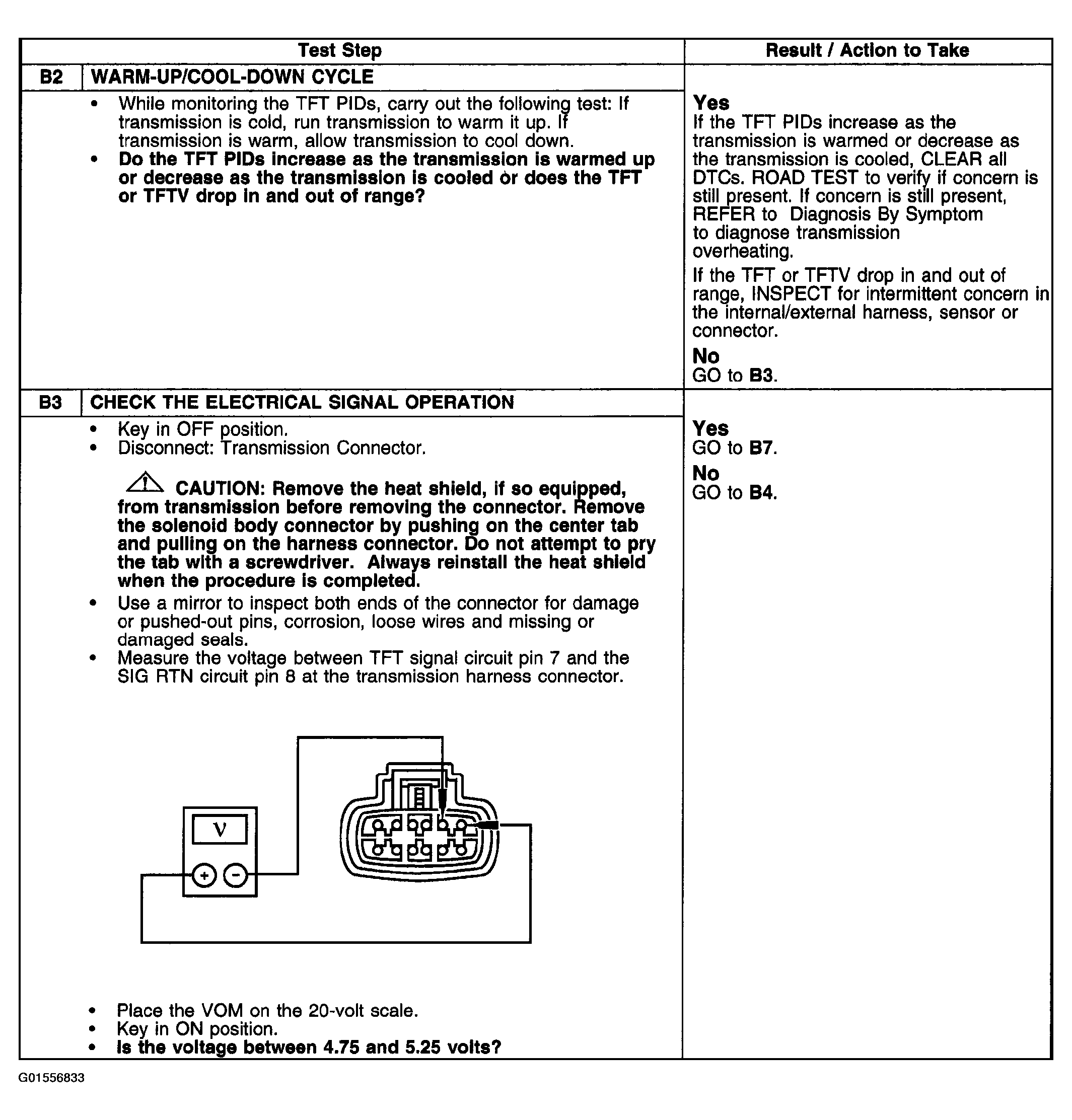

Fig 2: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (Steps B2-B3)
G01556833Courtesy of FORD MOTOR CO.

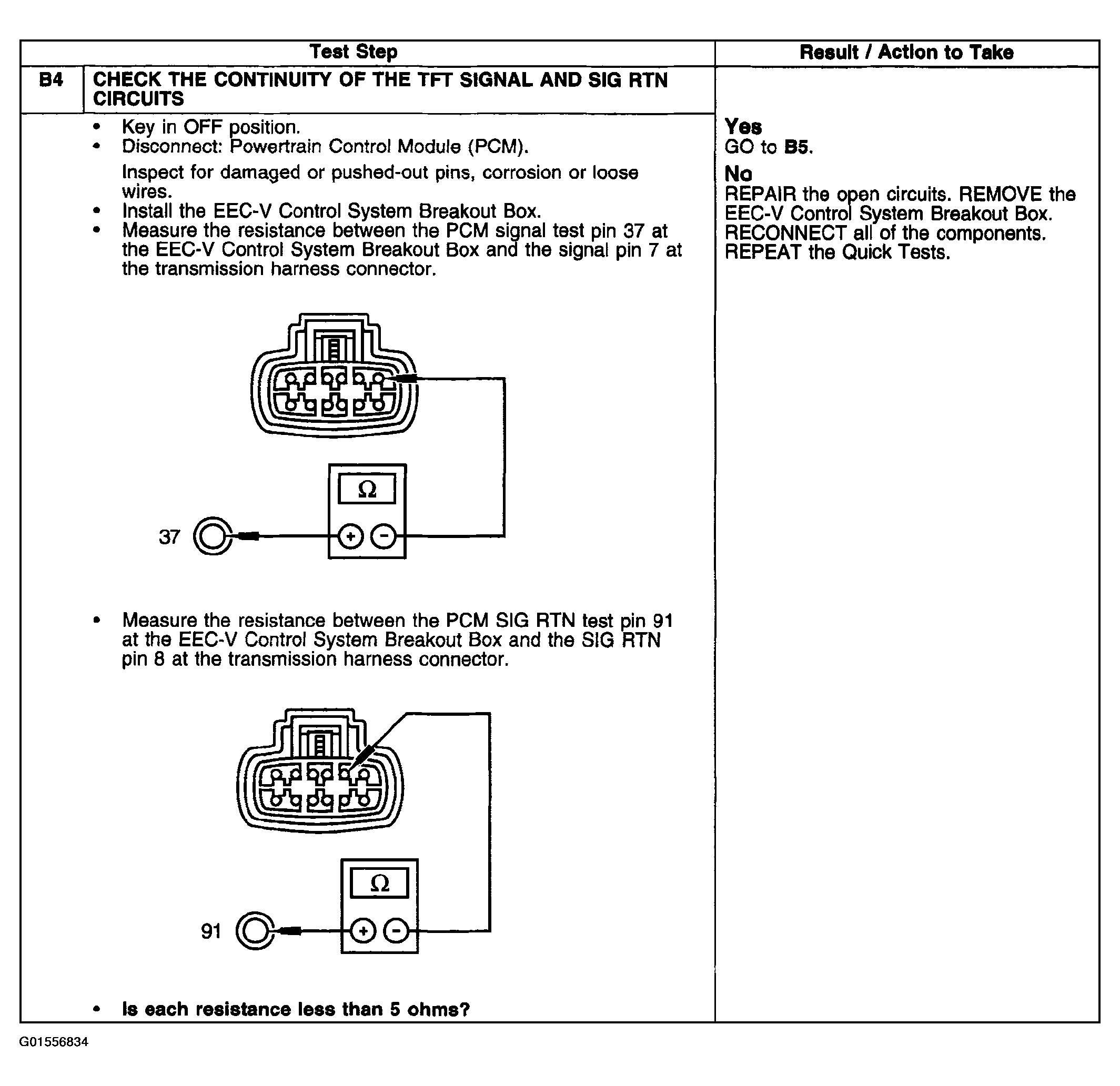

Fig 3: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (Step B4)
G01556834Courtesy of FORD MOTOR CO.

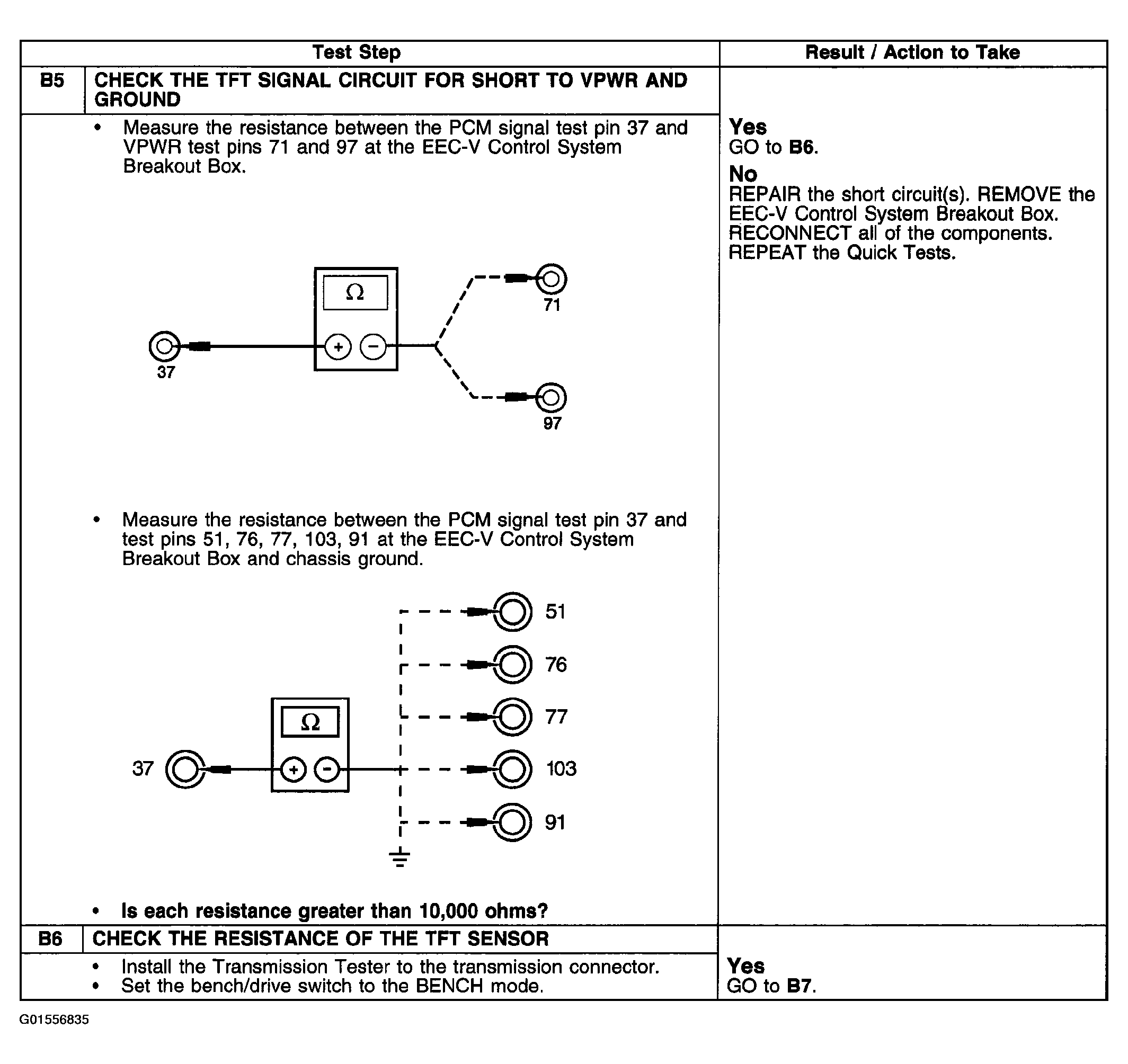

Fig 4: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (Step B5-B6)
G01556835Courtesy of FORD MOTOR CO.

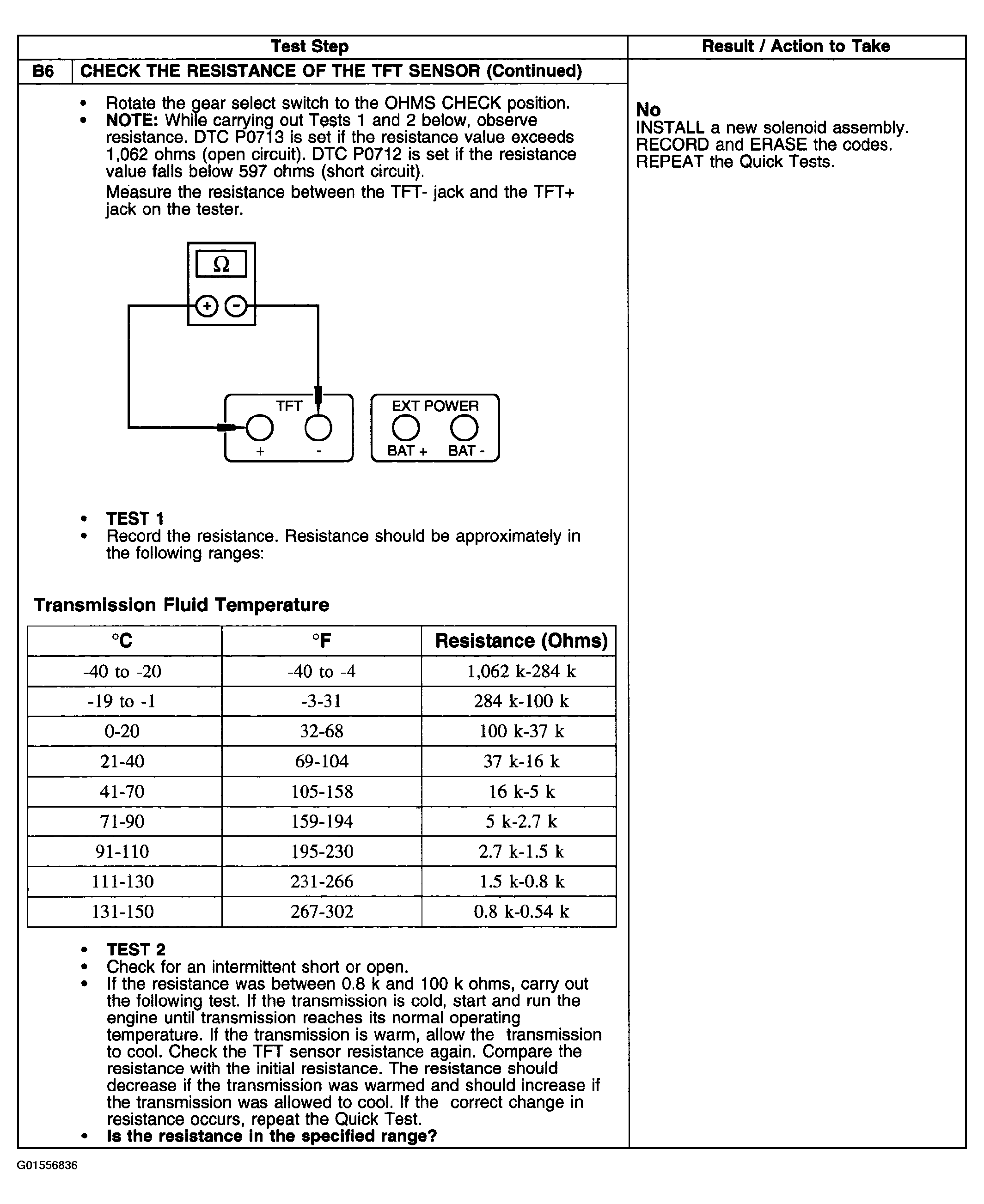

Fig 5: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (Step B6 Cont.)
G01556836Courtesy of FORD MOTOR CO.

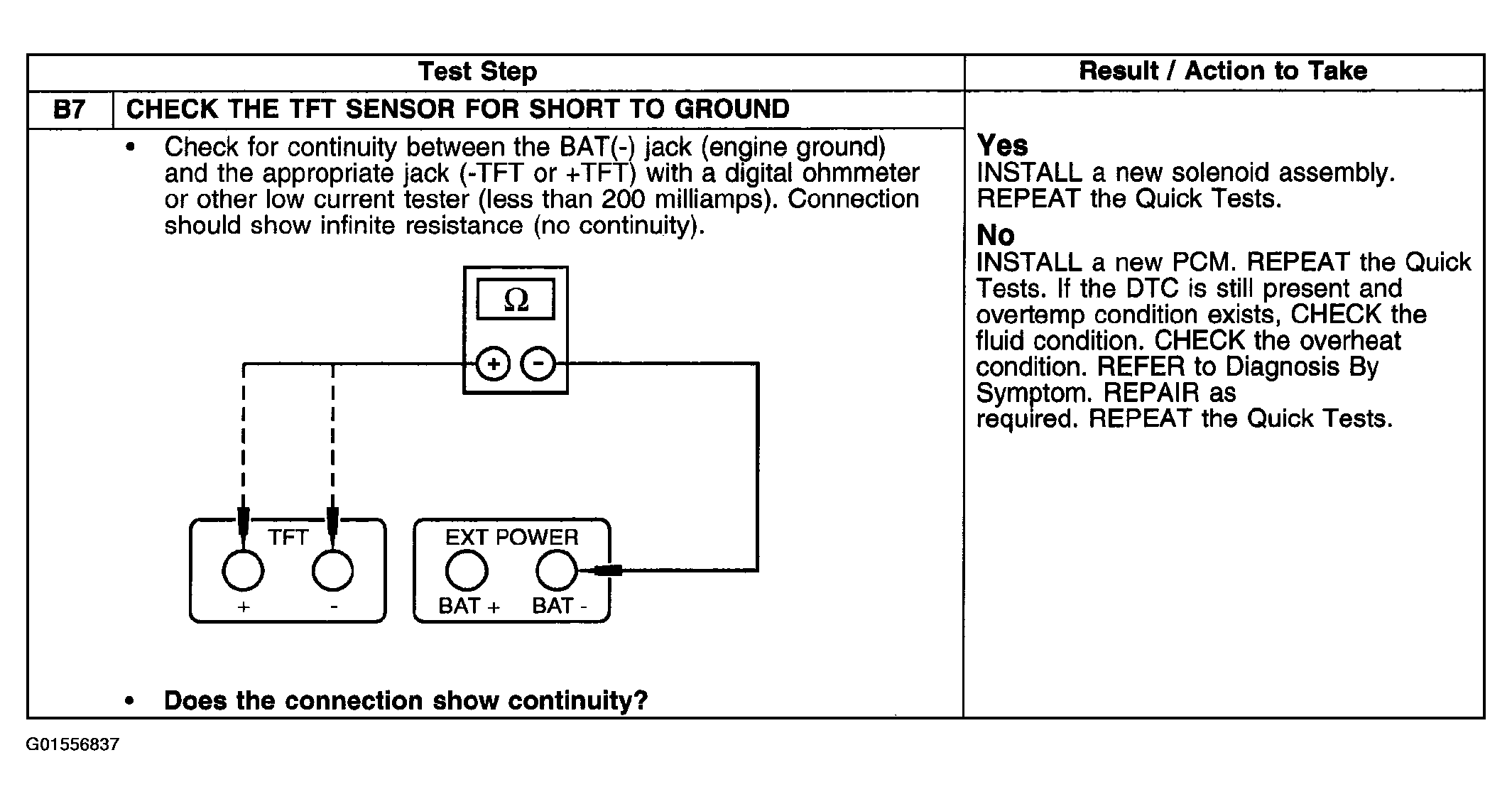

Fig 6: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (Step B7)
G01556837Courtesy of FORD MOTOR CO.
