Pinpoint Test A: Shift Solenoids

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Transmission Vehicle Harness Connector illustration. See Figure.

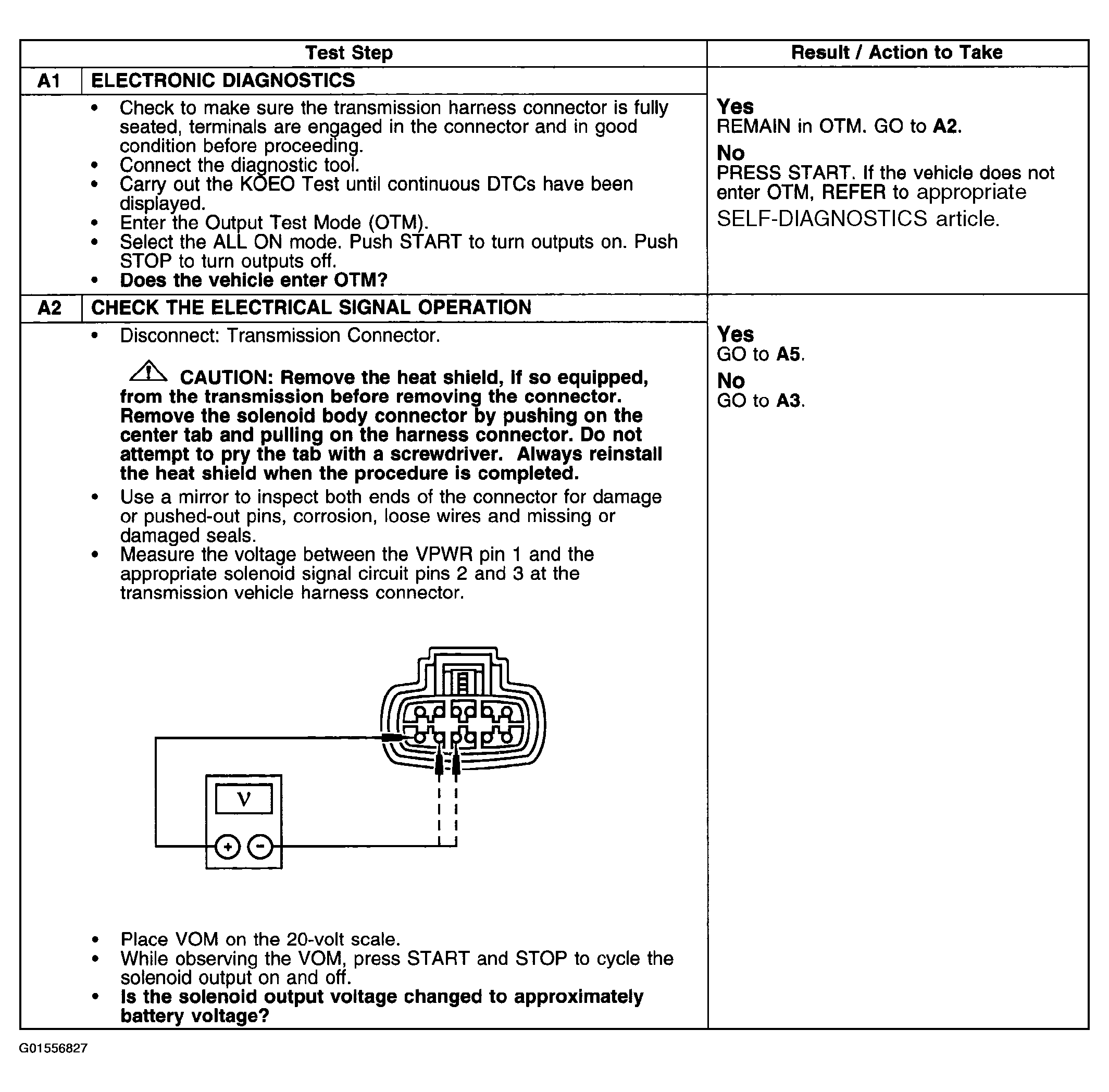

Fig 1: Pinpoint Test A: Shift Solenoids (Steps A1-A2)

Courtesy of FORD MOTOR CO.

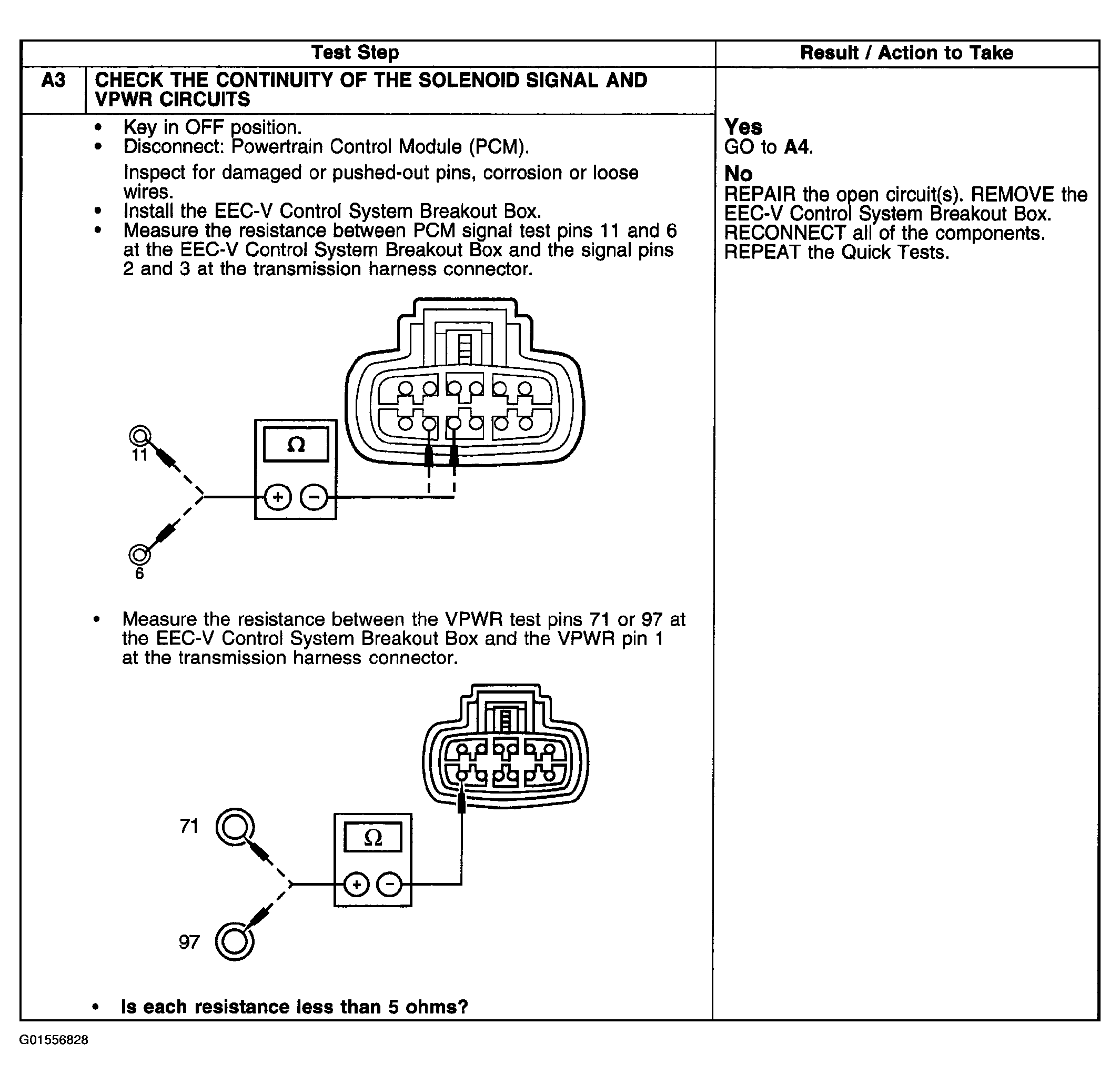

Fig 2: Pinpoint Test A: Shift Solenoids (Step A3)

Courtesy of FORD MOTOR CO.

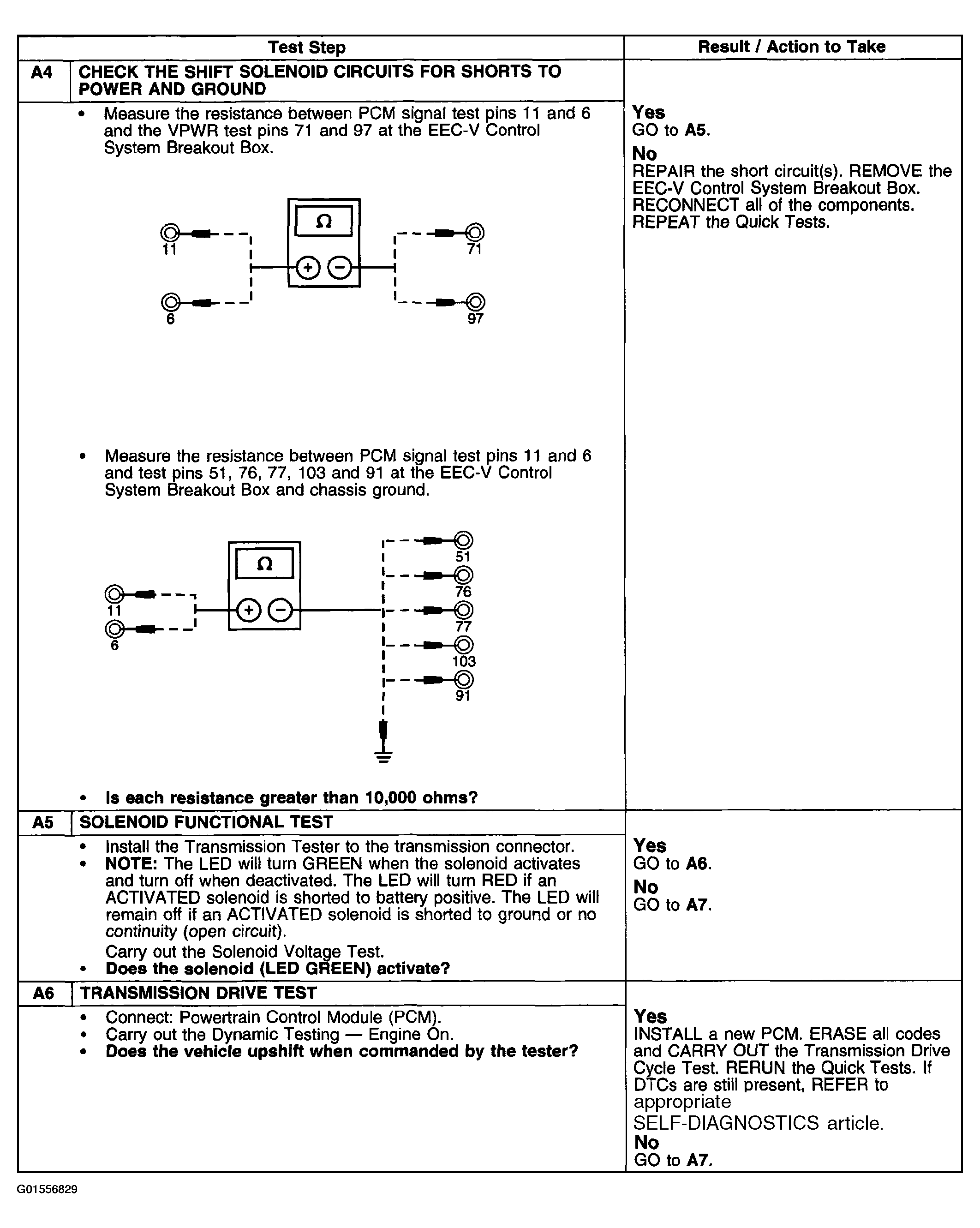

Fig 3: Pinpoint Test A: Shift Solenoids (Steps A4-A6)

Courtesy of FORD MOTOR CO.

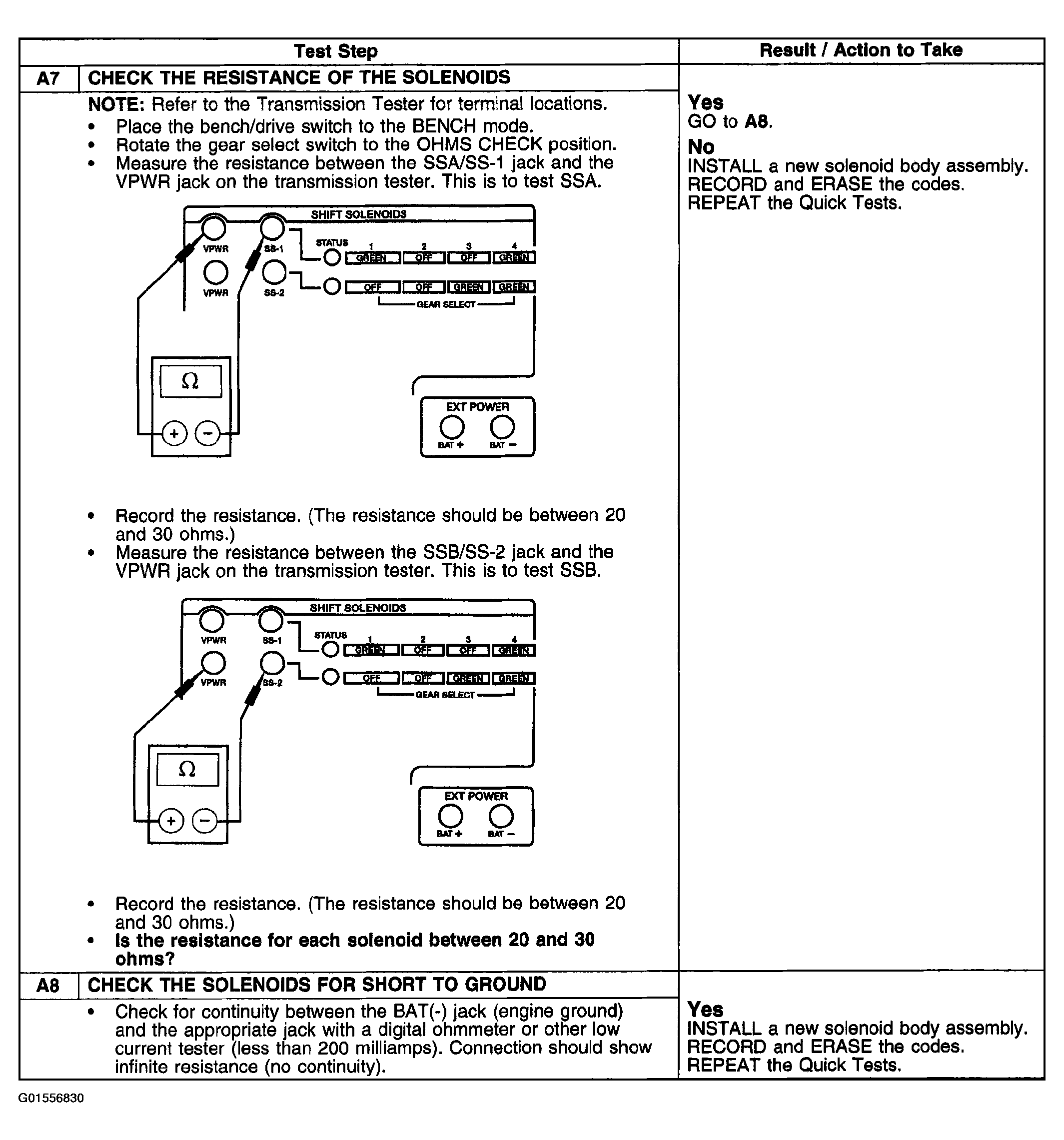

Fig 4: Pinpoint Test A: Shift Solenoids (Steps A7-A8)

Courtesy of FORD MOTOR CO.

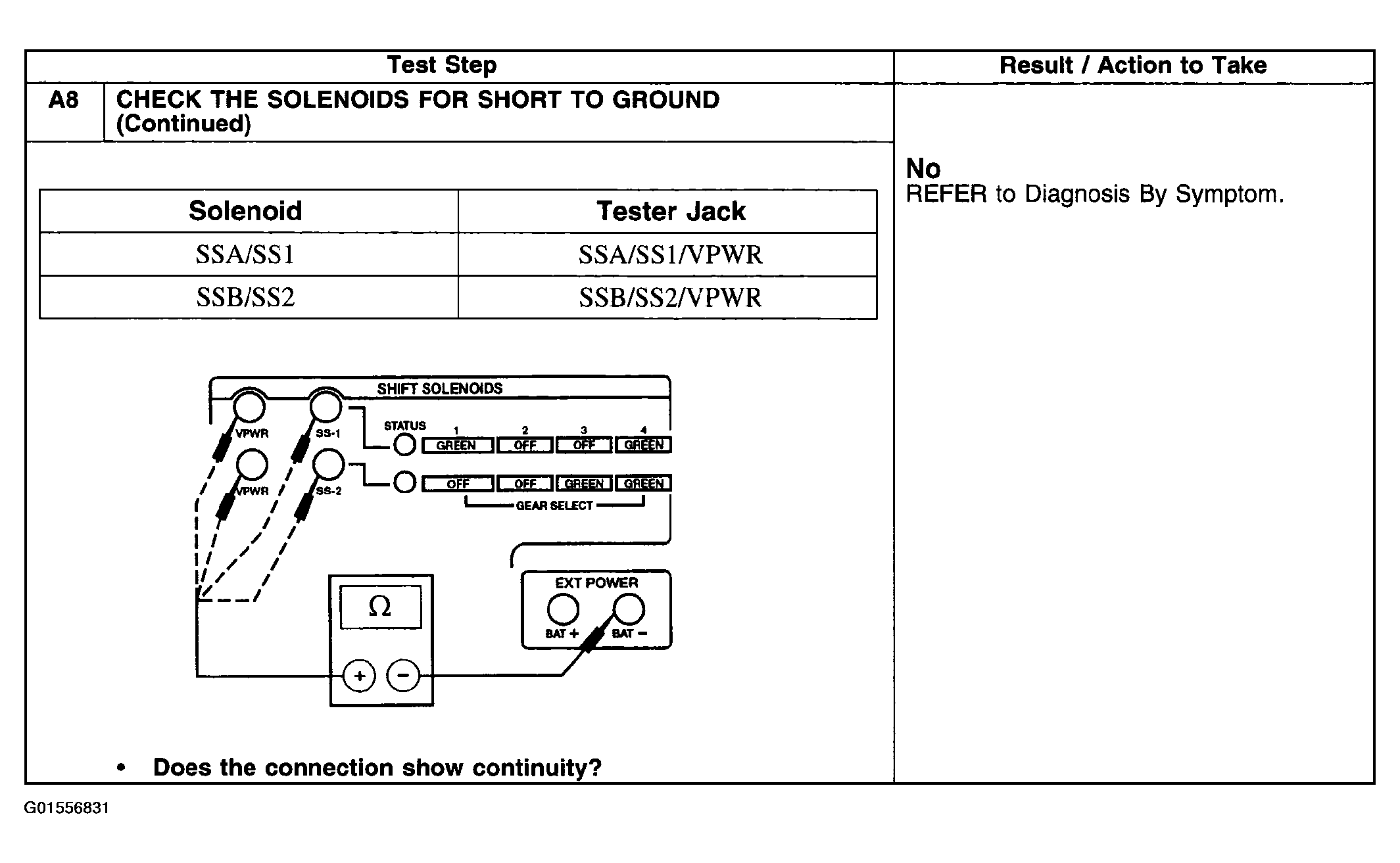

Fig 5: Pinpoint Test A: Shift Solenoid (Step A8)

Courtesy of FORD MOTOR CO.
