Torque Converter Clutch Operation Concern: Always Applied/Stalls Vehicle (See Note in No. 241 Before Proceeding) - Routine 241/341

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

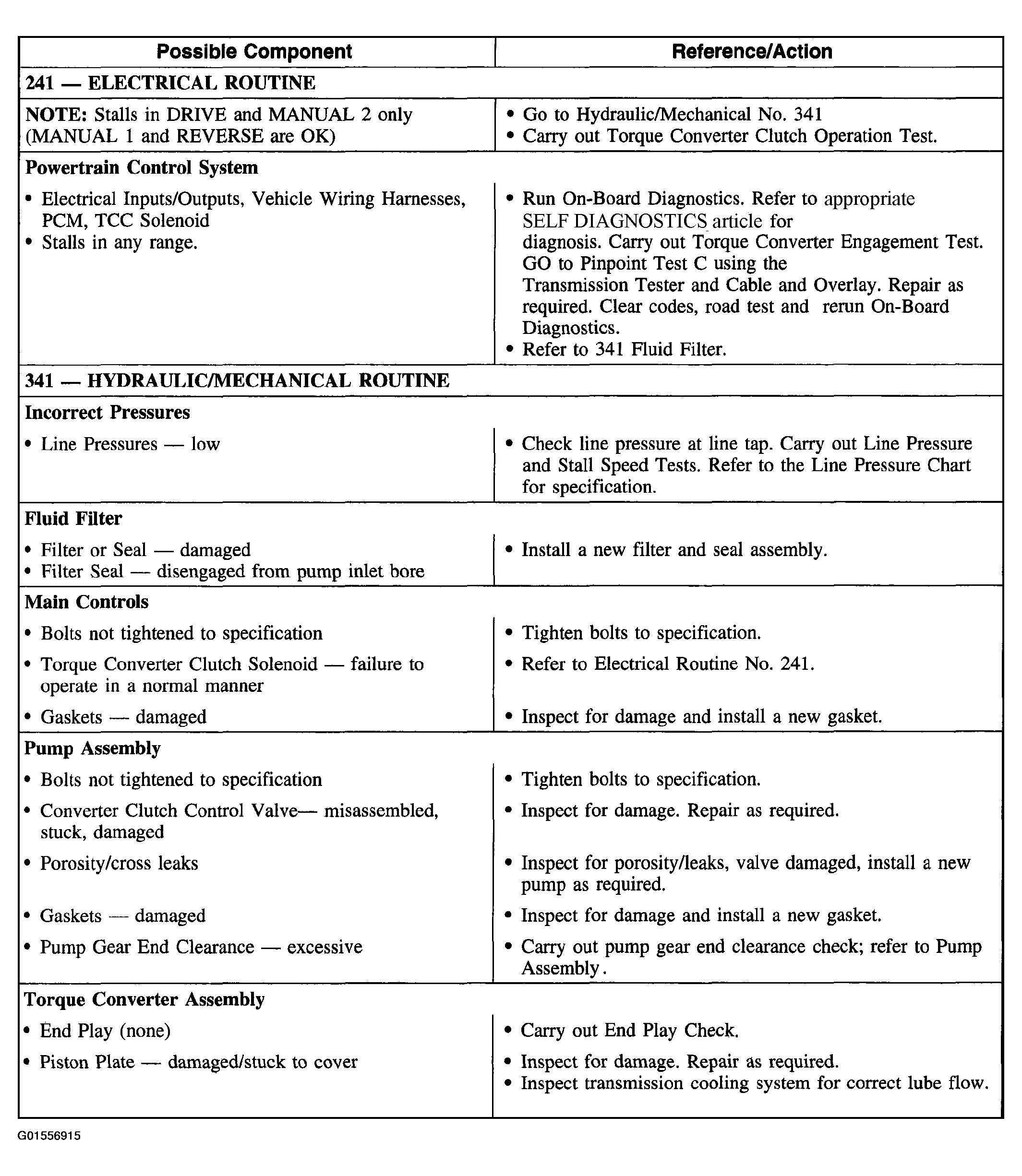

Fig 1: Torque Converter Clutch Operation Concern: Always Applied/Stalls Vehicle (See Note in No. 241 Before Proceeding) (Routine 241/341)
G01556915Courtesy of FORD MOTOR CO.
