Shift Concerns: Timing - Erratic/Hunting (Some/All) - Routine 212/312

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

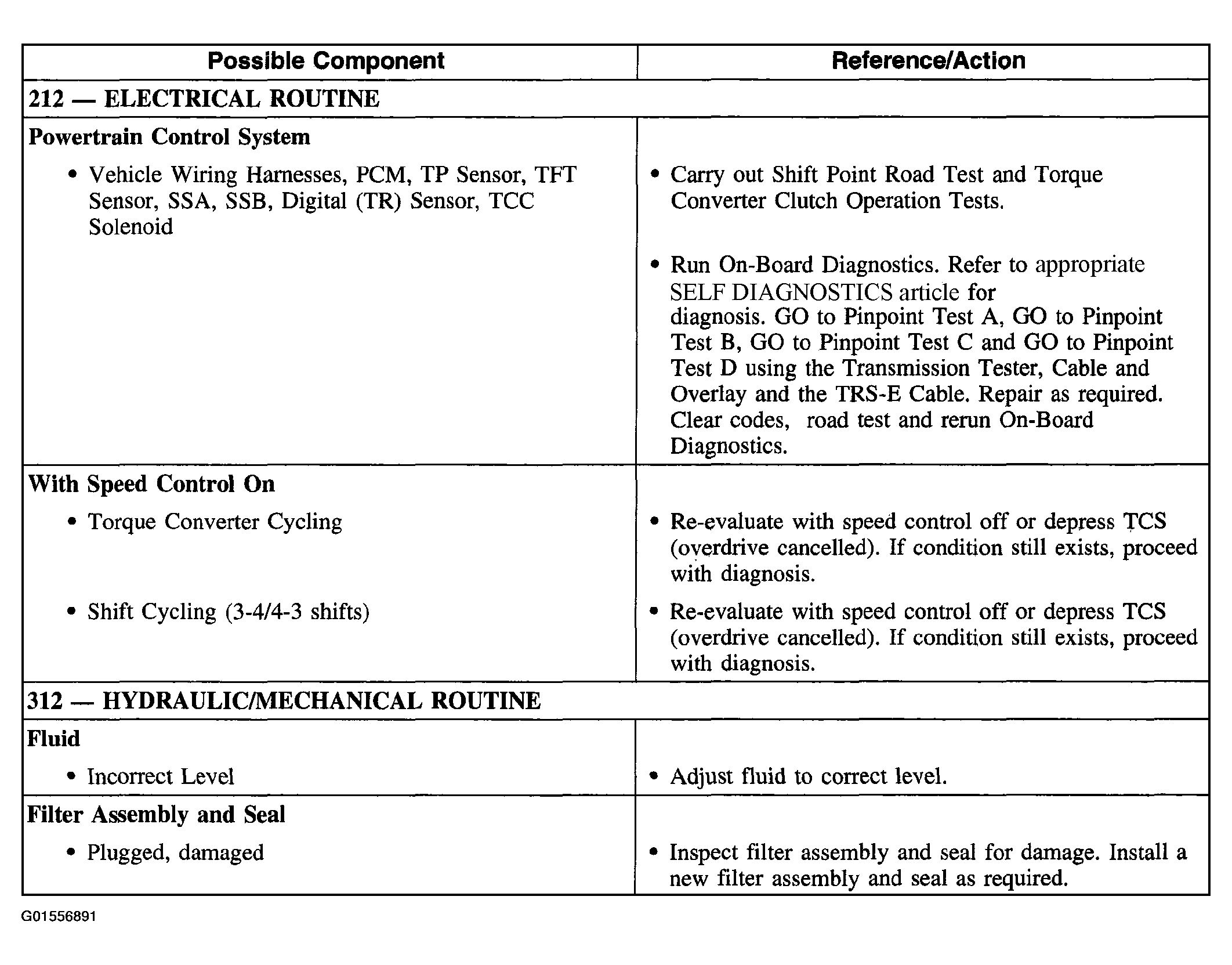

Fig 1: Shift Concerns: Timing - Erratic/Hunting (Some/All) (Routine 212/312)
G01556891Courtesy of FORD MOTOR CO.

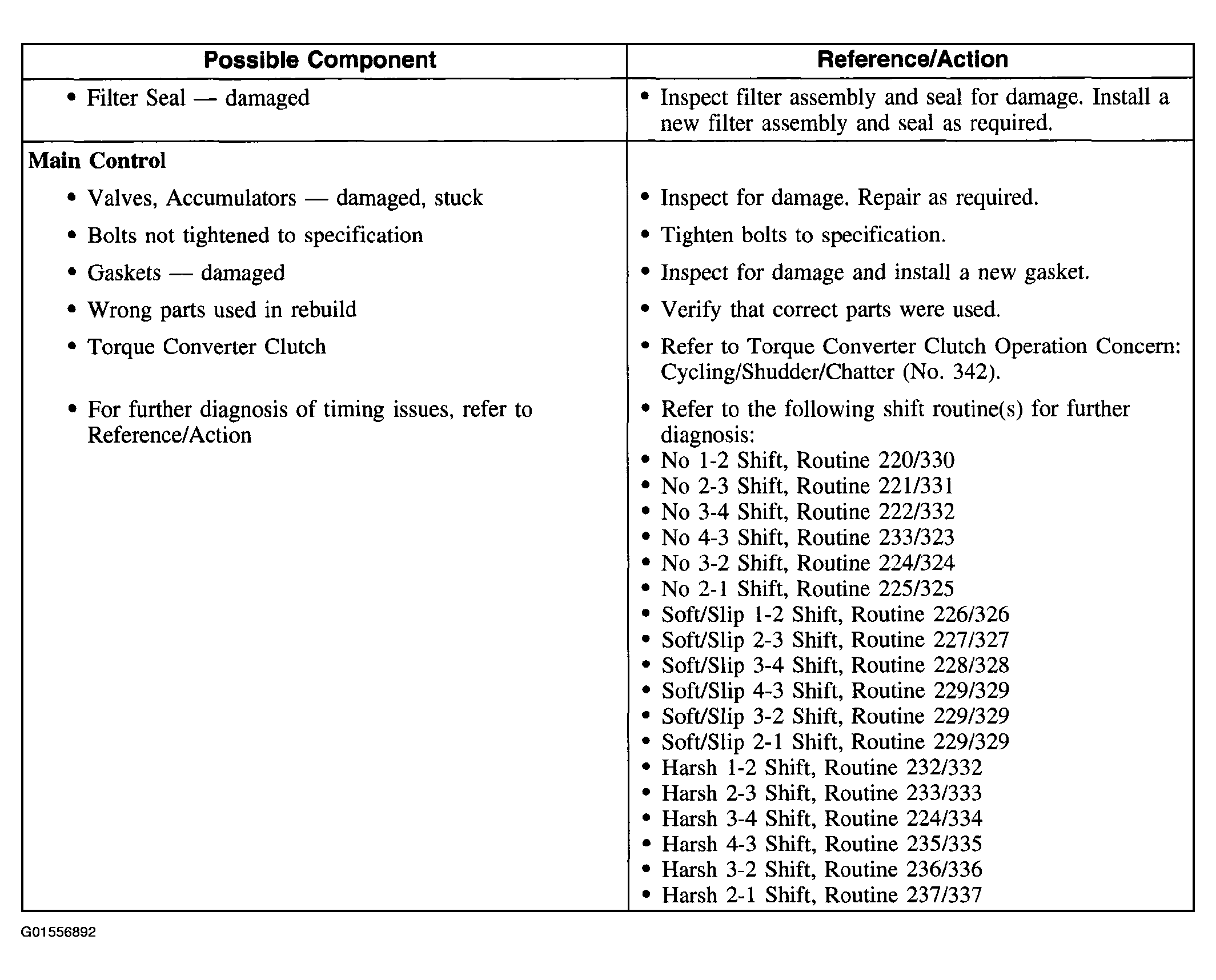

Fig 2: Shift Concerns: Timing - Erratic/Hunting (Some/All) (Routine 212/312 Cont.)
G01556892Courtesy of FORD MOTOR CO.
