Shift Concerns: Soft/Slipping Downshifts (Automatic) - Routine 229/329

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

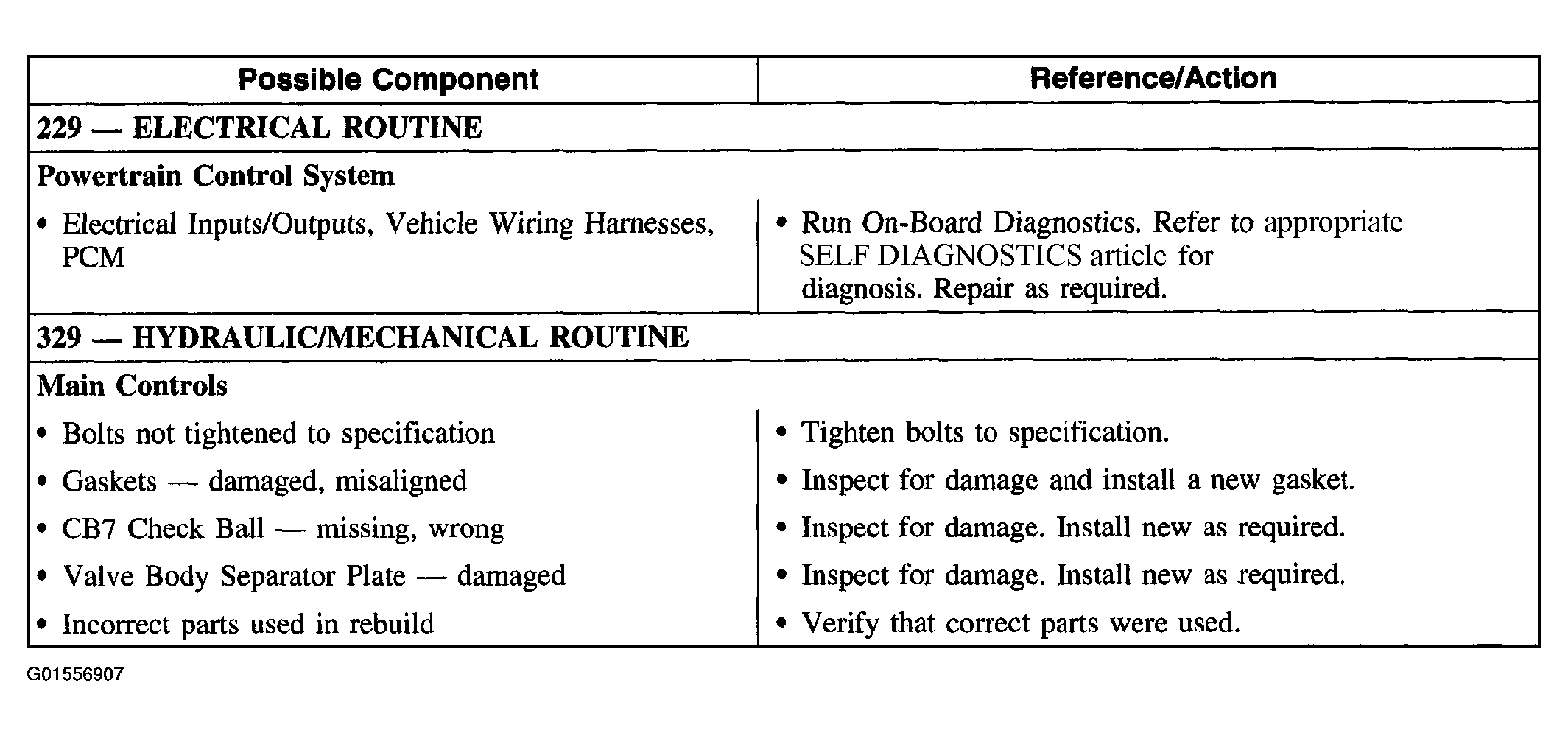

Fig 1: Shift Concerns: Soft/Slipping Downshifts (Automatic) (Routine 229/329)
G01556907Courtesy of FORD MOTOR CO.
