Shift Concerns: Harsh 4-3 Shift Only (Automatic) - Routine 235/335

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

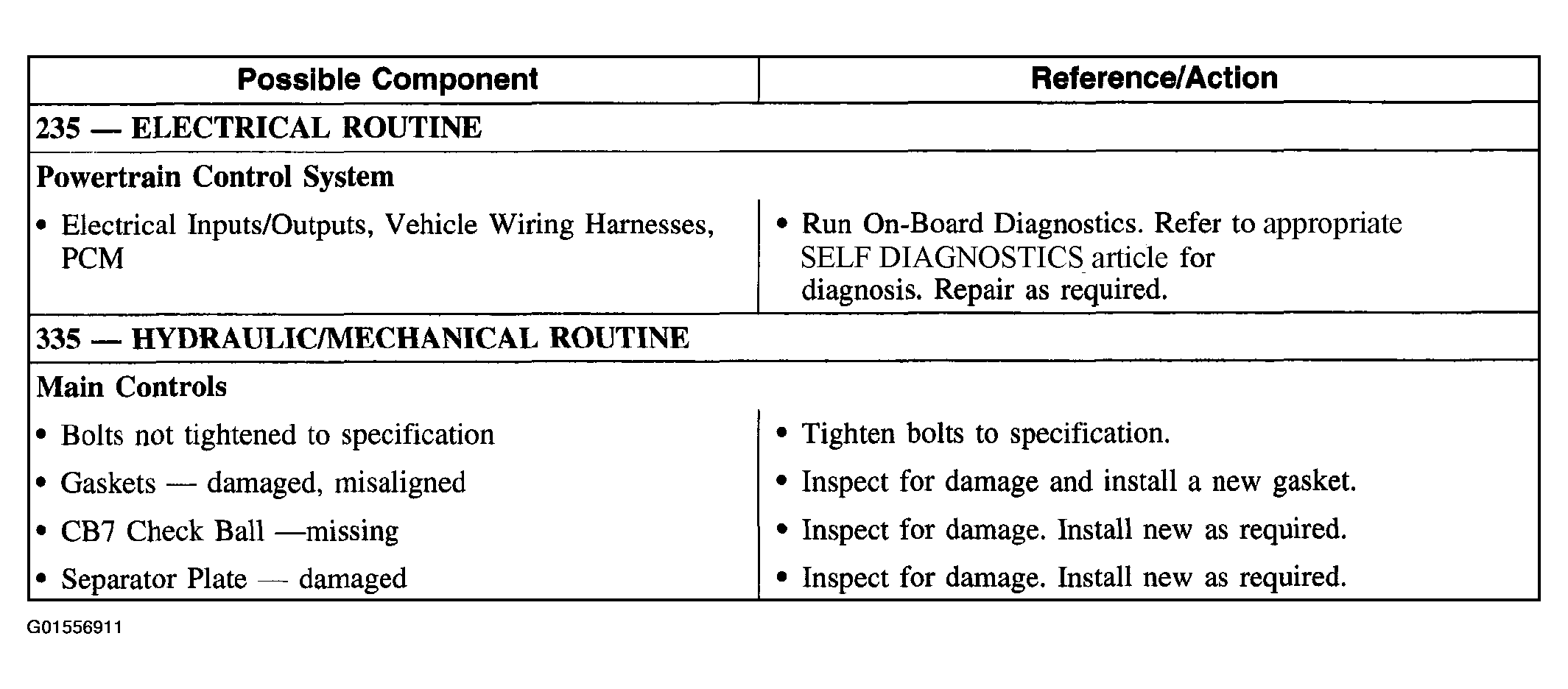

Fig 1: Shift Concerns: Harsh 4-3 Shift Only (Automatic) (Routine 235/335)
G01556911Courtesy of FORD MOTOR CO.
