Reverse Clutch Piston: Disassembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the reverse clutch piston outer lip seal.

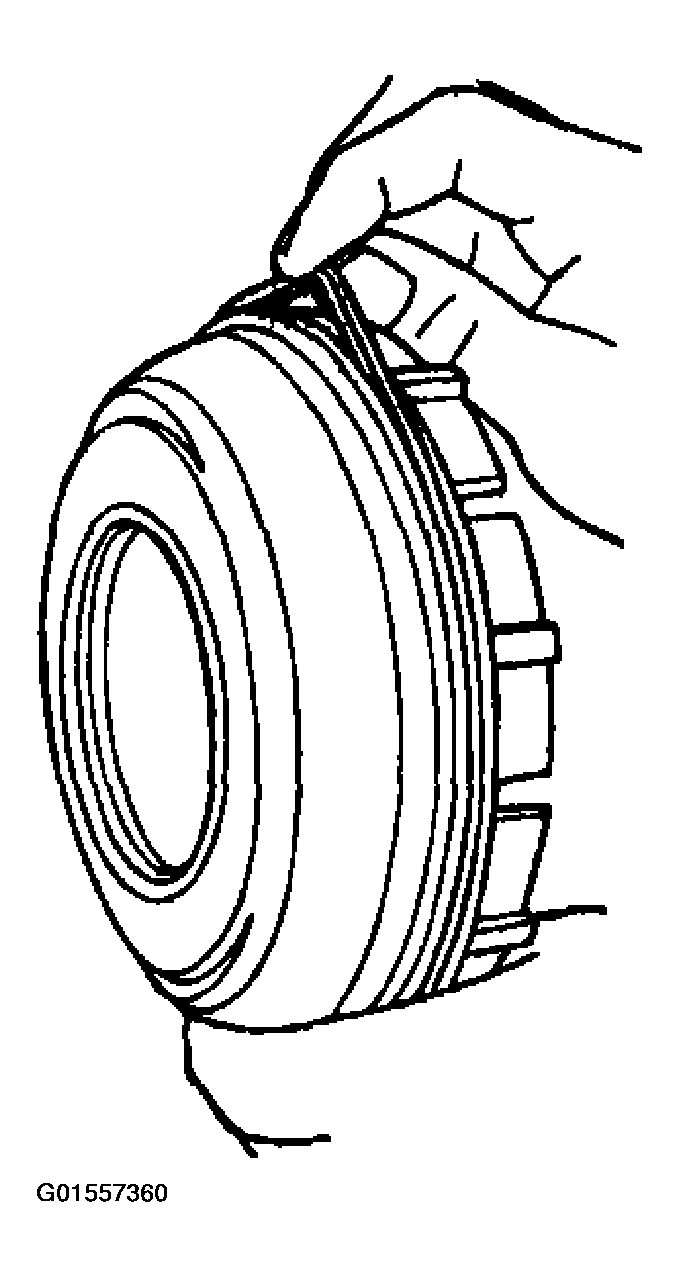

    Fig 1: Removing Reverse Clutch Piston Outer Lip Seal
    G01557360Courtesy of FORD MOTOR CO.
  2. Remove the reverse clutch piston inner lip seal.
    Fig 2: Removing Reverse Clutch Piston Inner Lip Seal
    G01557361Courtesy of FORD MOTOR CO.
