Rear Case Bushings: Assembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The rear case bushing has one lube groove. The front case bushing has three lube grooves.
    Fig 1: Assembling Special Tools
    G01557215Courtesy of FORD MOTOR CO.
  1. Assemble the Transmission Extension Housing Bushing Installer (307-258) onto Drawbar (204-029).
  2. Place the assembled special tools through the case and into the front case bushing.

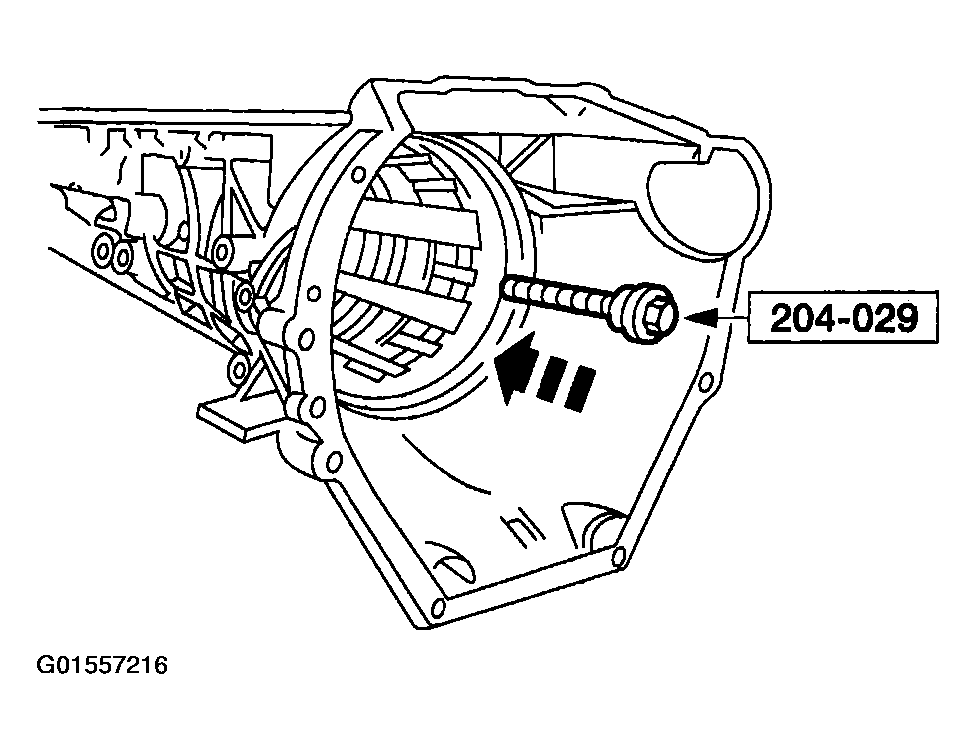

    Fig 2: Installing Special Tools Through Case
    G01557216Courtesy of FORD MOTOR CO.
    3. CAUTION: Make sure the bushing and tool are centered in the bore.

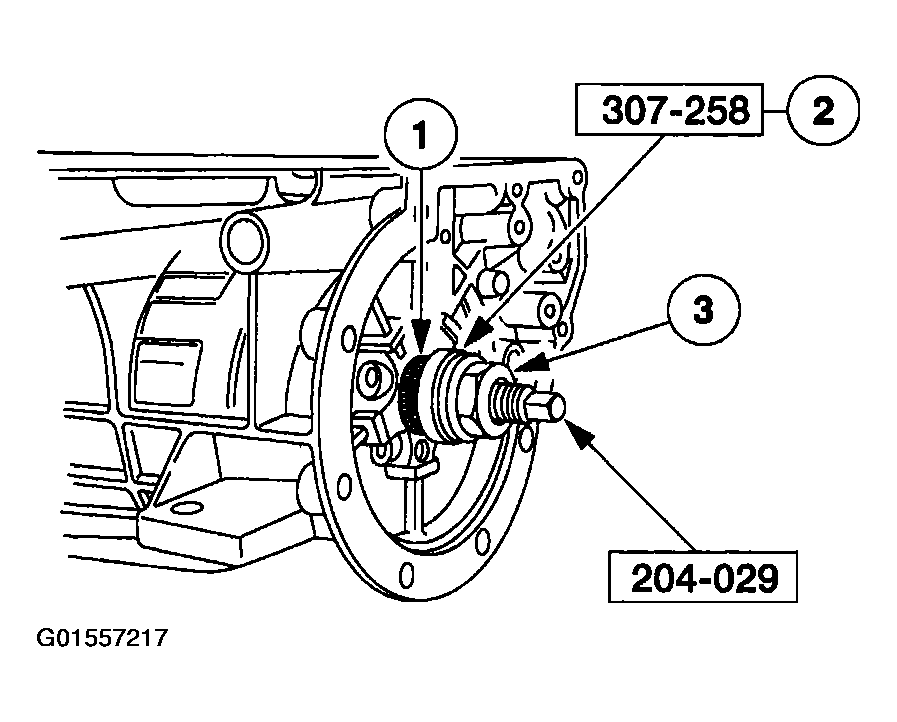

    Fig 3: Installing Rear Case Bushing
    G01557217Courtesy of FORD MOTOR CO.
  3. Install the rear case bushing.
    1. Install the rear case bushing over the bushing installer into the case.
    2. Install the bushing installer.
    3. Install the washer and the nut hand-tight.
  4. Hold the drawbar while turning the nut until the rear case bushing is fully seated. Remove the tools.

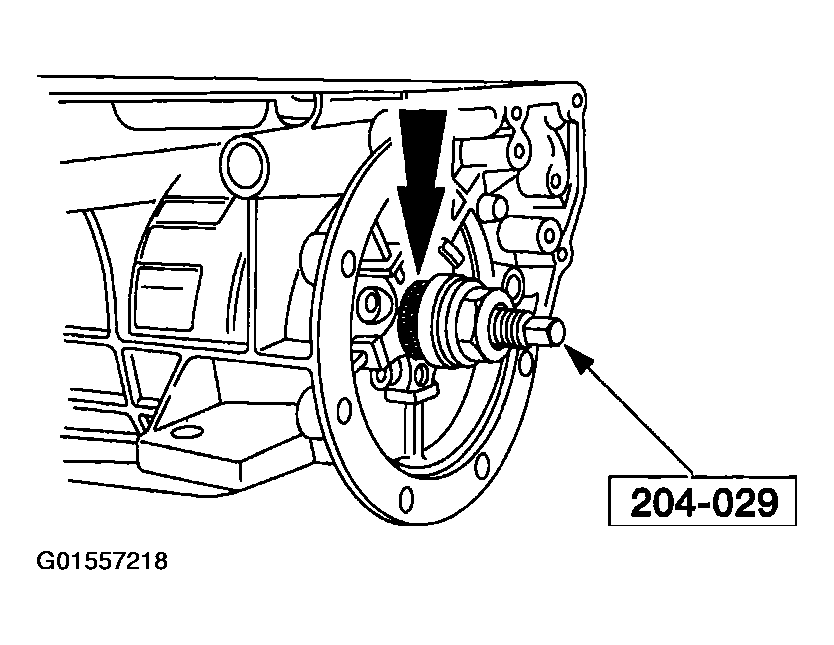

    Fig 4: Seating Rear Case Bushing
    G01557218Courtesy of FORD MOTOR CO.
