Forward Hub & Ring Gear: Disassembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the No. 8C forward clutch hub thrust washer.

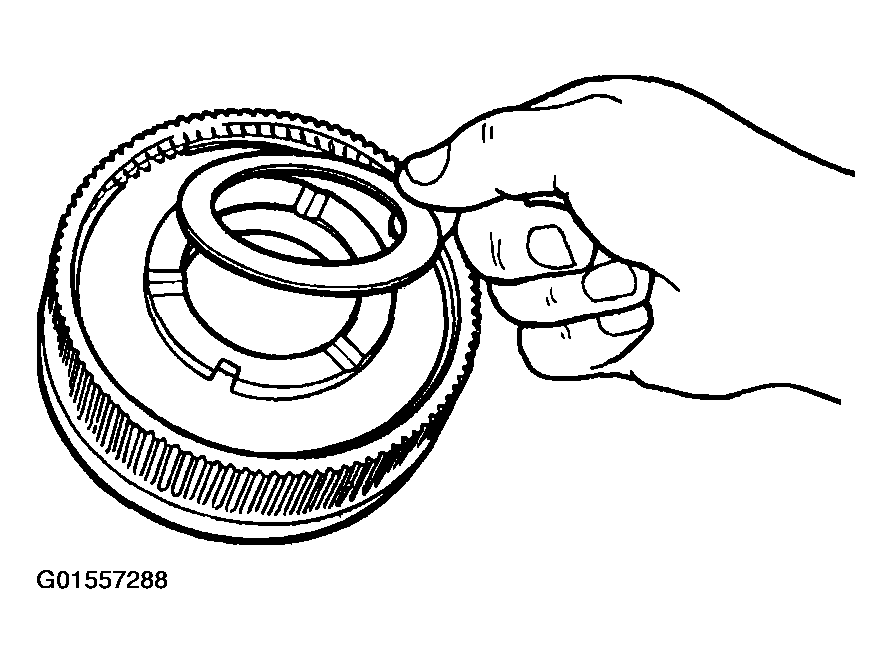

    Fig 1: Removing No. 8C Forward Clutch Hub Thrust Washer
    G01557288Courtesy of FORD MOTOR CO.
  2. Remove the forward hub retaining ring.

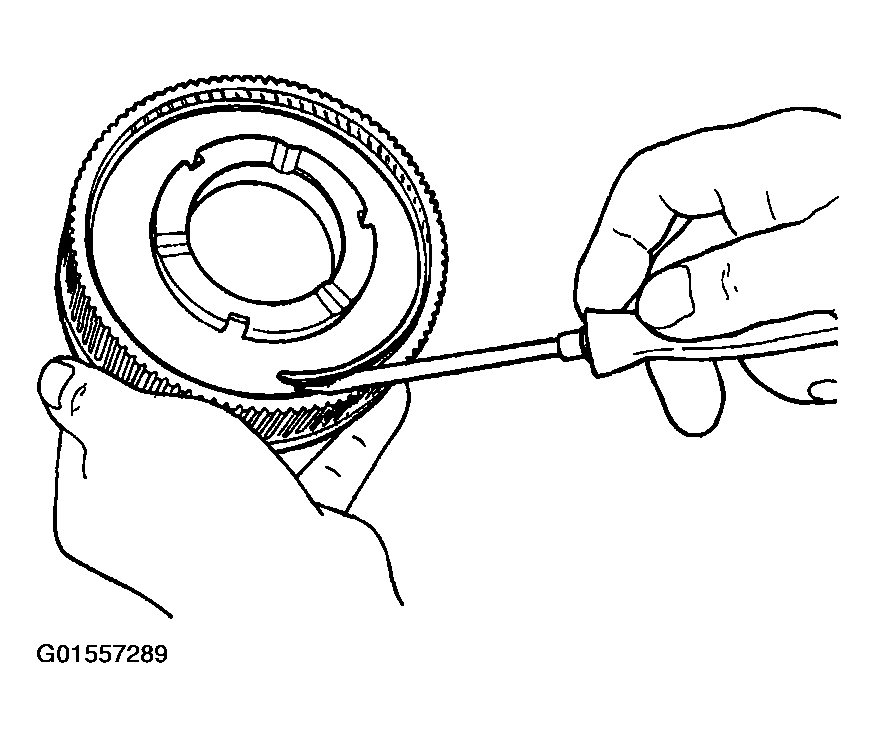

    Fig 2: Removing Forward Hub Retaining Ring
    G01557289Courtesy of FORD MOTOR CO.
  3. Remove the forward hub.

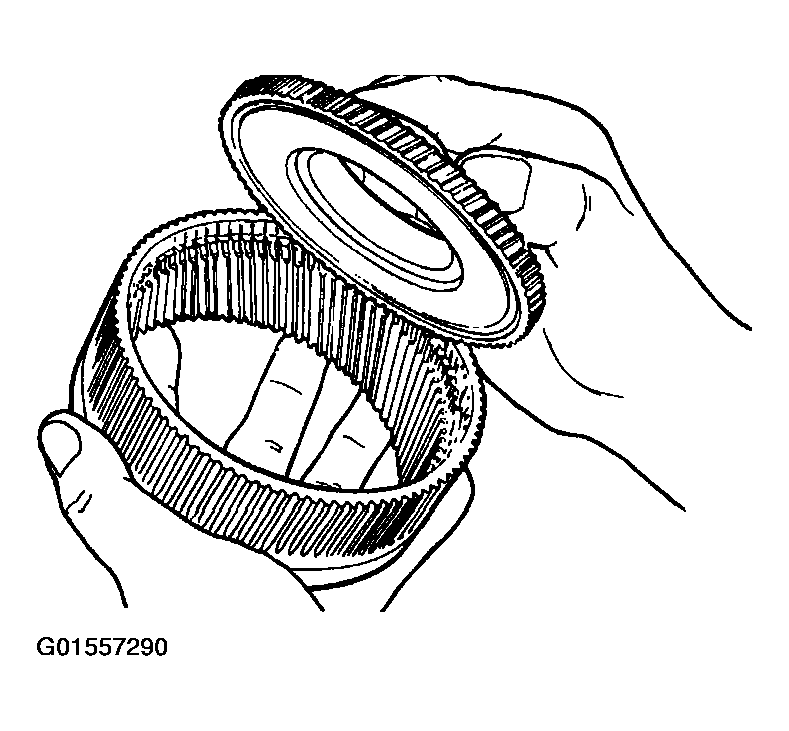

    Fig 3: Removing Forward Hub
    G01557290Courtesy of FORD MOTOR CO.
