Seals, Rings & Gasket Locator

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

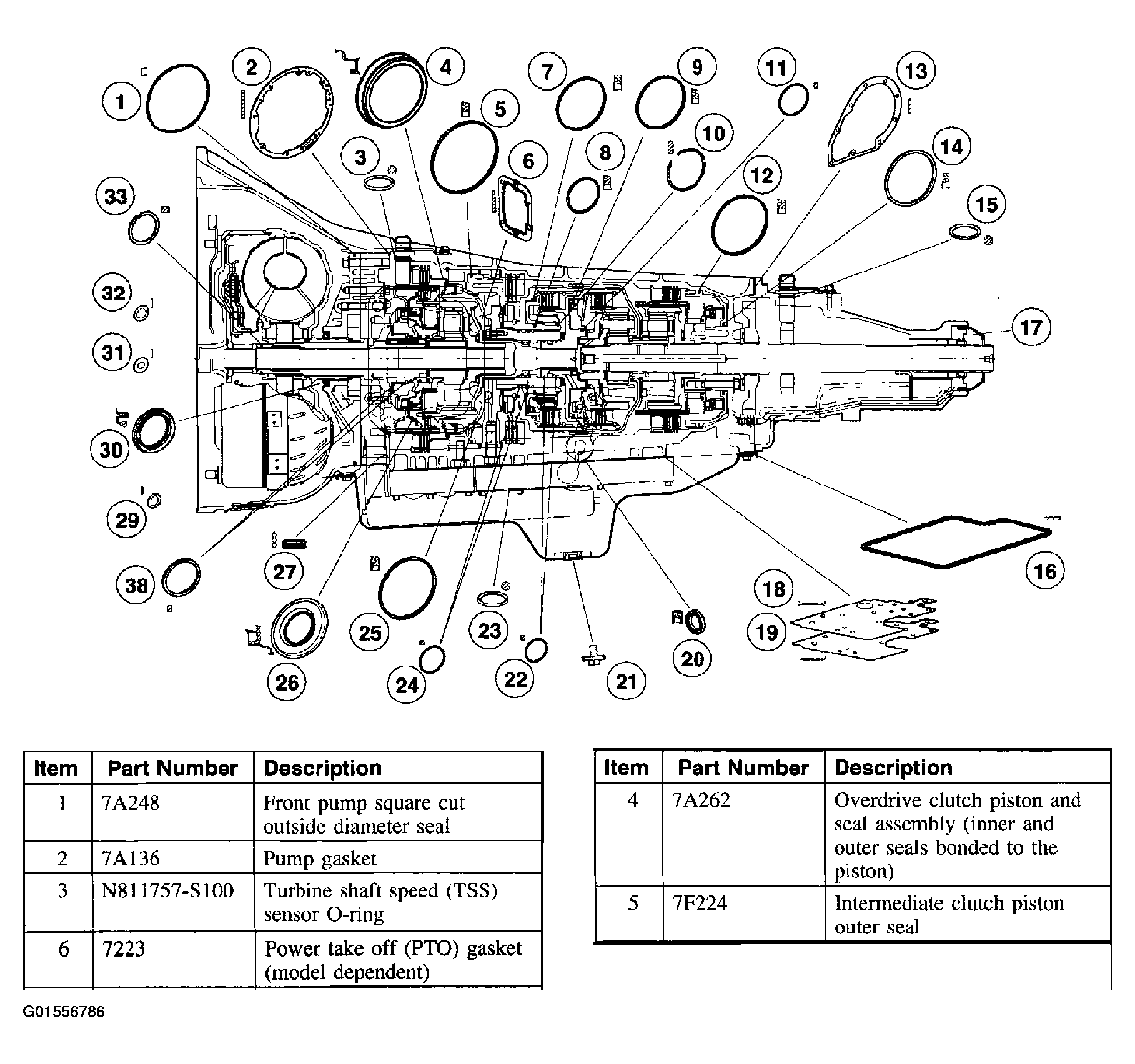

Fig 1: Locating Seals, Rings & Gasket (1 Of 2)
G01556786Courtesy of FORD MOTOR CO.

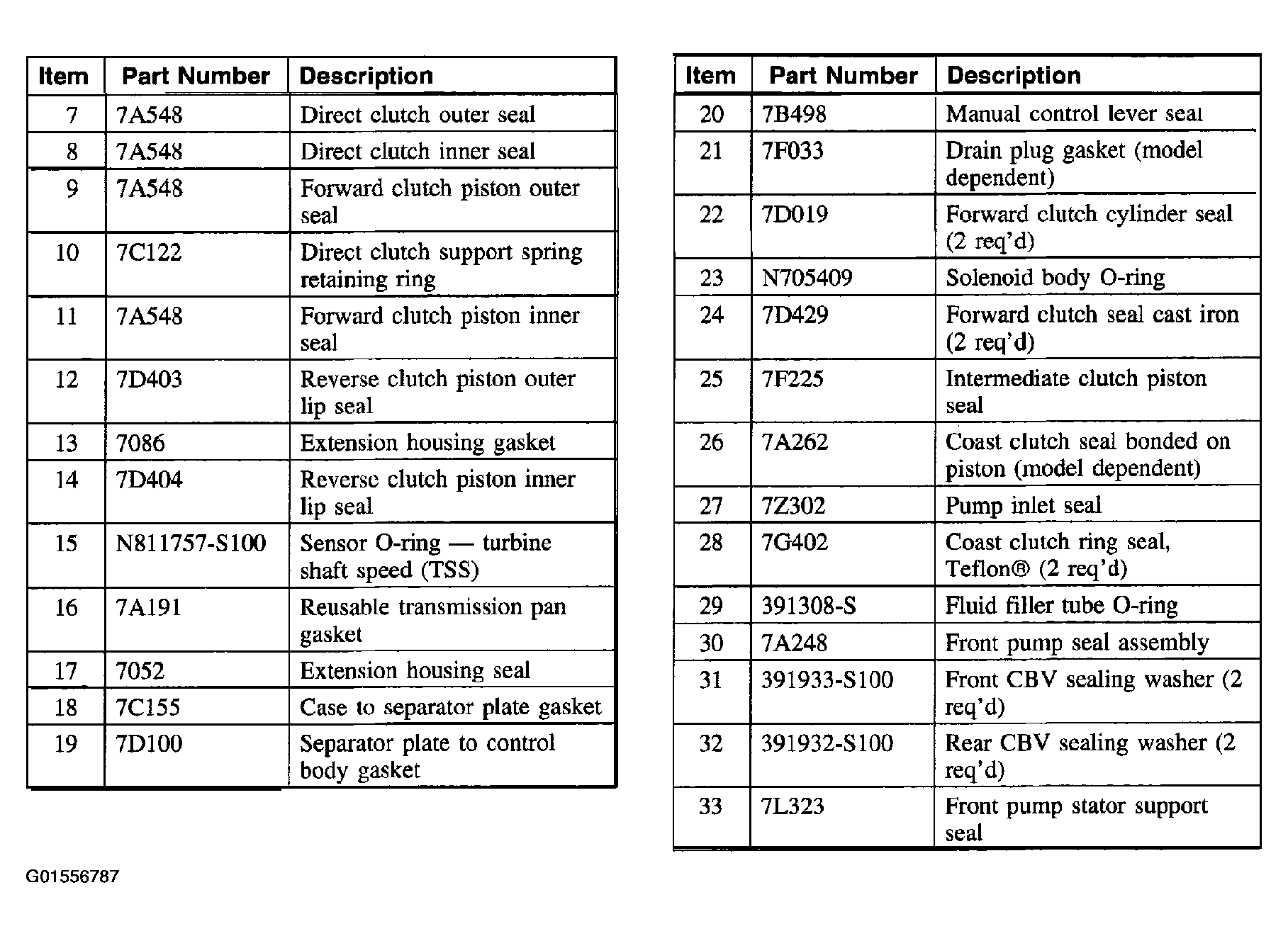

Fig 2: Locating Seals, Rings & Gasket (2 Of 2)
G01556787Courtesy of FORD MOTOR CO.
