WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

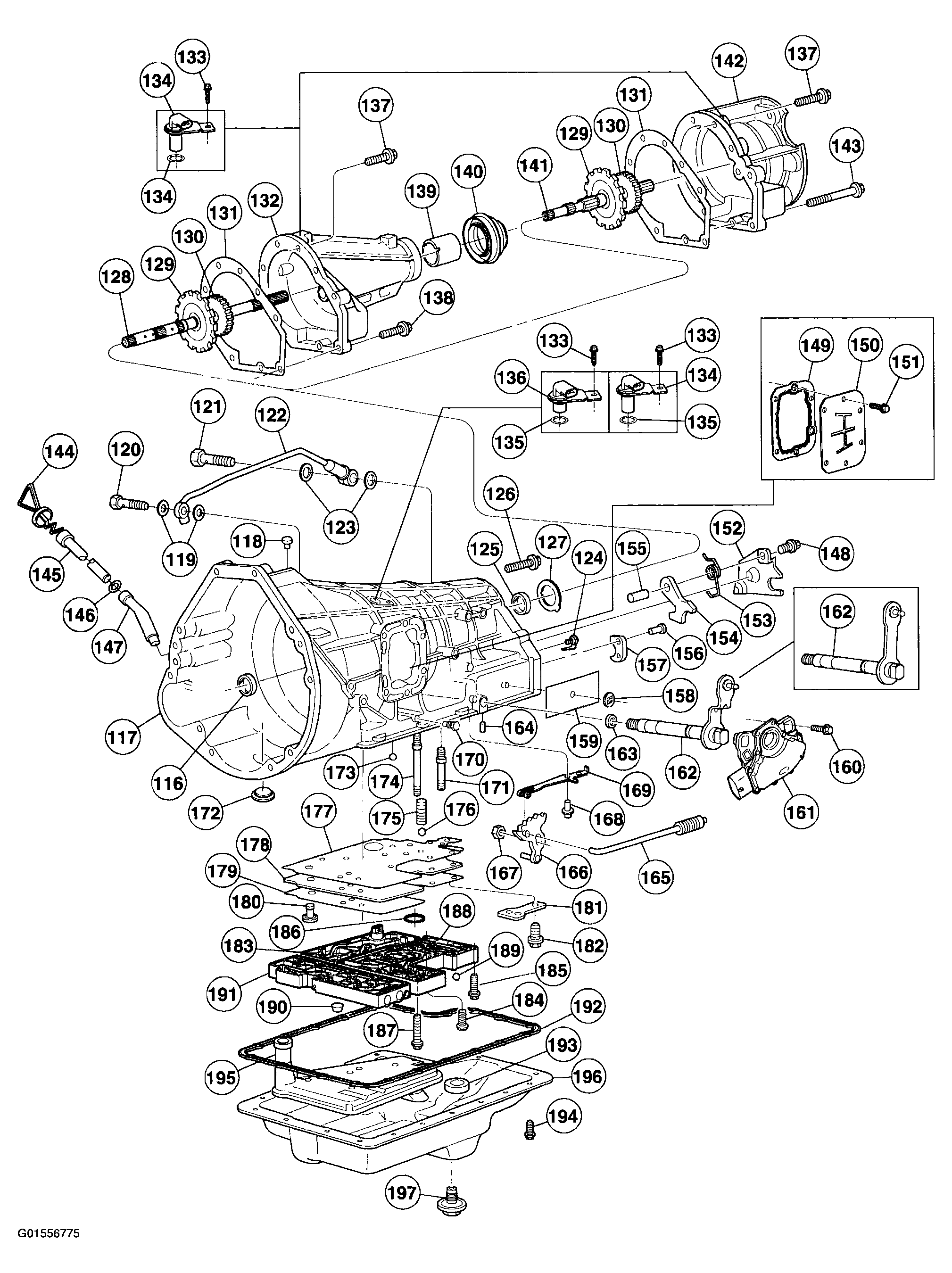

Fig 1: Exploded View Of Transmission (1 Of 3)
Courtesy of FORD MOTOR CO.

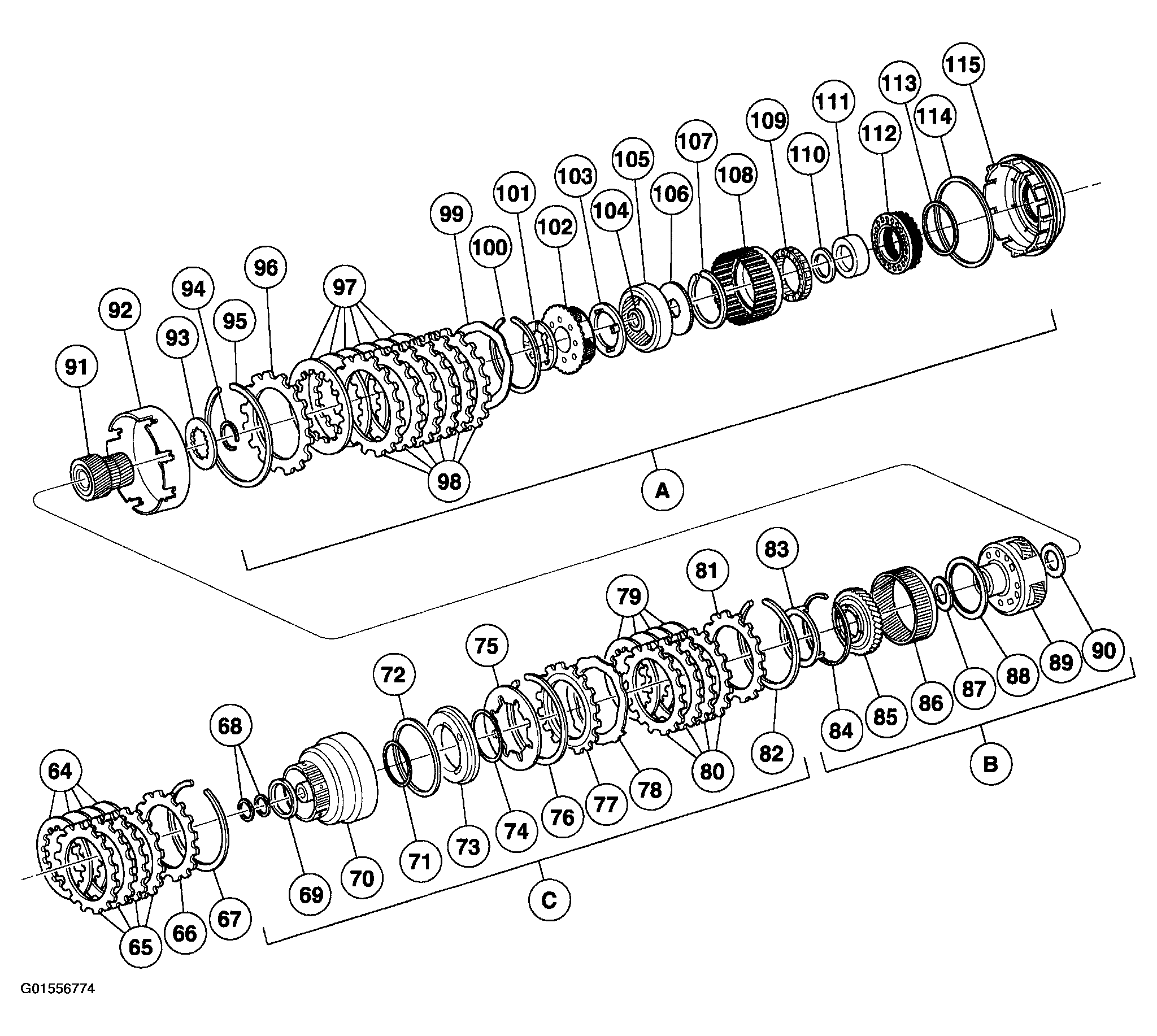

Fig 2: Exploded View Of Transmission (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 3: Exploded View Of Transmission (3 Of 3)
Courtesy of FORD MOTOR CO.

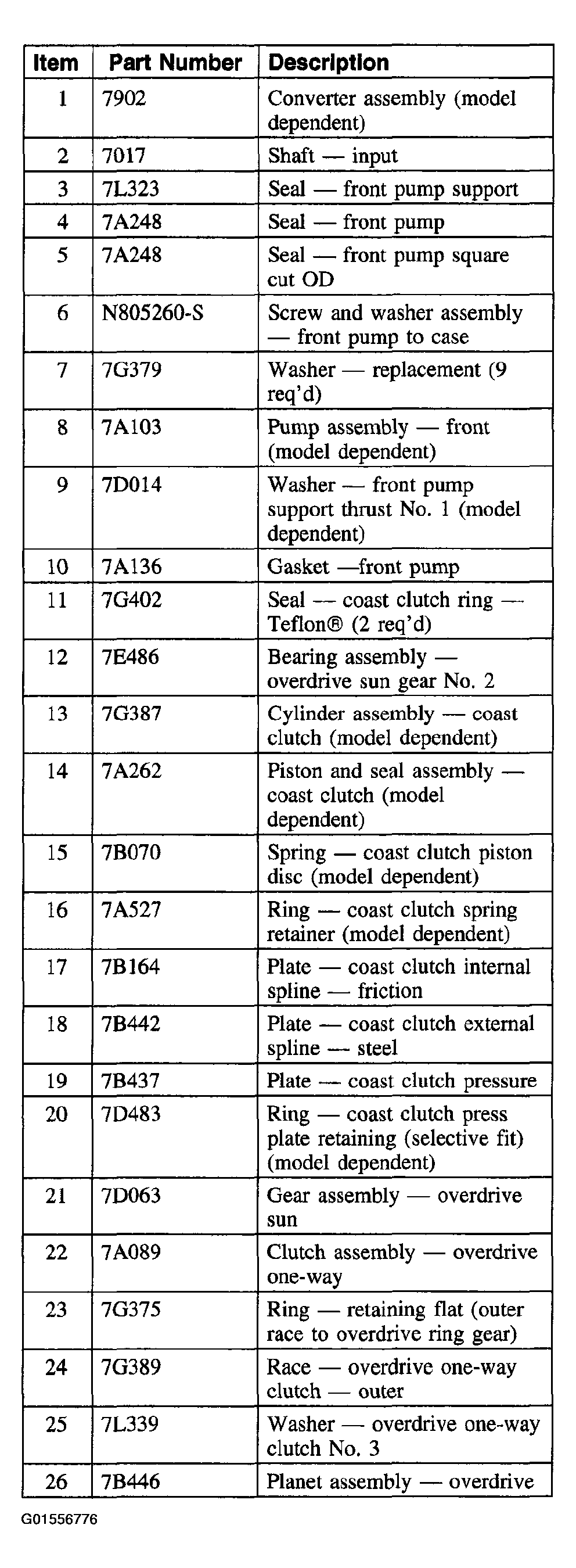

Fig 4: Legend For Exploded View Of Transmission (1 Of 8)
Courtesy of FORD MOTOR CO.

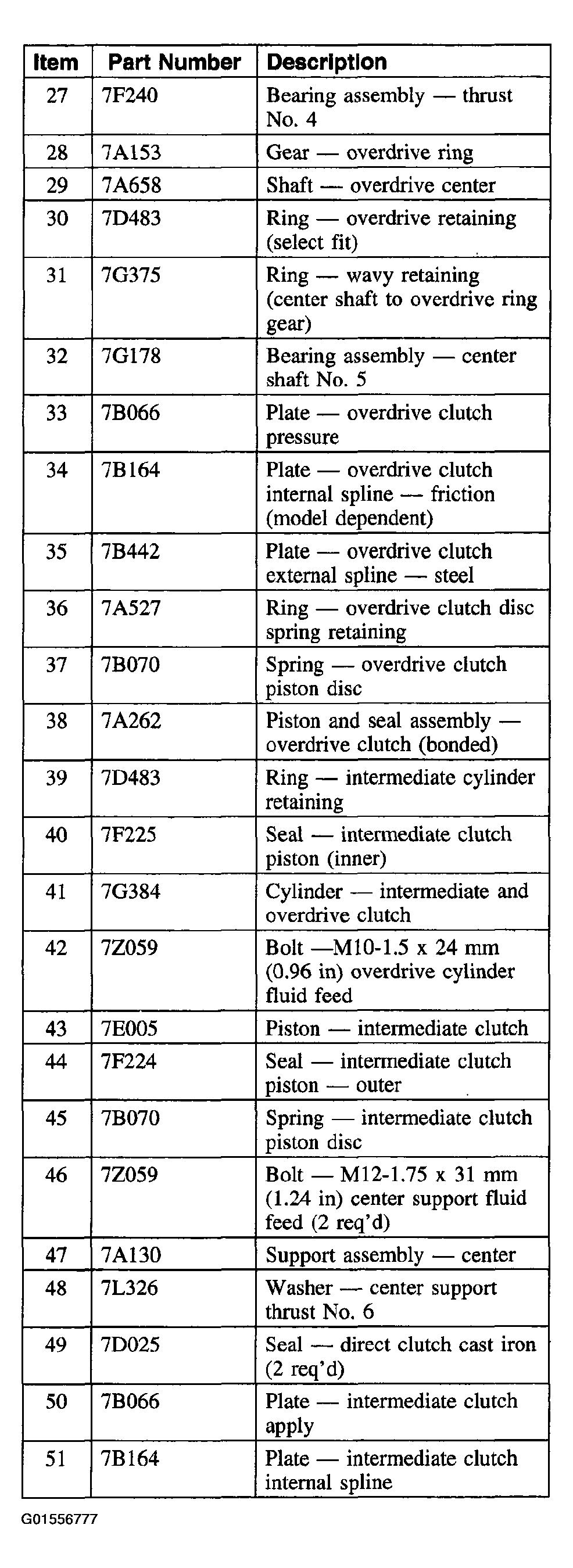

Fig 5: Legend For Exploded View Of Transmission (2 Of 8)
Courtesy of FORD MOTOR CO.
Fig 6: Legend For Exploded View Of Transmission (3 Of 8)
Courtesy of FORD MOTOR CO.

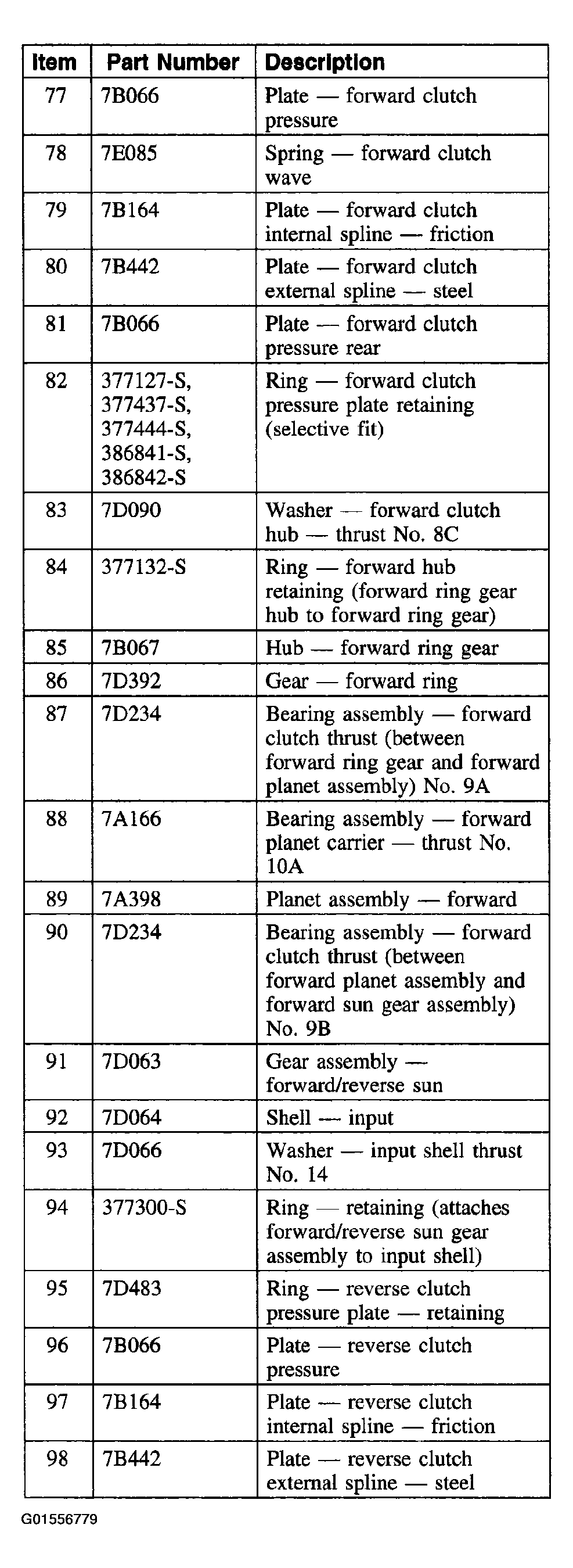

Fig 7: Legend For Exploded View Of Transmission (4 Of 8)
Courtesy of FORD MOTOR CO.
Fig 8: Legend For Exploded View Of Transmission (5 Of 8)
Courtesy of FORD MOTOR CO.
Fig 9: Legend For Exploded View Of Transmission (6 Of 8)
Courtesy of FORD MOTOR CO.
Fig 10: Legend For Exploded View Of Transmission (7 Of 8)
Courtesy of FORD MOTOR CO.
Fig 11: Legend For Exploded View Of Transmission (8 Of 8)
