  1. Mount the transmission case into suitable stand.
  2. If removed, use the special tool to install the short fluid inlet tube.
    Fig 1: Installing Short Fluid Inlet Tube
    G01557387Courtesy of FORD MOTOR CO.
    3. CAUTION: If equipped, use care not to misalign the reverse clutch piston in the case bore.
    NOTE: Coat the reverse clutch piston seals with petroleum jelly.

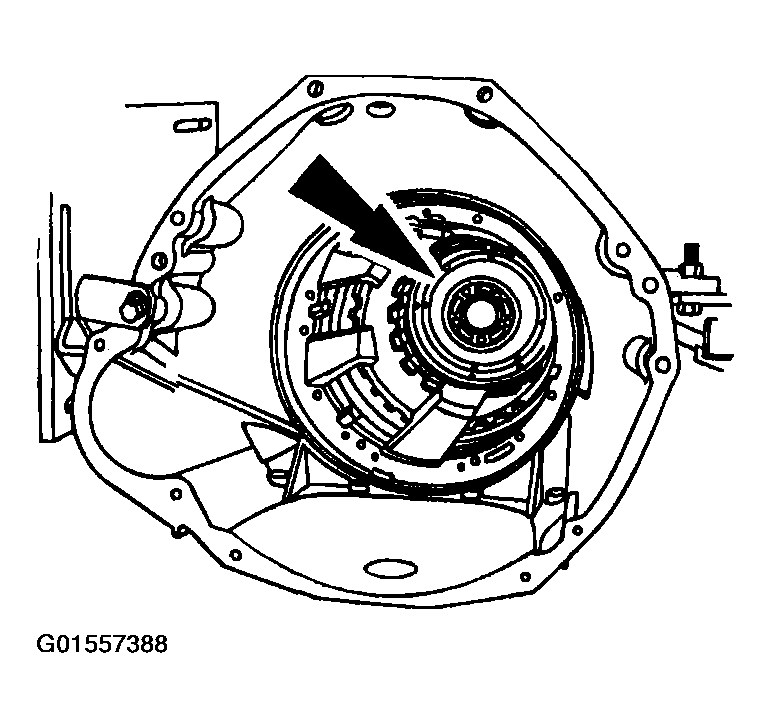

    Fig 2: Installing Reverse Clutch Piston
    G01557388Courtesy of FORD MOTOR CO.
  3. Install the reverse clutch piston in the case until it is fully seated in the case.
    4. CAUTION: The low/reverse clutch inner race is vehicle-dependent. Refer to parts catalog for the correct parts.
    NOTE: Clock position is viewed looking into the converter housing with the top of the transmission in the 12 o'clock position.

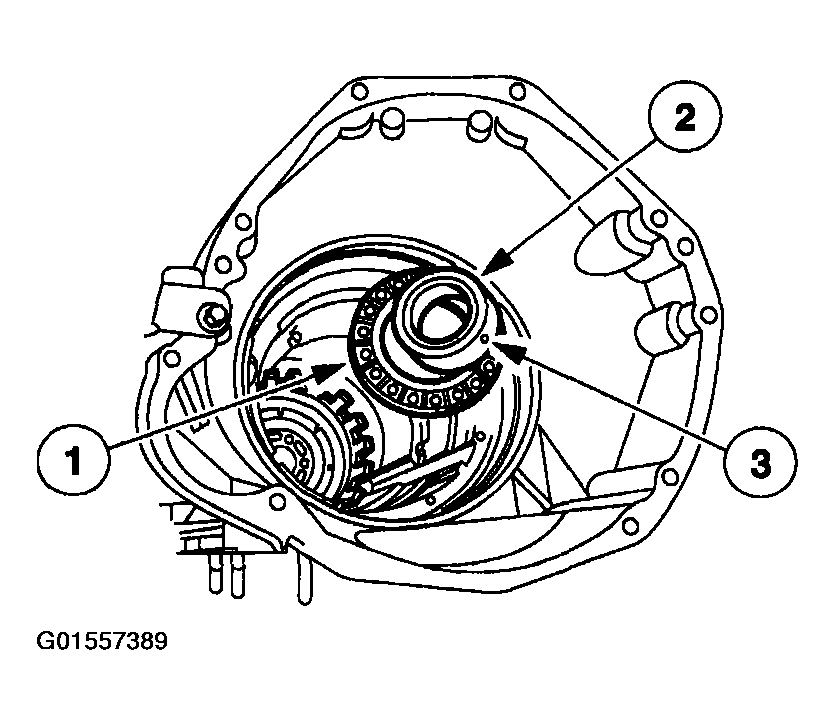

    Fig 3: Installing Reverse Clutch Return Spring Assembly
    G01557389Courtesy of FORD MOTOR CO.
  4. Install the reverse clutch return spring assembly.
    1. Install the reverse clutch return spring assembly.
    2. Install the low/reverse one-way clutch inner race.
    3. Make sure that the lubrication hole on the face is in the 5 o'clock position.
  5. Install two 5/16-24 x 3 inch bolts with nuts into the low/reverse one-way clutch inner race.
    1. Hold the nut.
    2. Turn the bolt to compress the low/reverse piston return spring.

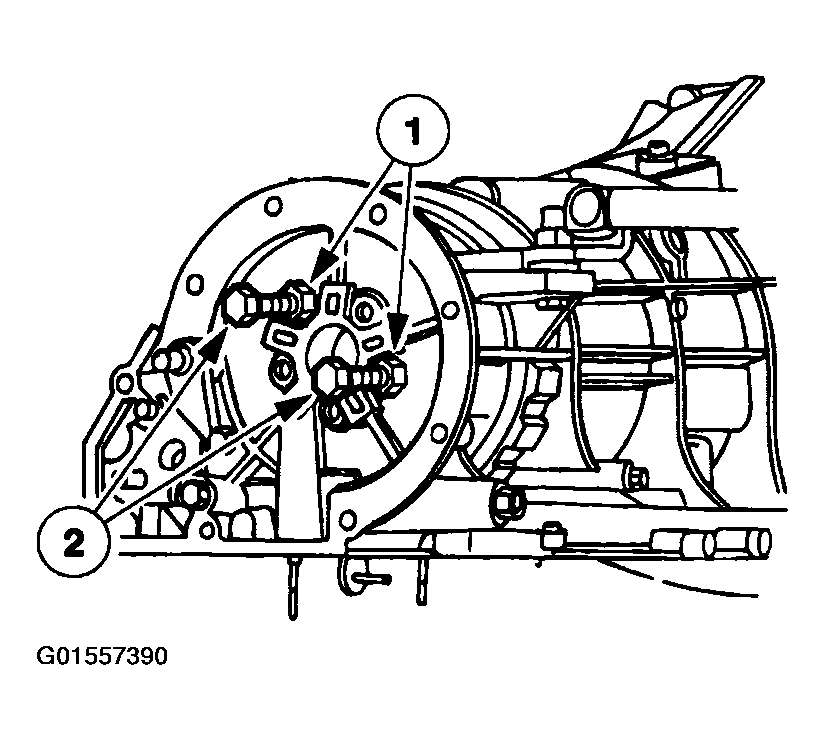

    Fig 4: Installing Bolts With Nuts Into Low/Reverse One-Way Clutch Inner Race
    G01557390Courtesy of FORD MOTOR CO.
  6. Install three of the one-way clutch inner race bolts and remove the two 5/16-24 x 3 bolts.

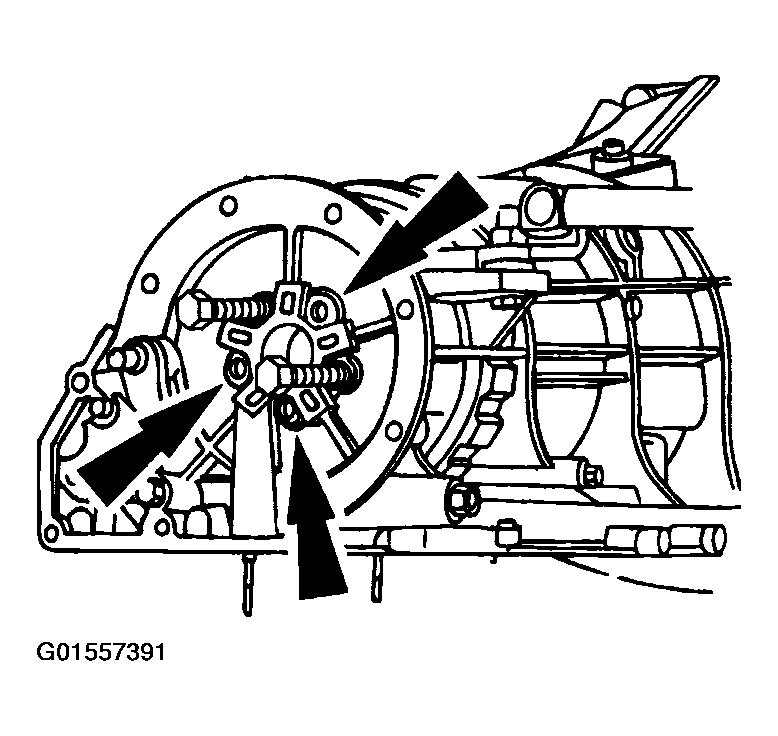

    Fig 5: Installing 3 Of 5 One-Way Clutch Inner Race Bolts
    G01557391Courtesy of FORD MOTOR CO.
    7. NOTE: Alternate tightening bolts from one side to the other (not in a circle).

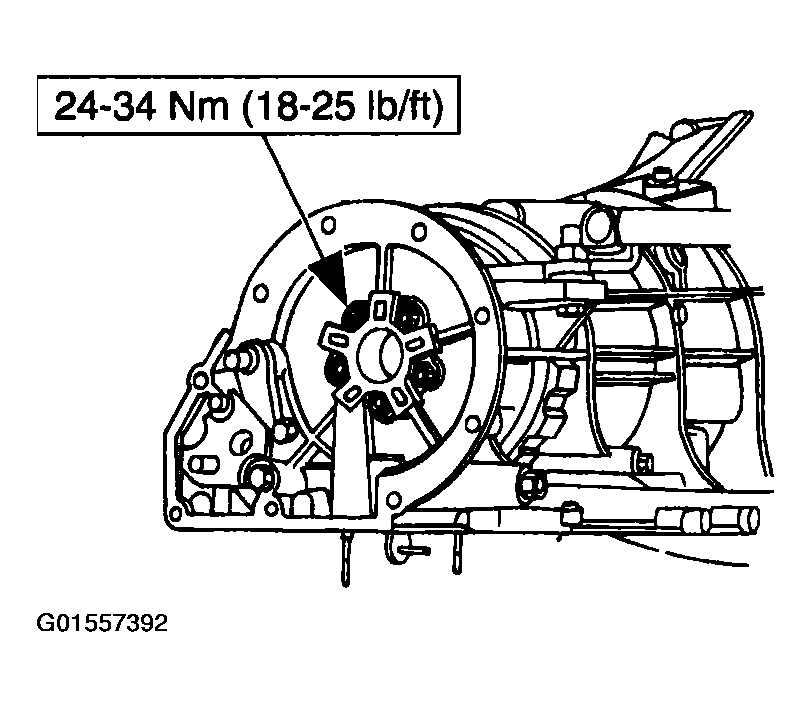

    Fig 6: Installing Remaining Bolts Retaining Low/Reverse One-Way Clutch Inner Race
    G01557392Courtesy of FORD MOTOR CO.
  7. Install the remaining bolts retaining the low/reverse one-way clutch inner race to the case.

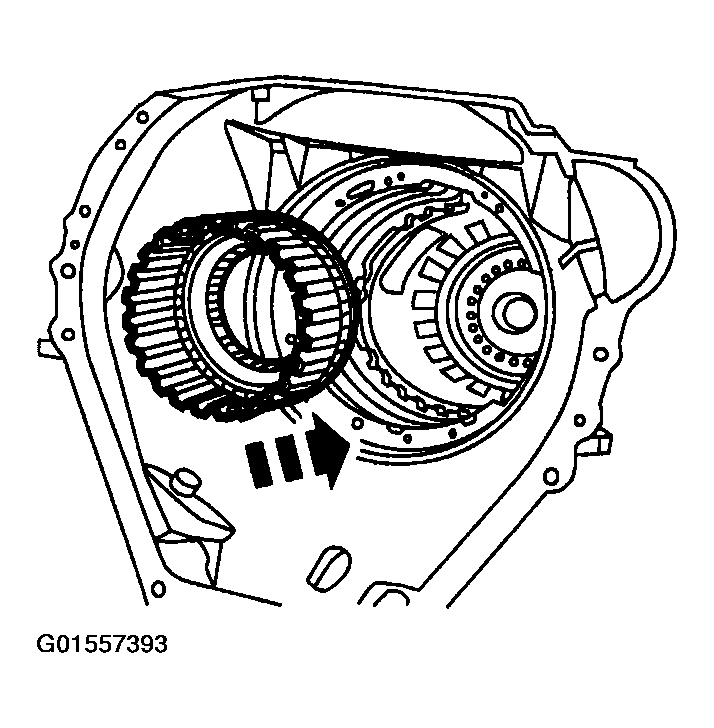

    8. CAUTION: The low/reverse clutch, one-way clutch is vehicle-dependent. Ensure part is correct for vehicle application.
    NOTE: When the reverse clutch and the low one-way clutch are installed, the reverse clutch should rotate clockwise. The one-way clutch will hold and not let the clutch hub rotate counterclockwise.
    Fig 7: Installing Reverse Clutch Hub & Low One-Way Clutch Assembly
    G01557393Courtesy of FORD MOTOR CO.
  8. Install the reverse clutch hub and the low one-way clutch assembly over the low/reverse one-way clutch inner race by pressing the hub inward and rotating it clockwise to seat fully.
    9. CAUTION: The number of plates is vehicle-dependent.
    NOTE: No stack-up clearance measurement is required.
    NOTE: Clock position is viewed looking into the converter housing with the top of the transmission in the 12 o'clock position.

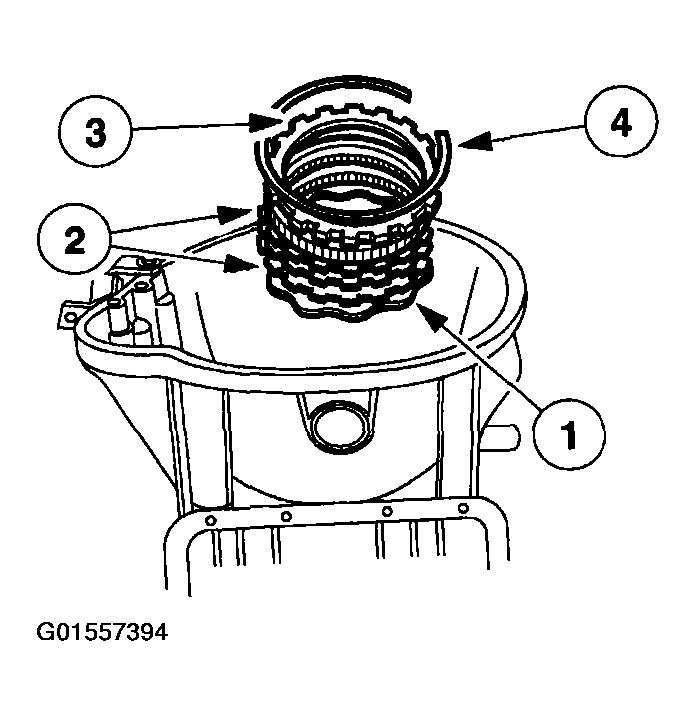

    Fig 8: Installing Reverse Clutch Pack Assembly
    G01557394Courtesy of FORD MOTOR CO.
  9. Install the reverse clutch pack assembly.
    1. Install the cushion spring.
    2. Install the reverse clutch plates starting with an external spline steel plate and alternating with internal splined friction plates
    3. Install the reverse clutch pressure plate
    4. Install the reverse clutch pressure plate retainer snap ring with the ring opening between the 12 o'clock and 3 o'clock positions.
    10. NOTE: Apply petroleum jelly to the No. 13 parking gear bearing to hold it in place.

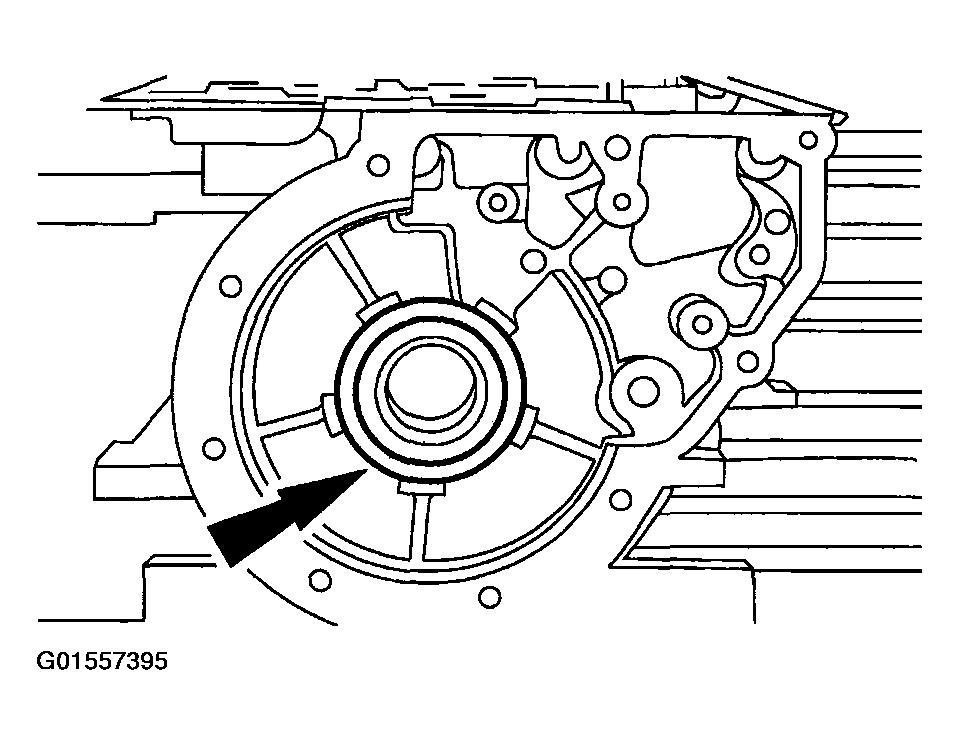

    Fig 9: Installing No. 13 Parking Gear Bearing
    G01557395Courtesy of FORD MOTOR CO.
  10. Install the No. 13 parking gear bearing.

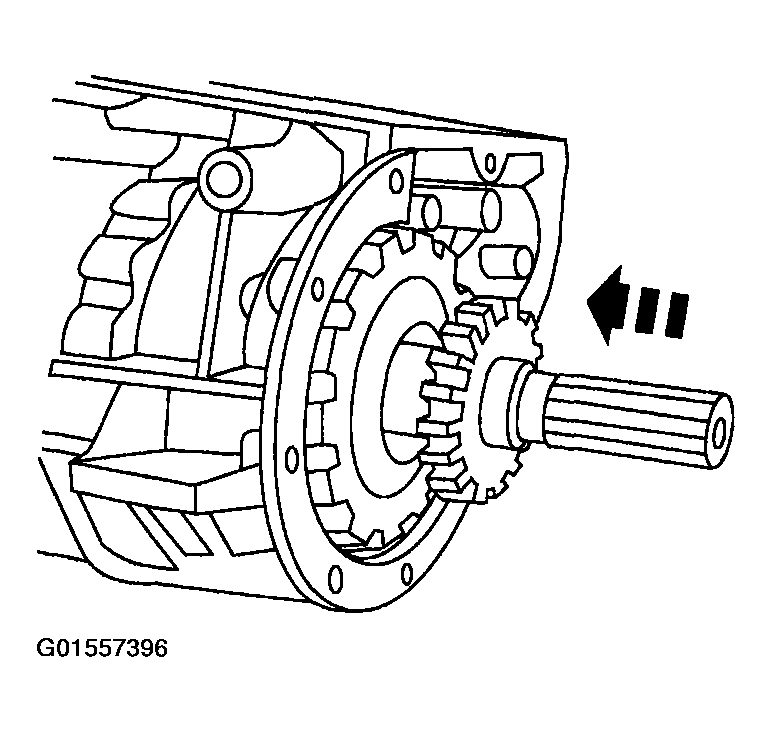

    11. CAUTION: Use care not to damage the output shaft drive sprocket speed sensor wheel. This will cause an incorrect reading at the Output Shaft Speed (OSS) sensor, which will cause a repeat repair.
    Fig 10: Installing Output Shaft
    G01557396Courtesy of FORD MOTOR CO.
  11. Install the output shaft.
    12. NOTE: Lubricate the thrust bearing with petroleum jelly to hold it in place during assembly.
    Fig 11: Installing No. 12 Thrust Bearing
    G01557397Courtesy of FORD MOTOR CO.
  12. Install the No. 12 thrust bearing onto the rear surface of the hub assembly.
  13. Install the output shaft ring gear assembly.

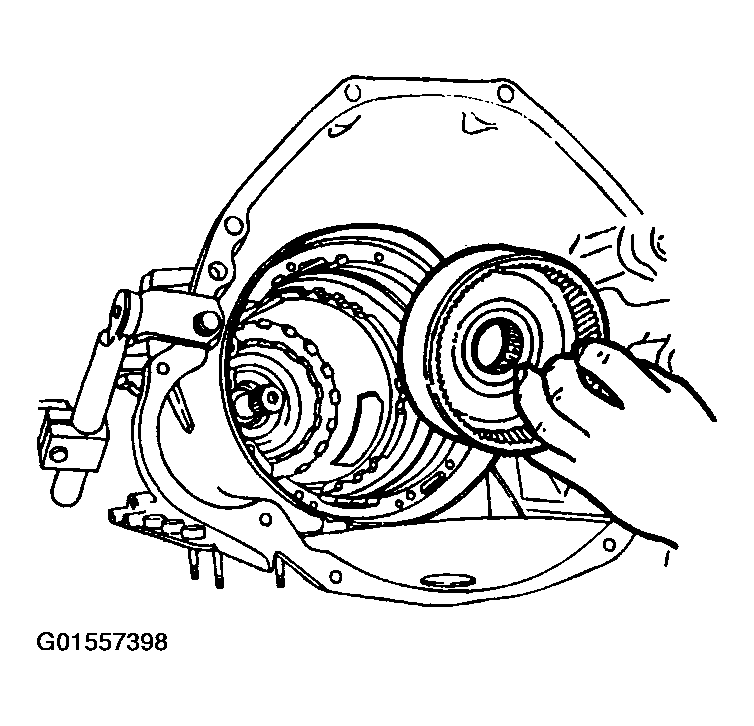

    Fig 12: Installing Output Shaft Ring Gear Assembly
    G01557398Courtesy of FORD MOTOR CO.
    14. WARNING: Do not overextend the output shaft retaining ring during installation. Make sure the output shaft retaining ring is securely seated in the groove. Failure to follow these instructions may result in personal injury.

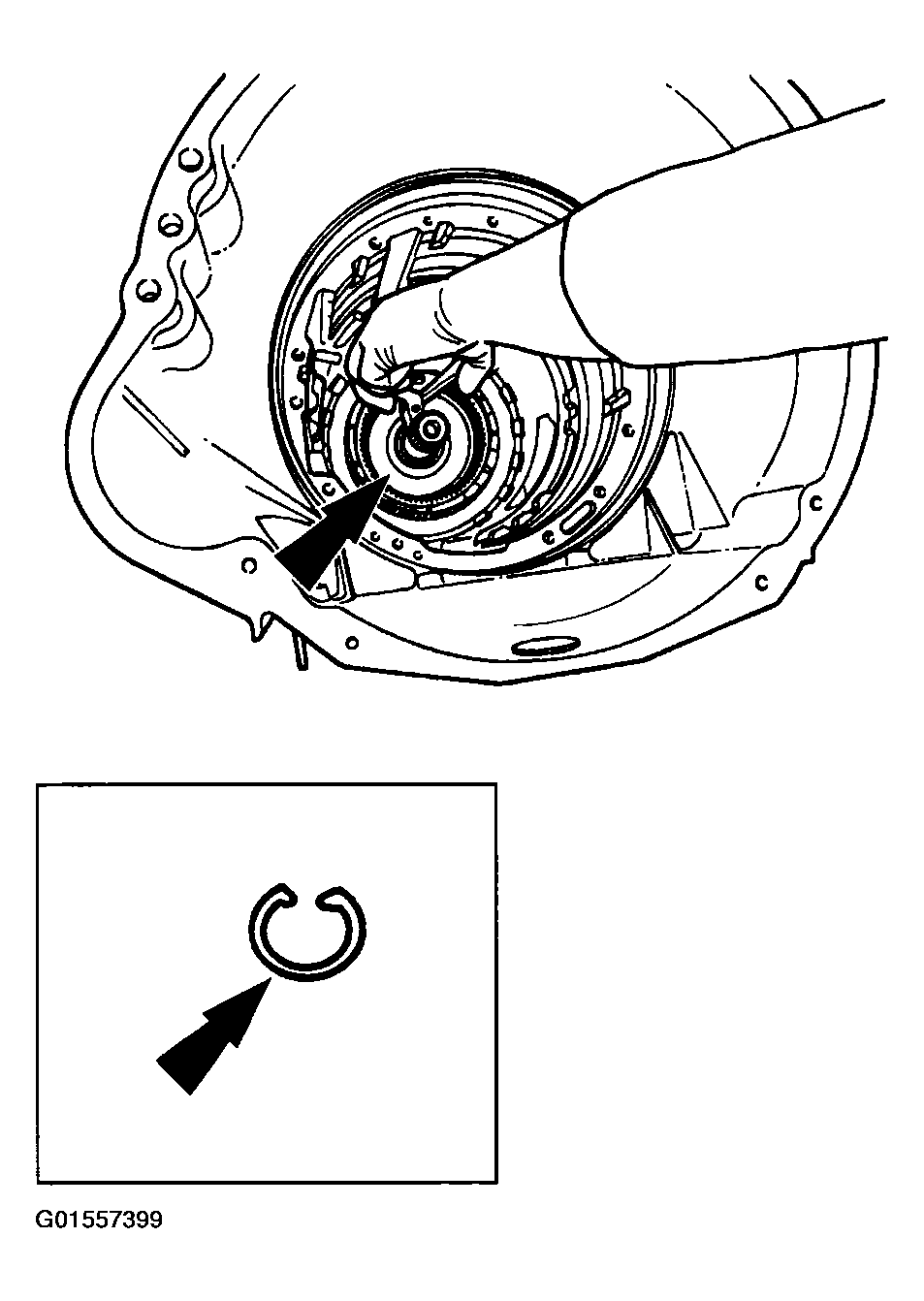

    Fig 13: Installing Output Shaft Retaining Ring
    G01557399Courtesy of FORD MOTOR CO.
  14. Install the new output shaft retaining ring onto the output shaft.
  15. Install the reverse planet assembly.
    1. Install the No. 11 thrust washer.
    2. Install the reverse planet.
    3. Install the No. 10B thrust washer.

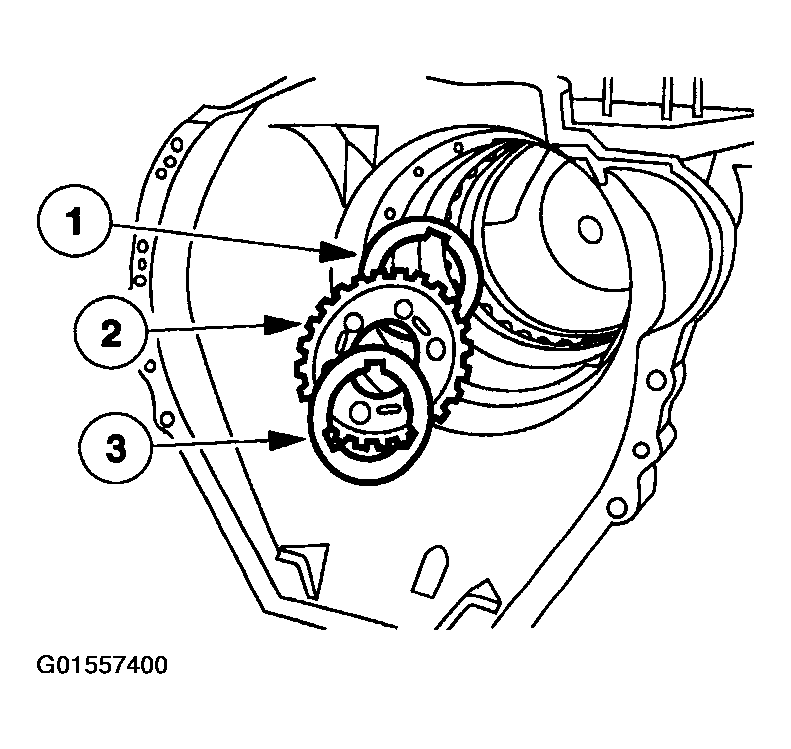

    Fig 14: Installing Reverse Planet Assembly
    G01557400Courtesy of FORD MOTOR CO.

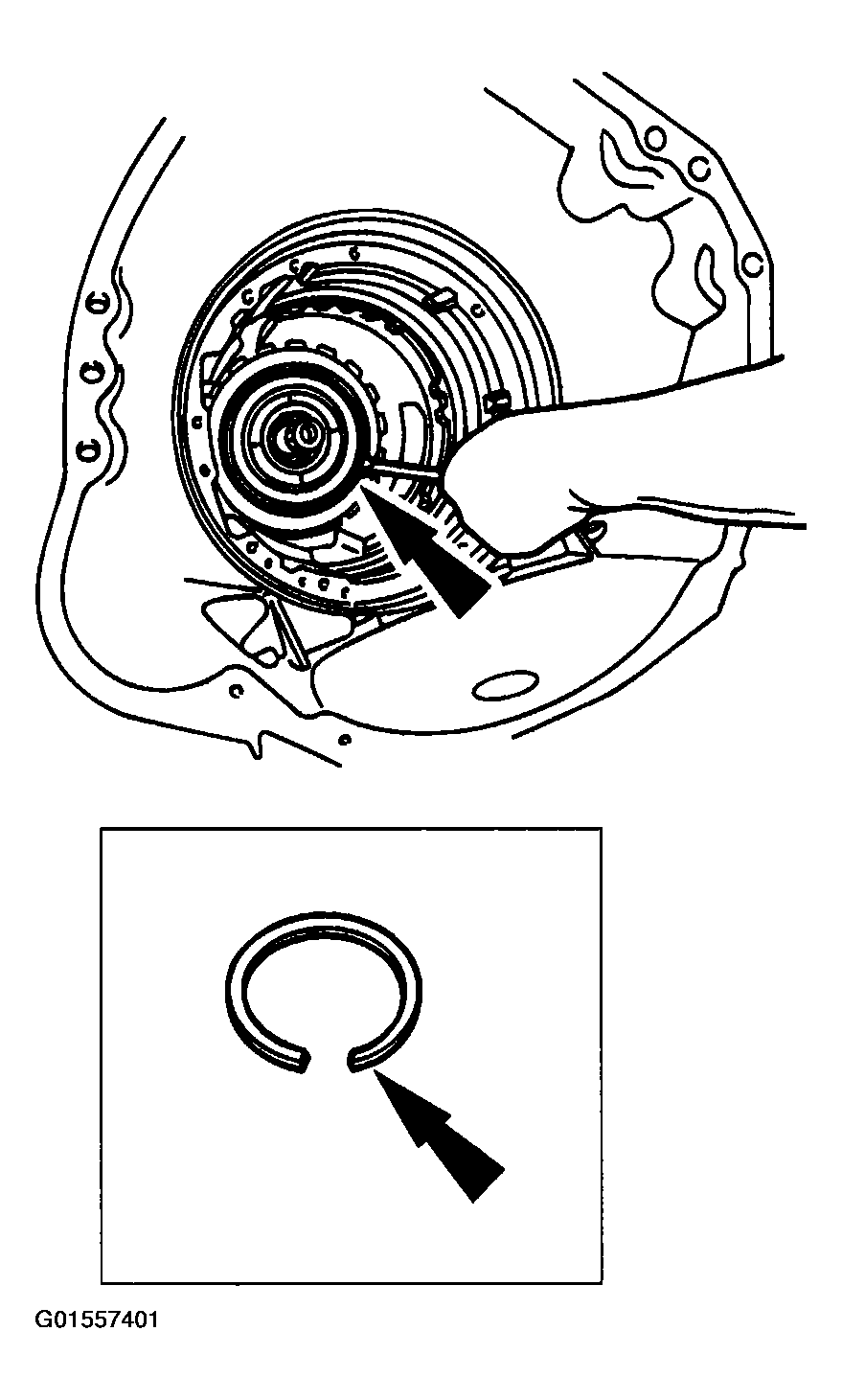

  16. Install the reverse planet retaining ring into the reverse clutch hub, making sure the retaining ring is fully seated.
    Fig 15: Installing Reverse Planet Retaining Ring
    G01557401Courtesy of FORD MOTOR CO.
    17. NOTE: The large outer diameter radius of the needle bearing must be installed facing inward.
    NOTE: Lightly lubricate the needle bearing with petroleum jelly to hold it in place during assembly.
    Fig 16: Installing No. 8B Forward Clutch Needle Bearing
    G01557402Courtesy of FORD MOTOR CO.
  17. Verify the No. 8B forward clutch needle bearing is installed.
  18. Install the forward clutch cylinder assembly onto the intermediate brake drum by rotating it until fully seated.
    Fig 17: Installing Forward Clutch Cylinder Assembly
    G01557403Courtesy of FORD MOTOR CO.
    19. NOTE: Lightly lubricate the thrust bearing with petroleum jelly to hold it in place during assembly.

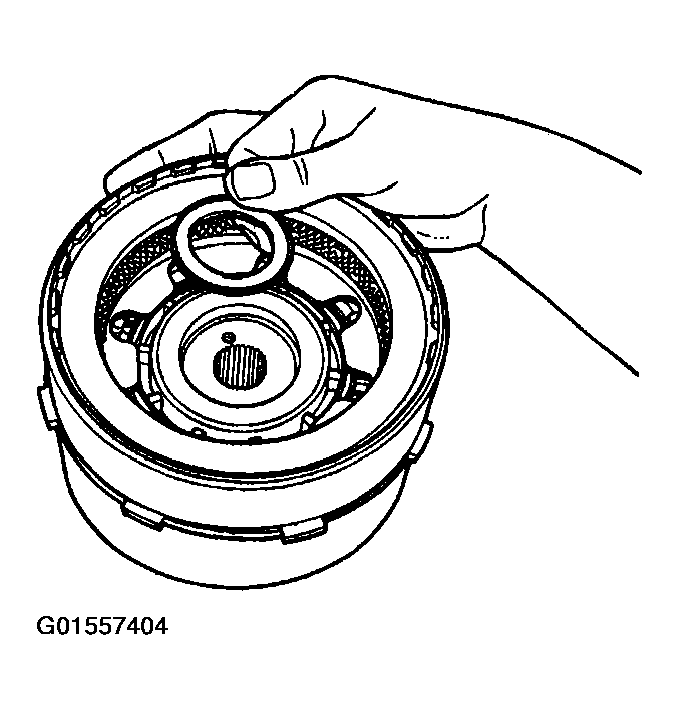

    Fig 18: Installing No. 9A Forward Clutch Thrust Bearing
    G01557404Courtesy of FORD MOTOR CO.
  19. Verify the No. 9A forward clutch thrust bearing is installed (black side facing up).
    20. NOTE: Lightly lubricate the thrust washer with petroleum jelly to hold it in place during assembly.

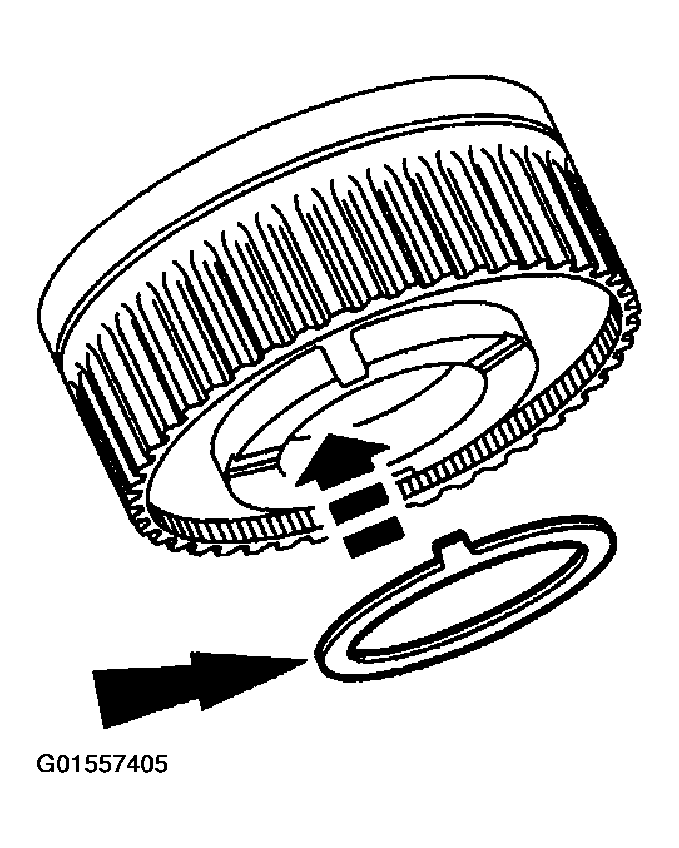

    Fig 19: Installing No. 8C Forward Clutch Hub Thrust Washer
    G01557405Courtesy of FORD MOTOR CO.
  20. Place the No. 8C forward clutch hub thrust washer onto the forward hub and ring gear assembly.

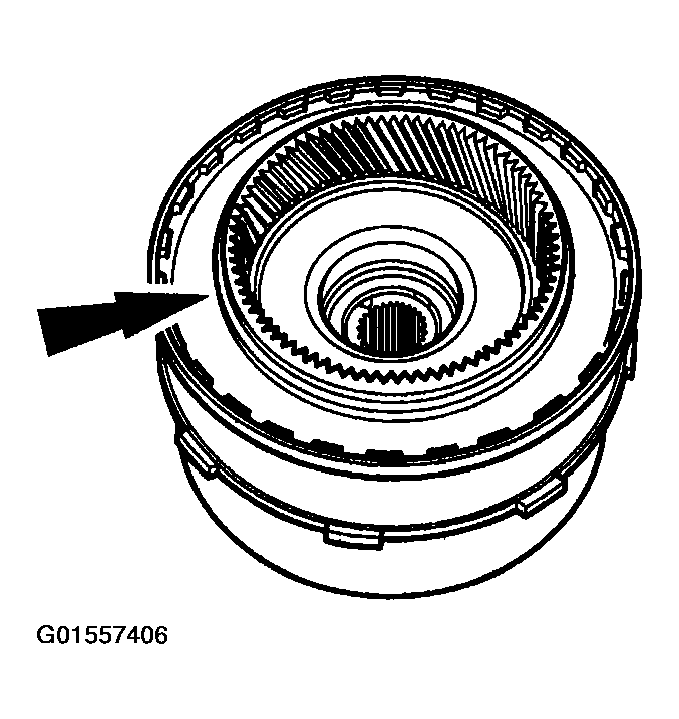

  21. Place the forward hub and ring gear assembly into the intermediate brake drum and forward clutch cylinder assemblies.
    Fig 20: Installing Forward Hub And Ring Gear Assembly
    G01557406Courtesy of FORD MOTOR CO.

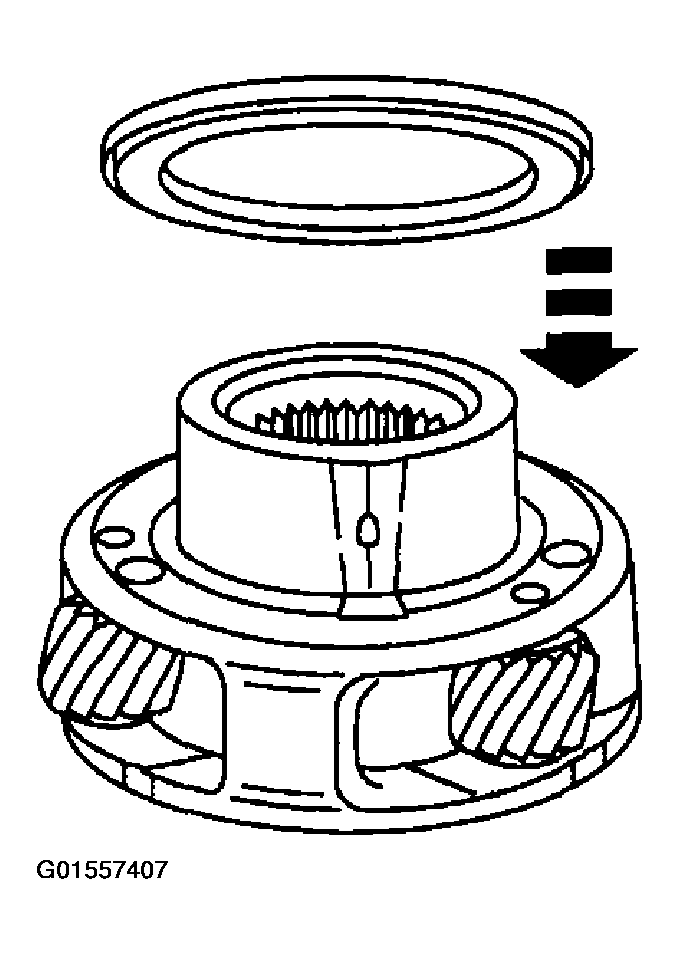

    22. NOTE: Lightly lubricate the thrust bearing with petroleum jelly to hold it in place during assembly.
    Fig 21: Installing No. 10A Forward Planet Assembly Thrust Bearing
    G01557407Courtesy of FORD MOTOR CO.
  22. Verify the No. 10A forward planet assembly thrust bearing is installed.

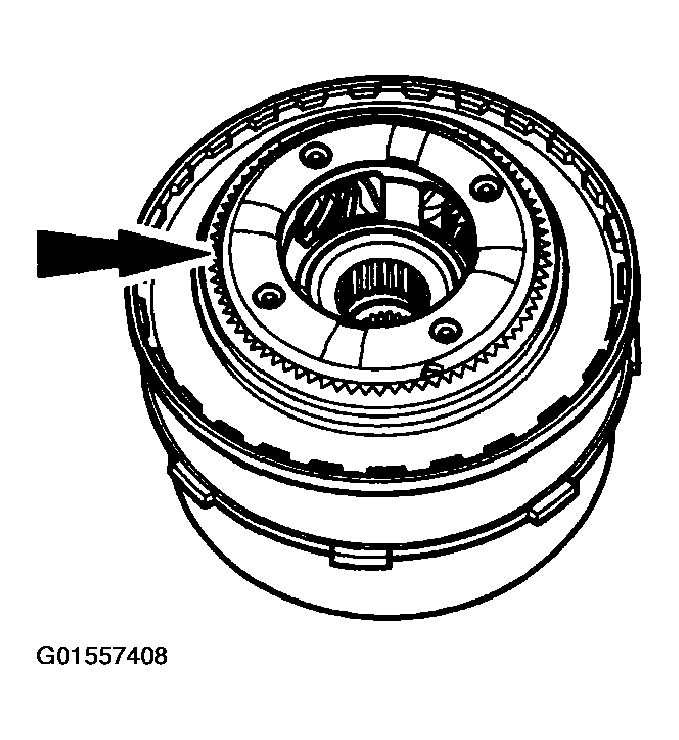

  23. Place the forward planet assembly into the forward hub and ring gear assembly.
    Fig 22: Installing Forward Planet Assembly Into Forward Hub & Ring Gear Assembly
    G01557408Courtesy of FORD MOTOR CO.
    24. NOTE: The thrust bearing notched inner race must face outward and the large outer diameter radius must face inward.

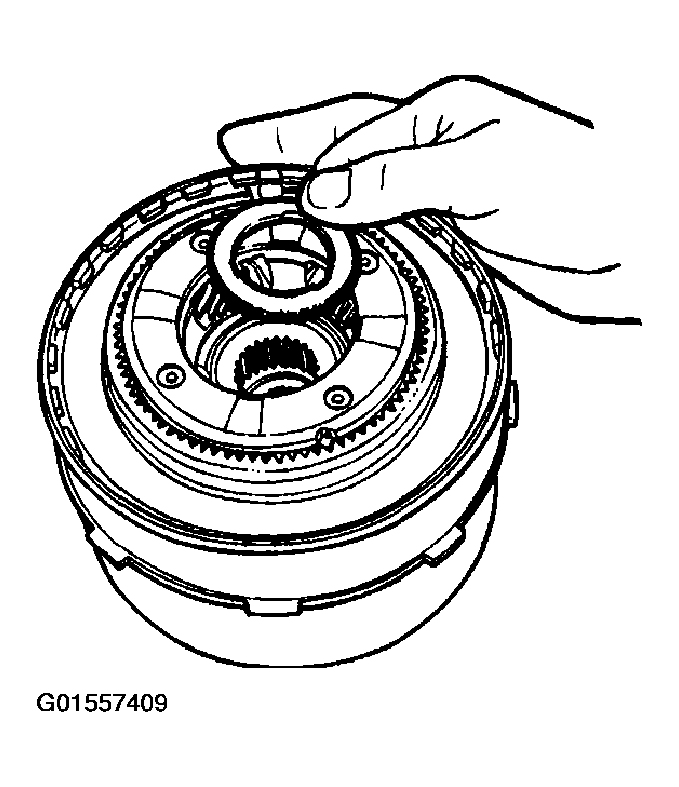

    Fig 23: Installing No. 9B Forward Clutch Thrust Bearing
    G01557409Courtesy of FORD MOTOR CO.
  24. Verify the No. 9B forward clutch thrust bearing is installed.

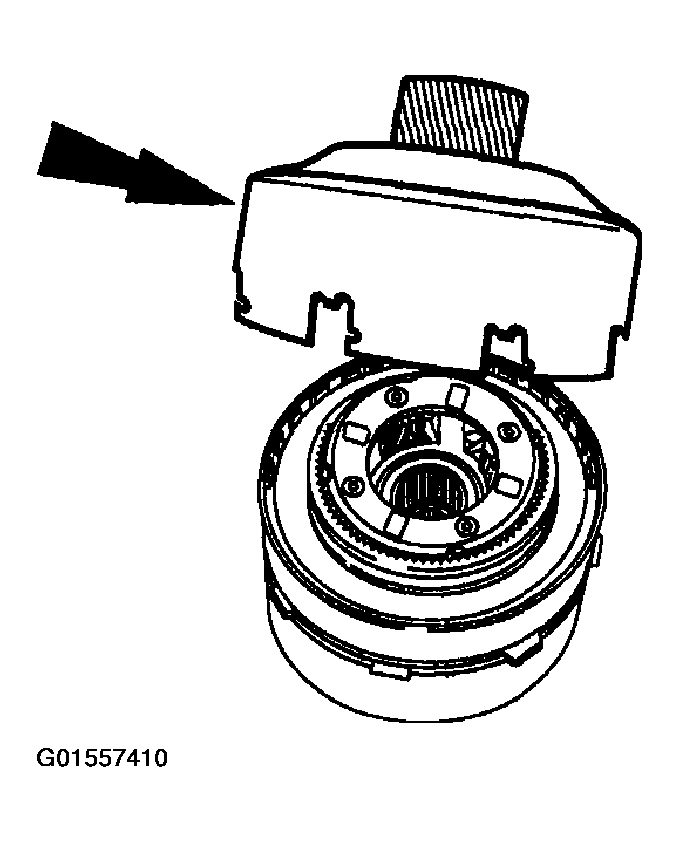

  25. Align the notches with the lugs and position the input shell onto the intermediate brake drum. Rotate the input shell until fully seated.
    Fig 24: Installing Input Shell Onto Intermediate Brake Drum
    G01557410Courtesy of FORD MOTOR CO.
    26. NOTE: When installing the special tool, each leg of the tool must be rotated separately to engage notches on the input shell prior to tightening the top cross bar.

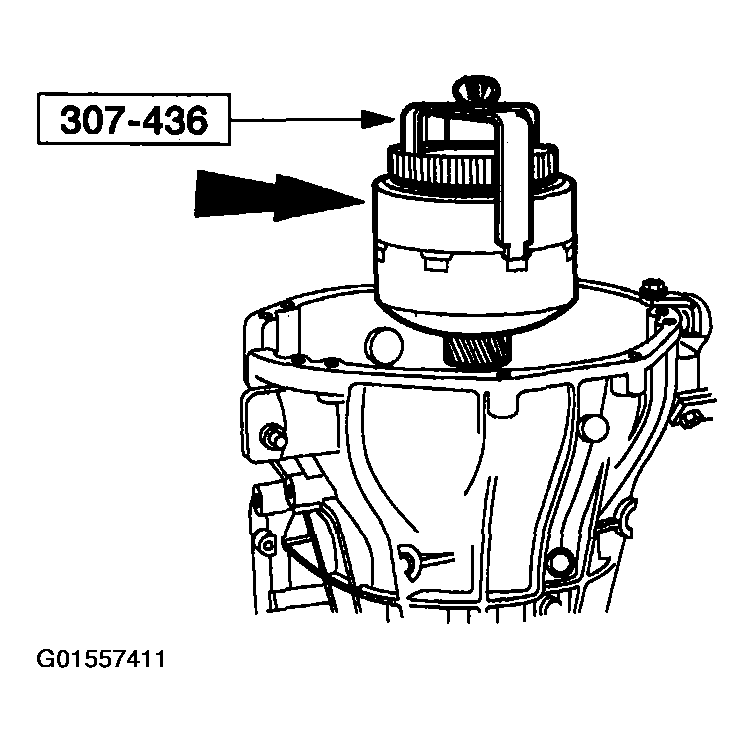

    Fig 25: Installing Direct Clutch, Forward Clutch & Input Shell Assembly
    G01557411Courtesy of FORD MOTOR CO.
  26. Using the Transmission Forward Clutch Assembly Installer (307-436), lower the direct clutch, forward clutch and input shell as an assembly into the case.

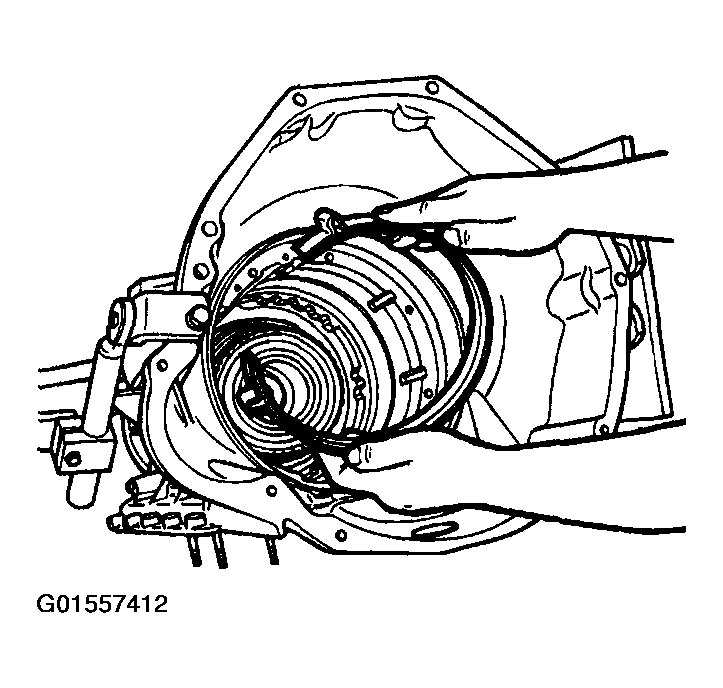

  27. Install the intermediate band with the ear resting on the anchor pin.
    Fig 26: Installing Intermediate Band
    G01557412Courtesy of FORD MOTOR CO.
    28. NOTE: Prior to installation, lightly lubricate the piston seal with clean automatic transmission fluid.

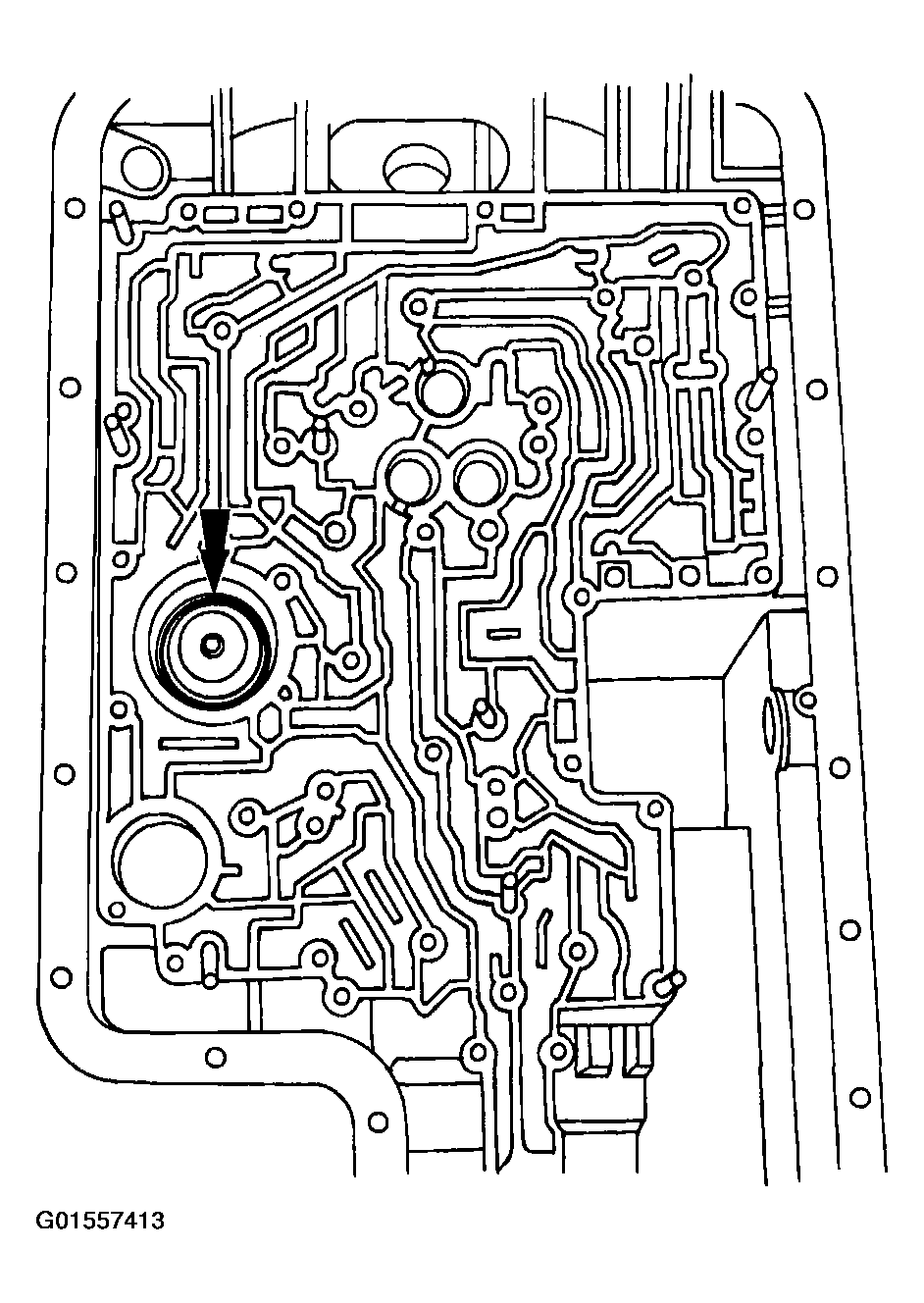

    Fig 27: Installing Intermediate Band Servo Assembly Piston
    G01557413Courtesy of FORD MOTOR CO.
  28. Gently press the intermediate band servo assembly piston into the case bore.
    29. NOTE: Clock position is viewed looking into the converter housing with the top of the transmission in the 12 o'clock position.

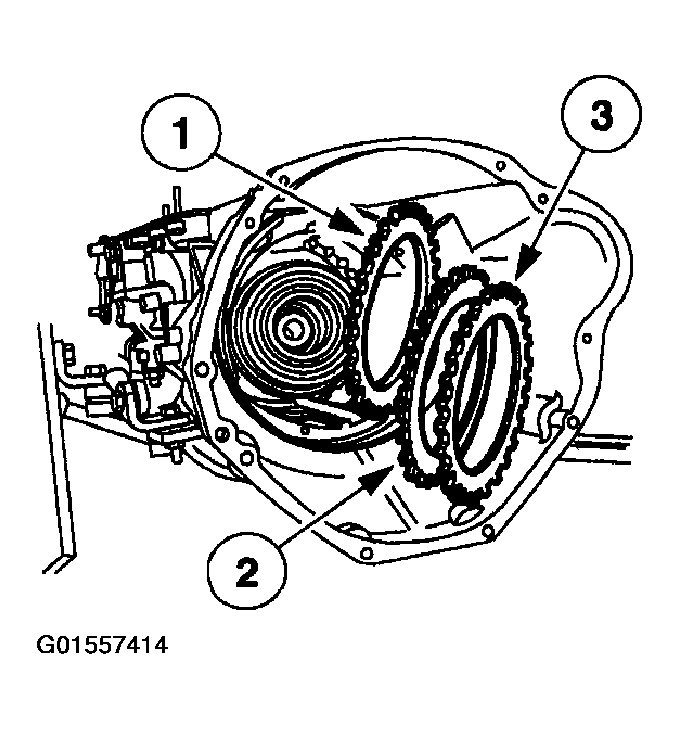

    Fig 28: Installing Intermediate Clutch Pack
    G01557414Courtesy of FORD MOTOR CO.
  29. Install the intermediate clutch pack.
    1. Intermediate clutch pressure plate
    2. Install the intermediate clutch pack, starting with an internal spline plate and alternating with external spline plates.
    3. Install the intermediate clutch pressure apply plate with blank area (no teeth) in the 6 o'clock and 12 o'clock positions.
    30. NOTE: The following stack-up check measurement indicates not only the amount of space existing between the center support assembly and the intermediate brake drum, it also will indicate if the unit has been correctly built to this point.

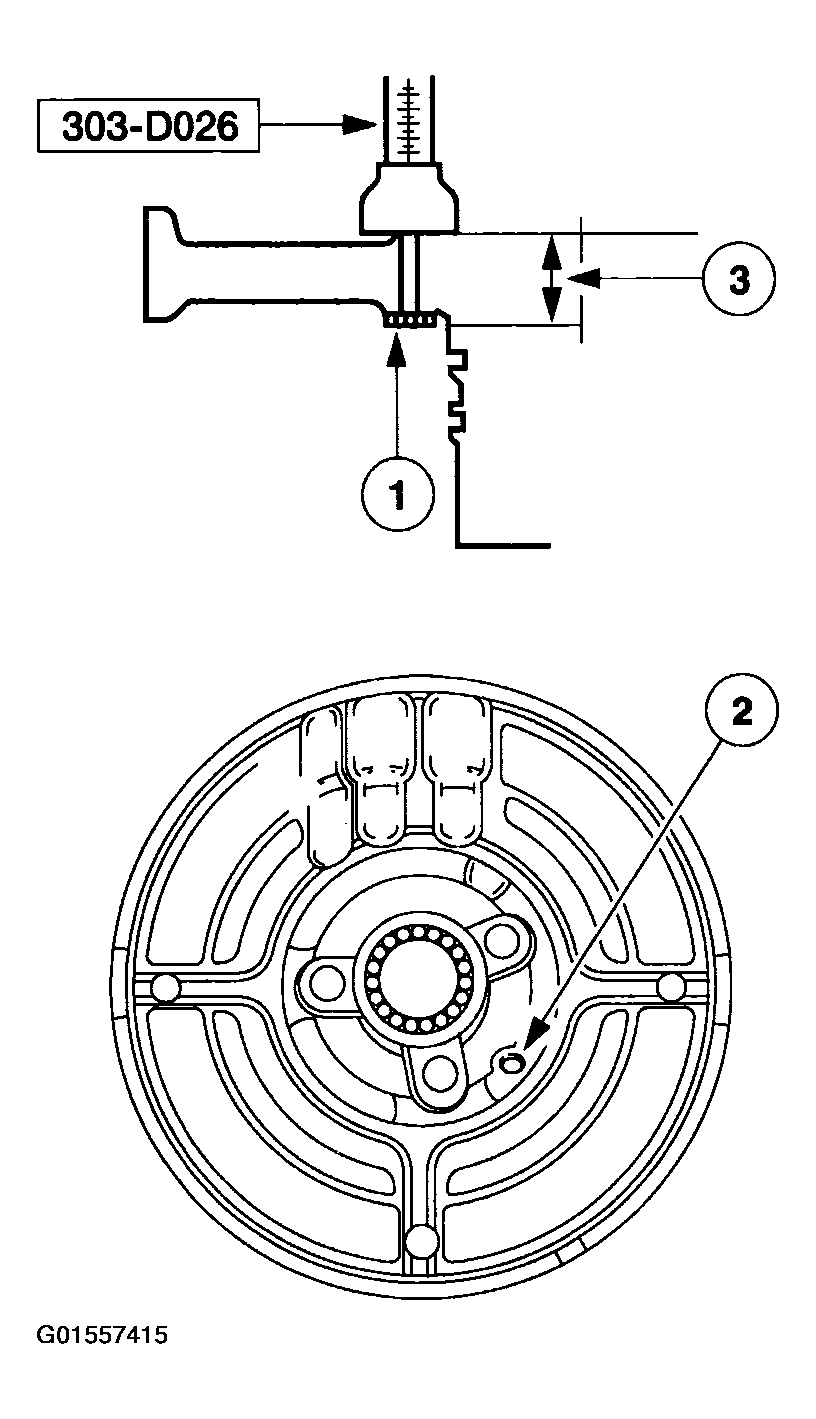

    Fig 29: Stack-Up Check Measurement 1
    G01557415Courtesy of FORD MOTOR CO.
  30. Measure the stack up.
    1. Hold the thrust washer against the center support assembly.
    2. Extend the probe of the Depth Micrometer (303-D026) into the hole until flush with the No. 6 center support thrust washer surface.
    3. Record this as reading 1.
    31. CAUTION: Do not misalign the center support in the case bore. This can cause case bore damage.
    NOTE: Make sure the No. 6 center support thrust washer is on the center support prior to installation.

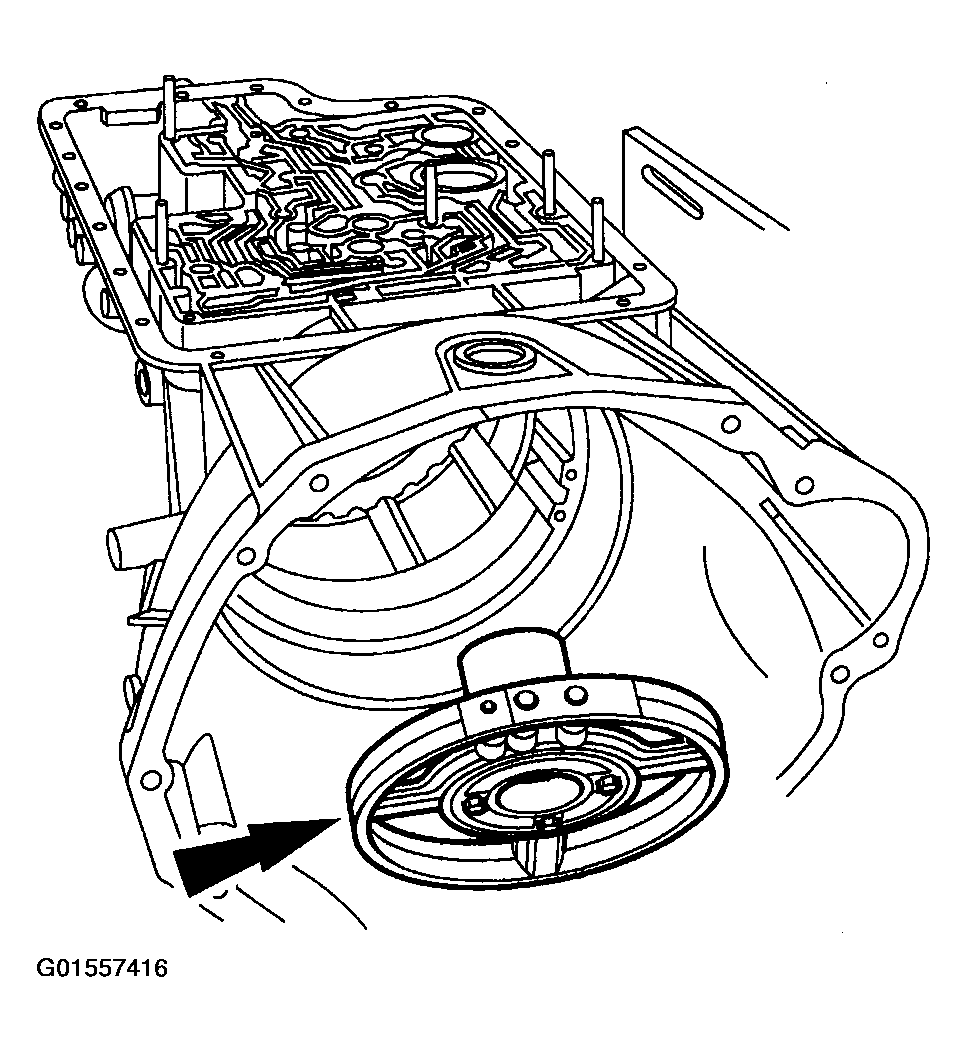

    Fig 30: Installing Center Support Assembly
    G01557416Courtesy of FORD MOTOR CO.
  31. Install the center support assembly with the feed holes aligned in the case.
  32. Make a second measurement after installation of the center support.
    1. Extend the probe of the depth micrometer into the hole in the center support assembly until flush with the No. 6 center support thrust washer.
    2. Record this as reading 2.

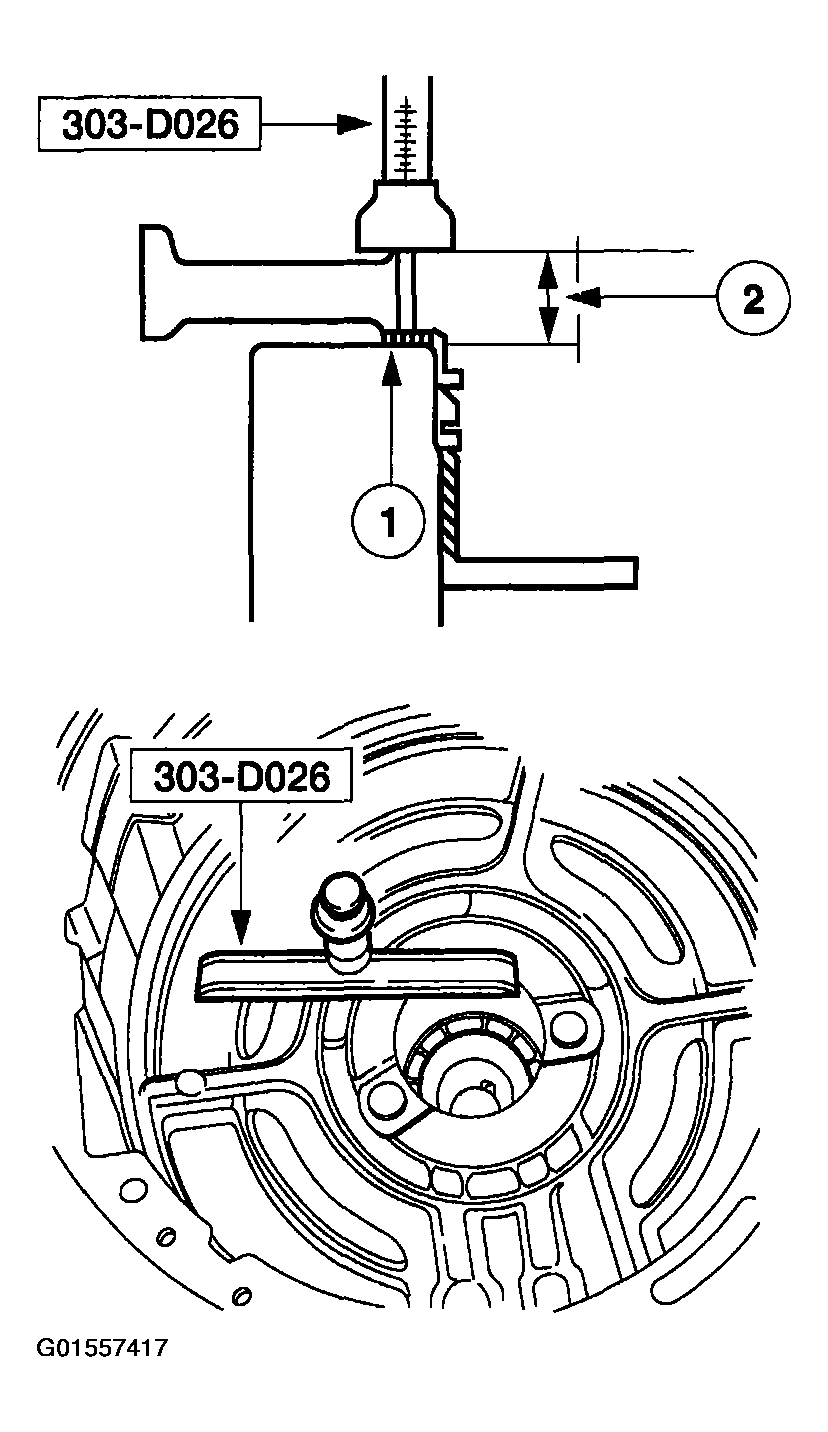

    Fig 31: Stack-Up Check Measurement 2
    G01557417Courtesy of FORD MOTOR CO.
  33. Subtract reading 1 from reading 2. Record this as reading 3. If the final dimension is outside specified limits, this indicates that the transmission has been assembled incorrectly.
    Fig 32: Stack-Up Check Measurement 3
    G01557418Courtesy of FORD MOTOR CO.

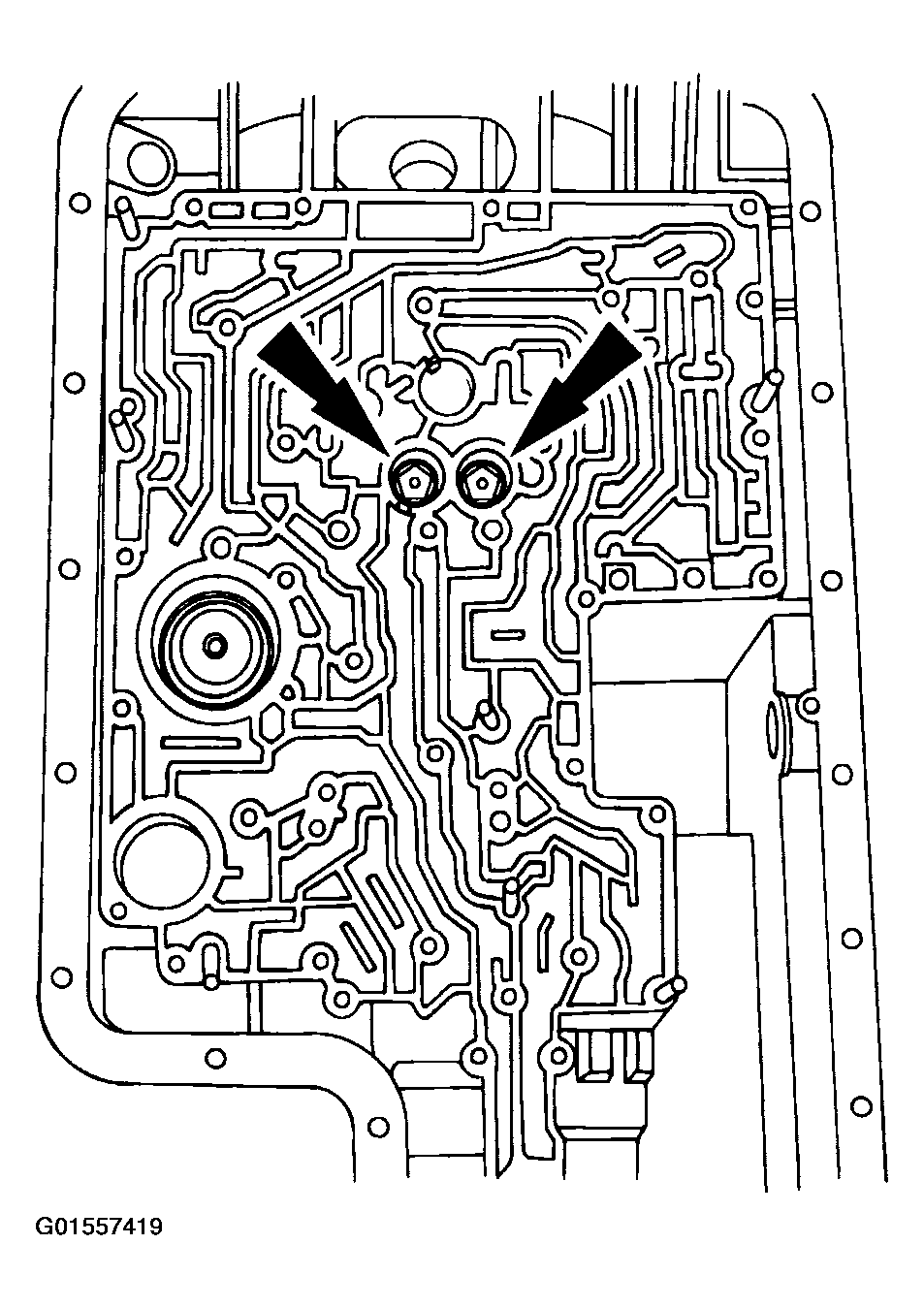

    34. CAUTION: Do not tighten the bolts at this time. This could cause transmission failure.
    Fig 33: Installing Feedbolts
    G01557419Courtesy of FORD MOTOR CO.
  34. Loosely install two new feedbolts.

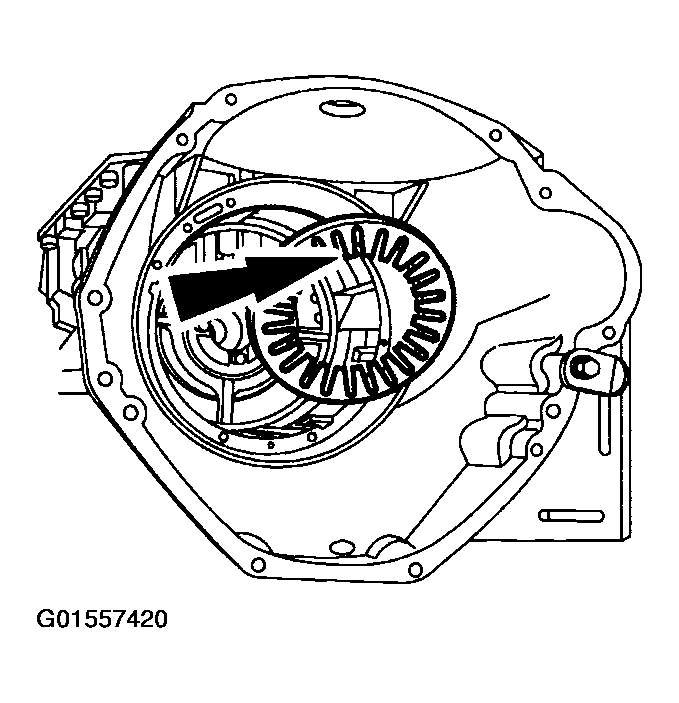

    35. NOTE: Clock position is viewed looking into the converter housing with the top of the transmission in the 12 o'clock position.
    Fig 34: Installing Intermediate Clutch Return Spring
    G01557420Courtesy of FORD MOTOR CO.
  35. Install the intermediate clutch return spring with the dished surface inward and one spring leg in the 6 o'clock position.

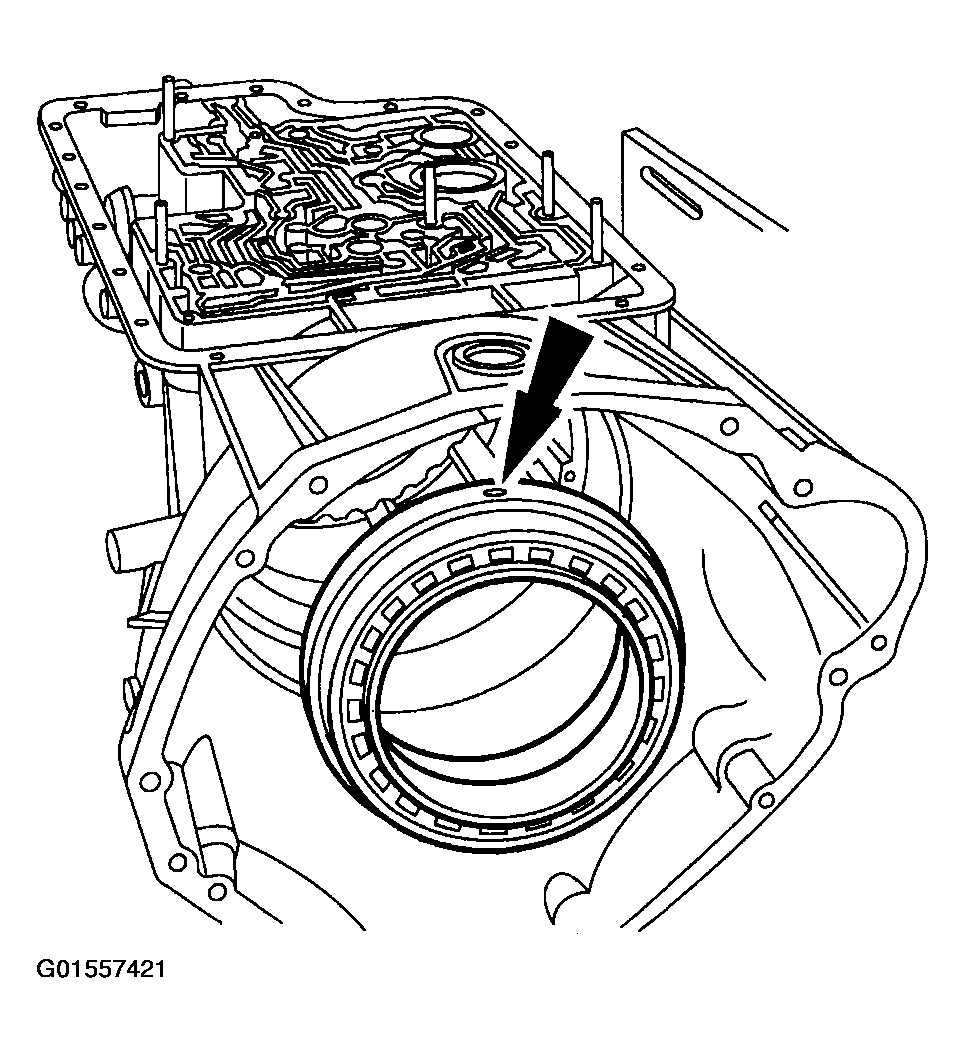

    36. CAUTION: Do not misalign the intermediate/overdrive cylinder assembly. This can damage the case bore.
    Fig 35: Installing Intermediate/Overdrive Cylinder Assembly
    G01557421Courtesy of FORD MOTOR CO.
  36. Install the intermediate/overdrive cylinder assembly with the feed holes aligned with the holes in the case.
    37. NOTE: Clock position is viewed looking into the converter housing with the top of the transmission in the 12 o'clock position.

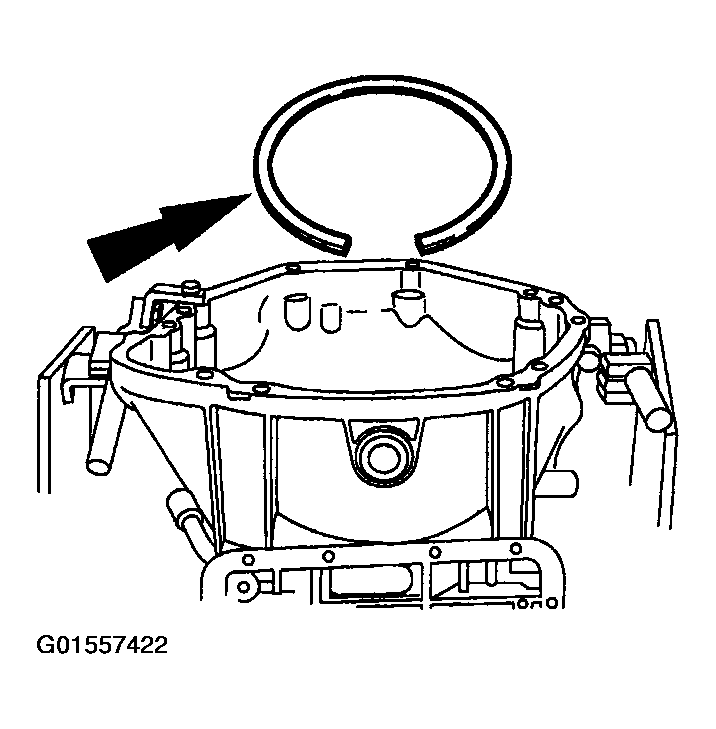

    Fig 36: Installing Intermediate/Overdrive Cylinder Retaining Ring
    G01557422Courtesy of FORD MOTOR CO.
  37. Install the intermediate/overdrive cylinder retaining ring over the intermediate/overdrive cylinder with the ring opening in the 6 o'clock position to allow for the correct fluid drainback.
  38. Install the Clutch Spring Service Set (307-S223).
    1. Rotate the special tool clockwise to lock in place.
    2. Tighten the handle.

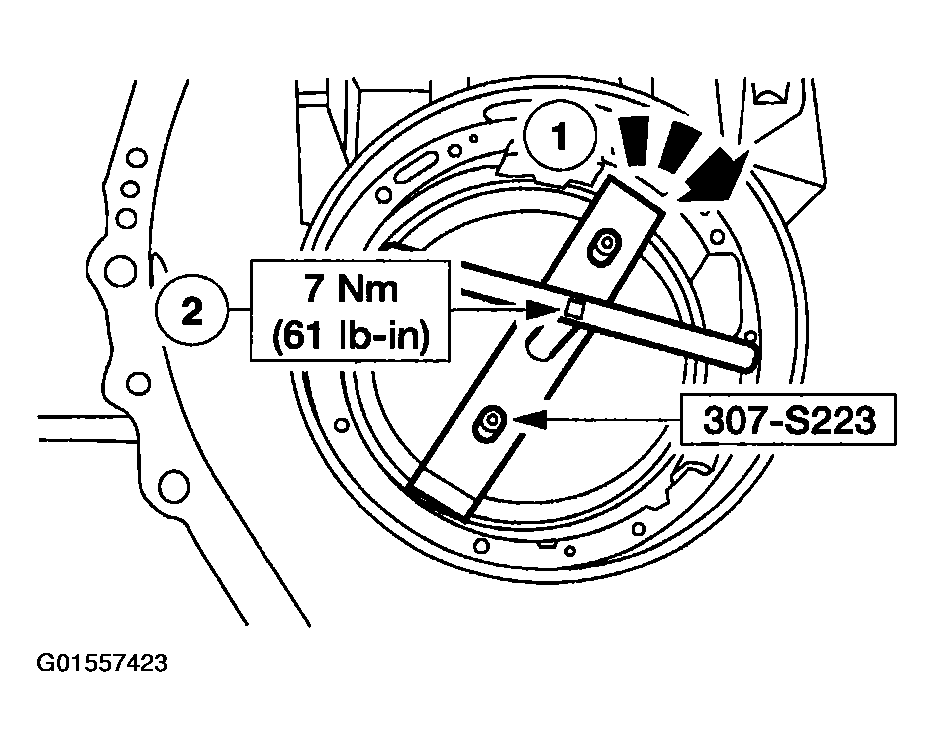

    Fig 37: Installing Clutch Spring Service Set
    G01557423Courtesy of FORD MOTOR CO.
    39. CAUTION: Make sure the snap ring is fully seated into the case. Transmission failure could occur.
    NOTE: Clock position is viewed looking into the converter housing with the top of the transmission in the 12 o'clock position.

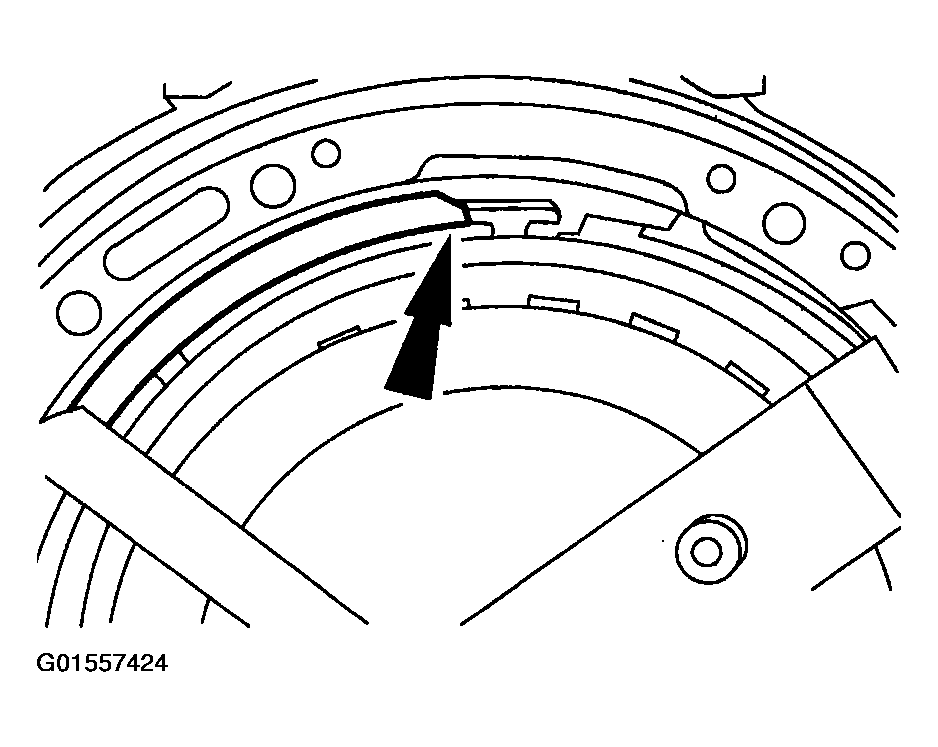

    Fig 38: Installing Intermediate/Overdrive Cylinder Retaining Ring
    G01557424Courtesy of FORD MOTOR CO.
  39. Seat the intermediate/overdrive cylinder retaining ring into the case ring groove with the ring opening in the 6 o'clock position.
    40. CAUTION: Do not tighten the bolts at this time. Transmission failure could occur.

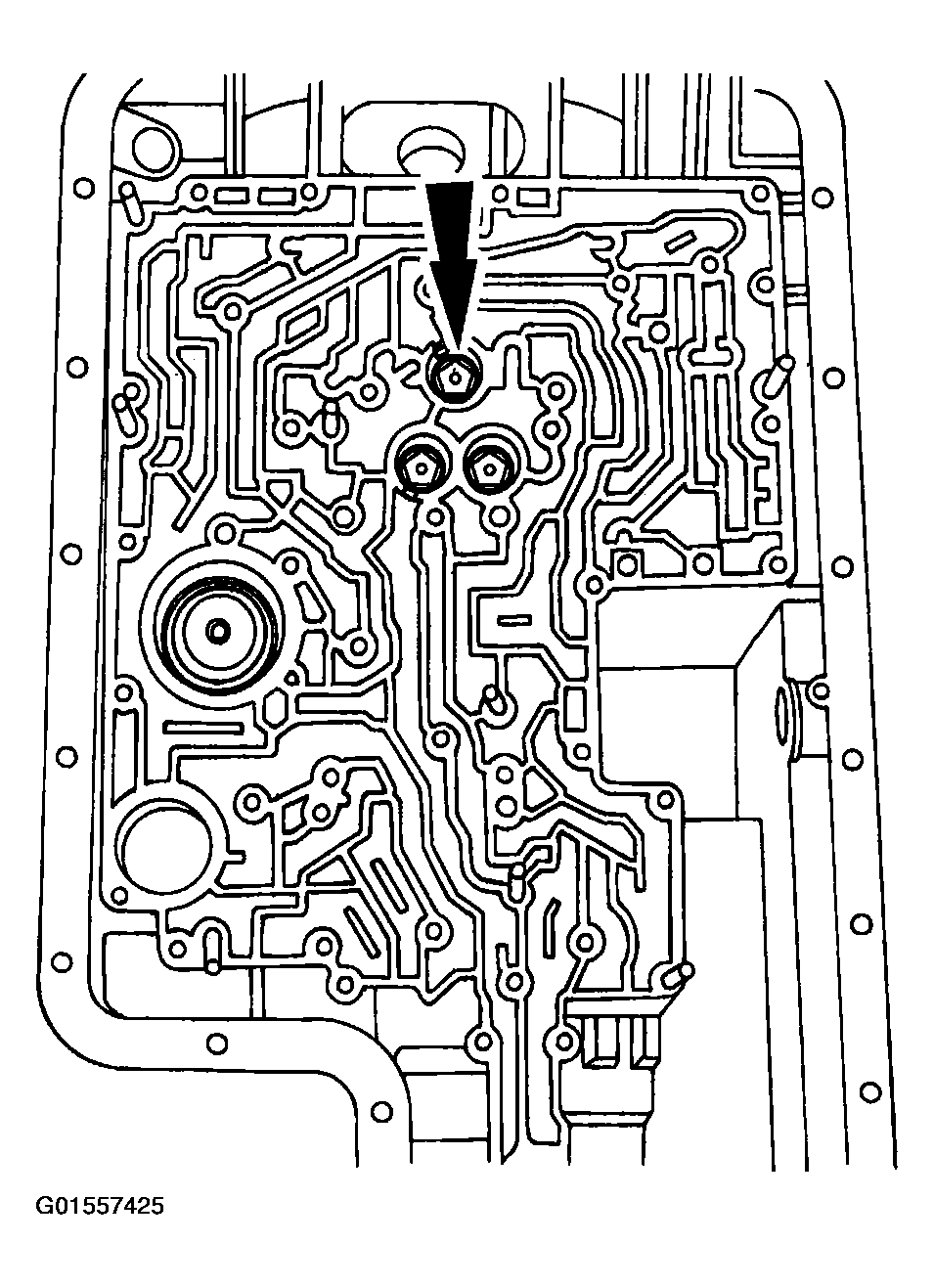

    Fig 39: Installing Intermediate/Overdrive Cylinder Feedbolt
    G01557425Courtesy of FORD MOTOR CO.
  40. Loosely install a new intermediate/overdrive cylinder feedbolt.
  41. Loosen the center bolt and remove the special tool.

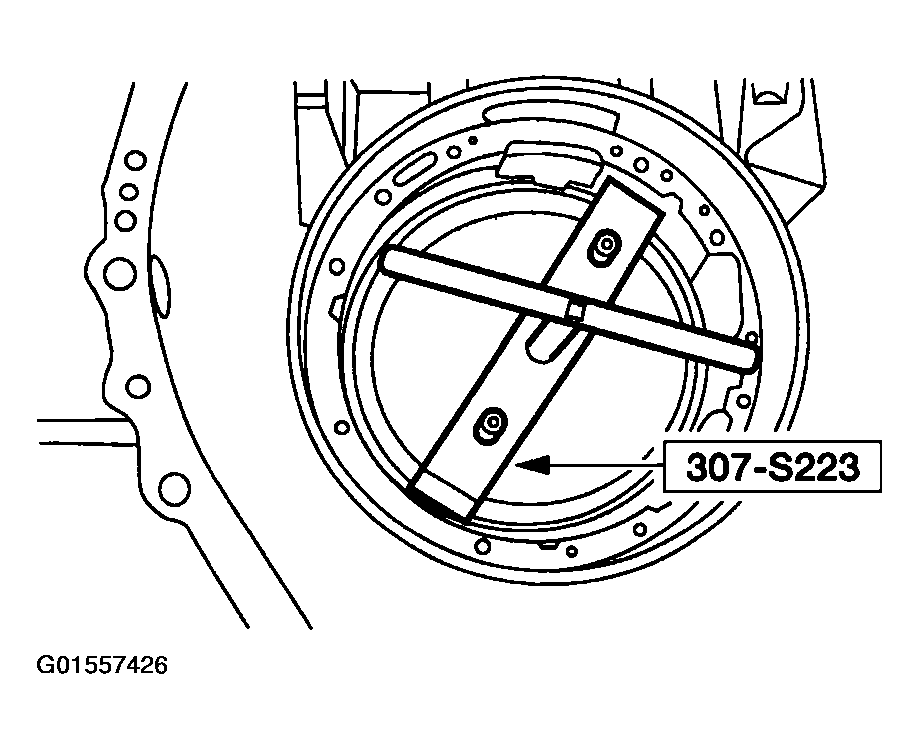

    Fig 40: Removing Special Tool
    G01557426Courtesy of FORD MOTOR CO.
    42. NOTE: The number of plates in the clutch pack is vehicle-dependent.
    NOTE: Clock position is viewed looking into the converter housing with the top of the transmission in the 12 o'clock position.

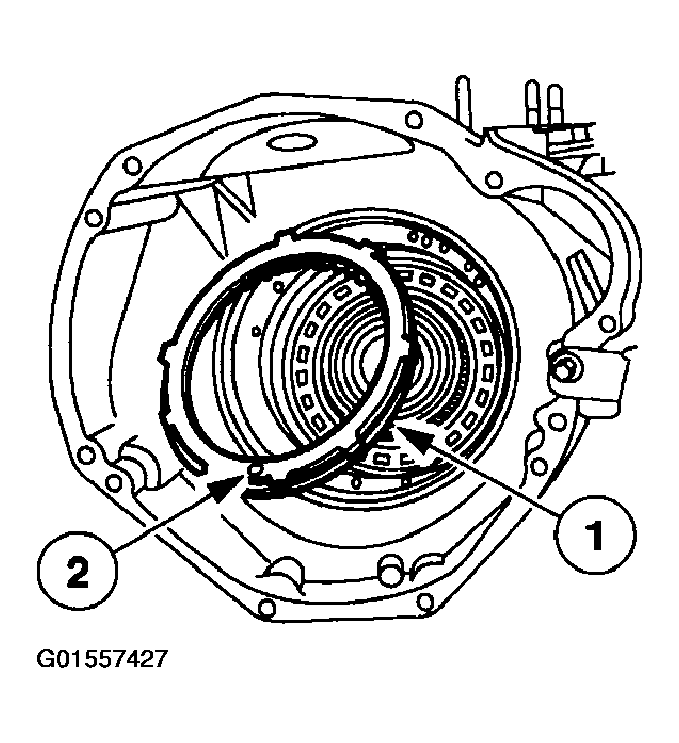

    Fig 41: Installing Overdrive Clutch Pack
    G01557427Courtesy of FORD MOTOR CO.
  42. Install the overdrive clutch pack.
    1. Install the overdrive clutch pack starting with a steel plate and alternating with friction plates.
    2. Install the overdrive clutch pressure plate with the dot facing outward and in the 12 o'clock position.
    43. NOTE: Clock position is viewed looking into the converter housing with the top of the transmission in the 12 o'clock position.

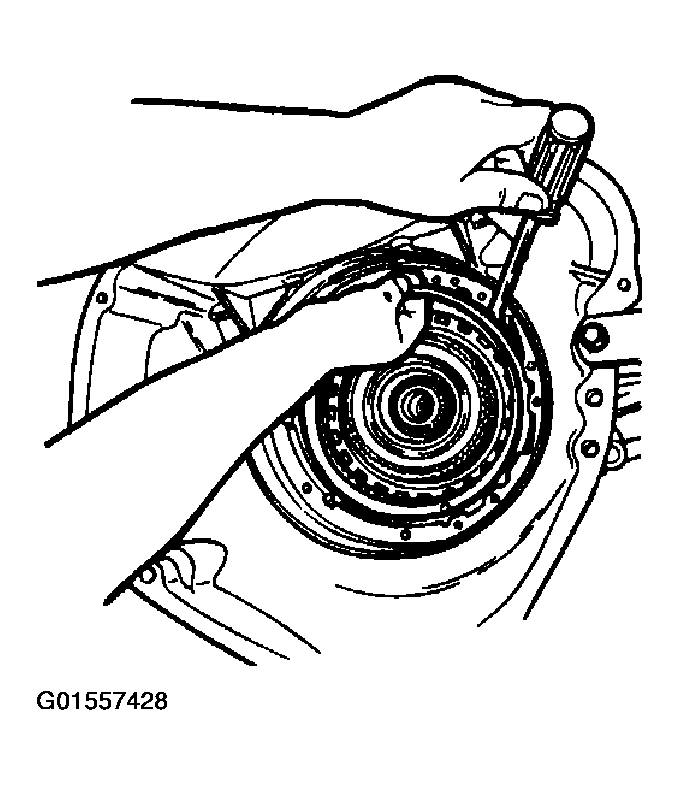

    Fig 42: Installing Overdrive Clutch Pressure Plate Retainer Snap Ring
    G01557428Courtesy of FORD MOTOR CO.
  43. Install the overdrive clutch pressure plate retainer snap ring with the ring opening in the 6 o'clock position.
    44. NOTE: The special tool must be used to install the coast clutch assembly or damage to the overdrive one-way clutch may occur.
    NOTE: Use petroleum jelly to hold the No. 5 thrust bearing on the center shaft during assembly.

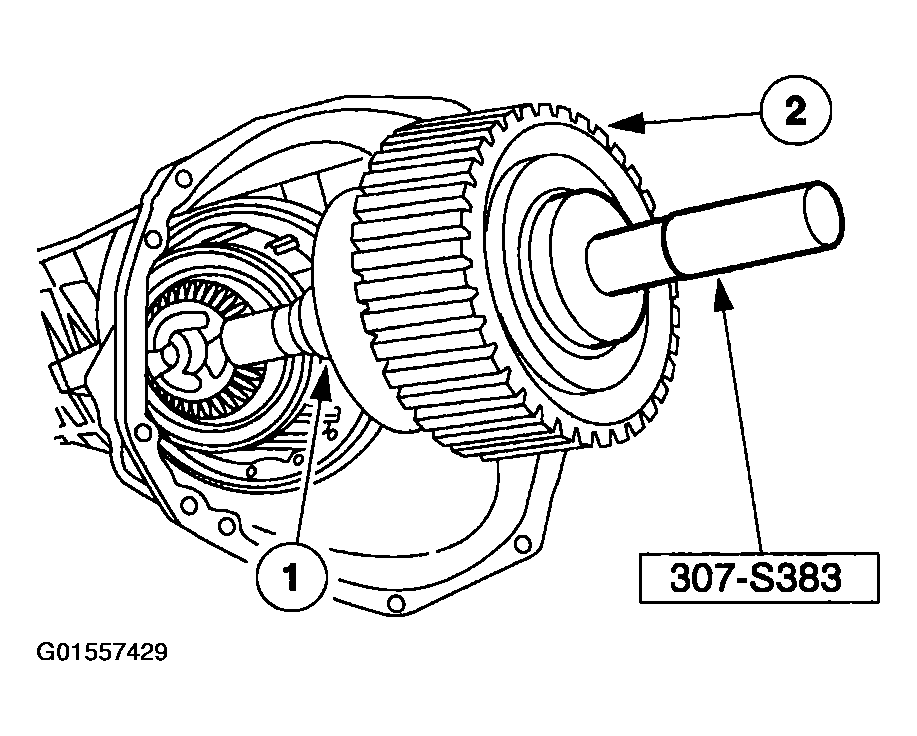

    Fig 43: Installing Coast Clutch & No. 5 Thrust Bearing Assembly
    G01557429Courtesy of FORD MOTOR CO.
  44. Using the Clutch Loading Fixture (307-S383), install the coast clutch and No. 5 thrust bearing assembly.
    1. Install the No. 5 thrust bearing.
    2. Install the coast clutch assembly.
    45. NOTE: The special tool must be used to install the coast clutch assembly or damage to the overdrive one-way clutch may occur.
    NOTE: Use petroleum jelly to hold the No. 5 thrust bearing on the center shaft during assembly.

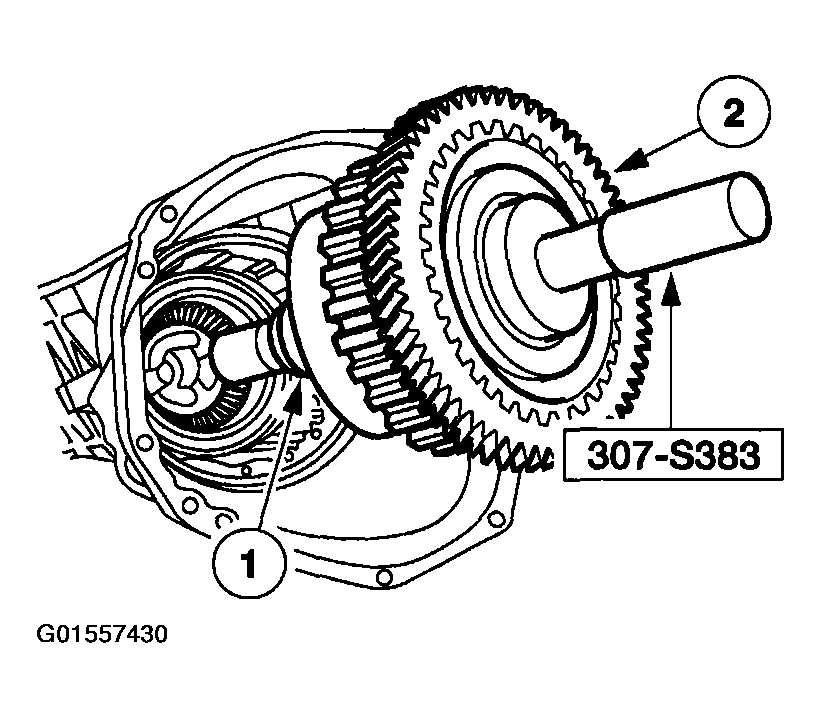

    Fig 44: Installing Coast Clutch & No. 5 Thrust Bearing Assembly (With PTO)
    G01557430Courtesy of FORD MOTOR CO.

  45. Applications Equipped With A PTO
    Using the Clutch Loading Fixture (307-S383), install the coast clutch and No. 5 thrust bearing assembly.
    1. Install the No. 5 thrust bearing.
    2. Install the coast clutch assembly.

  46. All Applications

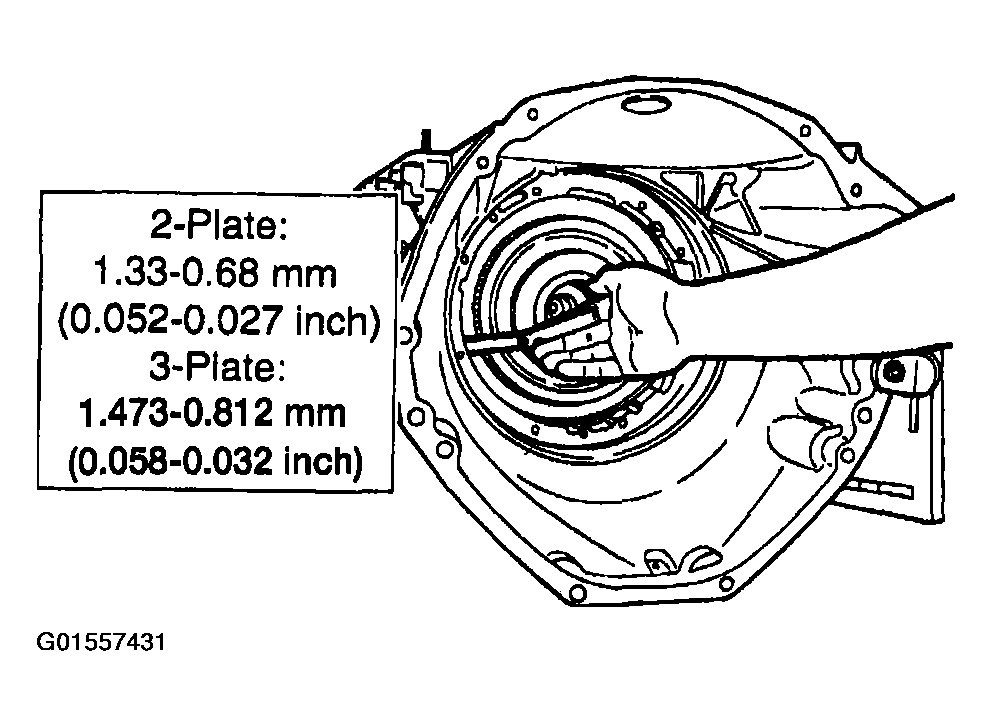

    Check the stack-up clearance.
    • Using a feeler gauge, check the stack-up clearance in 3 places, 120 degrees apart.
    • If the clearance is not to specification, install the correct selective overdrive clutch pressure plate retainer snap ring and recheck the clearance. Refer to the Clutch Plate Usage and Clearance Specification Chart for selective snap ring thicknesses and part numbers.
    Fig 45: Measuring Stack Up Clearances
    G01557431Courtesy of FORD MOTOR CO.
    47. NOTE: Lightly lubricate the gasket with petroleum jelly to hold it in place during assembly.

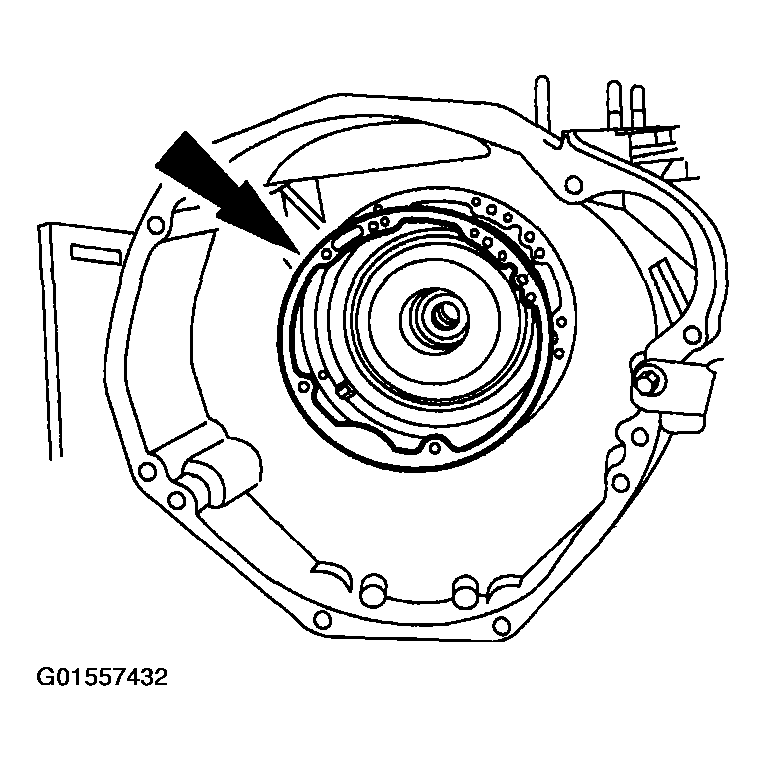

    Fig 46: Installing Pump Gasket
    G01557432Courtesy of FORD MOTOR CO.
  47. Install the new pump gasket. Aligning the holes in the gasket with the holes in the case.
  48. Install the input shaft with long-splined end first and install the special tool.

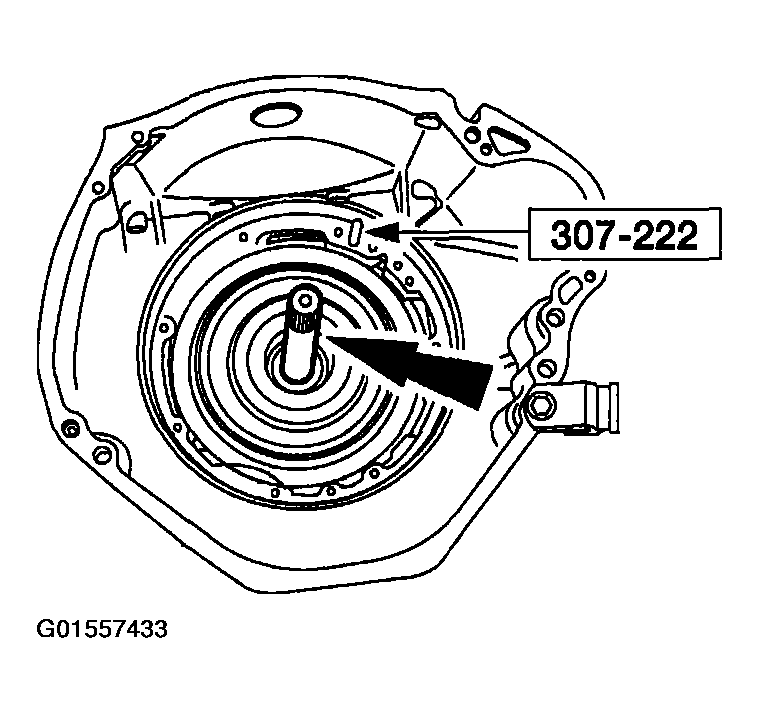

    Fig 47: Installing Input Shaft
    G01557433Courtesy of FORD MOTOR CO.
    49. NOTE: The No. 1 pump thrust washer is model dependent.
    NOTE: Lightly lubricate the thrust washer and bearing with petroleum jelly to hold it in place during assembly.

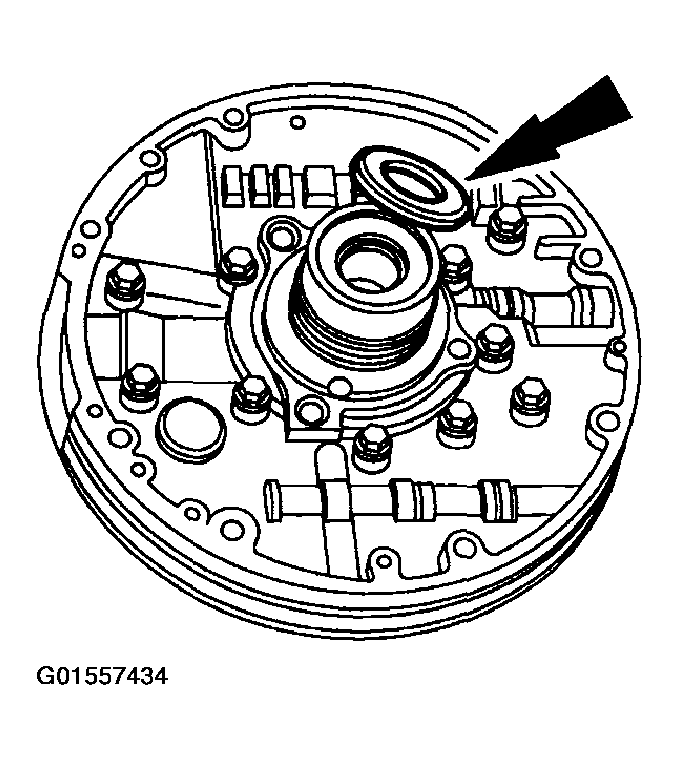

    Fig 48: Installing No. 1 Pump Thrust Washer & No. 2A Overdrive Sun Gear Thrust Bearing
    G01557434Courtesy of FORD MOTOR CO.
  49. Install the No. 1 pump thrust washer and the No. 2A overdrive sun gear thrust bearing.
    50. CAUTION: Pump assemblies are vehicle-dependent. Using the wrong pump will cause transmission failure.
    CAUTION: Fully seat the front pump assembly using hand pressure only. Do not use bolts to draw the front pump assembly into the case.
    CAUTION: Tighten the bolts alternately to avoid possible damage.
    NOTE: Clock position is viewed looking into the converter housing with the top of the transmission in the 12 o'clock position.

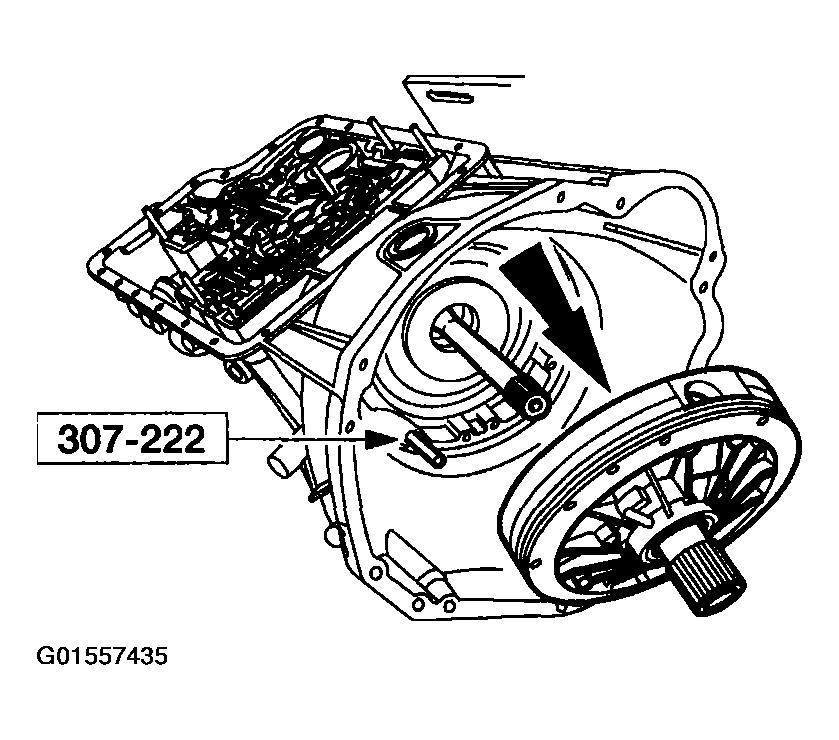

    Fig 49: Installing Front Pump Assembly
    G01557435Courtesy of FORD MOTOR CO.
  50. Install the front pump assembly with the filter inlet tube bore in the 6 o'clock position. Fully seat the front pump assembly using hand pressure only. When the pump is fully seated, remove the special tool.
    51. CAUTION: Discard the old washers.

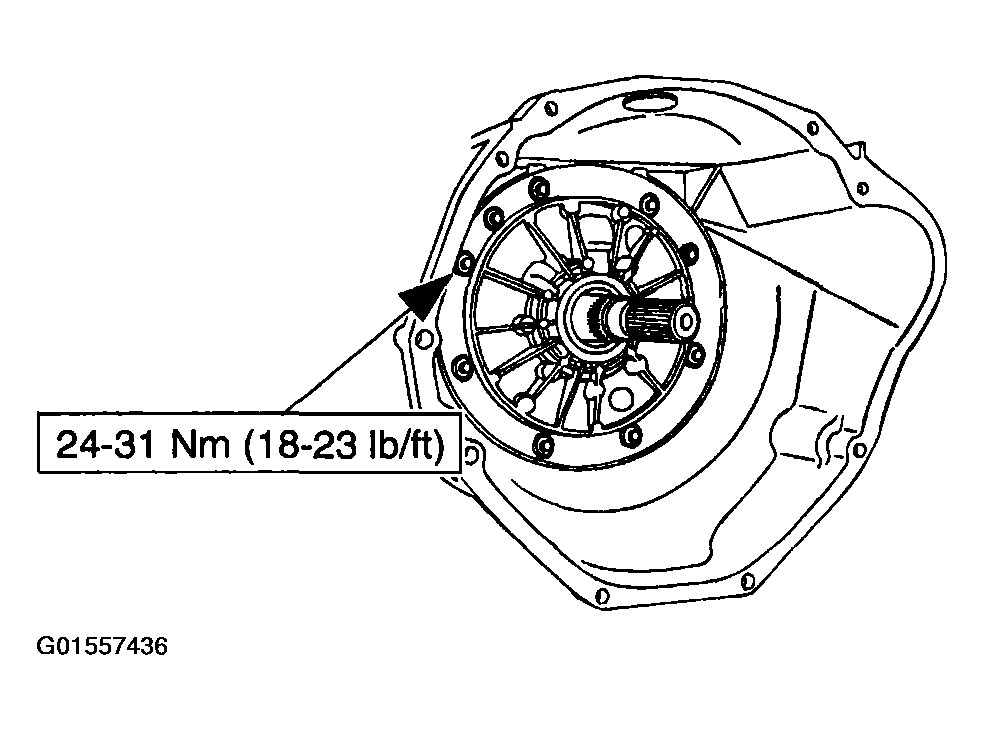

    Fig 50: Installing Front Pump Bolts
    G01557436Courtesy of FORD MOTOR CO.
  51. Install the bolts with new rubber-coated washers. Tighten the bolts alternately in a crisscross pattern.
    52. CAUTION: Remove the input shaft prior to rotating the transmission.

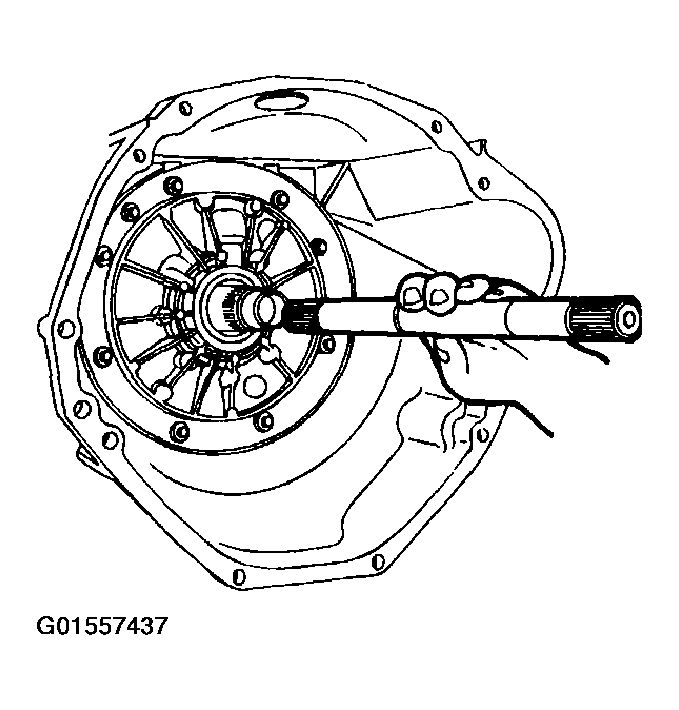

    Fig 51: Removing Input Shaft
    G01557437Courtesy of FORD MOTOR CO.
  52. Remove the input shaft.
  53. Using the Shift Shaft Fluid Seal Installer (307-050), install the manual control lever seal.
    Fig 52: Installing Manual Control Lever Seal
    G01557438Courtesy of FORD MOTOR CO.
  54. Install the manual control lever shaft assembly.
    1. Install the manual control lever shaft assembly.
    2. Install and seat the manual lever shaft retaining pin below the case surface.
      3. NOTE: Use a crescent wrench on the manual control lever or outer flats of the manual control lever shaft assembly when installing the inner manual valve detent lever nut.
    3. Install the parking pawl actuating rod, the inner manual valve detent lever and the nut onto the manual control lever shaft assembly.
      4. NOTE: The manual control valve detent lever spring must be on the inner manual valve detent lever and the detent lever pin must align with the manual shift valve.
    4. Install the manual control valve detent lever spring and the bolt.

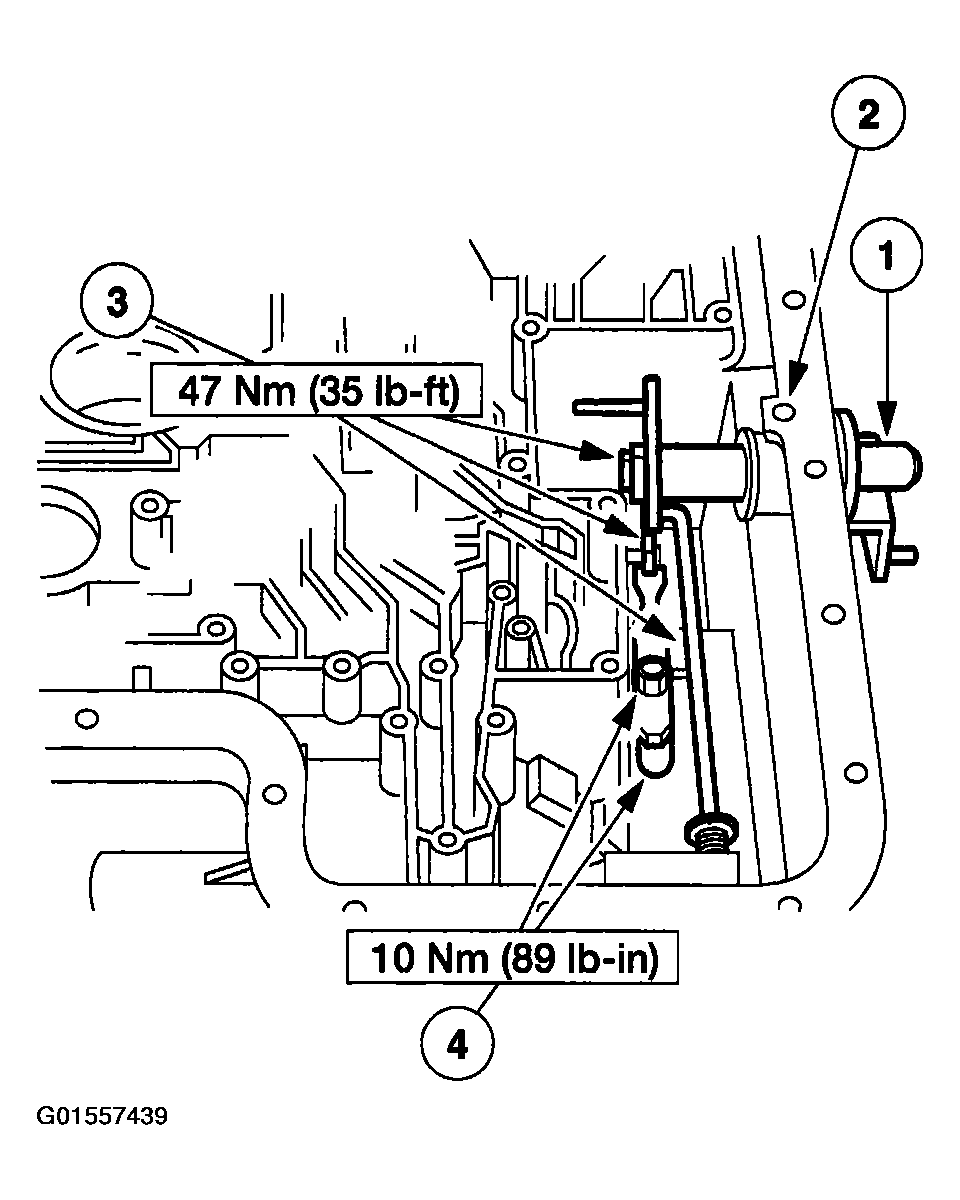

    Fig 53: Installing Manual Control Lever Shaft Assembly
    G01557439Courtesy of FORD MOTOR CO.
  55. Install the parking pawl.
    1. Install the parking pawl shaft.
    2. Install the parking pawl.
    3. Install the parking pawl return spring.

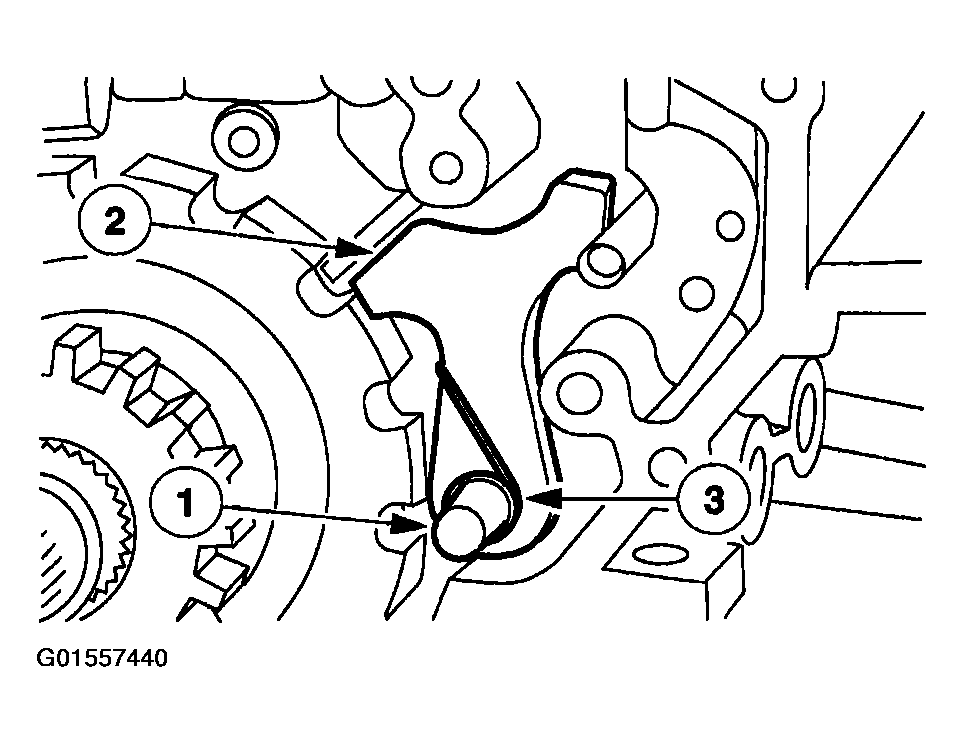

    Fig 54: Installing Parking Pawl
    G01557440Courtesy of FORD MOTOR CO.
    56. CAUTION: The Torx® screw has a thread-locking compound. If the screw is removed, it must be discarded and a new one installed.

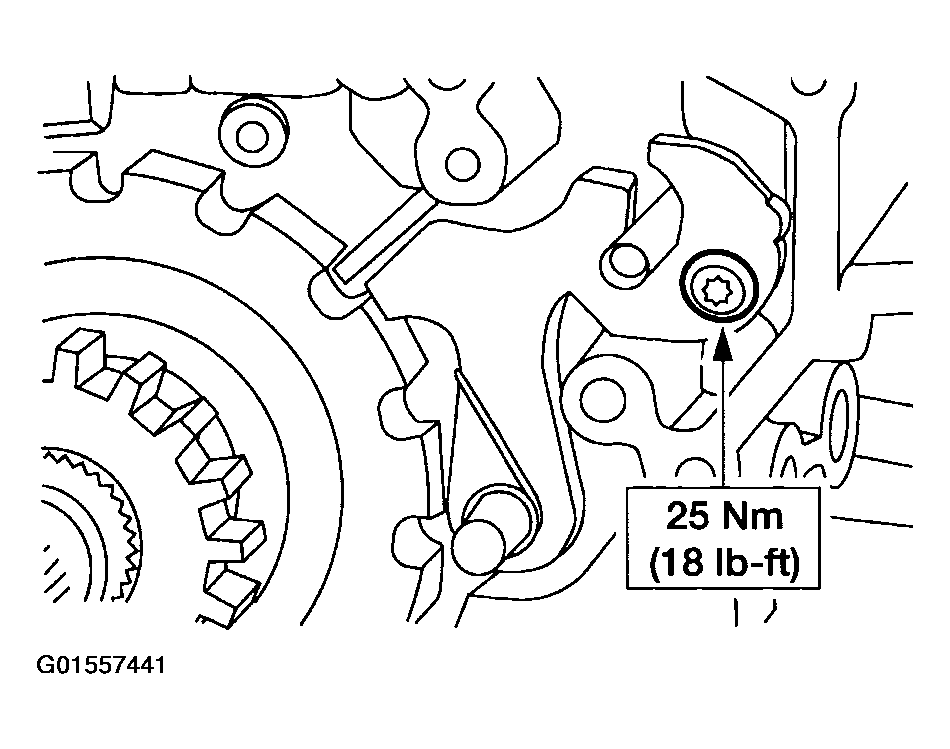

    Fig 55: Installing Parking Pawl Abutment
    G01557441Courtesy of FORD MOTOR CO.
  56. If removed, install the parking pawl abutment with a new Torx® screw.
    57. NOTE: Make sure the dimple on the parking guide support plate is facing inward and the parking pawl actuating rod is in the parking rod support plate slot.

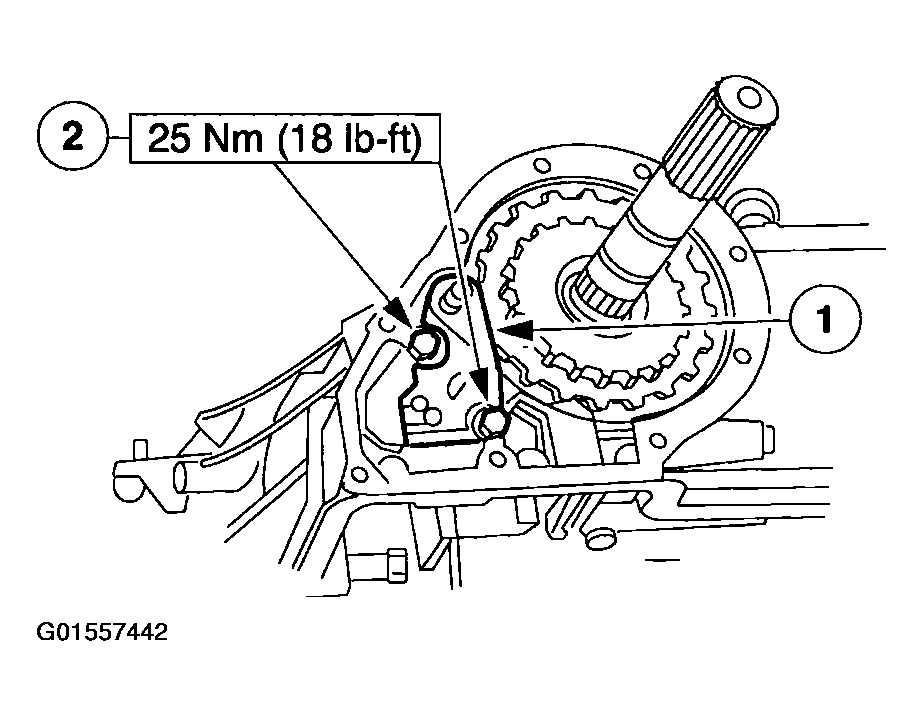

    Fig 56: Installing Parking Rod Guide Plate
    G01557442Courtesy of FORD MOTOR CO.
  57. Install the parking rod guide plate.
    1. Install the parking rod guide plate.
    2. Install the bolts.
  58. Install a new orifice lube plug in the rear of the case. Using a 12 mm (0.48 in) socket, tap the orifice lube plug into the back of the transmission.

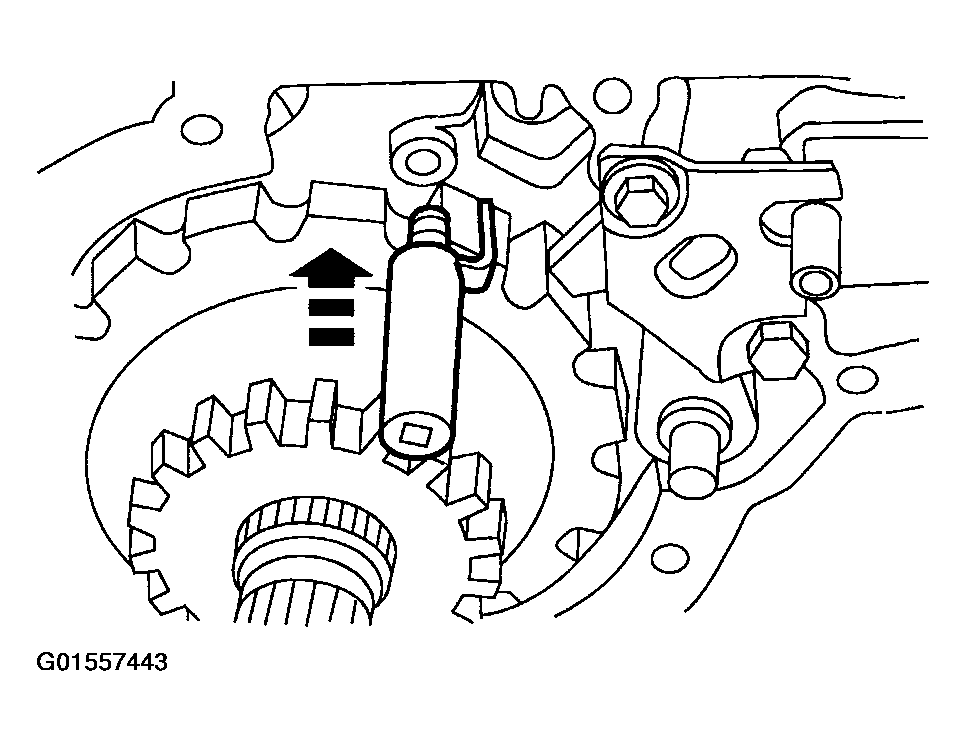

    Fig 57: Installing Orifice Lube Plug
    G01557443Courtesy of FORD MOTOR CO.
  59. Check to make sure that the orifice lube plug is fully seated into the back of the transmission.

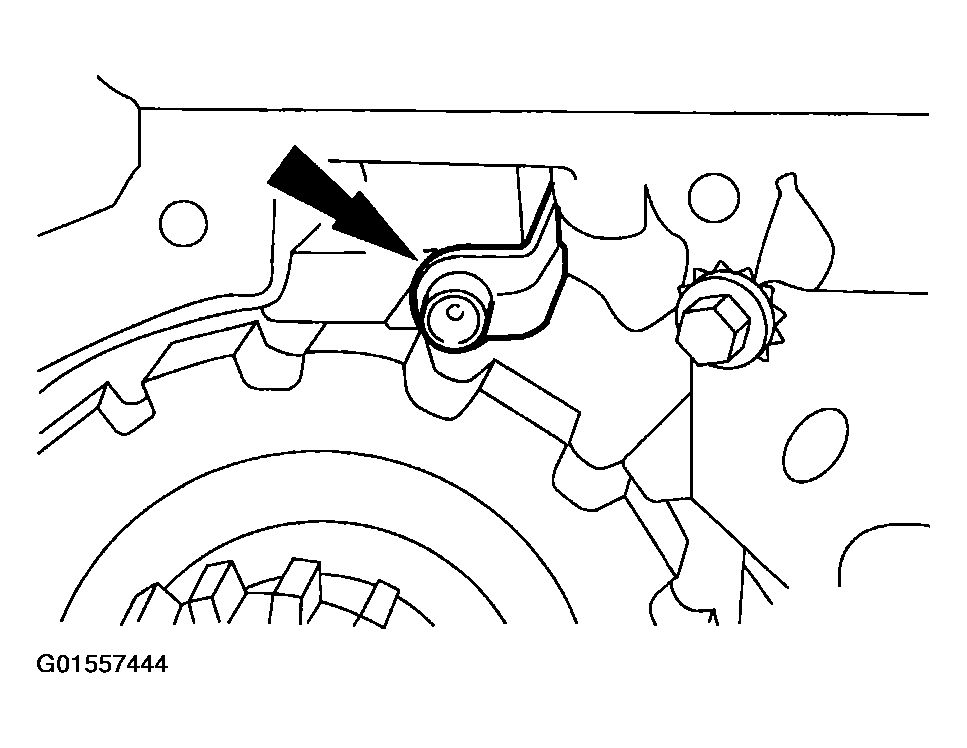

    Fig 58: Verifying Orifice Lube Plug Is Fully Seated
    G01557444Courtesy of FORD MOTOR CO.
    60. CAUTION: The extension must have a shoulder or a boss cast in it to hold the orifice lube plug in the back of the case. If the wrong extension housing is used, the plug will fall out and cause transmission failure.

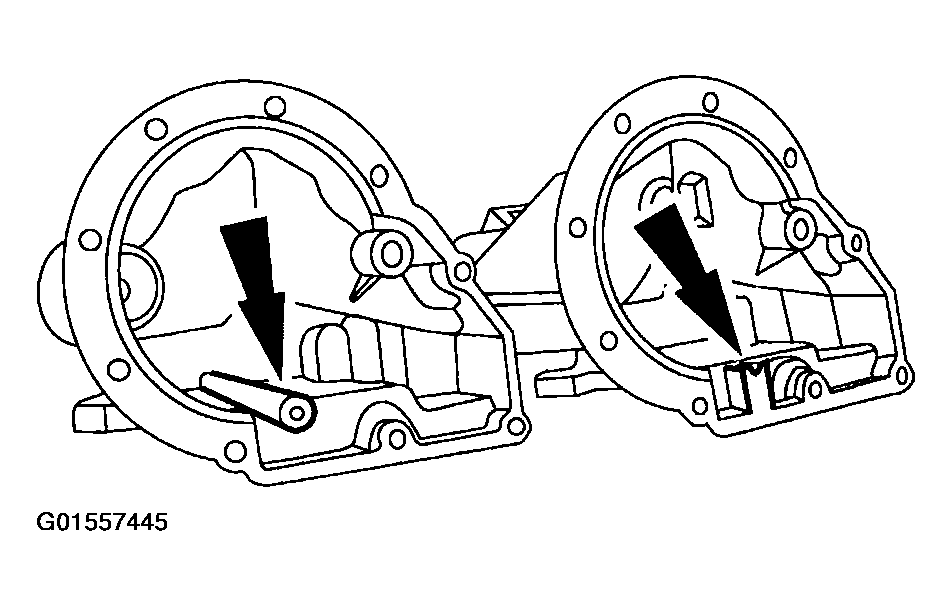

    Fig 59: Inspecting Extension Housing
    G01557445Courtesy of FORD MOTOR CO.
  60. Inspect the extension housing for the correct application.
    61. CAUTION: The extension must have a shoulder or a boss cast in it to hold the orifice lube plug in the back of the case. If the wrong extension housing is used, the plug may become loose and/or fall out and cause transmission damage.
    NOTE: Lightly lubricate the gasket with petroleum jelly to hold it in place during assembly.

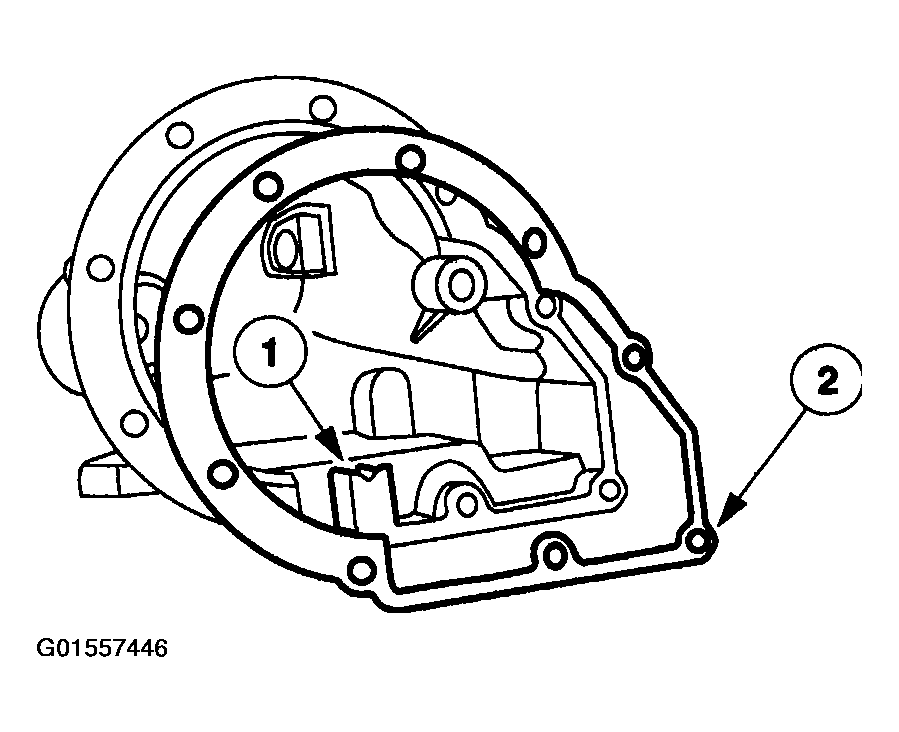

    Fig 60: Installing Extension Housing Gasket
    G01557446Courtesy of FORD MOTOR CO.
  61. Install the new extension housing gasket.
    1. Verify that the extension has a shoulder cast in it.
    2. Install the new extension housing gasket.
  62. Install the extension housing, the eight bolts, and the stud.
    Fig 61: Installing Extension Housing Eight Bolts & Stud
    G01557447Courtesy of FORD MOTOR CO.
    63. CAUTION: Prior to installing the extension housing bushing, inspect the extension housing counter bore for burrs. If necessary, remove the burrs with an oil stone. Damage to the new bushing may occur.
    NOTE: Extension housing bushing is vehicle-dependent. Refer to the parts catalog for correct part.
    Fig 62: Installing Extension Housing Bushing
    G01557448Courtesy of FORD MOTOR CO.
  63. Align the extension housing bushing in the extension housing so that the slots are in the 2 o'clock and 7 o'clock position.
  64. Using the Transmission Extension Housing Bushing Installer (307-063), install the extension housing bushing.
    Fig 63: Installing Extension Housing Bushing
    G01557449Courtesy of FORD MOTOR CO.
    65. NOTE: The extension housing seal is vehicle-dependent. Refer to parts catalog for the correct part.
    Fig 64: Installing Extension Housing Seal
    G01557450Courtesy of FORD MOTOR CO.
  65. Using the Output Shaft Bushing Installer (307-436), install a new extension housing seal.

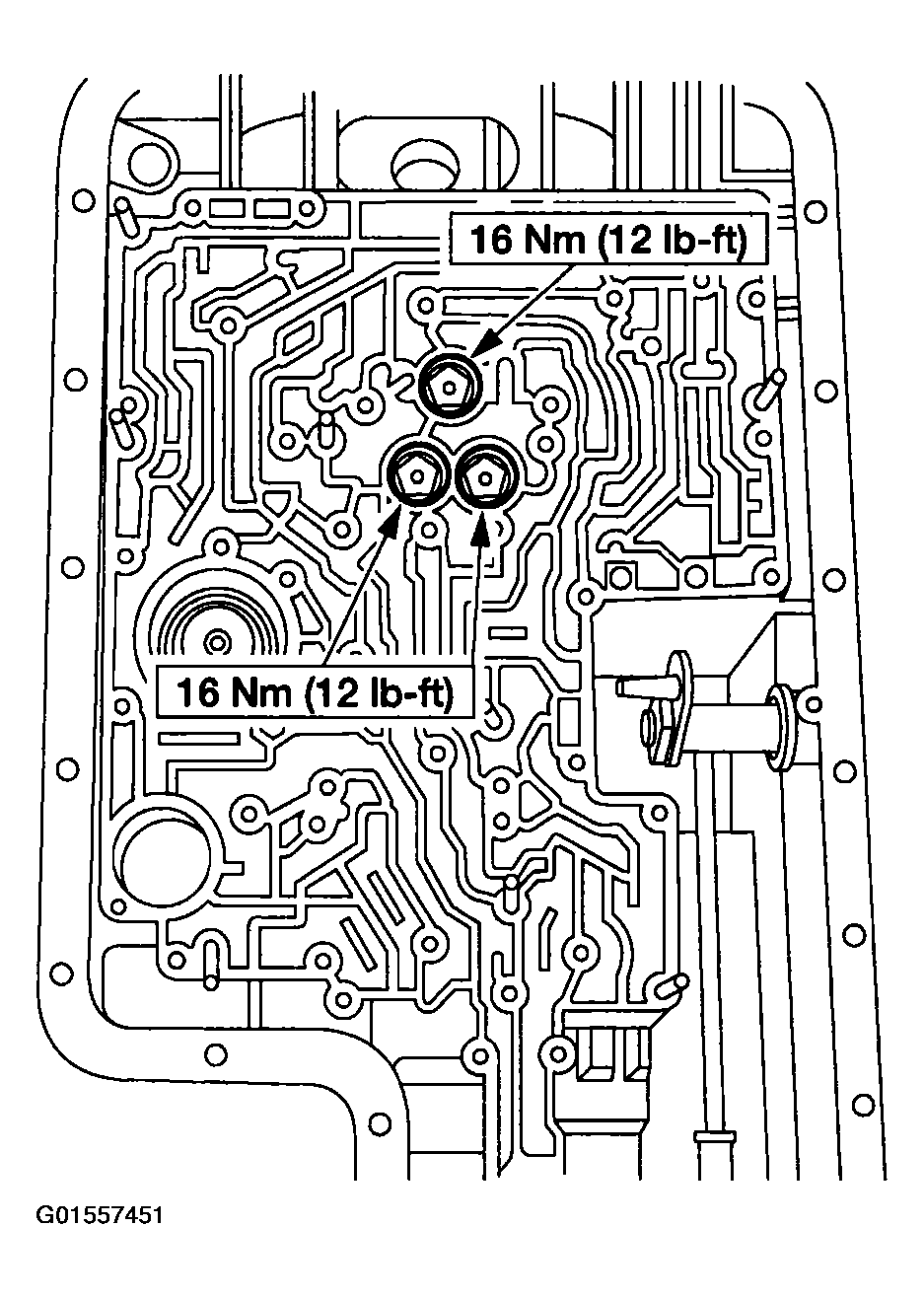

  66. Tighten the center support assembly, and the intermediate/overdrive cylinder assembly feedbolts.
    Fig 65: Tightening Center Support Assembly, & Intermediate/Overdrive Cylinder Assembly Feedbolts
    G01557451Courtesy of FORD MOTOR CO.
    67. NOTE: The steel EPC check ball has a 6.35 mm (0.25 in) diameter and is smaller than the other check balls.

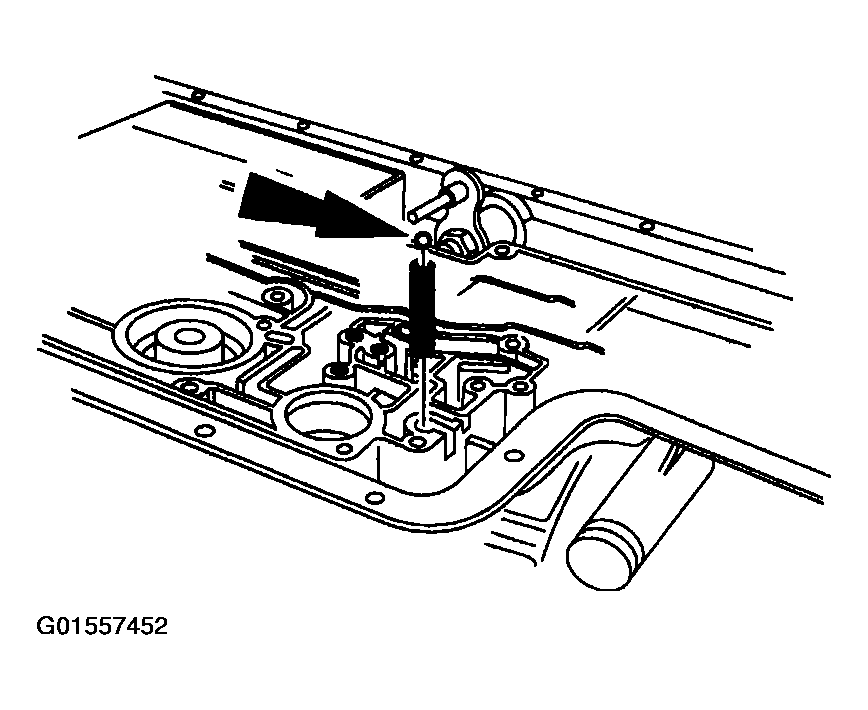

    Fig 66: Installing Spring & Steel EPC Check Ball
    G01557452Courtesy of FORD MOTOR CO.
  67. Install the spring and the steel EPC check ball.
    68. CAUTION: Use care not to damage the rubber check balls.

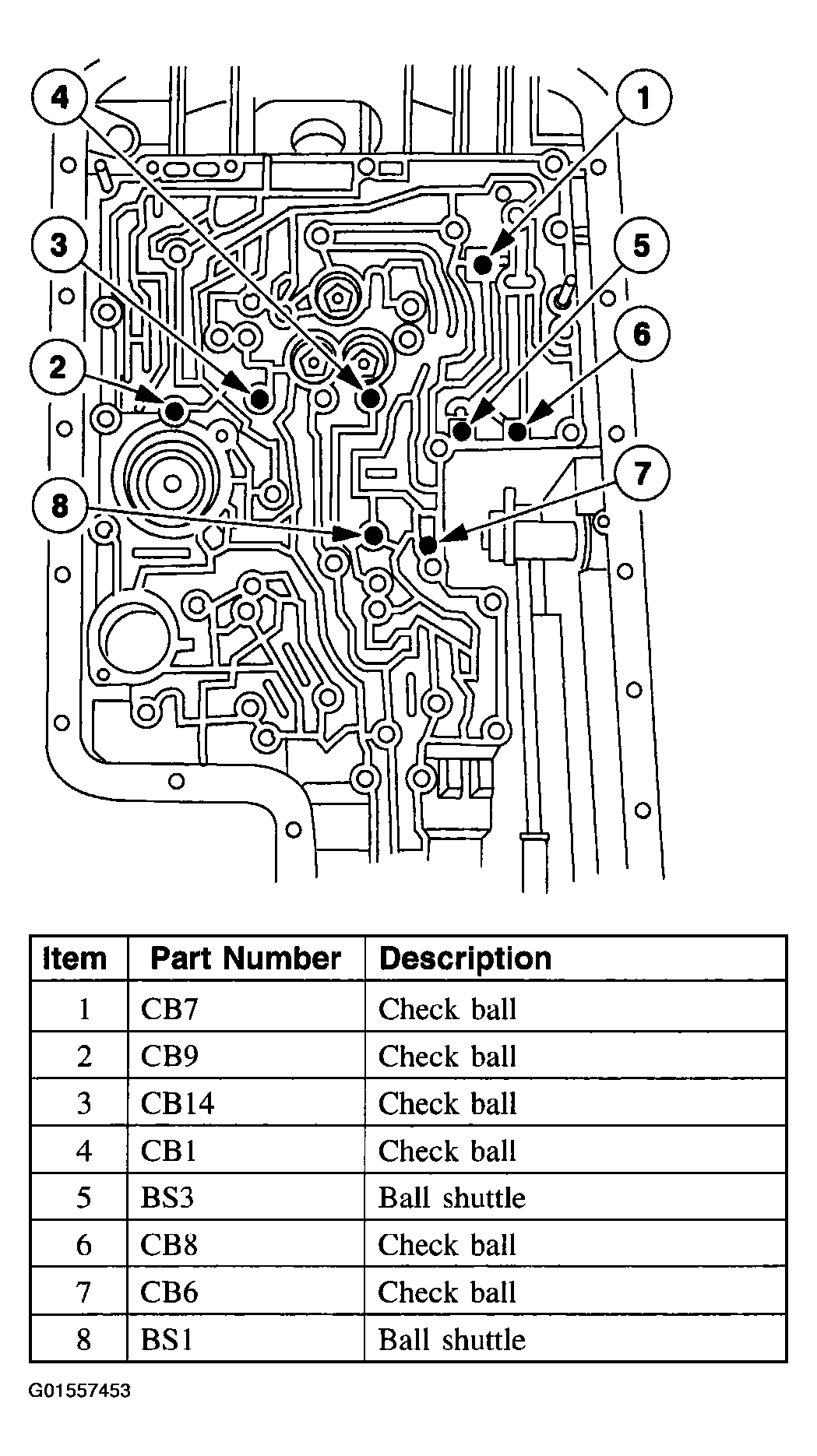

    Fig 67: Installing Rubber Check Balls
    G01557453Courtesy of FORD MOTOR CO.
  68. Install the rubber check balls.
    69. CAUTION: Refer to the parts catalog for correct gasket. Using the incorrect gasket will cause damage to transmission.
    Fig 68: Installing Separating Plate-To-Case Gasket
    G01557454Courtesy of FORD MOTOR CO.
  69. Install a new separating plate-to-case gasket on the separating plate.
    70. NOTE: Check the placement of the steel EPC check ball under separator plate.

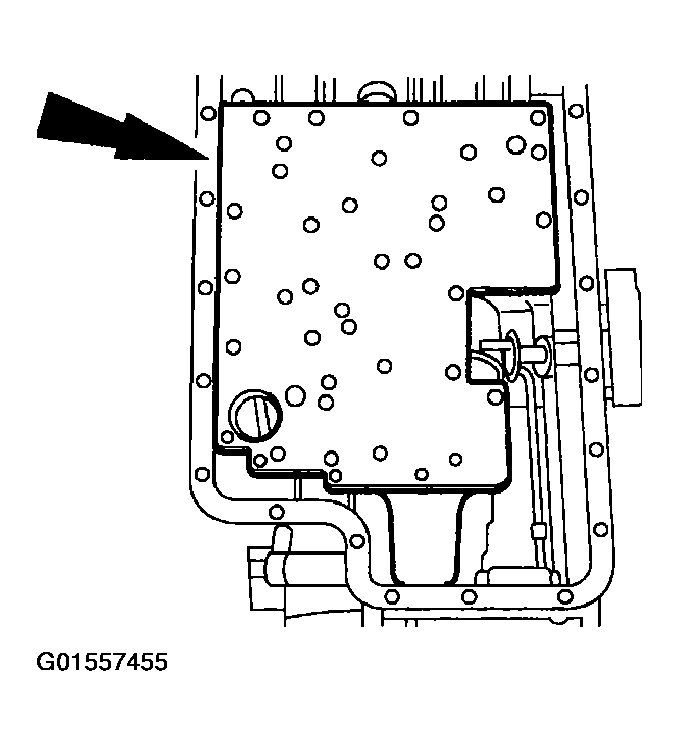

    Fig 69: Installing Valve Body Separator Plate
    G01557455Courtesy of FORD MOTOR CO.
  70. Install the valve body separator plate.
  71. Install the separating plate reinforcing plate, with the stamped word "UP" visible, and install the bolts.

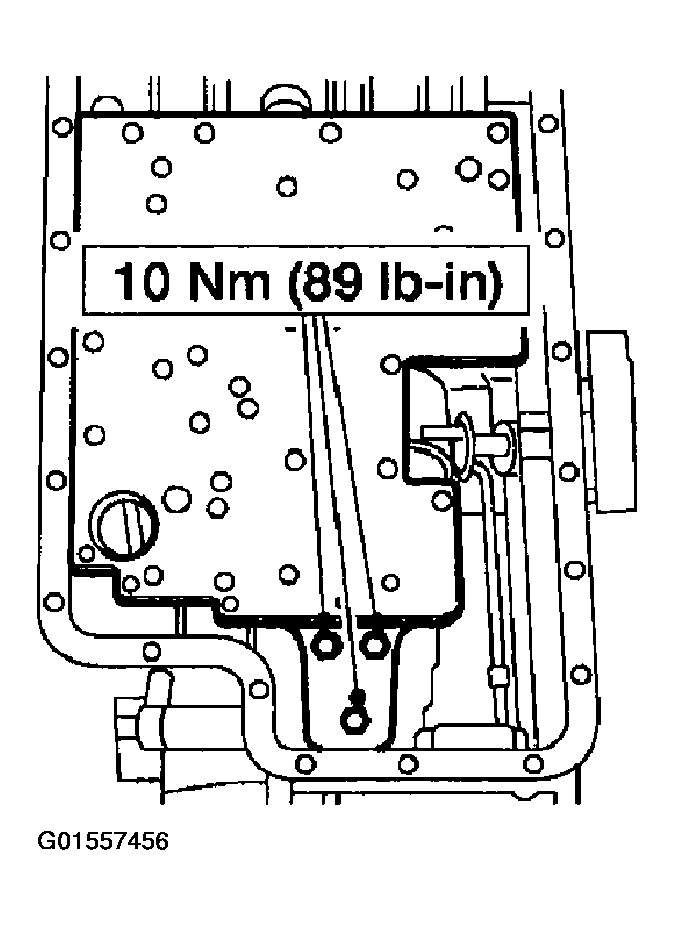

    Fig 70: Installing Separating Plate Reinforcing Plate Bolts
    G01557456Courtesy of FORD MOTOR CO.
    72. CAUTION: Refer to the parts catalog for the correct gasket. Using the incorrect gasket will cause damage to the transmission.

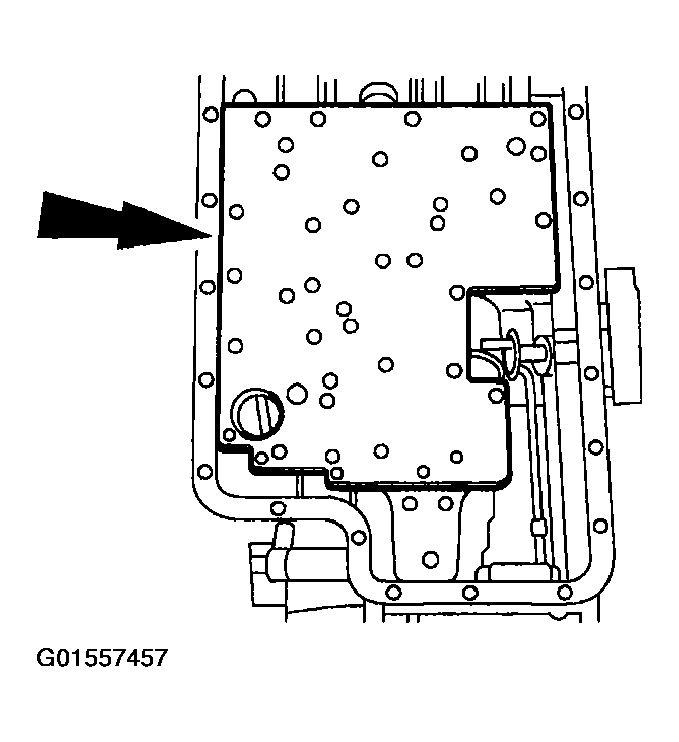

    Fig 71: Installing Main Control-To-Separating Plate Gasket
    G01557457Courtesy of FORD MOTOR CO.
  72. Install a new main control-to-separating plate gasket.
  73. Install the solenoid screen assembly by pushing it in and rotating it to lock.

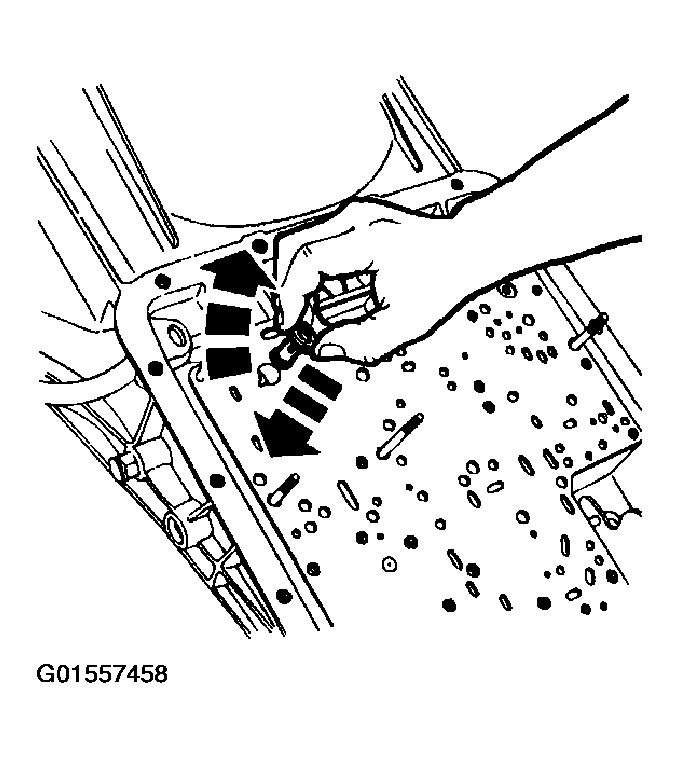

    Fig 72: Installing Solenoid Screen Assembly
    G01557458Courtesy of FORD MOTOR CO.
    74. NOTE: Prior to installing the solenoid body assembly, coat the case connector bore with petroleum jelly or equivalent.

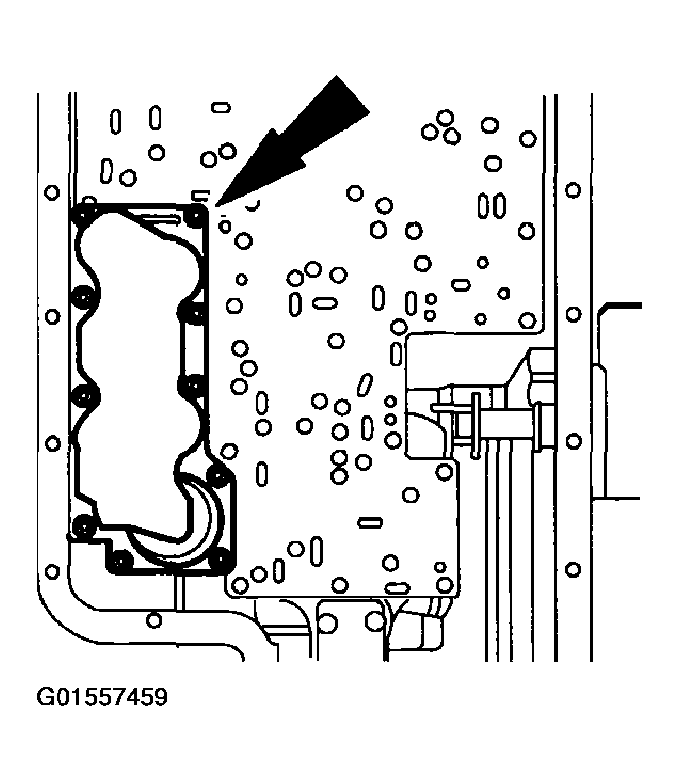

    Fig 73: Installing Solenoid Body Assembly
    G01557459Courtesy of FORD MOTOR CO.
  74. Install the solenoid body assembly with the nut and the Torx® bolts finger-tight.
  75. Install the main control valve body, aligning the manual shift valve with the inner manual valve detent lever. Install the nuts and the bolts finger-tight.

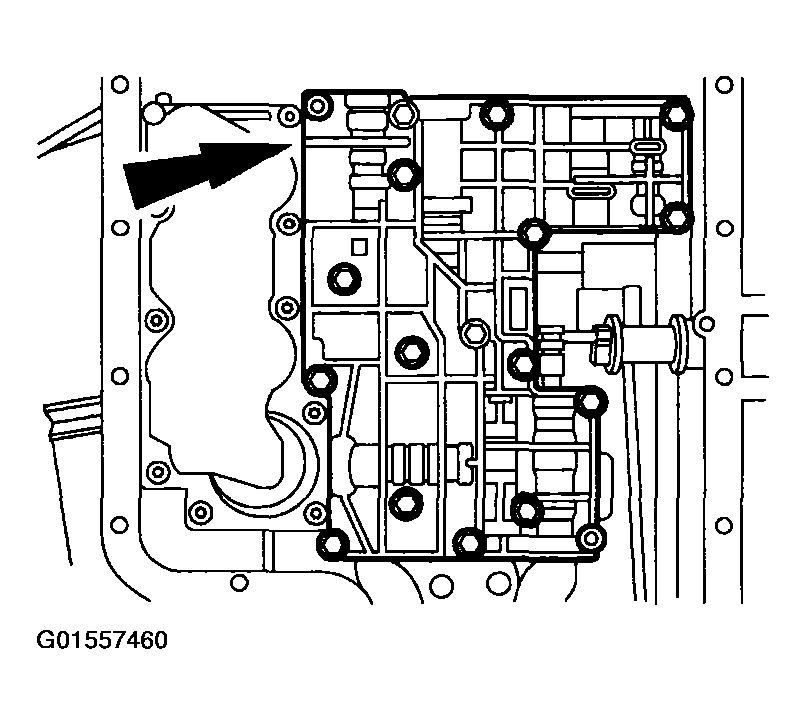

    Fig 74: Installing Main Control Valve Body
    G01557460Courtesy of FORD MOTOR CO.
  76. Install the accumulator body with the nuts and the bolts finger-tight.

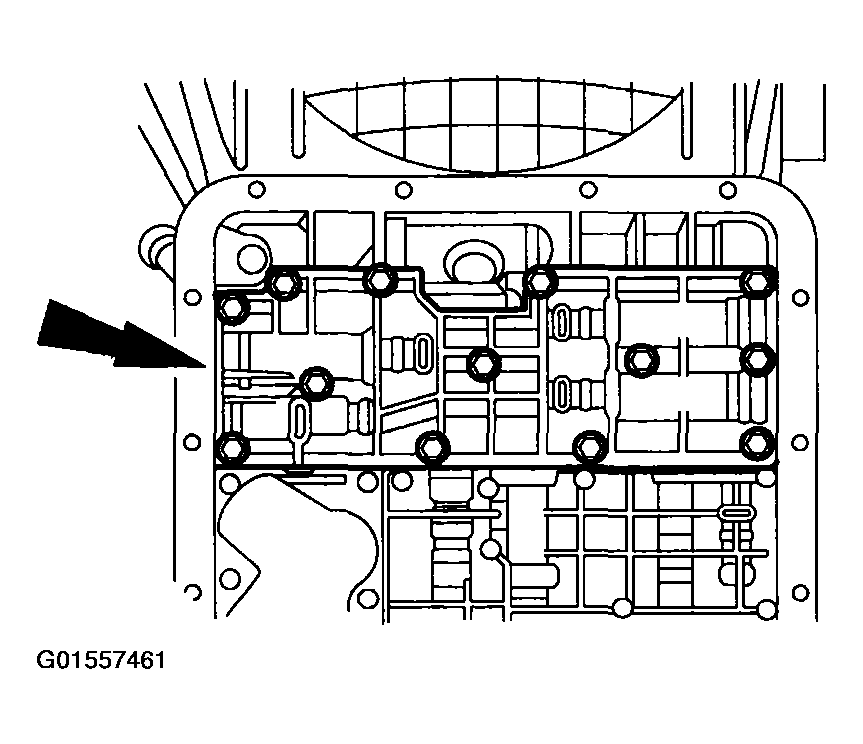

    Fig 75: Installing Accumulator Body
    G01557461Courtesy of FORD MOTOR CO.
  77. Tighten all accumulator body, upper and lower control body and solenoid body nuts and bolts.

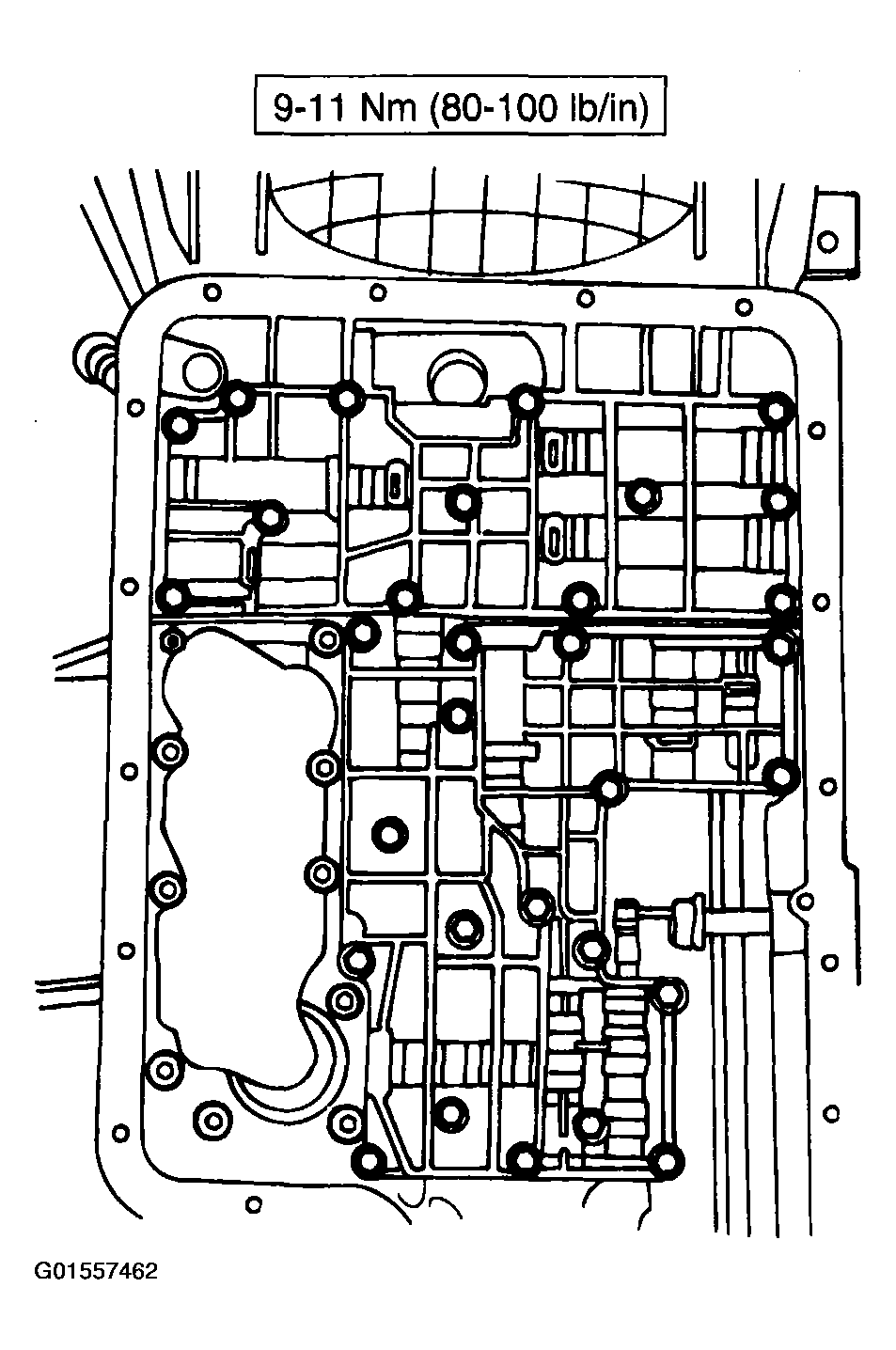

    Fig 76: Tightening Accumulator Body, Upper & Lower Control Body & Solenoid Body Nuts & Bolts
    G01557462Courtesy of FORD MOTOR CO.
    78. CAUTION: Mixing the 4x2-style and 4x4-style transmission fluid filters and transmission pan assembly components can cause transmission damage.

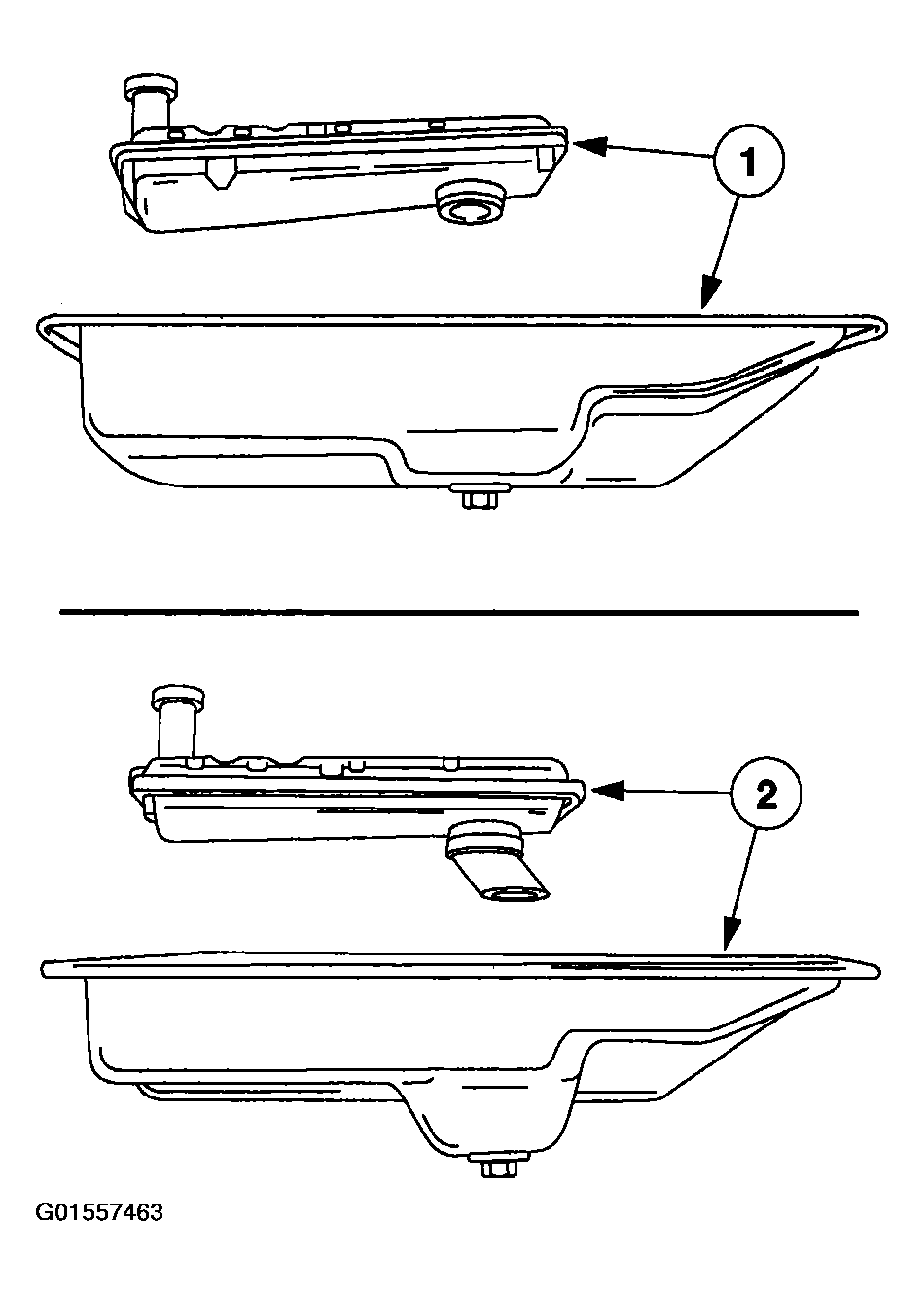

    Fig 77: Identifying Filter Assembly & Transmission Pan
    G01557463Courtesy of FORD MOTOR CO.
  78. Select the appropriate 4x2-style or 4x4-style filter assembly and transmission pan.
    1. 4x2 filter and pan application.
    2. 4x4 filter and pan application.
    79. CAUTION: Make sure the pump bore is clean and the old filter seal has been removed. Damage to the new filter and seal can occur.
    NOTE: Prior to installation, lightly lubricate the seal with clean automatic transmission fluid.

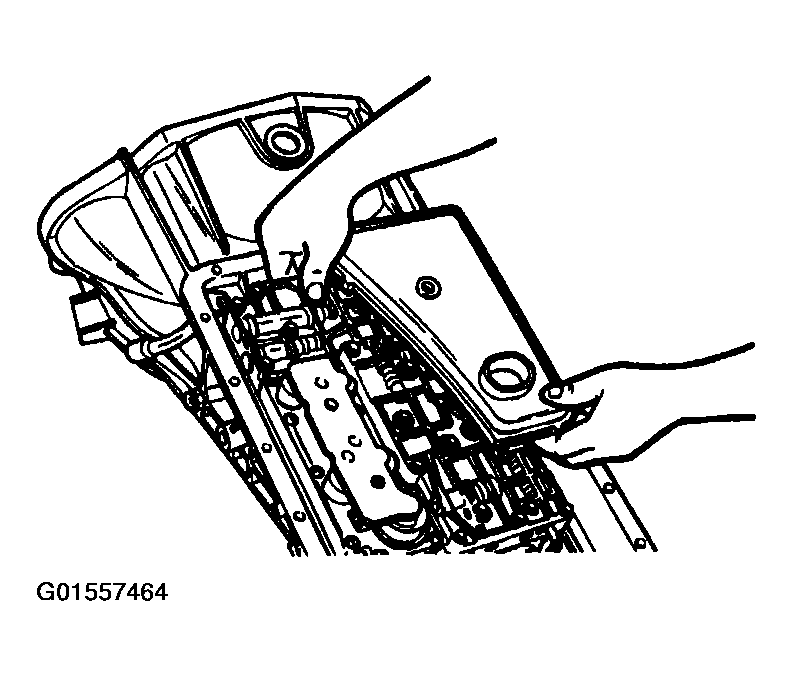

    Fig 78: Installing Fluid Filter & Seal Assembly
    G01557464Courtesy of FORD MOTOR CO.
  79. Press a new fluid filter and seal assembly into the pump bore until seated.
    80. NOTE: Do not discard the gasket unless damaged. This is a reusable gasket.
    NOTE: Apply a light coat of petroleum jelly to hold the gasket to the fluid pan.

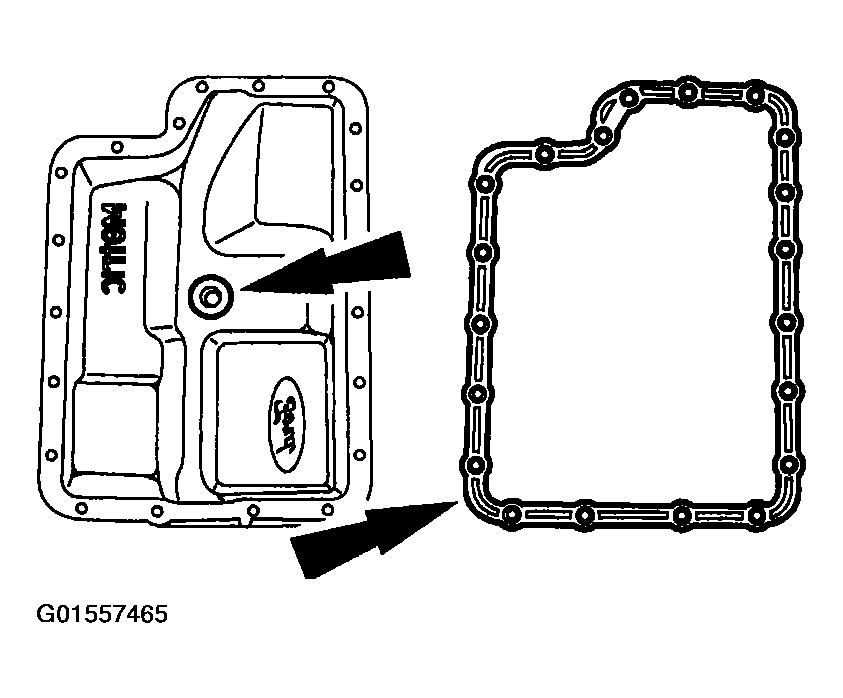

    Fig 79: Installing Fluid Pan Gasket
    G01557465Courtesy of FORD MOTOR CO.
  80. Position the gasket onto the clean fluid pan. Make sure the magnet is positioned over the dimple in the fluid pan.
    81. CAUTION: Mixing the 4x2-style and 4x4-style transmission fluid filters and transmission pan assembly components can cause transmission damage.
    Fig 80: Tightening Fluid Pan Bolts
    G01557466Courtesy of FORD MOTOR CO.
  81. Install the correct pan with gasket for this application. Alternately tighten the bolts.

  82. With the transmission in NEUTRAL, install and adjust the digital Transmission Range (TR) sensor.
    1. Install the digital TR sensor.
    2. Loosely install the bolts.
    Fig 81: Installing Digital Transmission Range Sensor
    G01557467Courtesy of FORD MOTOR CO.

  83. Using the TR Sensor Alignment Gauge (307-351), align the TR sensor. The tool is designed to fit snug.

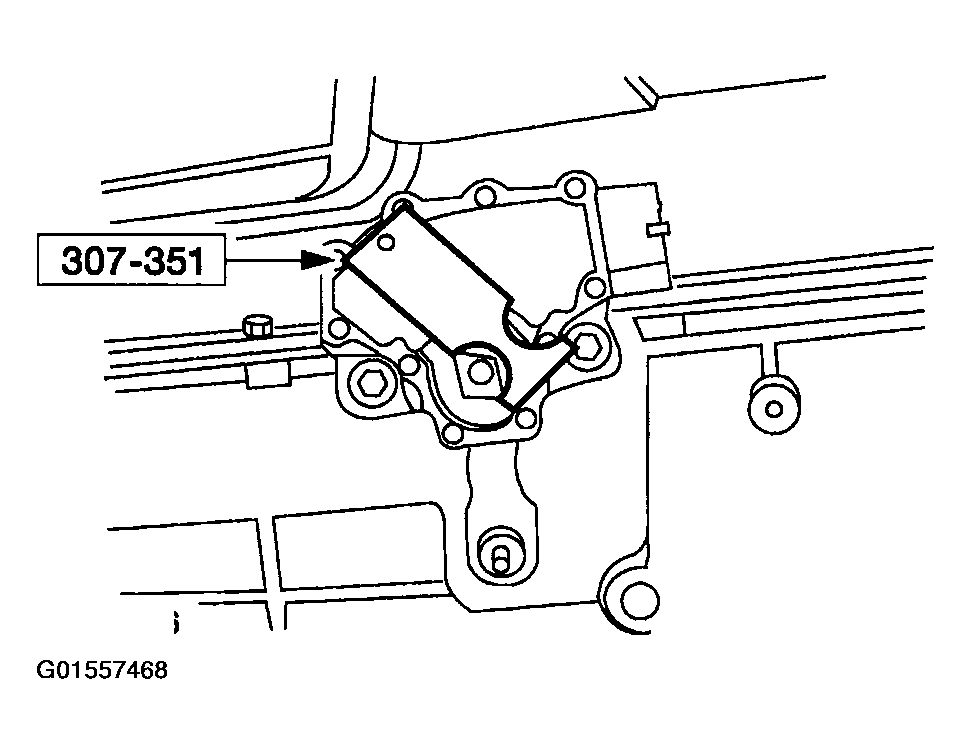

    Fig 82: Aligning Digital Transmission Range Sensor
    G01557468Courtesy of FORD MOTOR CO.

  84. Tighten the bolts and remove the special tool.

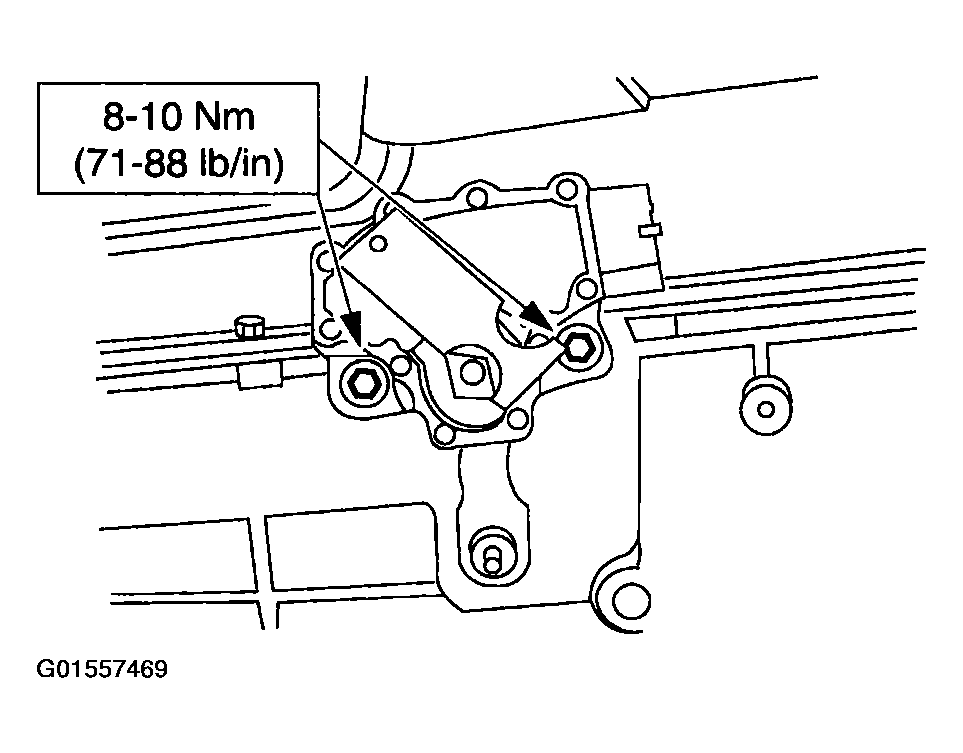

    Fig 83: Tightening Digital Transmission Range Sensor Bolts
    G01557469Courtesy of FORD MOTOR CO.
  85. Make sure that the Cooler Bypass Valve (CBV) has been cleaned and flushed. For additional information, refer to COOLER BYPASS VALVE ASSEMBLY .
    86. CAUTION: Failure to correctly install the new rubber-coated sealing washers will result in transmission fluid leaks.
    Fig 84: Installing Rubber-Coated Sealing Washers & Cooler Line Case Fittings
    G01557470Courtesy of FORD MOTOR CO.
  86. Install the new rubber-coated sealing washers and the new cooler line case fittings.
    1. Install one rubber-coated sealing washers on each cooler line case fittings.
    2. Install new cooler line case fittings into their respective ends of the CBV assembly.
    3. Install one rubber-coated sealing washers on each cooler line case fittings.
    87. CAUTION: Do not overtighten.

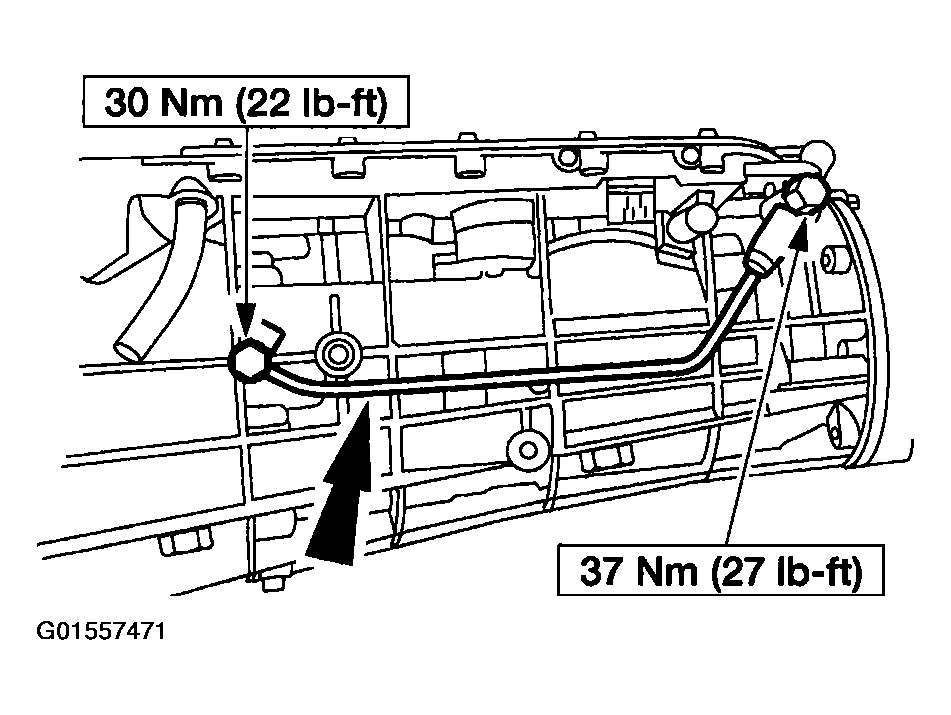

    Fig 85: Installing CBV With Front (Inlet) & Rear (Outlet) Cooler Line Case Fitting
    G01557471Courtesy of FORD MOTOR CO.
  87. Install the CBV with the front (inlet) and the rear (outlet) cooler line case fitting.
  88. CAUTION: Use care when installing the sensor, damage to the O-ring could result in a leak.

    Install the Output Shaft Speed (OSS) Sensor.
    1. Lubricate O-ring and install the OSS.
    2. Install the bolt. Torque Output Shaft Speed (OSS) Sensor to Specification: 71 - 88 In. Lbs. (8 - 10 N.m).

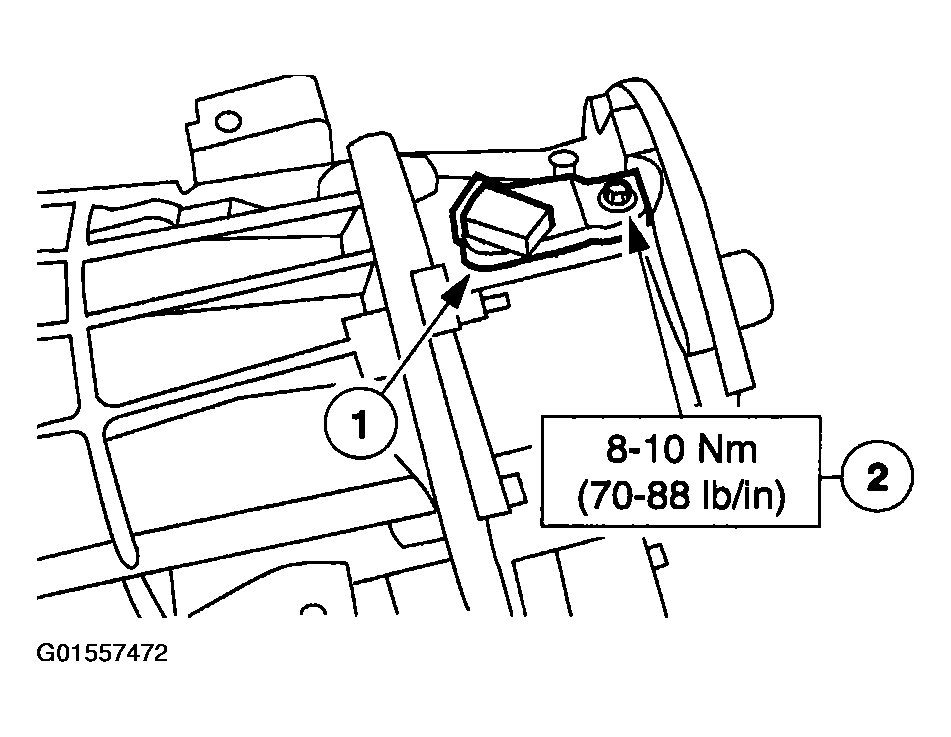

    Fig 86: Installing Output Shaft Speed Sensor
    G01557472Courtesy of FORD MOTOR CO.
  89. CAUTION: Use care when installing the sensor, damage to the O-ring could result in a leak.

    Install Turbine/Transmission Shaft Speed (TSS) Sensor.
    1. Lubricate O-ring and install the TSS.
    2. Install the bolt. Torque Turbine/Transmission Shaft Speed (TSS) Sensor to Specification: 71 - 88 In. Lbs. (8 - 10 N.m).

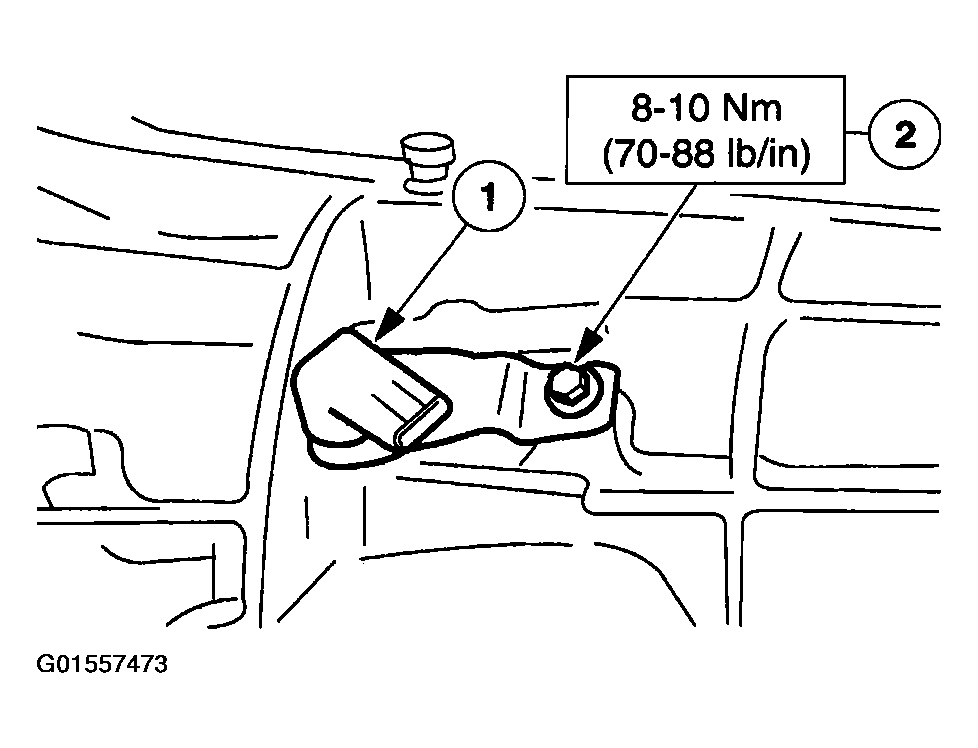

    Fig 87: Installing Turbine Shaft Speed Sensor
    G01557473Courtesy of FORD MOTOR CO.
    90. NOTE: The input shaft is vehicle-dependent Refer to the parts catalog for the correct part.

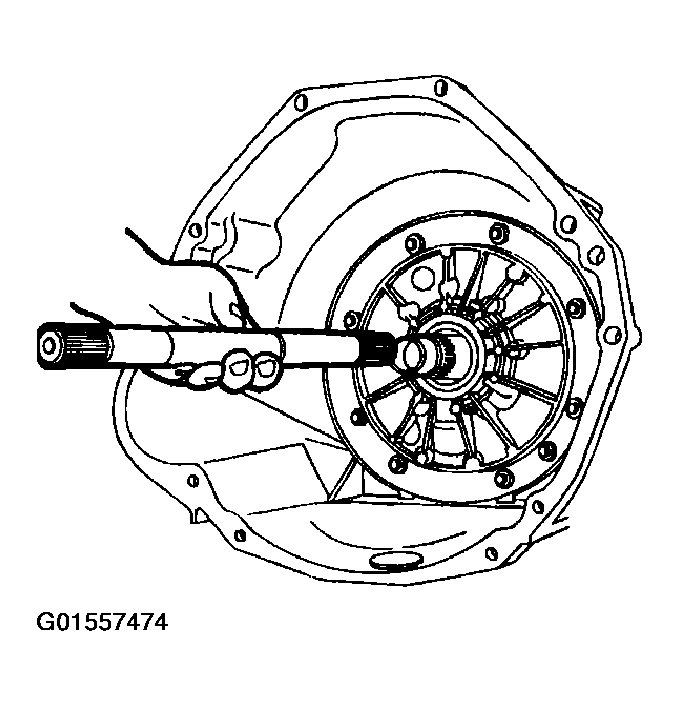

    Fig 88: Installing Input Shaft
    G01557474Courtesy of FORD MOTOR CO.
  90. With the fluid pan facing down, install the input shaft with the long splined end first.
    91. CAUTION: Do not damage the fluid pump gear O-ring when installing torque converter.
    CAUTION: Make sure the converter hub is fully engaged in the front pump support and gear and rotates freely. Do not damage the hub seal.
    CAUTION: If the torque converter slides out, the hub seal may be damaged.

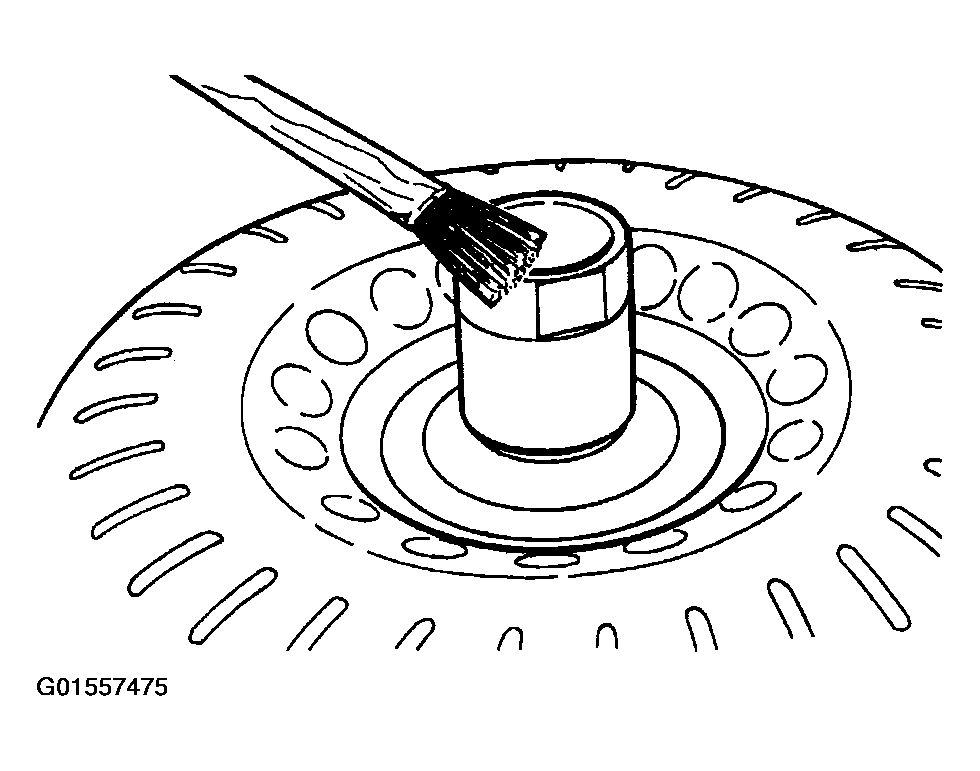

    Fig 89: Lubricating Converter Hub
    G01557475Courtesy of FORD MOTOR CO.
  91. Lubricate the converter hub with clean automatic transmission fluid.
    92. CAUTION: Use care when installing the torque converter to avoid damage to the front pump stator support seal.
    NOTE: Check the converter crankshaft pilot for nicks or damaged surfaces that can cause interference when installing the transmission to the engine. Check the converter impeller hub for nicks or sharp edges that can damage the pump seal.

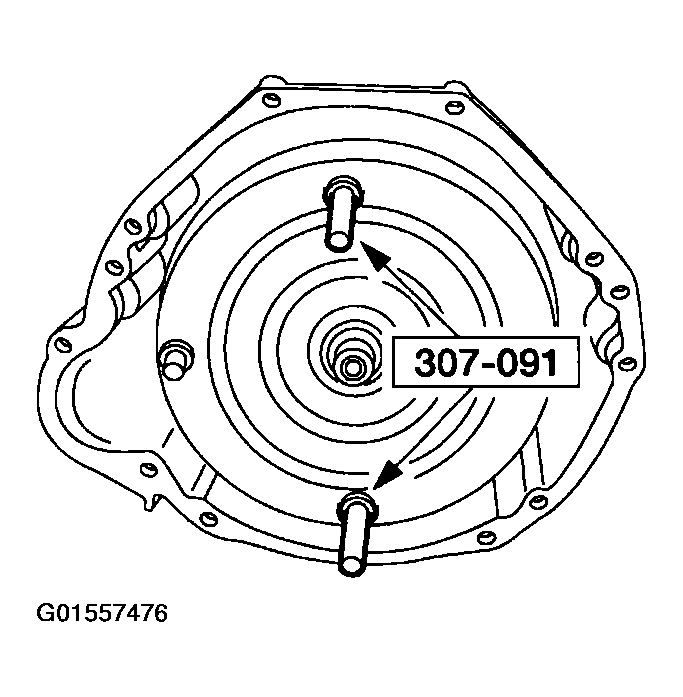

    Fig 90: Installing Torque Converter
    G01557476Courtesy of FORD MOTOR CO.
  92. Using the Torque Converter Handles (307-091), install the torque converter. Push and rotate the converter onto the front pump assembly until it bottoms out.

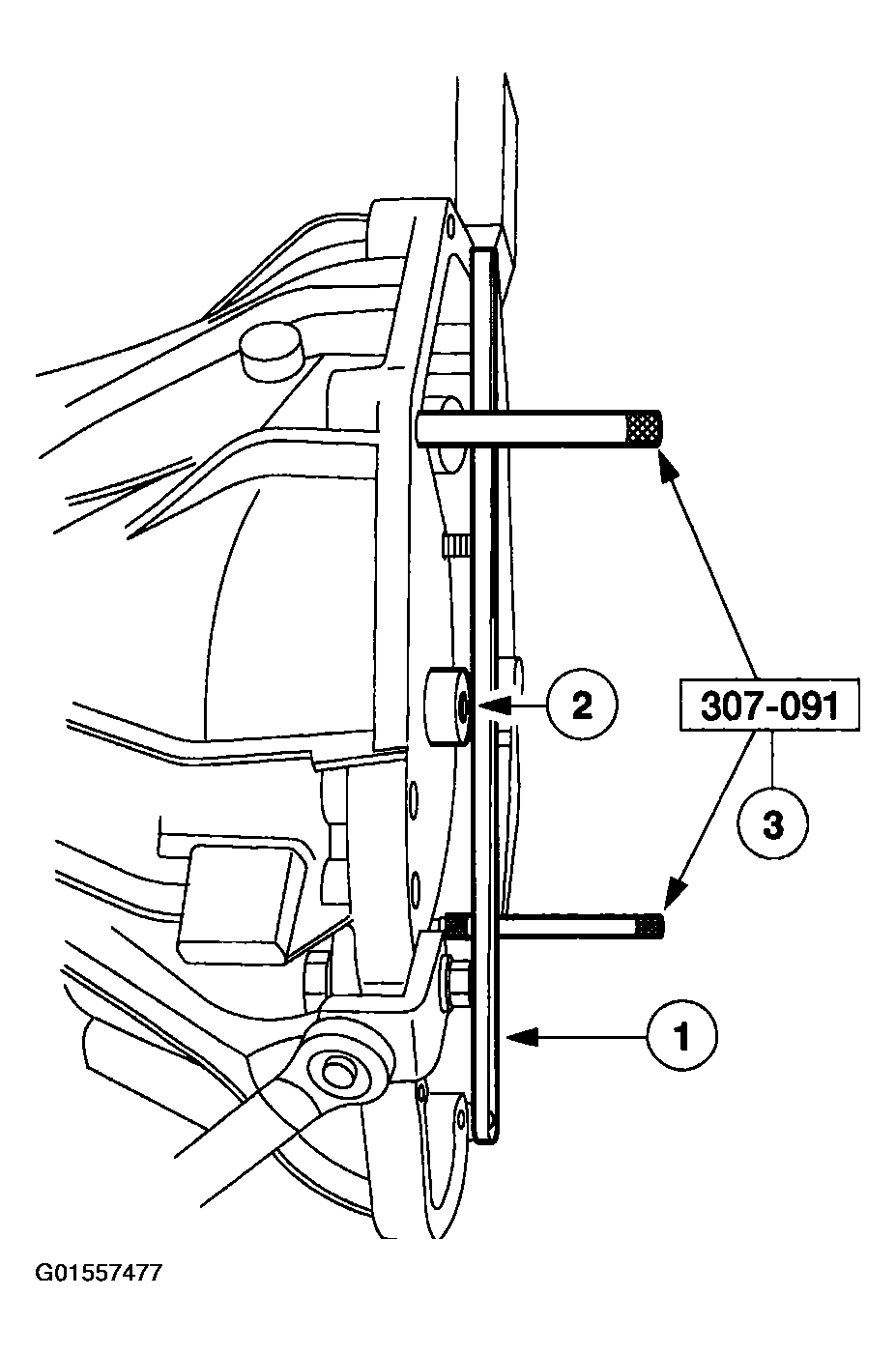

  93. Check the seating of the torque converter.
    1. Place the straightedge across the converter housing.
    2. Make sure there is a gap between the converter pilot face and the straightedge.
    3. Remove the special tools.
    Fig 91: Checking The Seating Of Torque Converter
    G01557477Courtesy of FORD MOTOR CO.
scientia non olet · About LEMON Manuals
