Transmission Fluid Cooler Tubes - TorqShift, Diesel Engine: Notes

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Disconnect Tool, Transmission Cooler Line	307-459
Courtesy of FORD MOTOR CO.	Lifting Bracket, Engine	303-050
Courtesy of FORD MOTOR CO.	Support Bar, Engine	303-F070
Courtesy of FORD MOTOR CO.	Support Hook	303-F071

Material

Item	Specification
MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada)	MERCON® SP

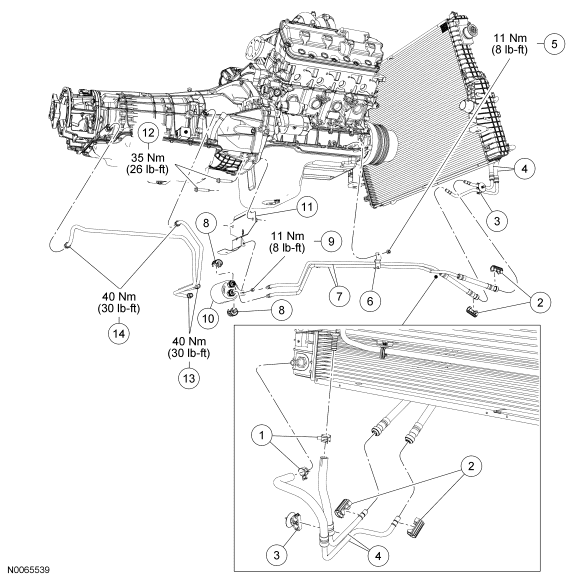

Fig 1: Exploded View Of Transmission Fluid Cooler Tubes - TorqShift®, Diesel Engine, Early Build Vehicles With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Hose clamps
2	7J081	Secondary latches
3	-	Front cooler tube assembly retainer (part of 7H420)
4	7H420	Front cooler tube assembly
5	N811309	Middle cooler tube assembly bracket nut
6	-	Middle cooler tube assembly bracket (part of 7H420)
7	7H420	Middle cooler tube assembly
8	7J081	Secondary latches
9	W712583	Remote mount filter-to-bracket bolt
10	7B155	Remote mount filter
11	7N291	Remote mount filter bracket
12	W712583	Remote mount filter bracket bolts
13	7H420	Rear fluid cooler tube assembly
14	-	Rear fluid cooler tube assembly inlet and outlet fittings (part of 7H420)

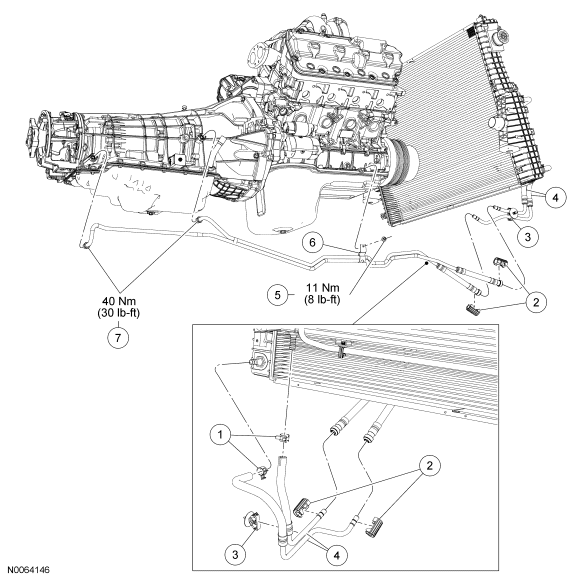

Fig 2: Exploded View Of Transmission Fluid Cooler Tubes - TorqShift®, Diesel Engine, Late Build Vehicles With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Hose clamps
2	7J081	Secondary latches
3	-	Front cooler tube assembly retainer (part of 7H420)
4	7H420	Front cooler tube assembly
5	N811309	Rear cooler tube assembly bracket nut
6	-	Rear cooler tube assembly bracket (part of 7H420)
7	7H420	Rear fluid cooler tube assembly
