Auxiliary Transmission Fluid Cooler - Oil-to-Air Fluid Cooler: Notes
WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada) |
MERCON® SP |

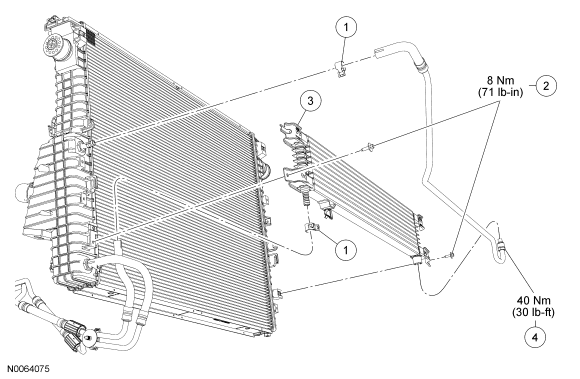

Fig 1: Exploded View Of Auxiliary Transmission Fluid Cooler - Oil-to-Air Cooler, Gasoline Engine Vehicles With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Hose clamps |
| 2 | N808441 | Oil-to-air (OTA) transmission fluid cooler bolts |
| 3 | 7H189 | OTA transmission fluid cooler assembly |
| 4 | 7C410 | Fluid cooler tube (part of 7H189) |

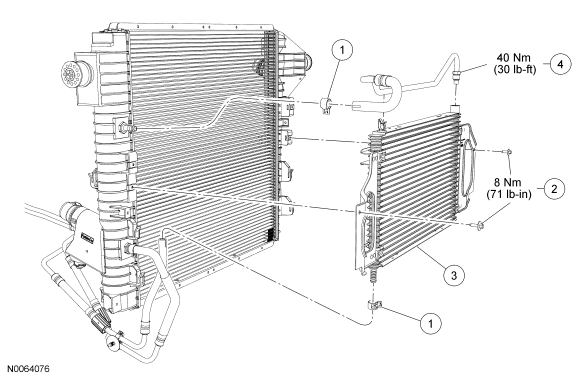

Fig 2: Exploded View Of Auxiliary Transmission Fluid Cooler - Oil-to-Air Cooler, Diesel Engine Vehicles With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Hose clamps |
| 2 | N808441 | Oil-to-air (OTA) transmission fluid cooler bolts |
| 3 | 7H189 | OTA transmission fluid cooler assembly |
| 4 | 7C410 | Fluid cooler tube (part of 7H189) |
