Shock Absorber - F-250, F-350: Notes

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

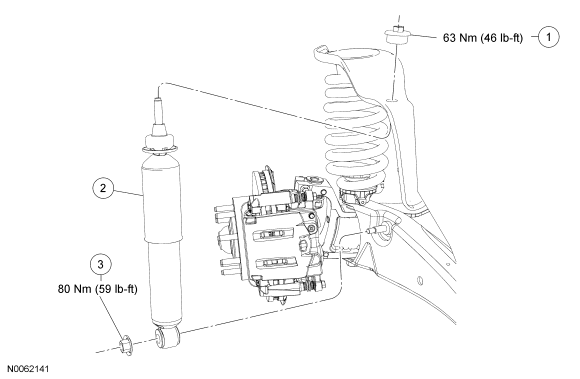

Fig 1: Exploded View Of Shock Absorber With Torque Specifications - F-250, F-350

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	18A192	Shock absorber upper nut, washer and bushing assembly
2	18045	Shock absorber
3	W806085	Shock absorber lower nut and washer
