Inertia Fuel Shutoff (IFS) Switch: Notes

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

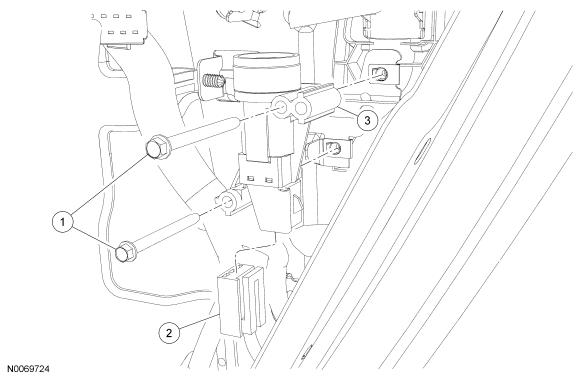

Fig 1: Exploded View Of Inertia Fuel Shutoff (IFS) Switch

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W504149	Inertia fuel shutoff (IFS) switch bolts (2 required)
2	14A464	IFS switch electrical connector
3	9341A	IFS switch
