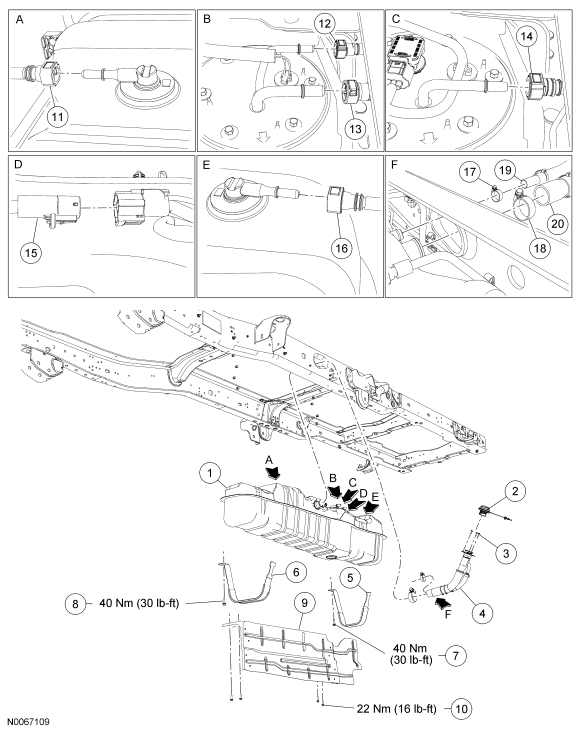

Fuel Tank and Filler Pipe - Exploded View
WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Gasoline shown, diesel similar.

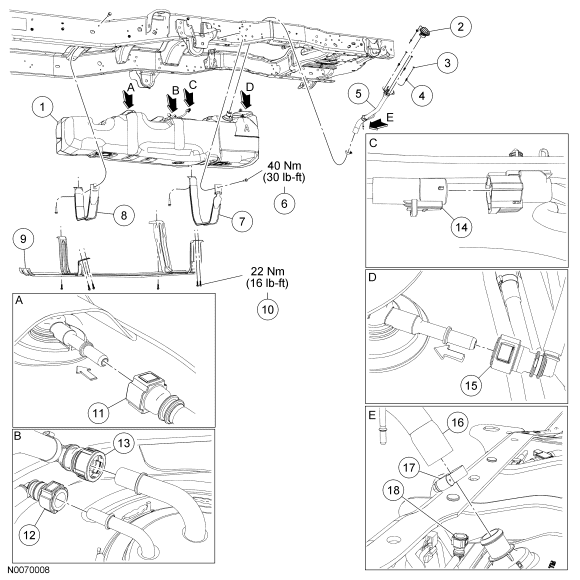

| Item | Part Number | Description |
|---|---|---|
| 1 | 9002 | Midship fuel tank |
| 2 | 9030 | Fuel tank filler cap |
| 3 | W711103 | Fuel tank filler pipe retaining screw (3 required) |
| 4 | 558324 | Fuel tank filler pipe retaining screw plastic insert (early build) (3 required) |
| 5 | 9034 | Fuel tank filler pipe assembly |
| 6 | W506435 | Fuel tank strap bolt (4 required) |
| 7 | 9057 | Rear fuel tank strap |
| 8 | 9054 | Front fuel tank strap |
| 9 | 9K036 | Fuel tank shield |
| 10 | W709736 | Fuel tank shield bolts (6 required) |
| 11 | - | Fuel vapor tube-to-fuel tank grade vent valve quick connect coupling (part of 9S278) |
| 12 | - | Fuel supply tube-to-fuel pump (FP) module quick connect coupling (part of 9S278) |
| 13 | - | Fuel vapor tube-to-FP module quick connect coupling (part of 9S278) |
| 14 | - | FP module electrical connector (part of 9H307) |
| 15 | - | Fuel vapor tube-to-fuel tank grade vent valve quick connect coupling (part of 9S278) |
| 16 | - | Fuel tank filler pipe (part of 9034) |
| 17 | W711088 | Fuel tank filler pipe-to-fuel tank hose clamp |
| 18 | - | Fuel vapor tube-to-fuel tank filler pipe vent tube quick connect coupling (part of 9S278) |
NOTE:
Diesel shown, gasoline similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9002 | Midship fuel tank |
| 2 | 9030 | Fuel tank filler cap |
| 3 | W711103 | Fuel tank filler pipe retaining screw (3 required) |
| 4 | 9034 | Fuel tank filler pipe assembly |
| 5 | W506435 | Fuel tank strap bolt (4 required) |
| 6 | 9057 | Rear fuel tank strap |
| 7 | 9054 | Front fuel tank strap |
| 8 | W709736 | Fuel tank shield bolt (6 required) |
| 9 | 9K036 | Fuel tank shield |
| 10 | - | Fuel vapor hose-to-fuel tank grade vent valve (part of 9S278) |
| 11 | - | Fuel return tube-to-fuel level sensor quick connect coupling (part of 9S278) |
| 12 | - | Fuel supply tube-to-fuel level sensor quick connect coupling (part of 9S278) |
| 13 | - | Fuel level sensor electrical connector (part of 9275) |
| 14 | - | Fuel vapor hose-to-fuel tank grade vent valve (part of 9S278) |
| 15 | W711089 | Fuel tank filler pipe vent hose-to-fuel tank hose clamp |
| 16 | - | Fuel tank filler pipe vent hose (part of 9034) |
| 17 | - | Fuel tank filler pipe (part of 9034) |
| 18 | W711088 | Fuel tank filler pipe-to-fuel tank hose clamp |

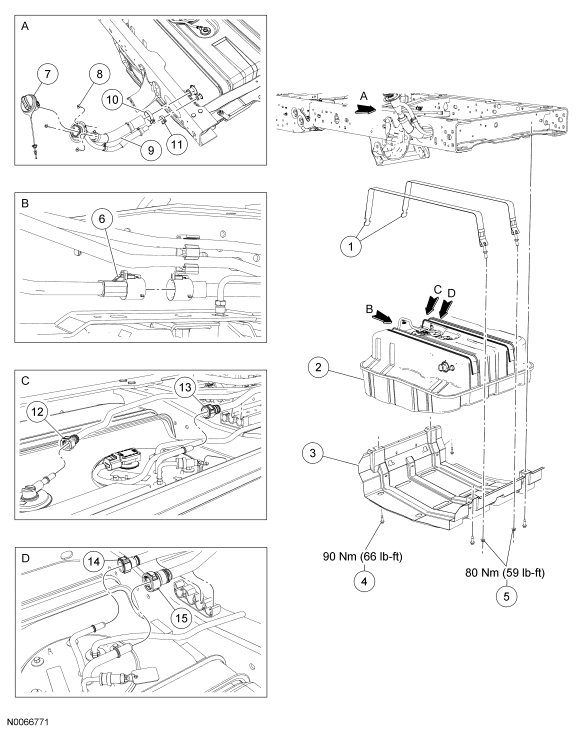

| Item | Part Number | Description |
|---|---|---|
| 1 | 9092 | Fuel tank straps |
| 2 | 9002 | Aft-of-axle fuel tank |
| 3 | 9A147 | Fuel tank shield |
| 4 | N803892-S102 | Fuel tank shield bolt (4 required) |
| 5 | W520104-S439 | Fuel tank strap nut (2 required) |
| 6 | - | Fuel pump (FP) module (gasoline engine)/fuel level sensor (diesel engine) electrical connector (part of 9B785 gasoline engine/9275 diesel engine) |
| 7 | 9030 | Fuel tank filler cap |
| 8 | W711103 | Fuel tank filler pipe retaining screw (3 required) |
| 9 | 9034 | Fuel tank filler pipe assembly |
| 10 | W711088 | Fuel tank filler pipe hose clamp |
| 11 | W711089 | Fuel tank filler pipe vent hose clamp |
| 12 | - | Fuel vapor tube-to-fuel tank grade vent valve quick connect coupling (gasoline engine) (part of 9S278) |
| 13 | - | Fuel supply tube-to-FP module quick connect coupling (gasoline engine) (part of 9S278) |
| 14 | - | Fuel return tube-to-fuel level sensor quick connect coupling (diesel engine) (part of 9S278) |
| 15 | - | Fuel supply tube-to-fuel level sensor quick connect coupling (diesel engine) (part of 9S278) |

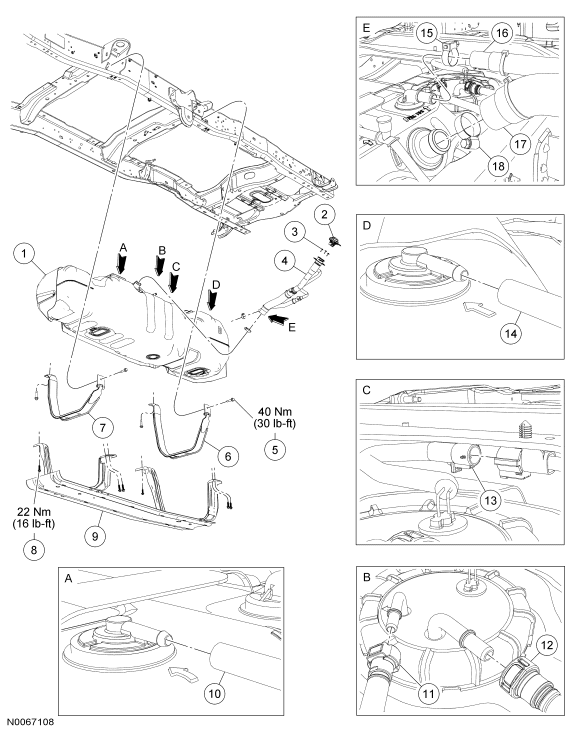

| Item | Part Number | Description |
|---|---|---|
| 1 | 9002 | Auxiliary fuel tank |
| 2 | 9030 | Fuel tank filler cap |
| 3 | W711103 | Fuel tank filler pipe retaining screw (3 required) |
| 4 | 9034 | Fuel tank filler pipe assembly |
| 5 | 9054 | Rear fuel tank strap |
| 6 | 9057 | Front fuel tank strap |
| 7 | W506435 | Rear fuel tank strap bolt |
| 8 | W506435 | Front fuel tank strap bolt |
| 9 | 9K014 | Fuel tank shield |
| 10 | W506424 | Fuel tank shield bolt (4 required) |
| 11 | - | Fuel vapor tube-to-fuel tank grade vent valve quick connect coupling (gasoline engine) (part of 9S278) |
| 12 | - | Fuel return tube-to-fuel level sensor quick connect coupling (diesel engine) (part of 9S278) |
| 13 | - | Fuel supply tube-to-fuel level sensor quick connect coupling (diesel engine) (part of 9S278) |
| 14 | - | Fuel supply tube-to-fuel pump (FP) module quick connect coupling (gasoline engines) (part of 9S278) |
| 15 | - | FP module (gasoline engine)/fuel level sensor (diesel engine) electrical connector (part of 9B785 gasoline engine/9275 diesel engine) |
| 16 | - | Fuel vapor tube-to-fuel tank grade vent valve quick connect coupling (gasoline engines) (part of 9S278) |
| 17 | W711089 | Fuel tank filler pipe vent hose clamp |
| 18 | W711088 | Fuel tank filler pipe hose clamp |
| 19 | - | Fuel tank filler pipe vent hose (part of 9034) |
| 20 | - | Fuel tank filler pipe (part of 9034) |
- For additional information, refer to the procedures.
