Fuel Lines - 6.4L Diesel: Notes
WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

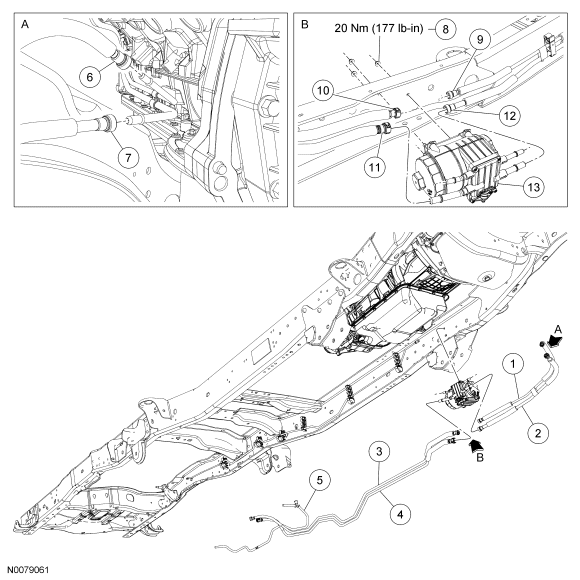

NOTE:
Vehicle body removed from art for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9J338 | Fuel return tube |
| 2 | 9J338 | Fuel supply tube |
| 3 | 9S278 | Fuel return tube |
| 4 | 9S278 | Fuel supply tube |
| 5 | 9S278 | Fuel tank vapor tube |
| 6 | - | Fuel return tube-to-engine fuel return tube spring lock coupling (part of 9J338) |
| 7 | - | Fuel supply tube-to-engine fuel supply tube spring lock coupling (part of 9J338) |
| 8 | W520102 | Fuel conditioning module mounting nut (3 required) |
| 9 | - | Fuel return tube-to-fuel conditioning module spring lock coupling (part of 9J338) |
| 10 | - | Fuel return tube-to-fuel conditioning module quick connect coupling (part of 9J338) |
| 11 | - | Fuel supply tube-to-fuel conditioning module quick connect coupling (part of 9J338) |
| 12 | - | Fuel supply tube-to-fuel conditioning module spring lock coupling (part of 9J338) |
| 13 | 9G282 | Fuel conditioning module |

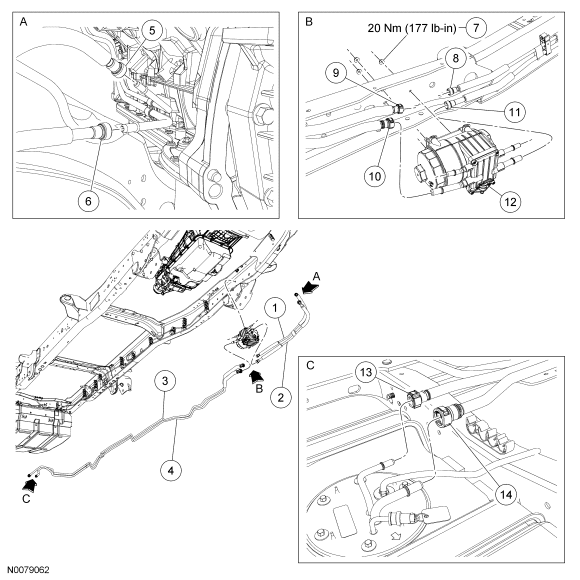

NOTE:
Vehicle body removed from art for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9J338 | Fuel return tube |
| 2 | 9J338 | Fuel supply tube |
| 3 | 9S278 | Fuel return tube |
| 4 | 9S278 | Fuel supply tube |
| 5 | - | Fuel return tube-to-engine fuel return tube spring lock coupling (part of 9J338) |
| 6 | - | Fuel supply tube-to-engine fuel supply tube spring lock coupling (part of 9J338) |
| 7 | W520102 | Fuel conditioning module mounting nut (3 required) |
| 8 | - | Fuel return tube-to-fuel conditioning module spring lock coupling (part of 9J338) |
| 9 | - | Fuel return tube-to-fuel conditioning module quick connect coupling (part of 9J338) |
| 10 | - | Fuel supply tube-to-fuel conditioning module quick connect coupling (part of 9J338) |
| 11 | - | Fuel supply tube-to-fuel conditioning module spring lock coupling (part of 9J338) |
| 12 | 9G282 | Fuel conditioning module |
| 13 | - | Fuel return tube-to-fuel level sensor quick connect coupling (part of 9S278) |
| 14 | - | Fuel supply tube-to-fuel level sensor quick connect coupling (part of 9S278) |

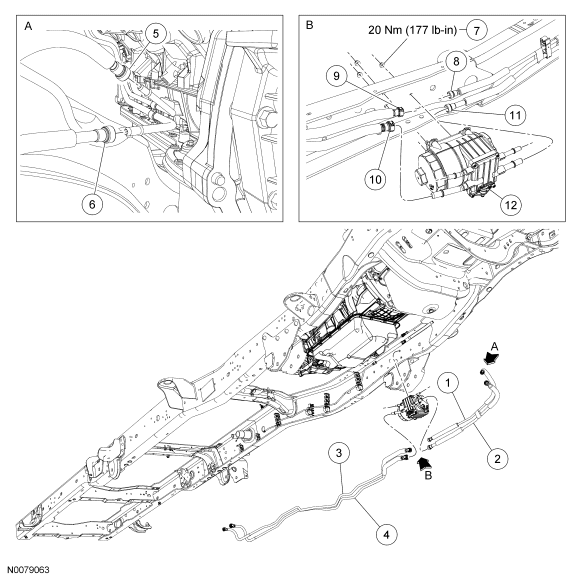

NOTE:
Vehicle body removed from art for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9J338 | Fuel return tube |
| 2 | 9J338 | Fuel supply tube |
| 3 | 9S278 | Fuel return tube |
| 4 | 9S278 | Fuel supply tube |
| 5 | - | Fuel return tube-to-engine fuel return tube spring lock coupling (part of 9J338) |
| 6 | - | Fuel supply tube-to-engine fuel supply tube spring lock coupling (part of 9J338) |
| 7 | W520102 | Fuel conditioning module mounting nut (3 required) |
| 8 | - | Fuel return tube-to-fuel conditioning module spring lock coupling (part of 9J338) |
| 9 | - | Fuel return tube-to-fuel conditioning module quick connect coupling (part of 9J338) |
| 10 | - | Fuel supply tube-to-fuel conditioning module quick connect coupling (part of 9J338) |
| 11 | - | Fuel supply tube-to-fuel conditioning module spring lock coupling (part of 9J338) |
| 12 | 9G282 | Fuel conditioning module |
