Removal And Installation: Radiator: Notes

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

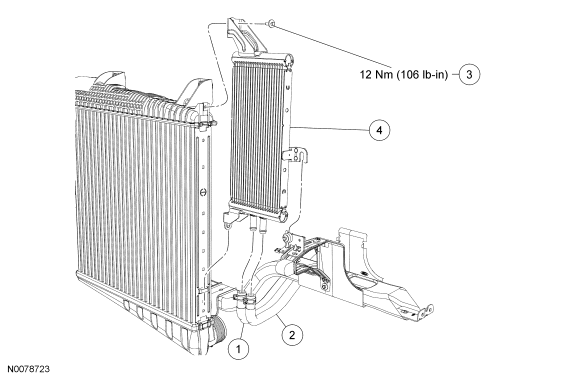

Fig 1: Exploded View Of Radiator With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8D011	Fuel cooling system radiator-to-coolant pump hose
2	8D011	Coolant expansion tank-to-radiator hose
3	-	Fuel cooling system radiator bolt
4	8D010	Fuel cooling system radiator
