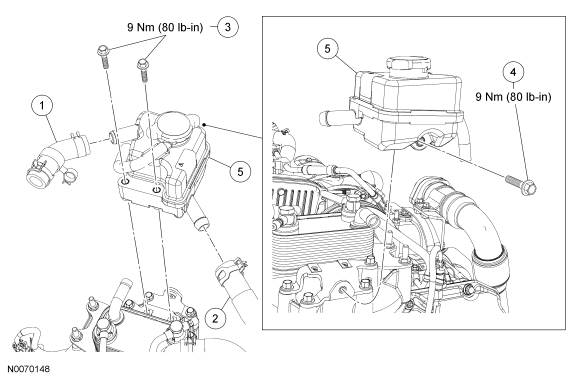

Coolant Expansion Tank: Notes
WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
R836 |
Fuel cooler-to-coolant expansion tank hose |
| 2 |
8D011 |
Coolant expansion tank-to-turbocharger actuator cooler hose |
| 3 |
W302517 |
Coolant expansion tank bolts (2 required) |
| 4 |
W302516 |
Coolant expansion tank bolt |
| 5 |
9C248 |
Coolant expansion tank |
