Stabilizer Bar and Link - F450, F550: Notes

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

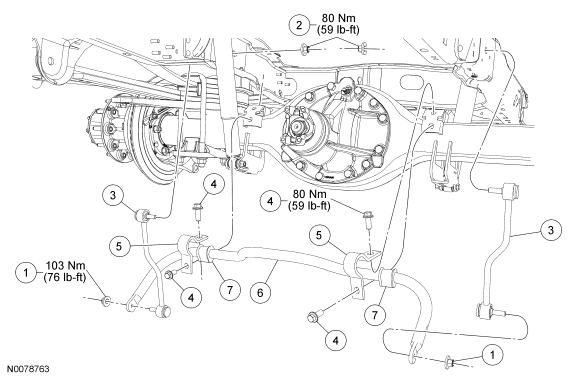

Fig 1: Exploded View Of Stabilizer Bar & Link With Torque Specifications - F-450 & F-550 Vehicles
GF0049174Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707492 Stabilizer bar link lower nuts (2 required)
2 W707492 Stabilizer bar link upper nuts (2 required)
3 5K484 Stabilizer bar links (2 required)
4 N8605814 Stabilizer bar bracket bolts (4 required)
5 5B491 Stabilizer bar brackets (2 required)
6 5A772 Stabilizer bar
7 5484 Stabilizer bar bushings
