Stabilizer Bar and Link - F-250, F-350: Notes
WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

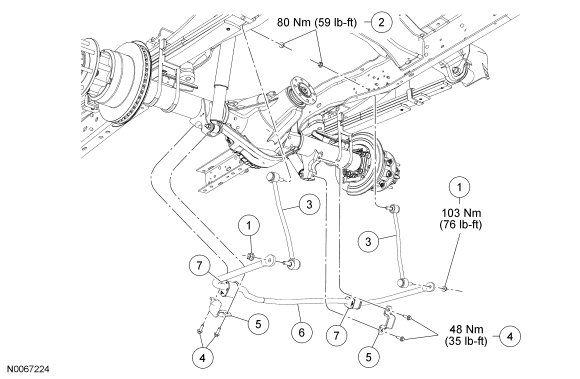

Fig 1: Exploded View Of Stabilizer Bar & Link With Torque Specifications - F-250 & F-350 Wide Frame Vehicles
| Item | Part Number | Description |
|---|---|---|
| 1 | W707492 | Stabilizer bar link lower nuts (2 required) |
| 2 | W707492 | Stabilizer bar link upper nuts (2 required) |
| 3 | 5K484 | Stabilizer bar links (2 required) |
| 4 | N605920 | Stabilizer bar bracket bolts (4 required) |
| 5 | 5B491 | Stabilizer bar brackets (2 required) |
| 6 | 5A772 | Stabilizer bar |
| 7 | 5484 | Stabilizer bar bushing |

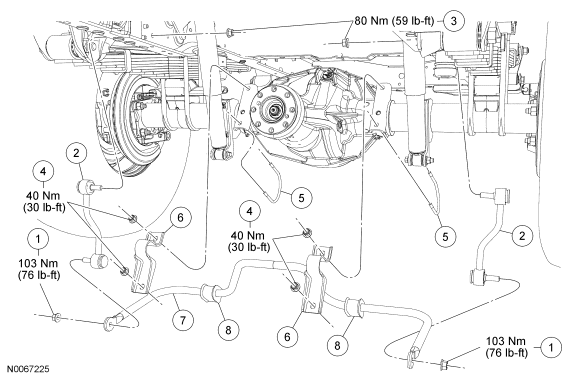

Fig 2: Exploded View Of Stabilizer Bar & Link With Torque Specifications - F-350 Single Rear Wheel (SRW), Narrow Frame Vehicles
| Item | Part Number | Description |
|---|---|---|
| 1 | W707492 | Stabilizer bar link lower nuts (2 required) |
| 2 | 5K484 | Stabilizer bar links (2 required) |
| 3 | W707492 | Stabilizer bar link upper nuts (2 required) |
| 4 | W520113 | Stabilizer bar bracket nut (4 required) |
| 5 | 4A340 | Stabilizer bar bracket U-bolts (2 required) |
| 6 | 5B491 | Stabilizer bar brackets (2 required) |
| 7 | 5A772 | Stabilizer bar |
| 8 | 5484 | Stabilizer bar bushing |
