Spring - F-450, F-550: Notes
WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

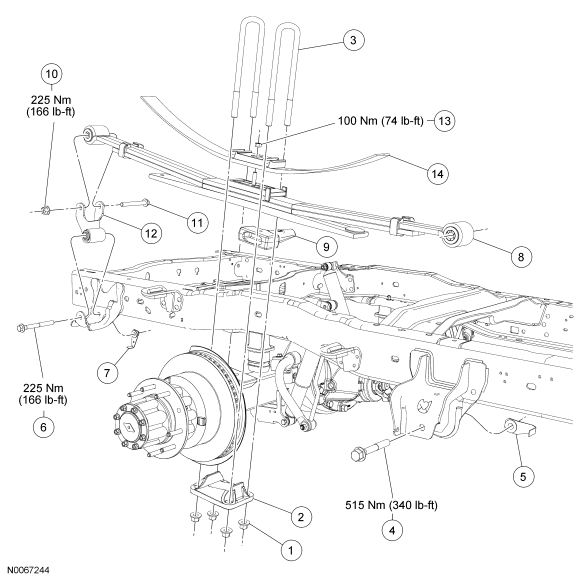

| Item | Part Number | Description |
|---|---|---|
| 1 | W520117 | U-bolt nut (4 required) |
| 2 | 5796 | Spring plate |
| 3 | 5705 | U-bolt (2 required) |
| 4 | N805444 | Spring-to-front bracket bolt |
| 5 | N805161 | Spring-to-front bracket flag nut (chassis cab F-450, F-550) |
| 5 | W712307 | Spring-to-front bracket flag nut (F-450 pickup) |
| 6 | N500593 | Shackle-to-rear bracket bolt |
| 7 | W711218 | Shackle-to-rear bracket flag nut |
| 8 | 5A975 | Spring assembly |
| 9 | 5598 | Spacer (if equipped) |
| 10 | N620485 | Spring-to-shackle nut |
| 11 | W500593 | Spring-to-shackle bolt |
| 12 | 5776 | Spring shackle |
| 13 | - | Auxiliary spring nut |
| 14 | - | Auxiliary spring |
