Performance Diagnostic Procedures: Notes

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

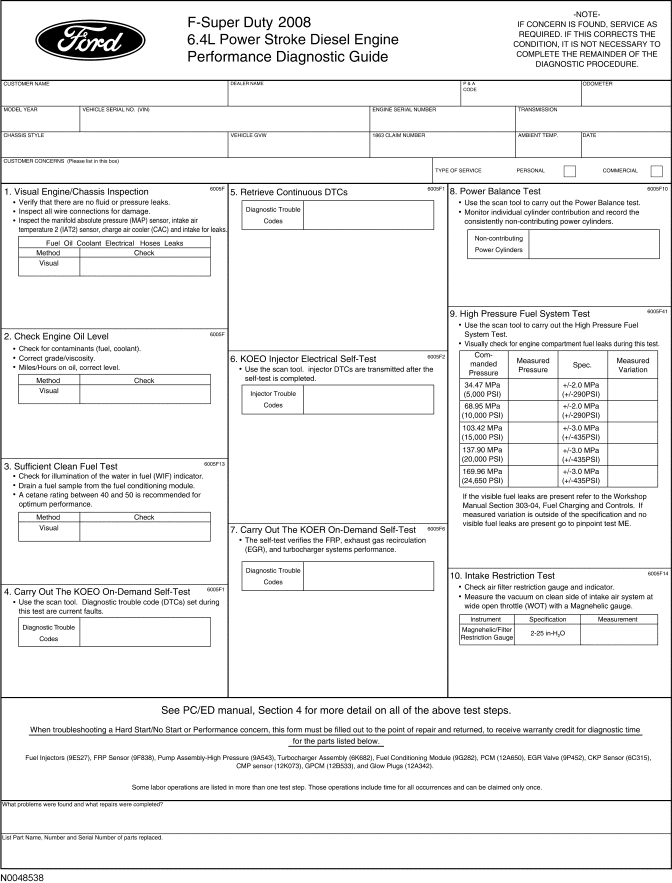

Fig 1: Performance Diagnostic Guide Sheet (1 Of 2)
GF0047751Courtesy of FORD MOTOR CO.

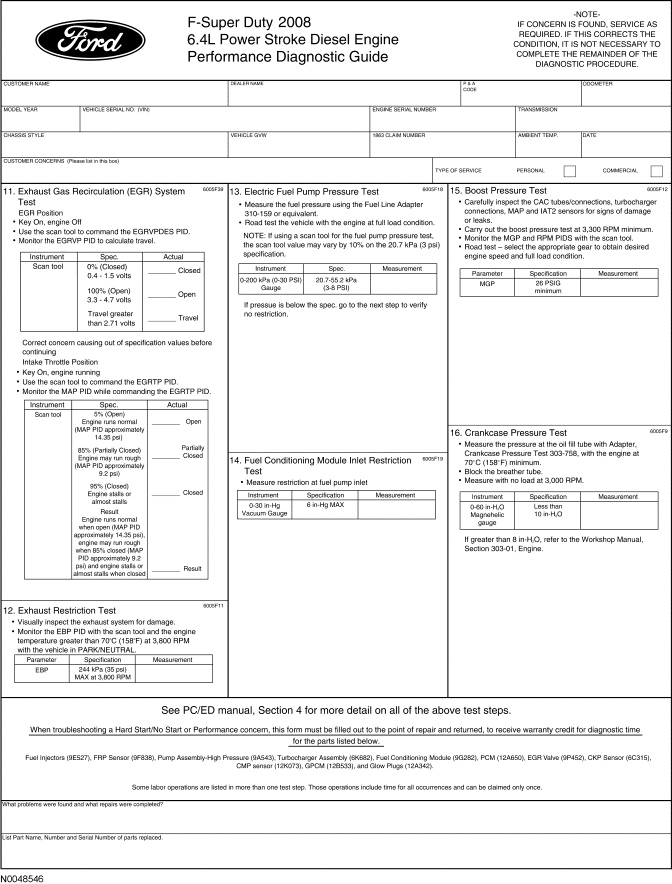

Fig 2: Performance Diagnostic Guide Sheet (2 Of 2)
GF0047752Courtesy of FORD MOTOR CO.
