Hard Start/No Start Diagnostic Procedures: Notes

WARNING: This page is about a different car, the 2008 Ford Pickup, 2008 Ford F550 Super Duty, 2008 Ford F450 Super Duty, and 2008 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

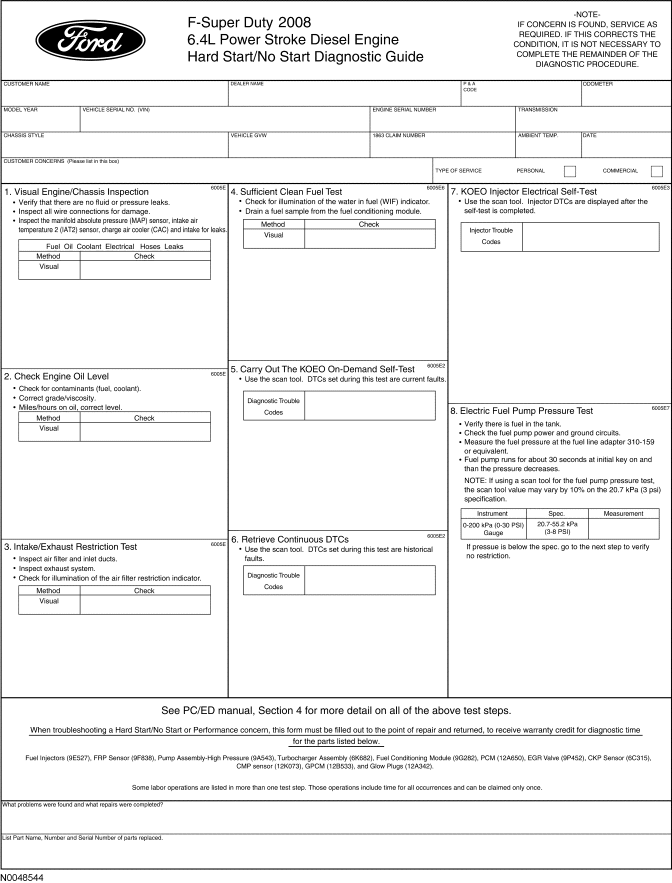

Fig 1: Hard Start/No Start Diagnostic Guide Sheet (1 Of 3)

Courtesy of FORD MOTOR CO.

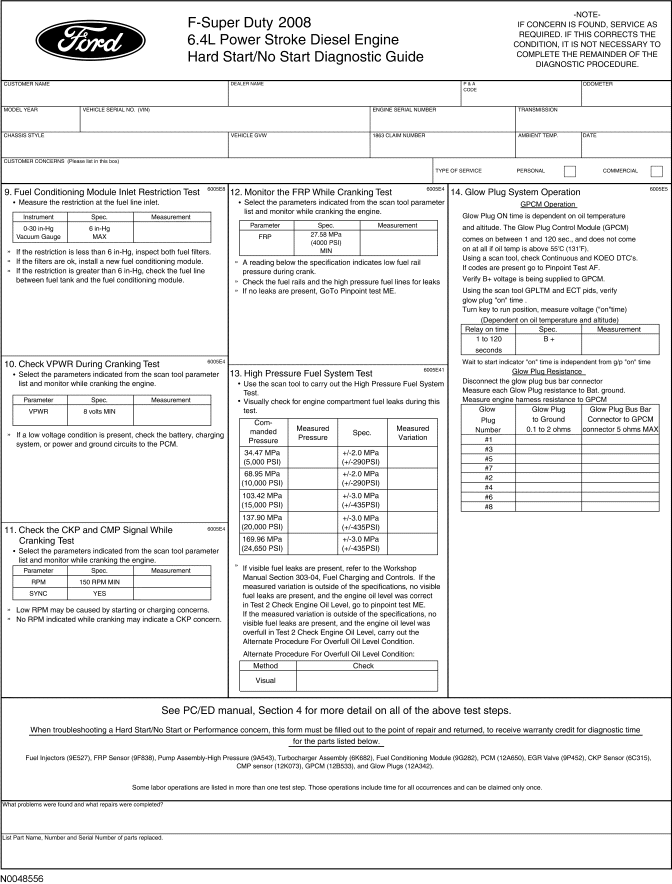

Fig 2: Hard Start/No Start Diagnostic Guide Sheet (2 Of 3)

Courtesy of FORD MOTOR CO.

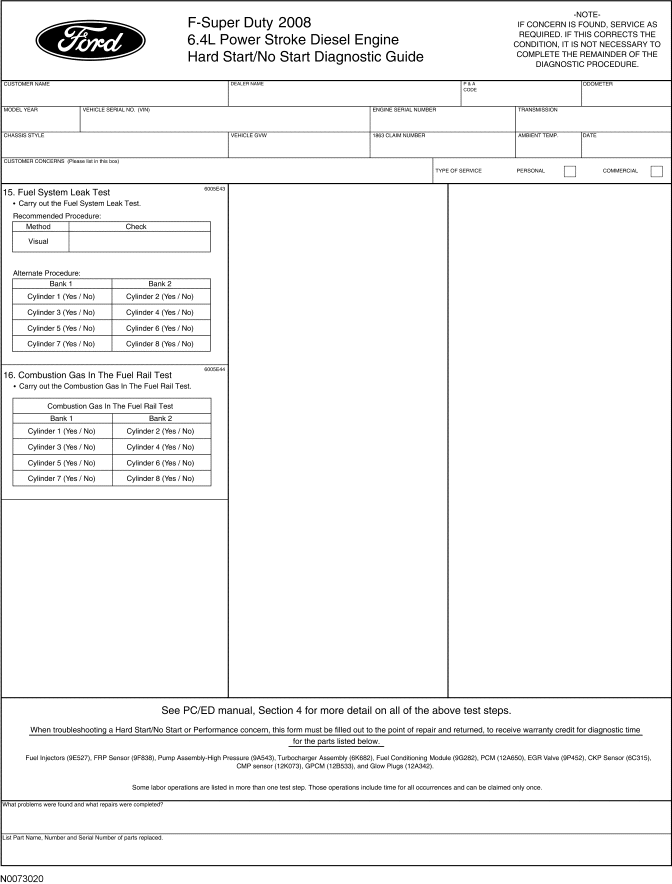

Fig 3: Hard Start/No Start Diagnostic Guide Sheet (3 Of 3)

Courtesy of FORD MOTOR CO.

NOTE: For a hard start/no start concern with the engine oil temperature (EOT) below 15°C (60°F) carry out Step 14 first.
