Brake Master Cylinder: Notes
WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item |
Specification |
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) |
ESA-M6C25-A or WSS-M6C62-A |
NOTE:

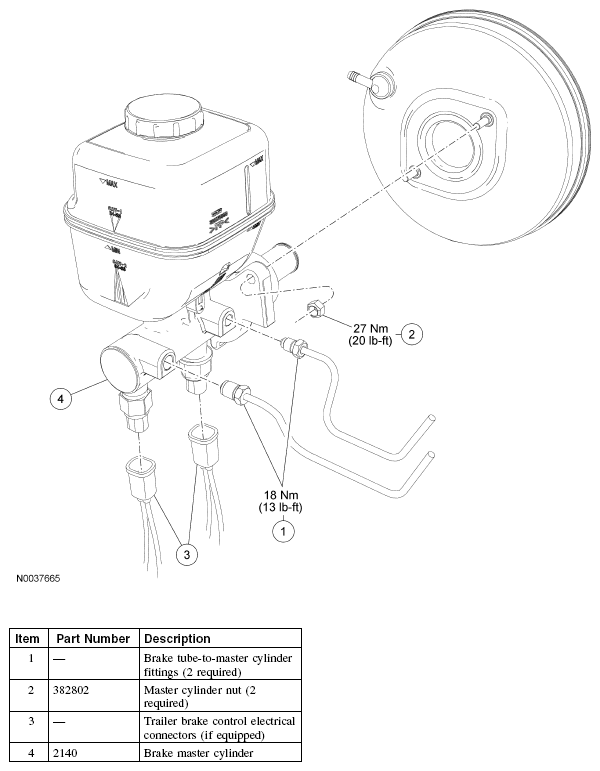

Master cylinder with vacuum brake booster shown, Hydro Boost® similar. Master cylinder with trailer brake control shown, all others similar.
Courtesy of FORD MOTOR CO.
