Removal and Installation

  1. Remove the rear seat bottom.
    1. Release the two spring clips.
    2. Remove the seat bottom.

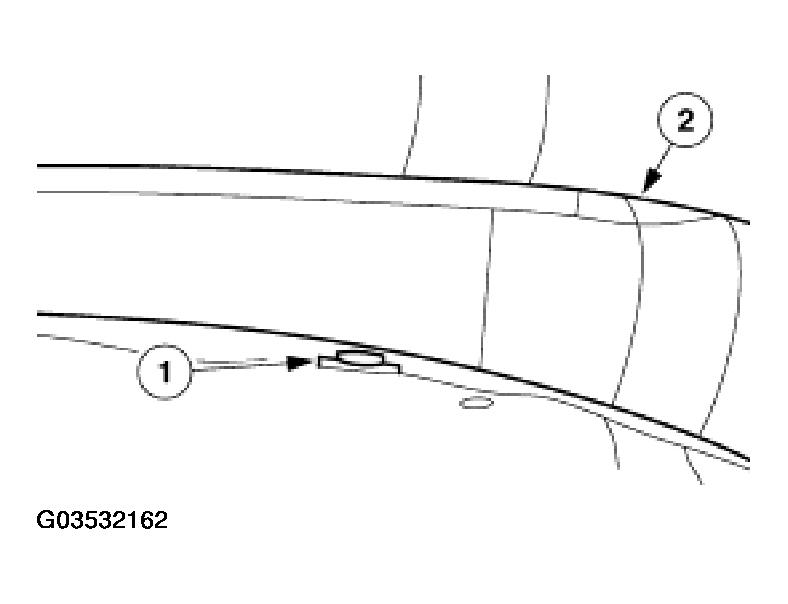

      Fig 1: Removing Rear Seat Bottom
      G03532162Courtesy of FORD MOTOR CO.
  2. Use Safety Belt Bolt Bit to remove the center rear seat safety belt bolt and the belt.

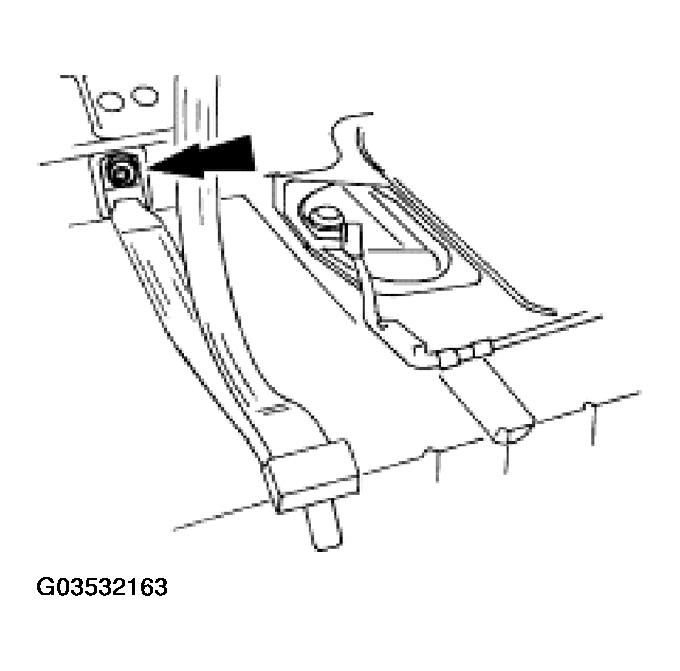

    Fig 2: Removing Center Rear Seat Safety Belt Bolt
    G03532163Courtesy of FORD MOTOR CO.
    3. NOTE: Apply Ford Threadlock 262 (E2FZ -19554-B) or equivalent to fasteners when installing safety belt buckle or retractor assemblies.

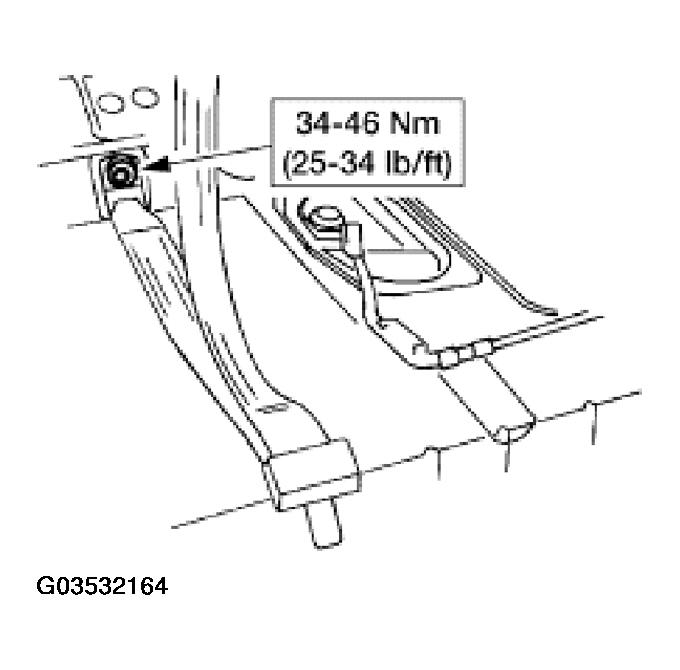

    Fig 3: Installing Center Rear Seat Safety Belt Bolt
    G03532164Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
