Compressor Clutch Plate & Hub Assembly: Removal

  1. Clamp the compressor holding fixture in a vise.
  2. Use thumb screws in order to attach the compressor to the holding fixture.
    3. CAUTION: DO NOT drive or pound on the clutch hub or shaft. Internal damage to the compressor may result. The forcing tip on the hub and drive plate remover/installer center screw must be flat or the end of the shaft/axial plate assembly will be damaged.
  3. Ensure that the center screw forces the tip to thrust against the end of the shaft.
  4. Thread the hub and drive plate remover/installer into the hub.

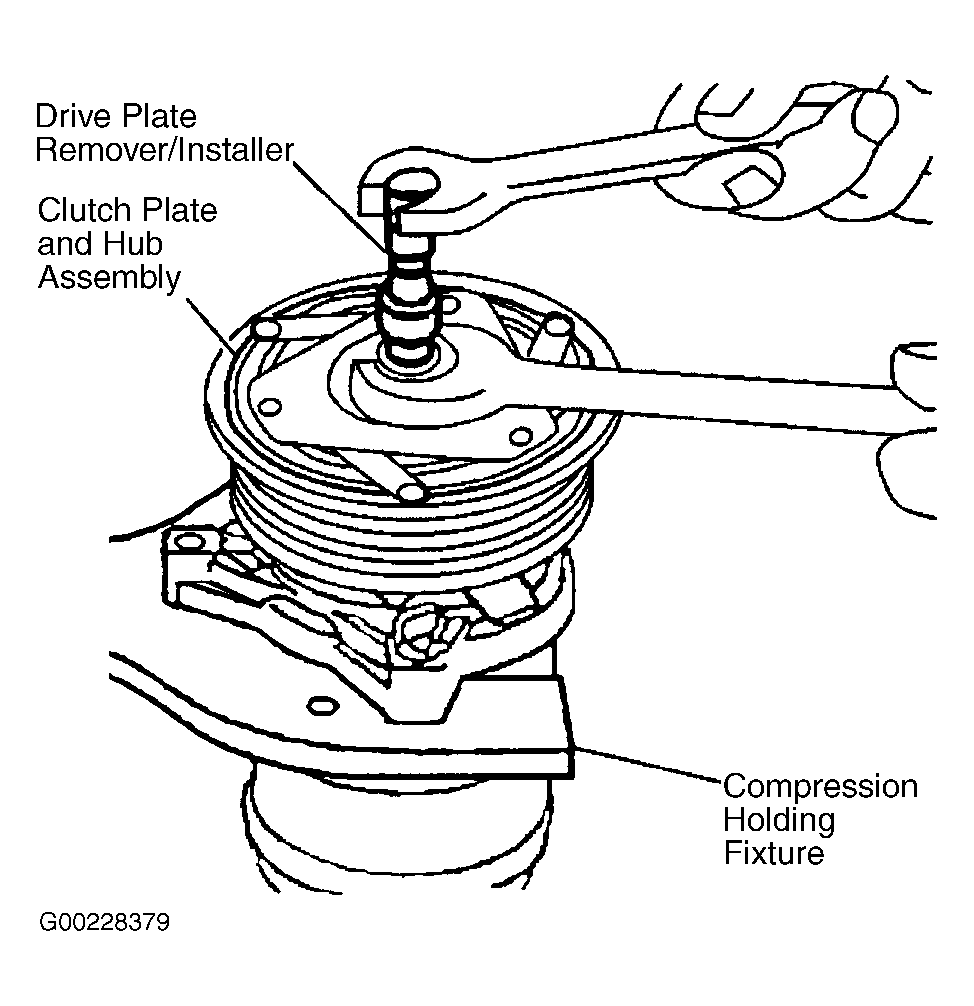

  5. While holding the body of hub and drive plate remover/installer of the remover with a wrench, turn the center screw into the remover body in order to remove the clutch plate and hub assembly. See Figure.
  6. Remove the shaft key. Retain the shaft key for reassembly.
