Vacuum Hose Diagram(S): THUNDERBIRD

CALIBRATION-TO-VACUUM DIAGRAM REFERENCE

Application/Calibration No. See
2-SR1-1M0-508 (KNS0), 2-SR1-1M0-510 (KNS1), 2-SR1-2M0-511 (HDE1) & 2-SR1-2M0-512 (HDE2) Fig 1

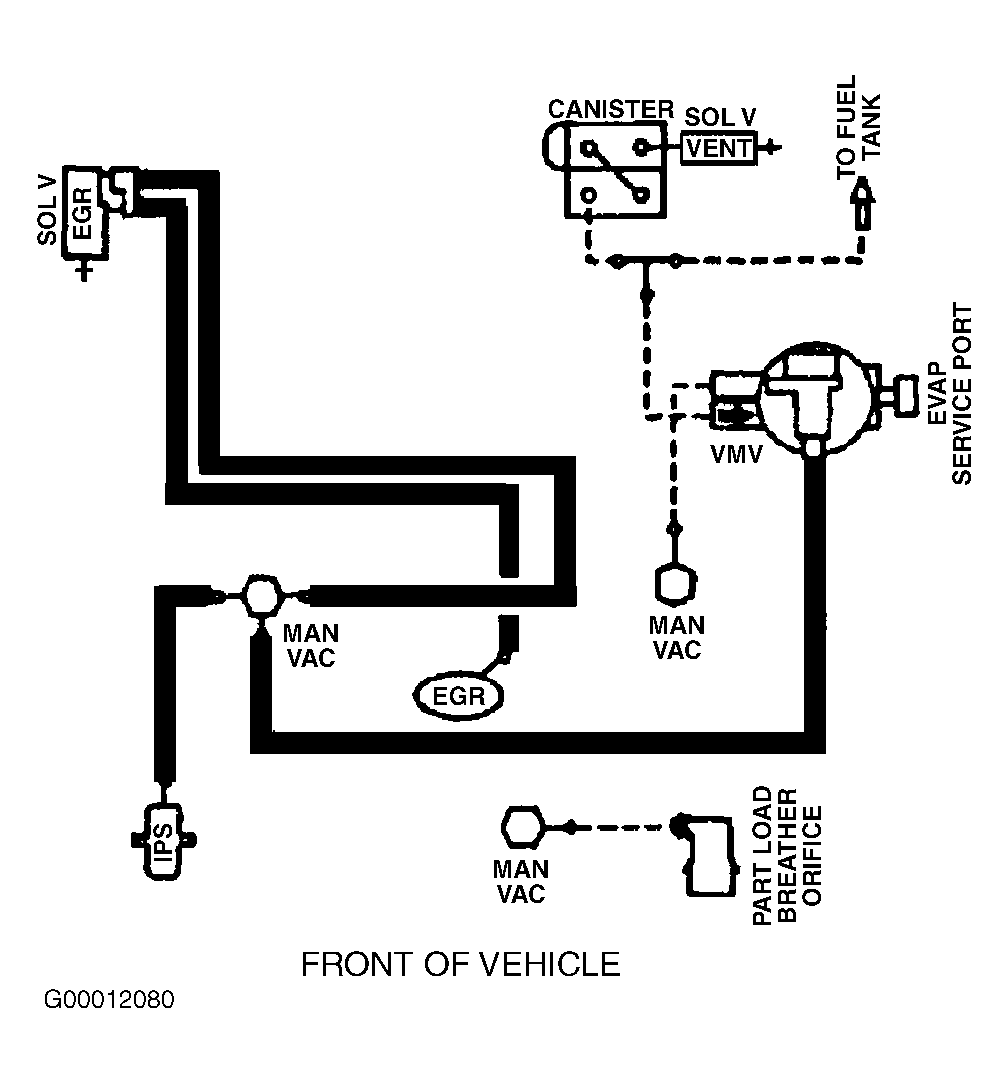

Fig 1: Vacuum Diagram - Thunderbird
G00012080Courtesy of FORD MOTOR CO.
