Sable & TAURUS

CALIBRATION-TO-VACUUM DIAGRAM REFERENCE

Application/Calibration No.

See

3.0L

DOHC

2-DD1-4N0-506 (ECY2), 2-DD1-4N0-506 (ECY3), 2-DD1-4N0-506 (ECY4), 2-DD1-4N0-510 (ECY2), 2-DD1-4N0-510 (ECY3), 2-DD1-4N0-510 (ECY4), 2-DD1-4N0-511 (ECY2), 2-DD1-4N0-511 (ECY3), 2-DD1-4N0-511 (ECY4) & 2-DD1-5N0-506 (GNJ2)

Fig 1

OHV

Except Flex-Fuel

2-DD1-2N0-508 (TMU4), 2-DD1-2N0-508 (TMU5), 2-DD1-2N0-508 (TMU6), 2-DD1-2N0-510 (TMU4), 2-DD1-2N0-510 (TMU5), 2-DD1-2N0-510 (TMU6), 2-DD1-2N0-511 (TMU4), 2-DD1-2N0-511 (TMU5), 2-DD1-2N0-511 (TMU6), 2-DD1-2S0-508 (RBG4), 2-DD1-2S0-508 (RBG5), 2-DD1-2S0-508 (RBG6), 2-DD1-2S0-510 (RBG4), 2-DD1-2S0-510 (RBG5), 2-DD1-2S0-510 (RBG6), 2-DD1-2S0-511 (RBG4), 2-DD1-2S0-511 (RBG5), 2-DD1-2S0-511 (RBG6), 2-DD1-3N0-506 (VBP2), 2-DD1-3N0-506 (VBP4), 2-DD1-3N0-511 (VBP2), 2-DD1-3N0-511 (VBP4), 2-DD1-3S0-506 (UVA2), 2-DD1-3S0-506 (UVA4), 2-DD1-3S0-511 (UVA2) & 2-DD1-3S0-511 (UVA4)

Fig 2

Flex-Fuel ⁽¹⁾

2-DD1-FS0-507 (WWK3), 2-DD1-3F0-500 (HUE0), 2-DD1-3F0-500 (HUE2), 2-DD1-3F0-511 (HUE0), 2-DD1-3F0-511 (HUE2), 2-DD1-3V0-506 (RDI2), 2-DD1-3V0-506 (RDI4), 2-DD1-3V0-511 (RDI2) & 2-DD1-3V0-511 (RDI4)

Fig 2

⁽¹⁾	Applies to Taurus models only.

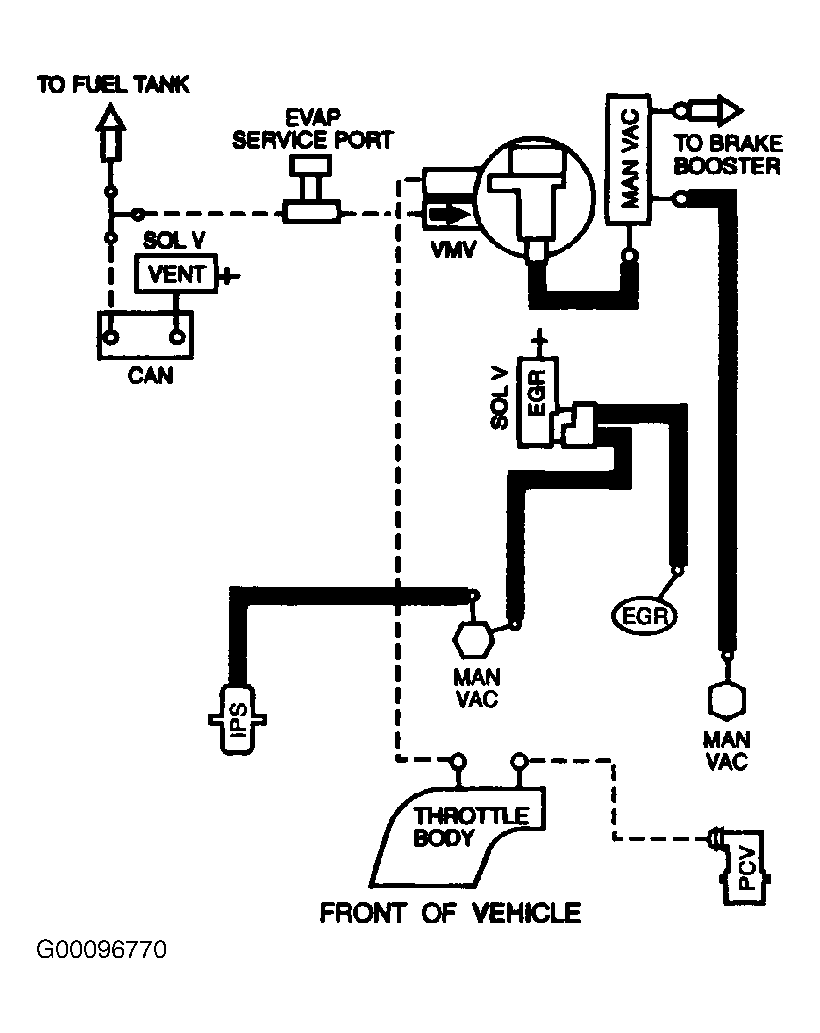

Fig 1: Vacuum Diagram - Sable & Taurus (3.0L DOHC)

Courtesy of FORD MOTOR CO.

Fig 2: Vacuum Diagram - Sable & Taurus (3.0L OHV Except Flex-Fuel & Flex-Fuel)

Courtesy of FORD MOTOR CO.
