Escort & Escort ZX2

CALIBRATION-TO-VACUUM DIAGRAM REFERENCE

Application/Calibration No.		See
2.0L DOHC
1-AJ1-AZ0-506 (JZB2), 1-AJ1-AZ0-507 (JZB3), 1-AJ2-AZ0-506 (LXQ2), 2-AJ1-BZ0-500 (ZDX0), 2-AJ1-BZ0-515 (GQT0), 2-AJ1-BZ0-516 (GQT1), 2-AJ2-BZ0-500 (DXL0), 2-AJ2-BZ0-515 (HBD0) & 2-AJ2-BZ0-516 (HBD1)		Fig 1
2.0L SOHC
2-AJ1-AS0-500 (RXT0) & 2-AJ1-AS0-505 (RXT1)		Fig 2
2-AJ1-BS0-500 (ZXX0)		Fig 3

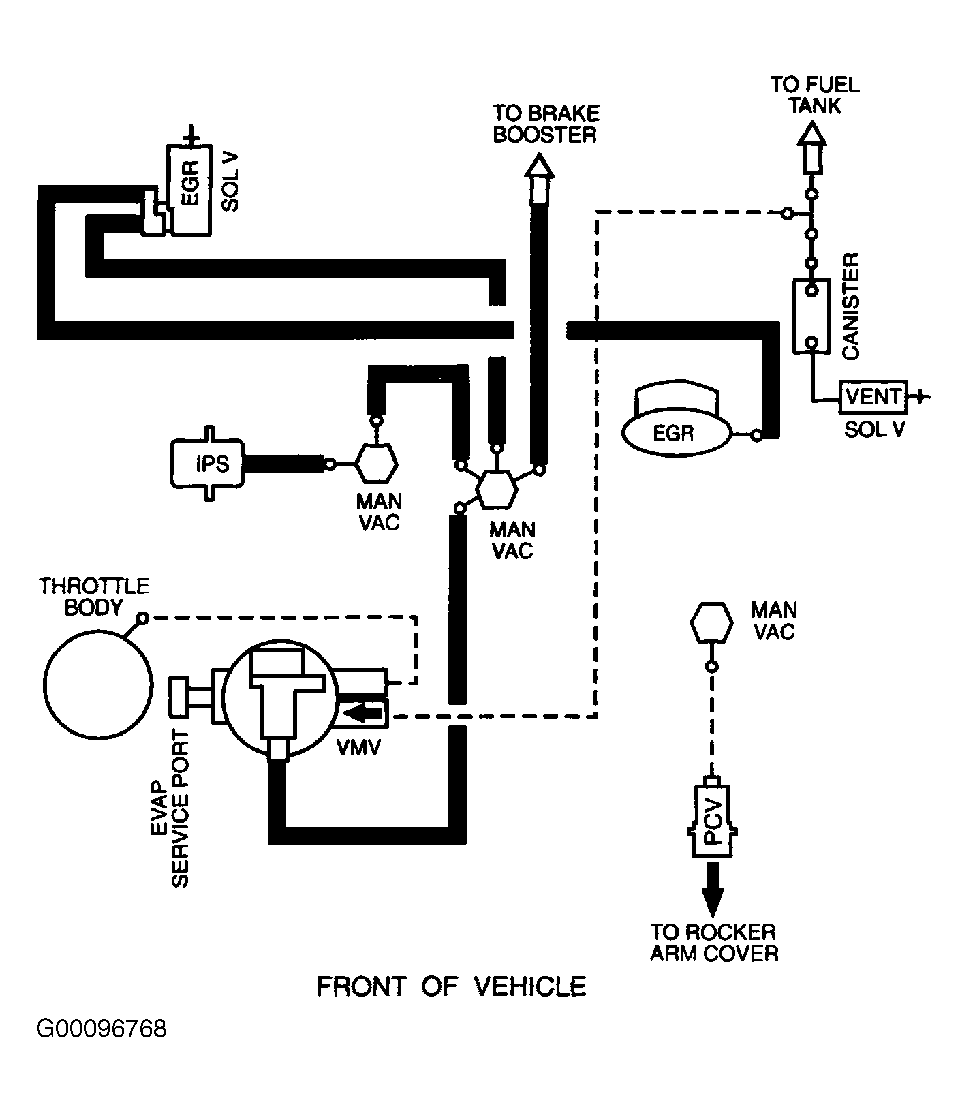

Fig 1: Vacuum Diagram - Escort & Escort ZX2 (2.0L DOHC)

Courtesy of FORD MOTOR CO.

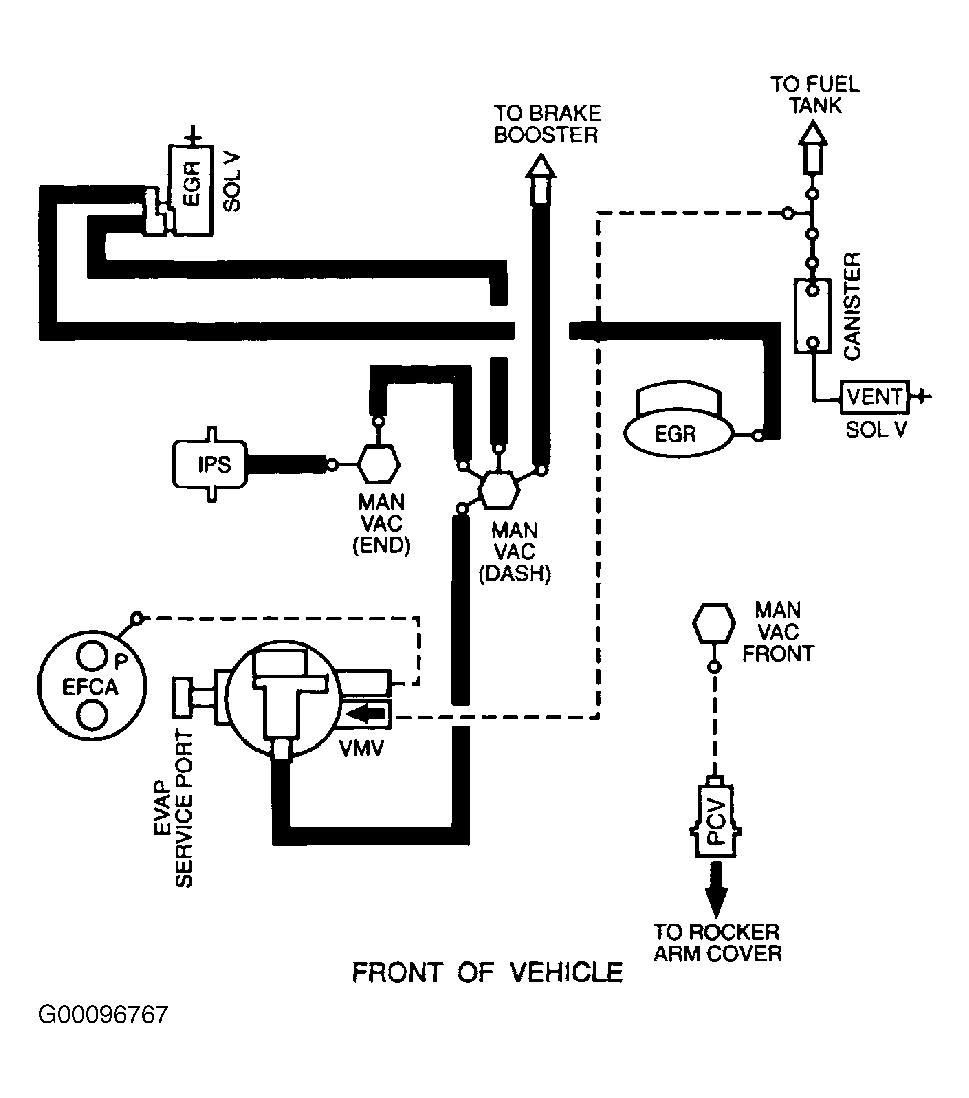

Fig 2: Vacuum Diagram - Escort (2.0L SOHC)

Courtesy of FORD MOTOR CO.

Fig 3: Vacuum Diagram - Escort (2.0L SOHC)

Courtesy of FORD MOTOR CO.
