Vacuum Hose Diagram(S): Cougar
CALIBRATION-TO-VACUUM DIAGRAM REFERENCE
| Application/Calibration No. |
See |
| 2.0L |
| 2-ZN2-AZ0-500 (CNI0) |

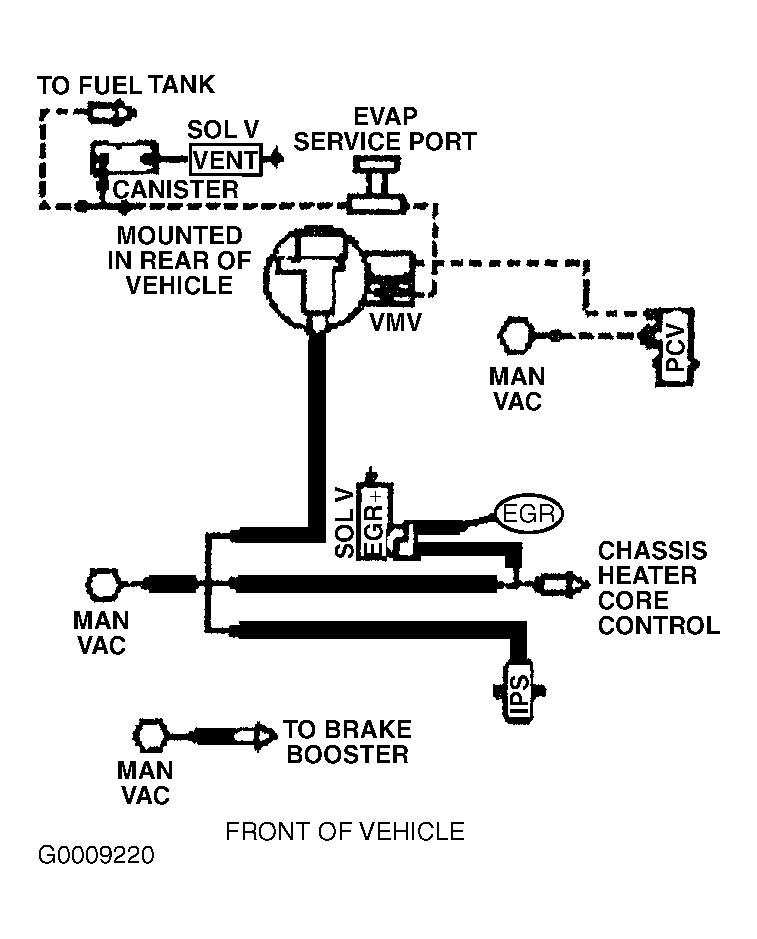

Fig 1 |
| 2.5L |
| 2-ZN2-AD0-500 (DGJ0), 2-ZN1-AD0-505 (OYN1), 2-ZN1-5D0-505 (BYG1), 2-ZN2-5D0-500 (FVA0) & 2-ZN2-7D0-500 (ZSY0) |
Fig 2 |
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
