Crankshaft Rear Oil Seal: Removal

  1. Remove the flexplate or the flywheel (6375). For additional information, refer to FLEXPLATE  or FLYWHEEL .
    2. CAUTION: Use care to avoid damaging the crankshaft sealing surface.

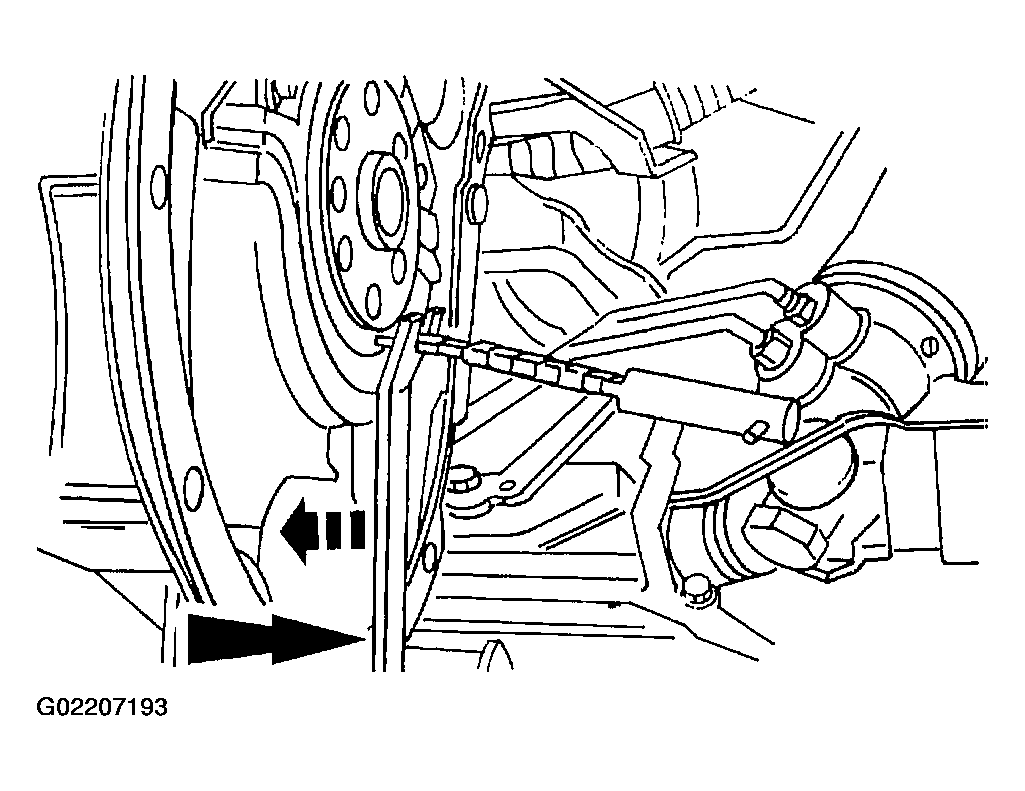

    Fig 1: Removing Crankshaft Rear Oil Seal
    G02207193Courtesy of FORD MOTOR CO.
  2. Use the Seal Remover to remove the crankshaft rear oil seal (6701).
  3. Inspect the crankshaft rear oil seal area.
