Thermostat - 2.0L Zetec-E (Zetec): Removal

  1. Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
  2. Disconnect the coolant hoses.

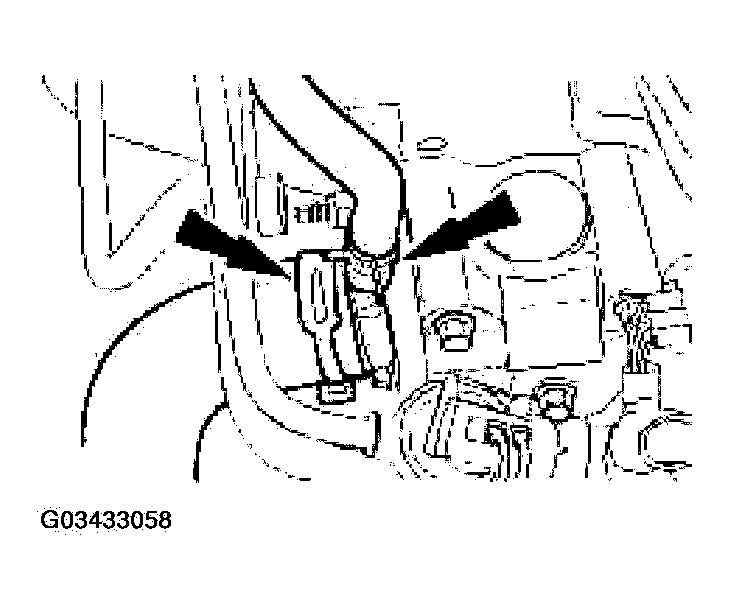

    Fig 1: Disconnecting Coolant Hoses
    G03433058Courtesy of FORD MOTOR CO.
  3. Remove the thermostat cover bolts.

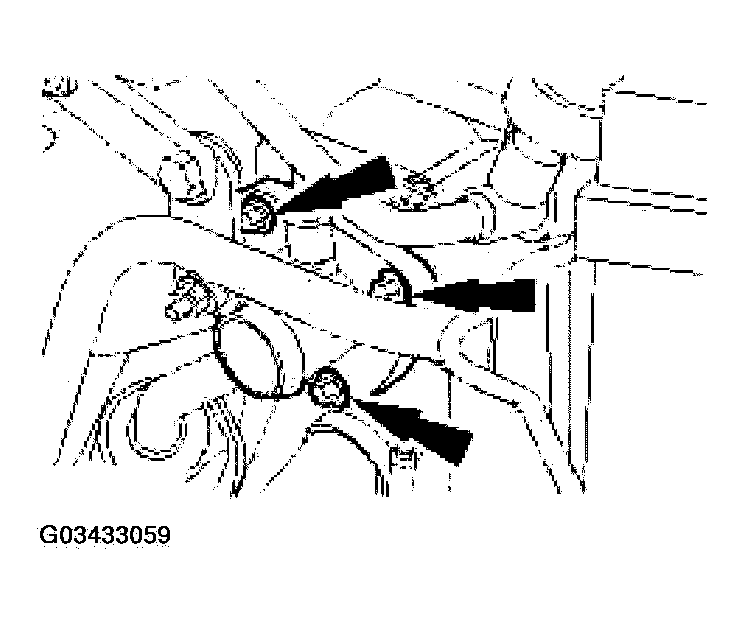

    Fig 2: Removing Thermostat Cover Bolts
    G03433059Courtesy of FORD MOTOR CO.
  4. Remove the thermostat.

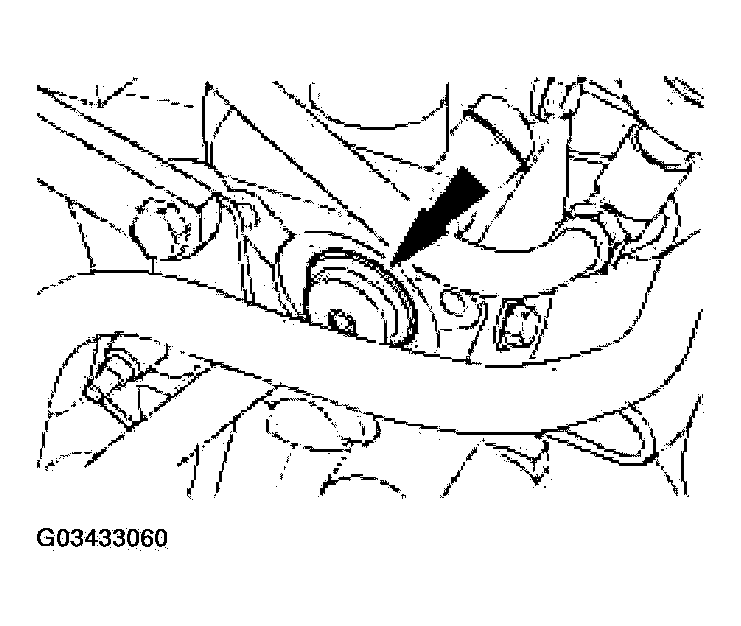

    Fig 3: Removing Thermostat
    G03433060Courtesy of FORD MOTOR CO.
  5. Remove and discard the rubber seal.
    Fig 4: Removing And Discard Rubber Seal
    G03433061Courtesy of FORD MOTOR CO.
