Removal & Installation

  1. Remove the front brake disc. See FRONT BRAKE ROTOR  .
  2. Drill out three front brake disc shield rivets and remove the brake disc shield. See Fig 1 .
  3. To install, reverse removal procedure.

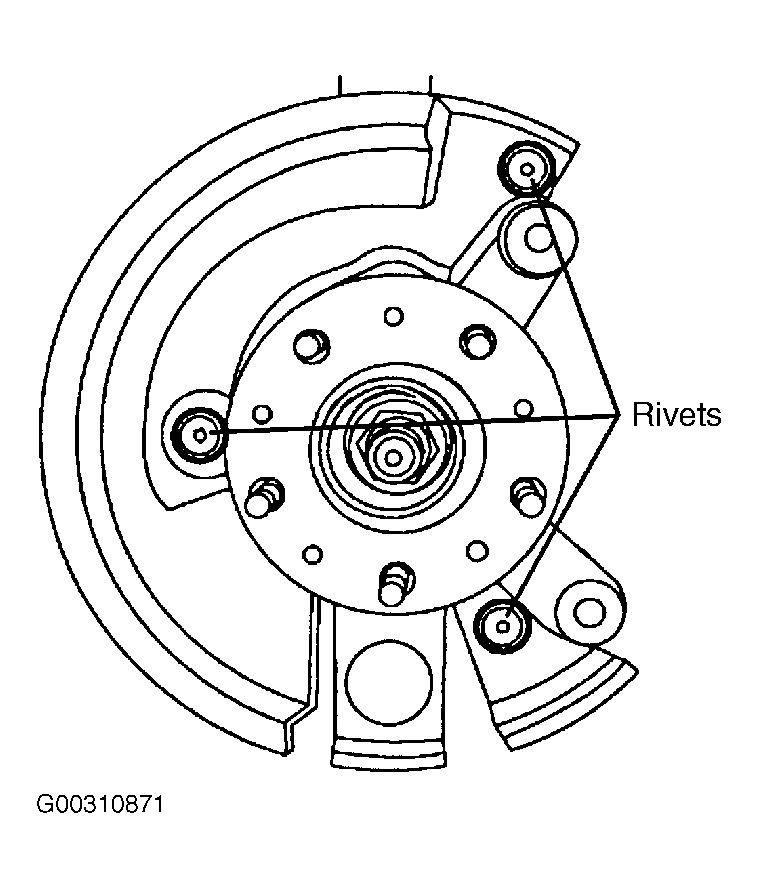

Fig 1: Identifying Disc Brake Rotor Shield Rivets
G00310871Courtesy of FORD MOTOR CO.
