Pinpoint Test B: The Compass Is Inoperative

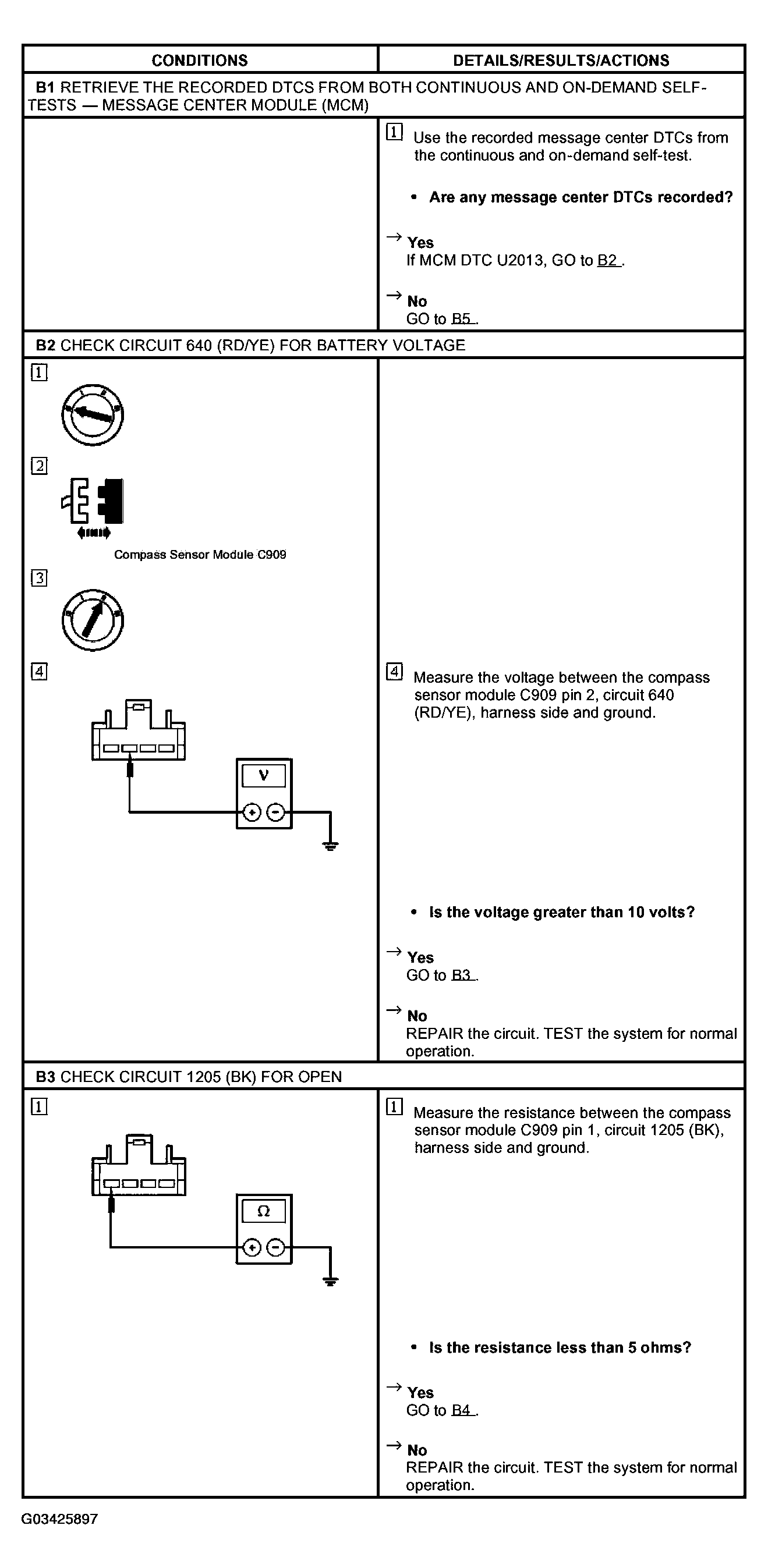

Fig 1: Pinpoint Test B Chart - Compass Is Inoperative (B1-B3)
G03425897Courtesy of FORD MOTOR CO.

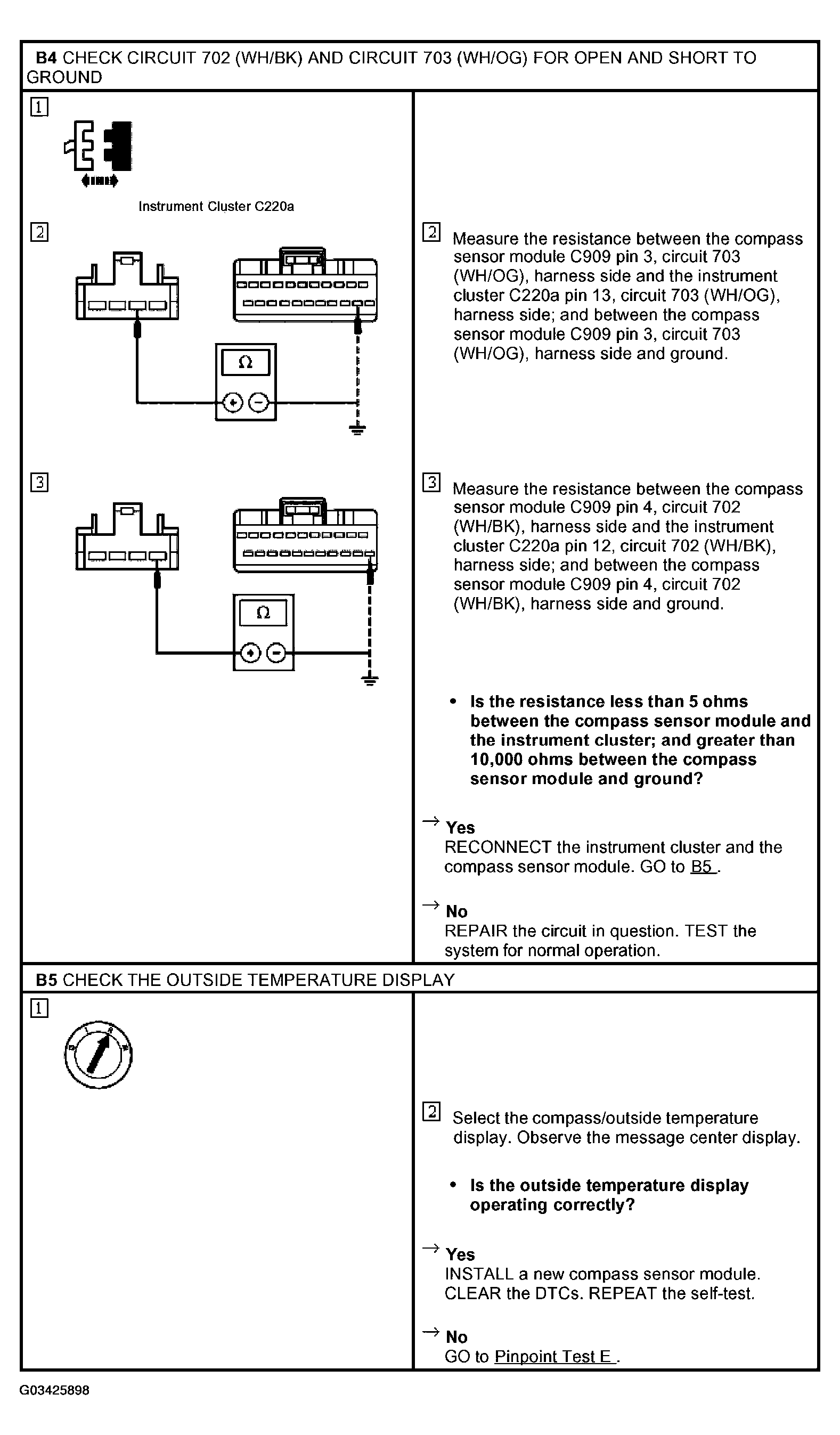

Fig 2: Pinpoint Test B Chart - Compass Is Inoperative (B4 & B5)
G03425898Courtesy of FORD MOTOR CO.
