Removal & Installation

  1. Disconnect battery ground cable.
  2. Disconnect the brake pedal motor harness connector. See Figure .
  3. Remove the 2 screws and disconnect the transmission cable assembly from the adjustable pedal motor. See Fig 1 .
  4. Remove the adjustable pedal motor bolts. See Fig 2 .
  5. Remove the adjustable pedal motor.
    6. CAUTION: The brake and accelerator pedals must be in the same position when installing a new motor or transmission cable(s). Both pedals must be in the maximum retracted or maximum extended position.
  6. To install, reverse removal procedure. Hand-tighten the adjustable pedal motor bolts.

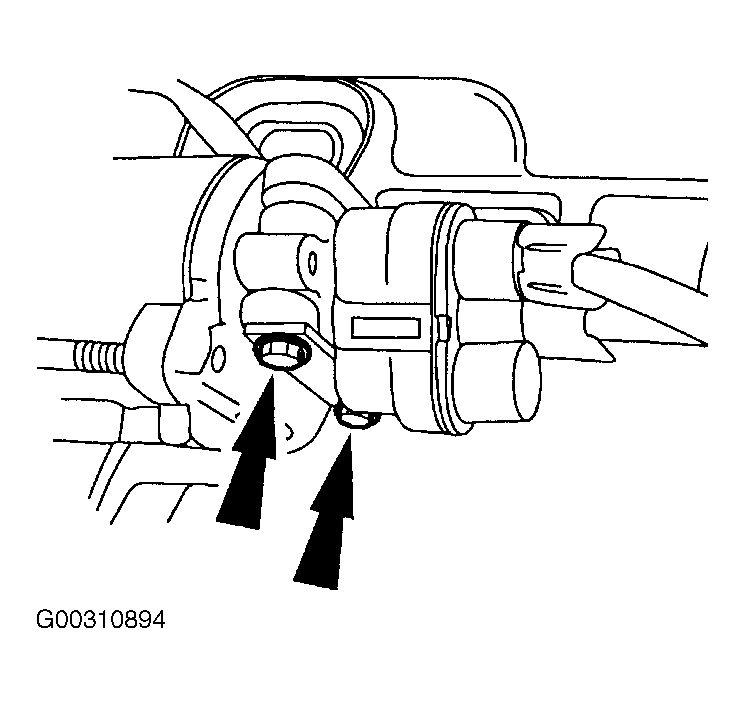

Fig 1: Identifying Pedal Motor Transmission Cable Assembly Screws
G00310894Courtesy of FORD MOTOR CO.

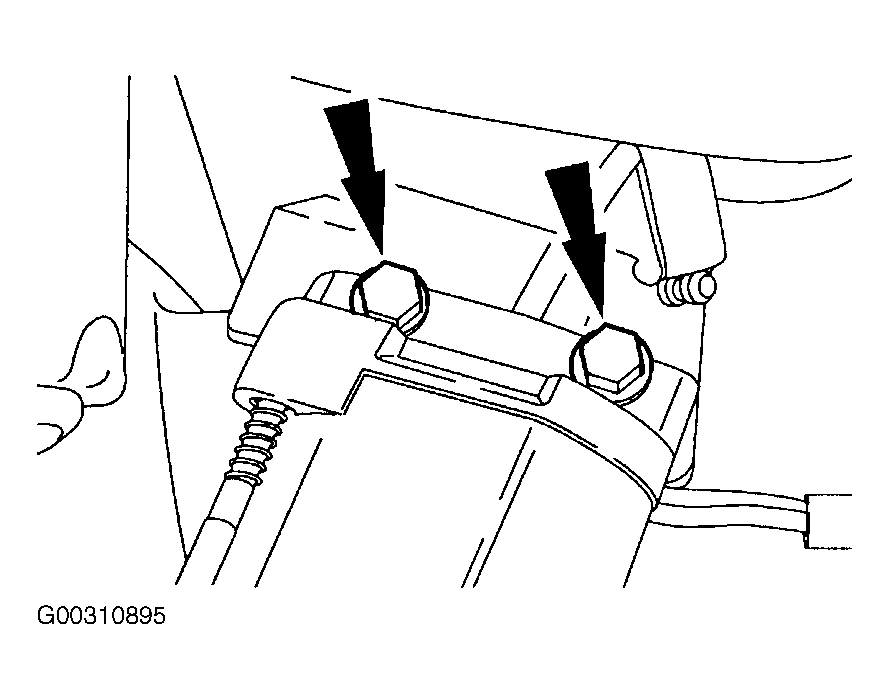

Fig 2: Identifying Pedal Motor Bolts
G00310895Courtesy of FORD MOTOR CO.
