Engagement Concern: No Forward And No Reverse

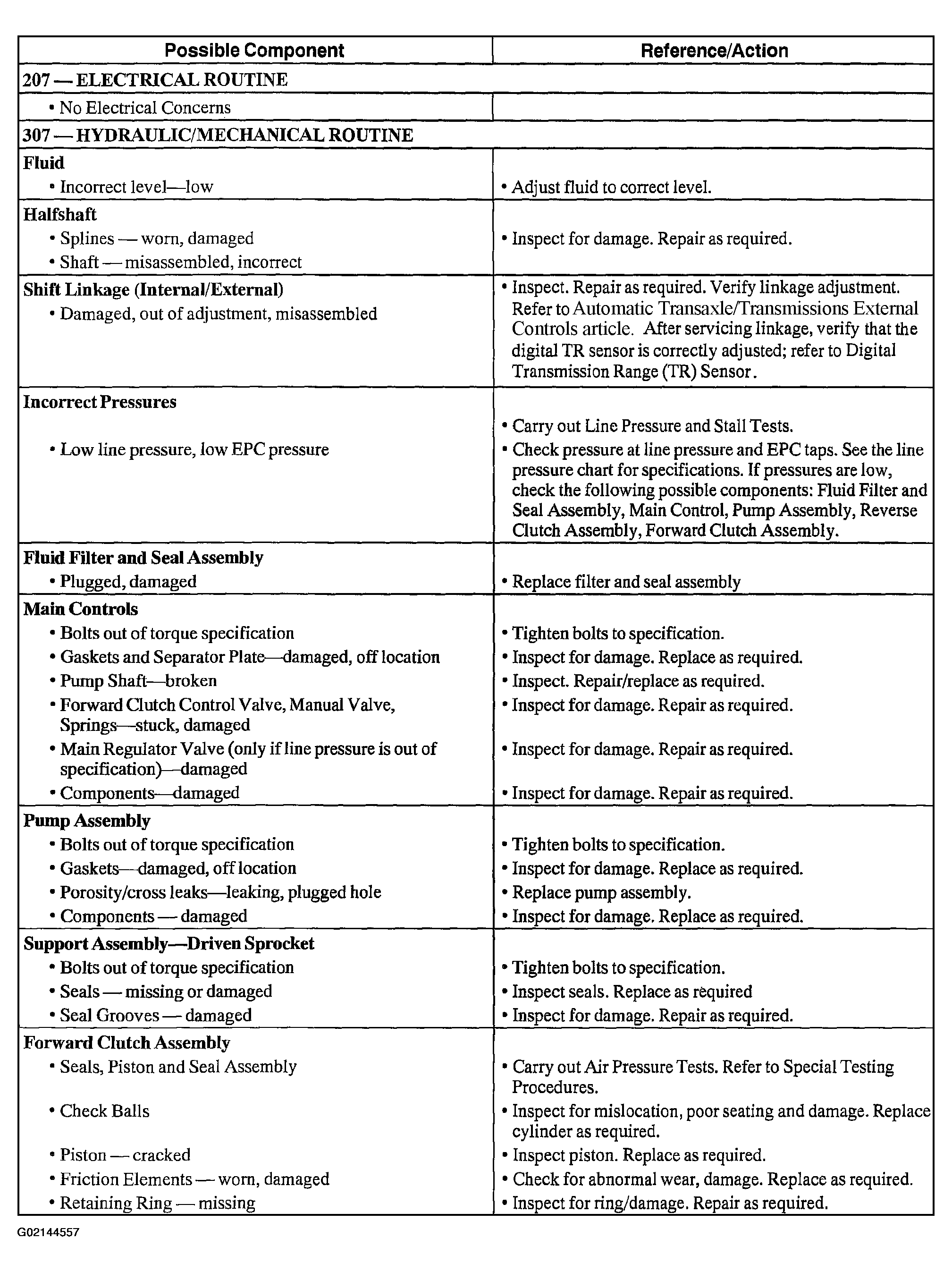

Fig 1: Diagnostic Routine 207/307 - Engagement Concern: No Forward And No Reverse (1 Of 2)
G02144557Courtesy of FORD MOTOR CO.

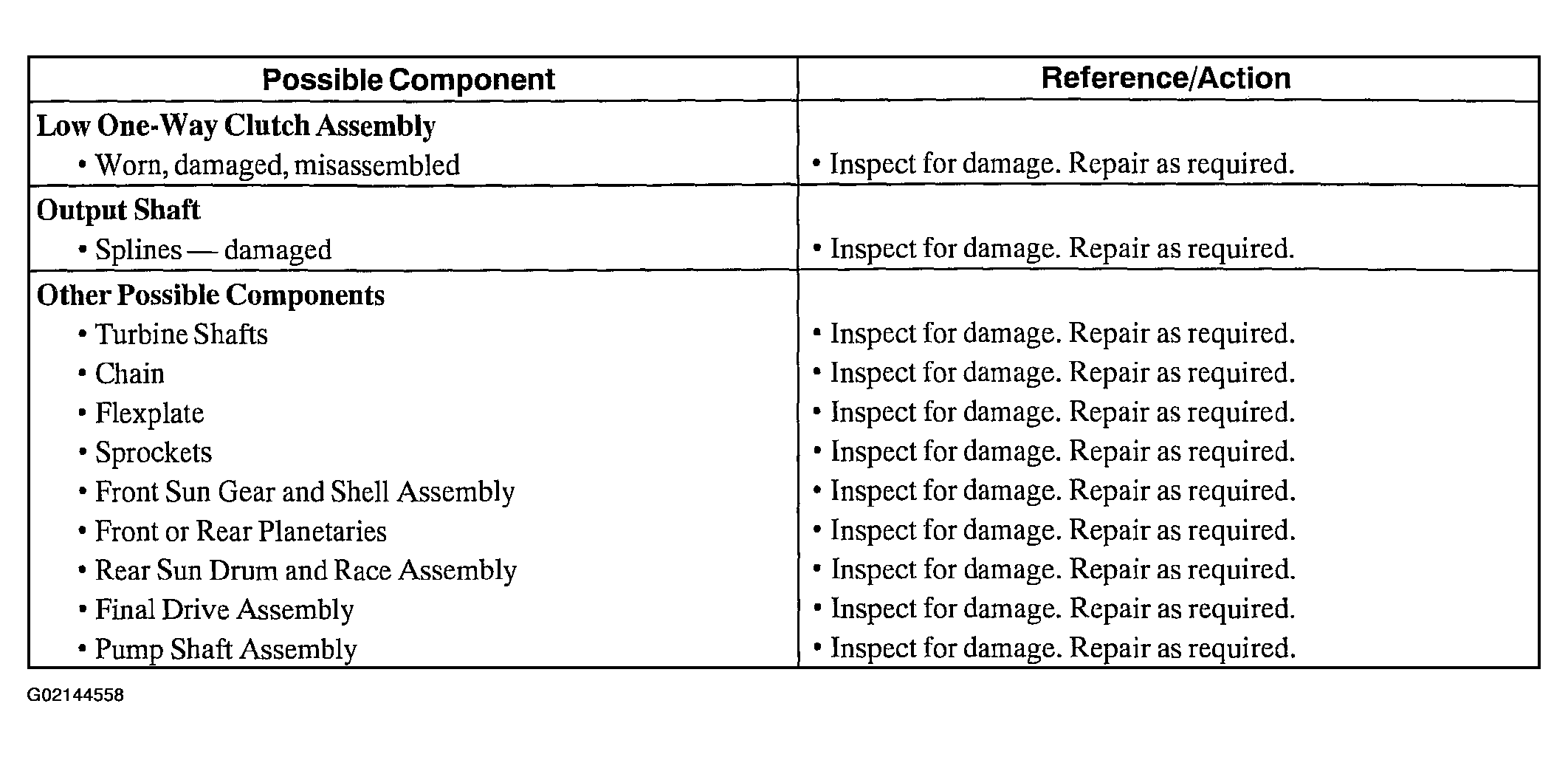

Fig 2: Diagnostic Routine 207/307 - Engagement Concern: No Forward And No Reverse (2 Of 2)
G02144558Courtesy of FORD MOTOR CO.
