PINPOINT TEST J: DTCs C1233 LF, C1234 RF, C1235 RR, C1236 LR, C1222 - ANTI-LOCK BRAKE SENSOR SIGNAL MISSING OR ERRATIC, WHEEL SPEED MISMATCH

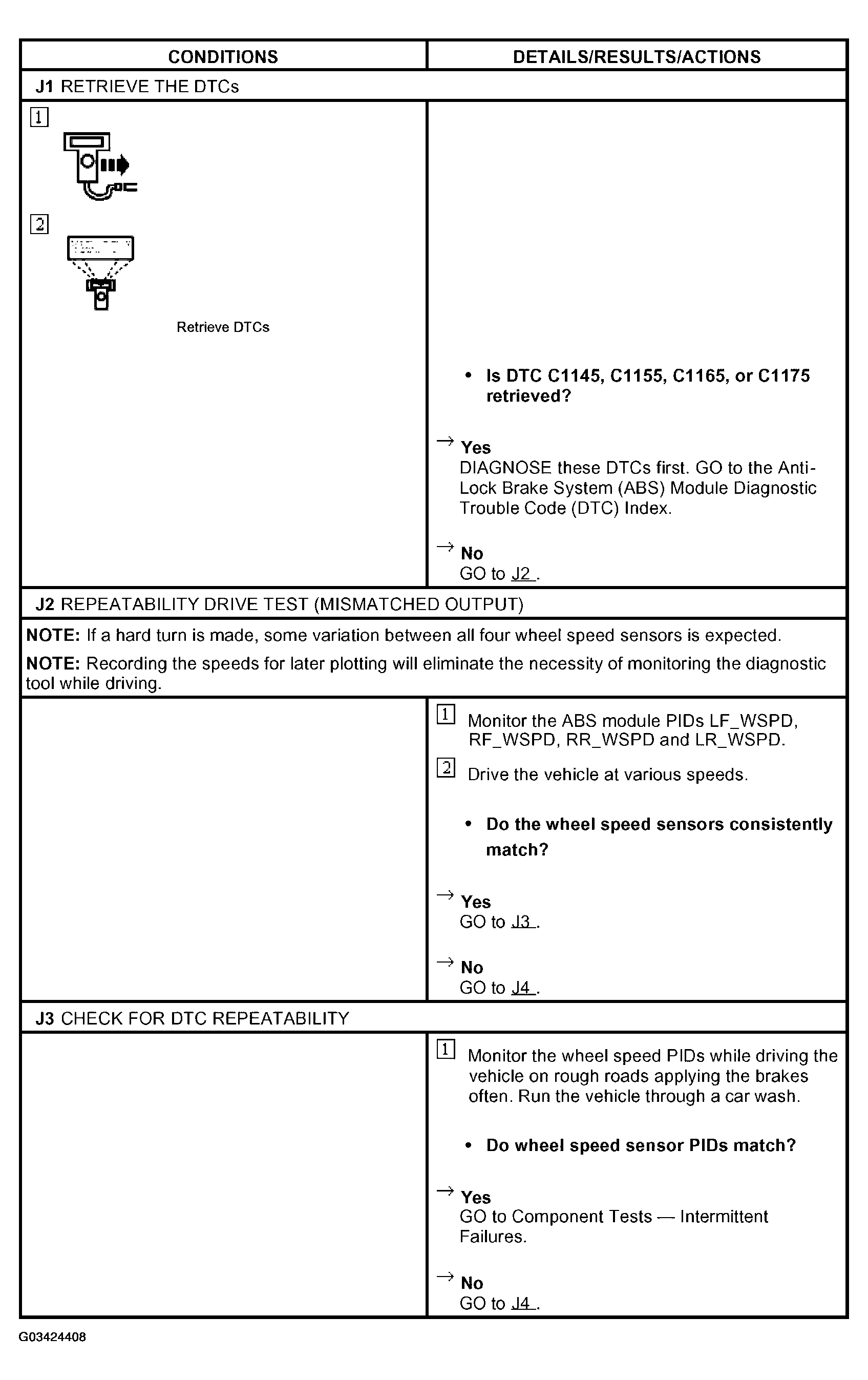

Fig 1: Pinpoint Test J: DTCs C1233 LF, C1234 RF, C1235 RR, C1236 LR, C1222 - Anti-Lock Brake Sensor Signal Missing Or Erratic, Wheel Speed Mismatch (J1-J3)

Courtesy of FORD MOTOR CO.

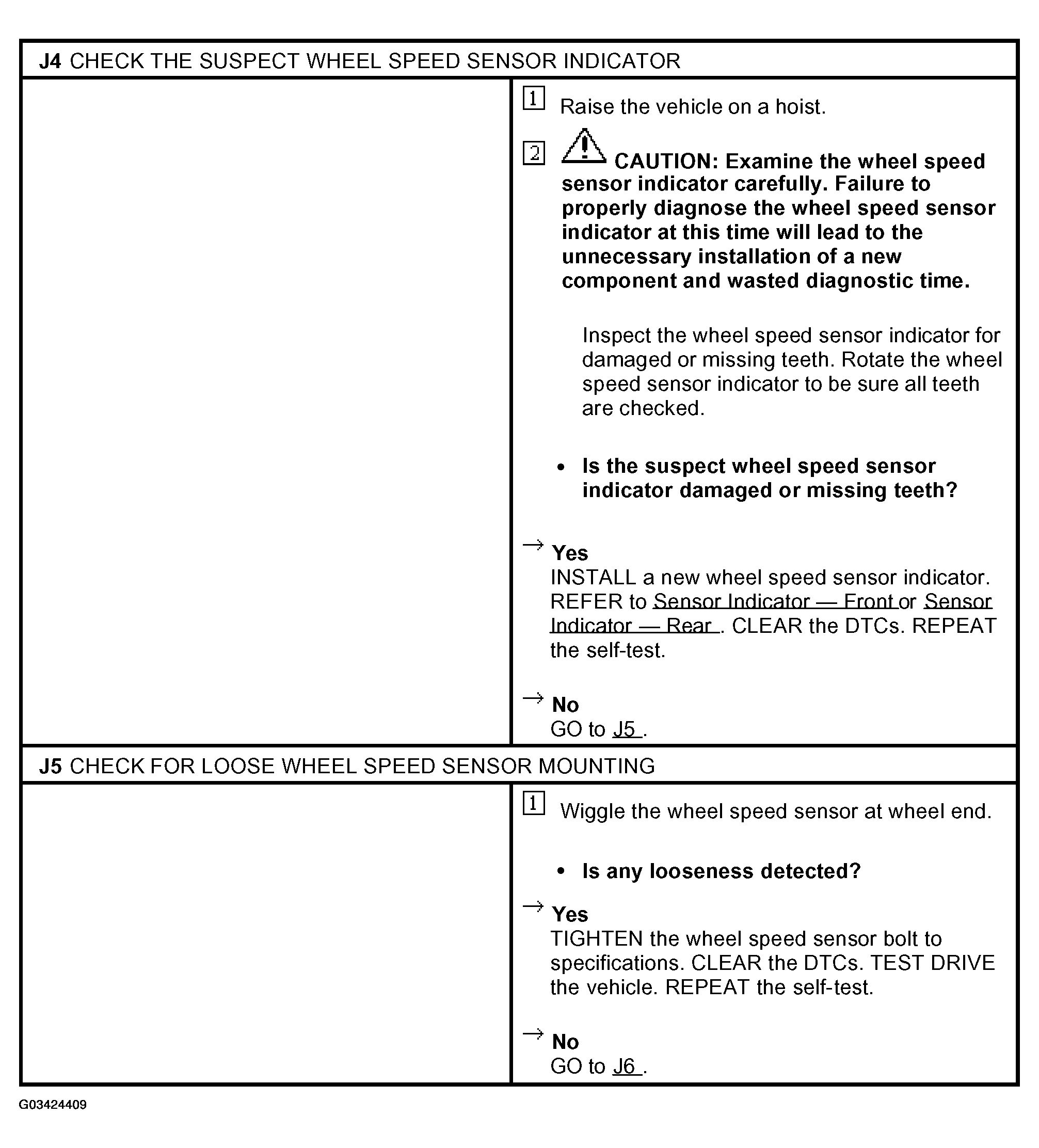

Fig 2: Pinpoint Test J: DTCs C1233 LF, C1234 RF, C1235 RR, C1236 LR, C1222 - Anti-Lock Brake Sensor Signal Missing Or Erratic, Wheel Speed Mismatch (J4 & J5)

Courtesy of FORD MOTOR CO.

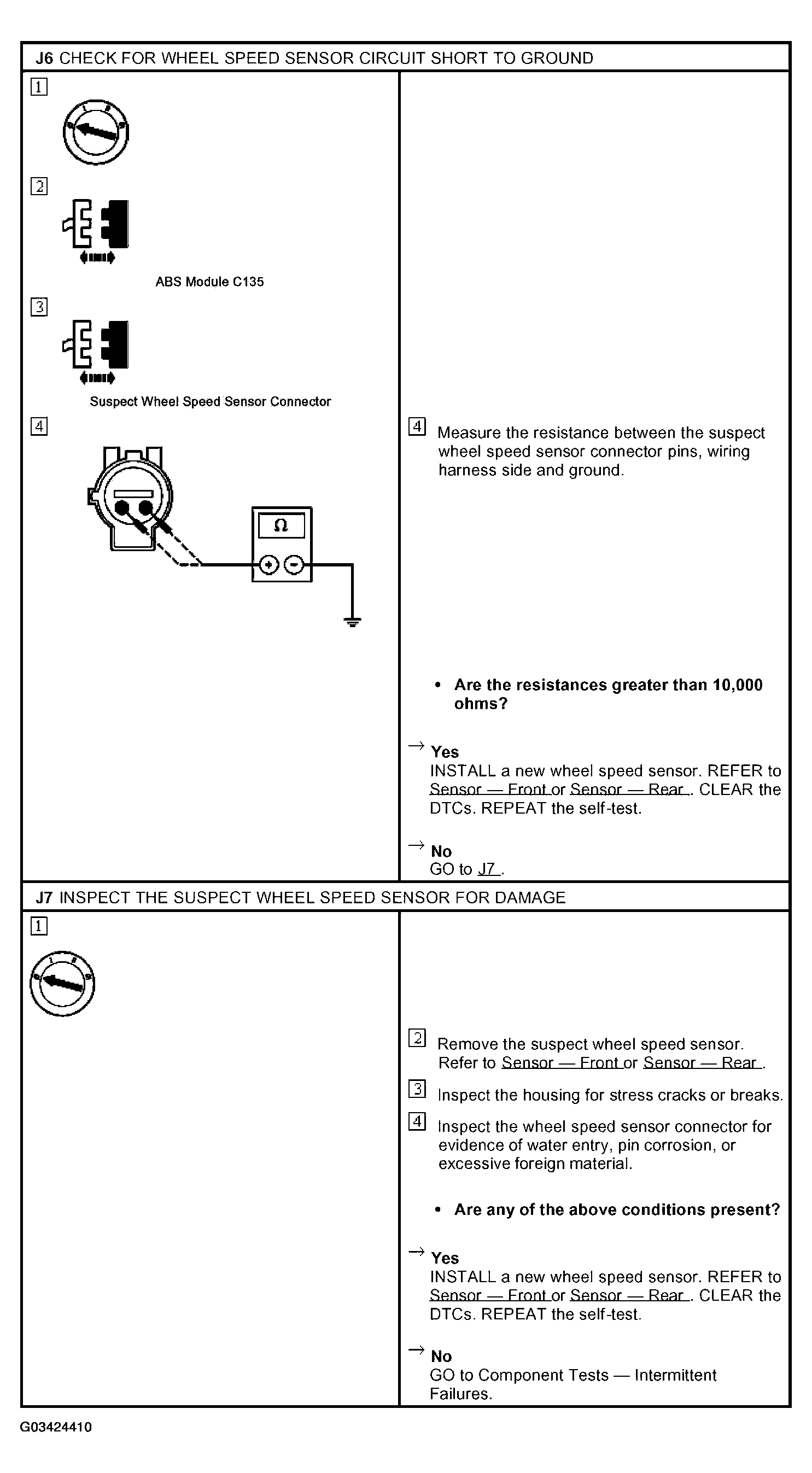

Fig 3: Pinpoint Test J: DTCs C1233 LF, C1234 RF, C1235 RR, C1236 LR, C1222 - Anti-Lock Brake Sensor Signal Missing Or Erratic, Wheel Speed Mismatch (J6 & J7)

Courtesy of FORD MOTOR CO.
