Pinpoint Test E: The Instrument Panel Illumination Does Not Dim

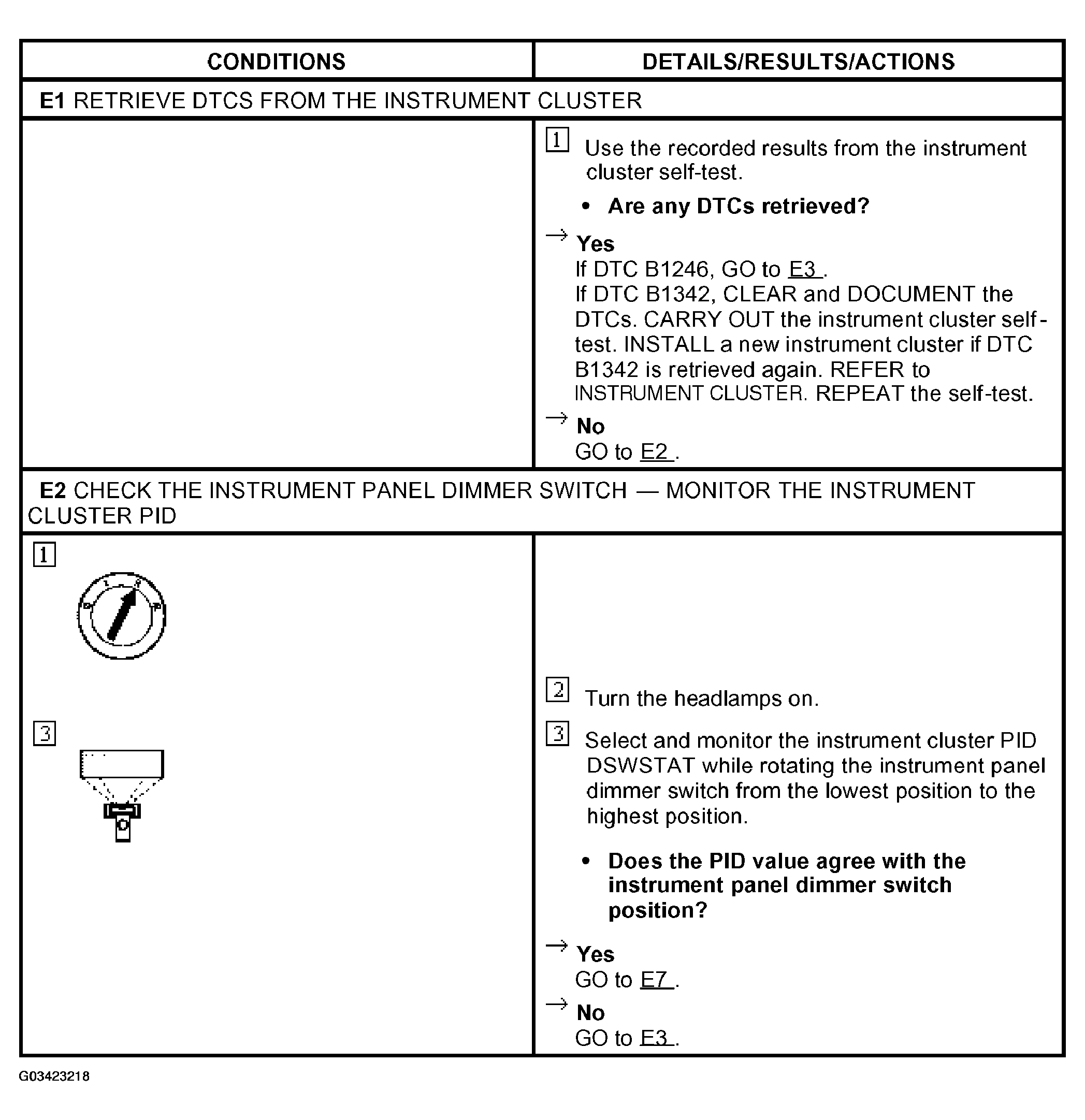

Fig 1: Pinpoint Test E: Instrument Panel Illumination Does Not Dim (E1 - E2)

Courtesy of FORD MOTOR CO.

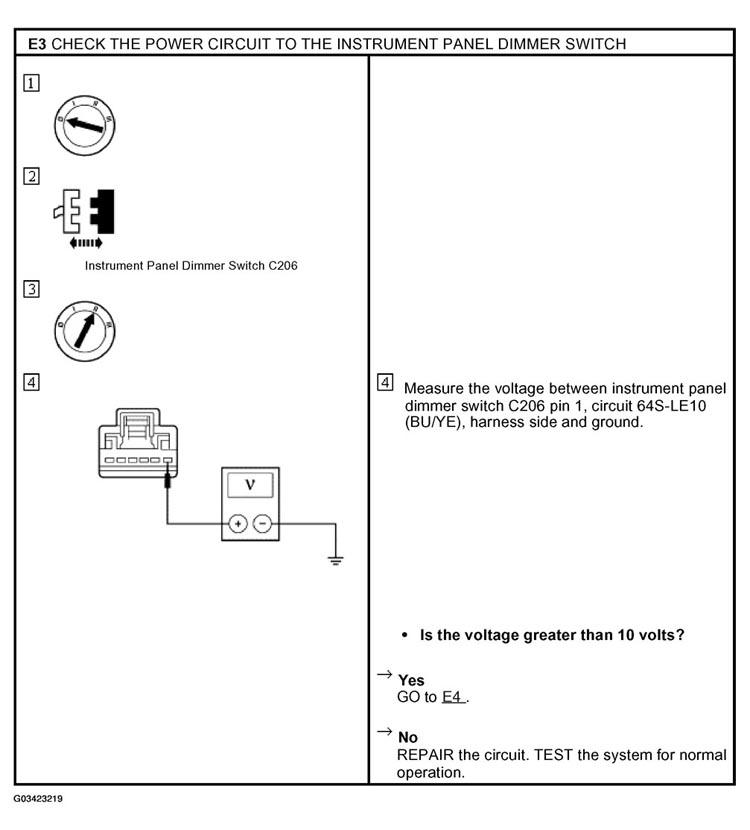

Fig 2: Pinpoint Test E: Instrument Panel Illumination Does Not Dim (E3)

Courtesy of FORD MOTOR CO.

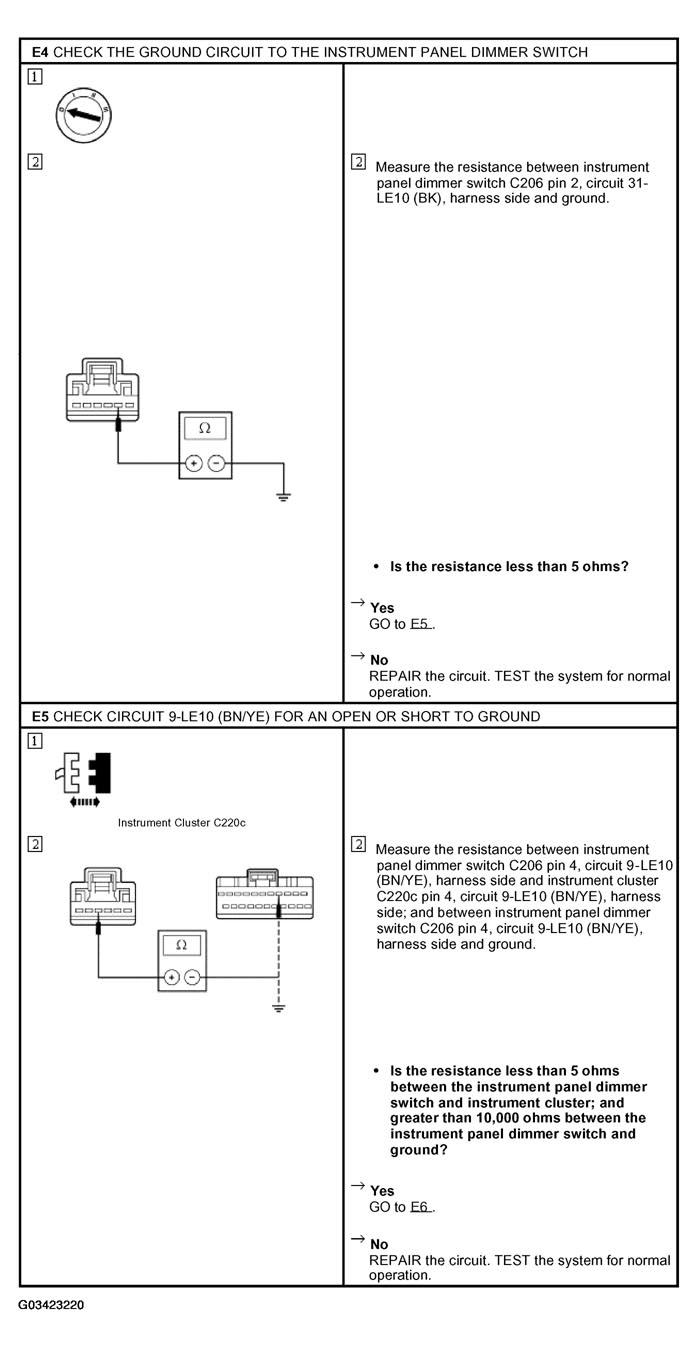

Fig 3: Pinpoint Test E: Instrument Panel Illumination Does Not Dim (E4 - E5)

Courtesy of FORD MOTOR CO.

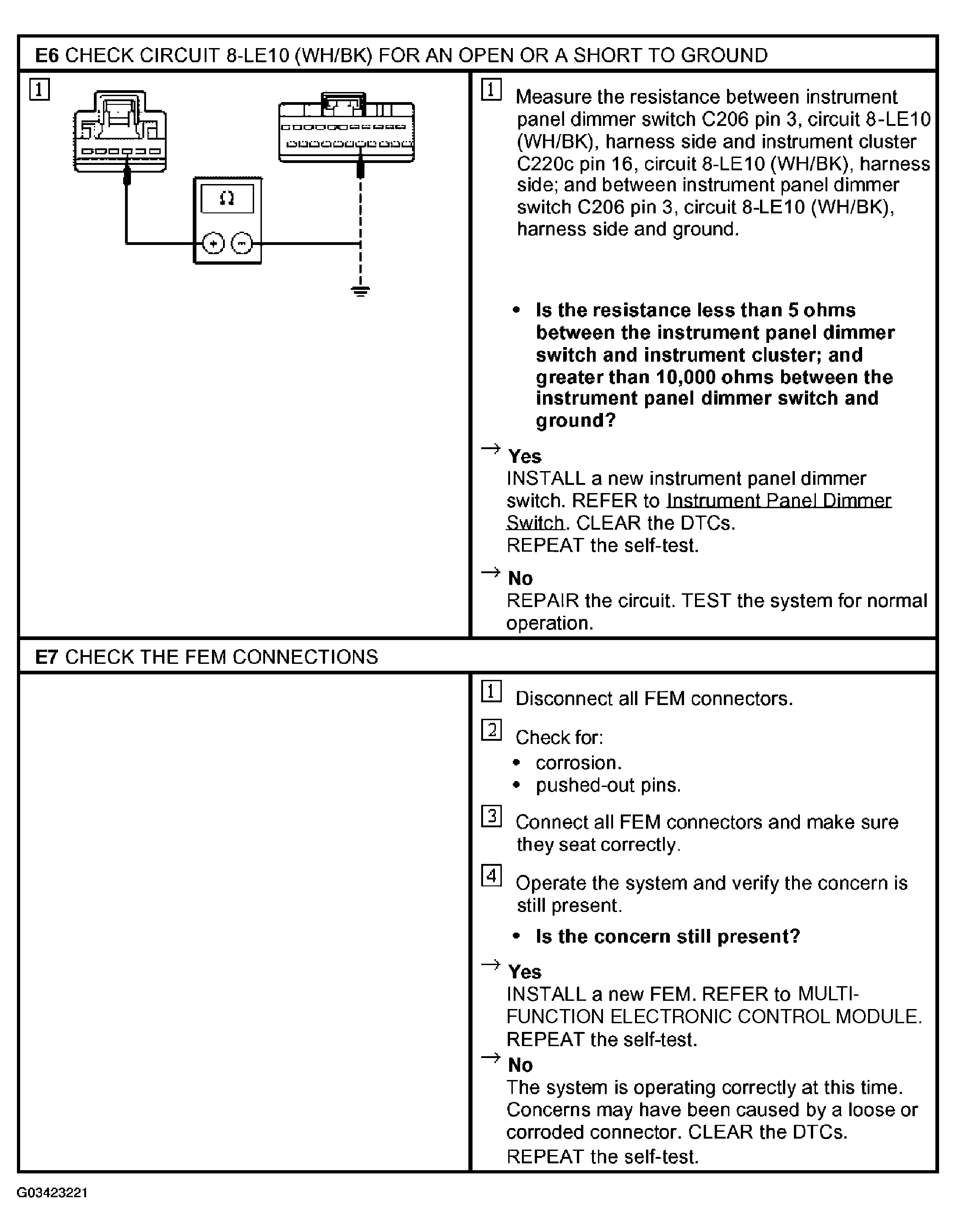

Fig 4: Pinpoint Test E: Instrument Panel Illumination Does Not Dim (E6 - E7)

Courtesy of FORD MOTOR CO.
