Pinpoint Test D: A Single Illumination Source Is Inoperative

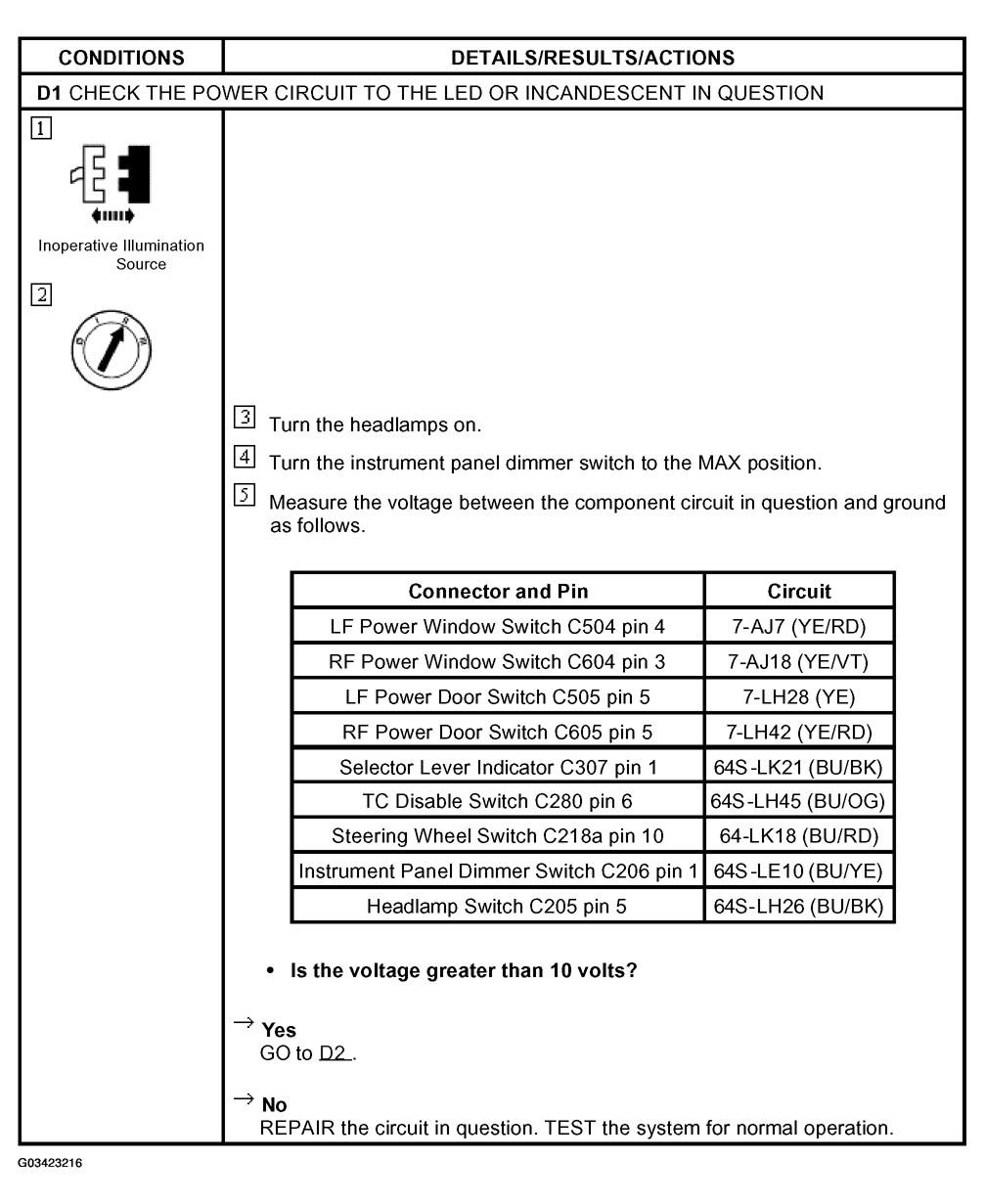

Fig 1: Pinpoint Test D: A Single Illumination Source Is Inoperative (D1)
G03423216Courtesy of FORD MOTOR CO.

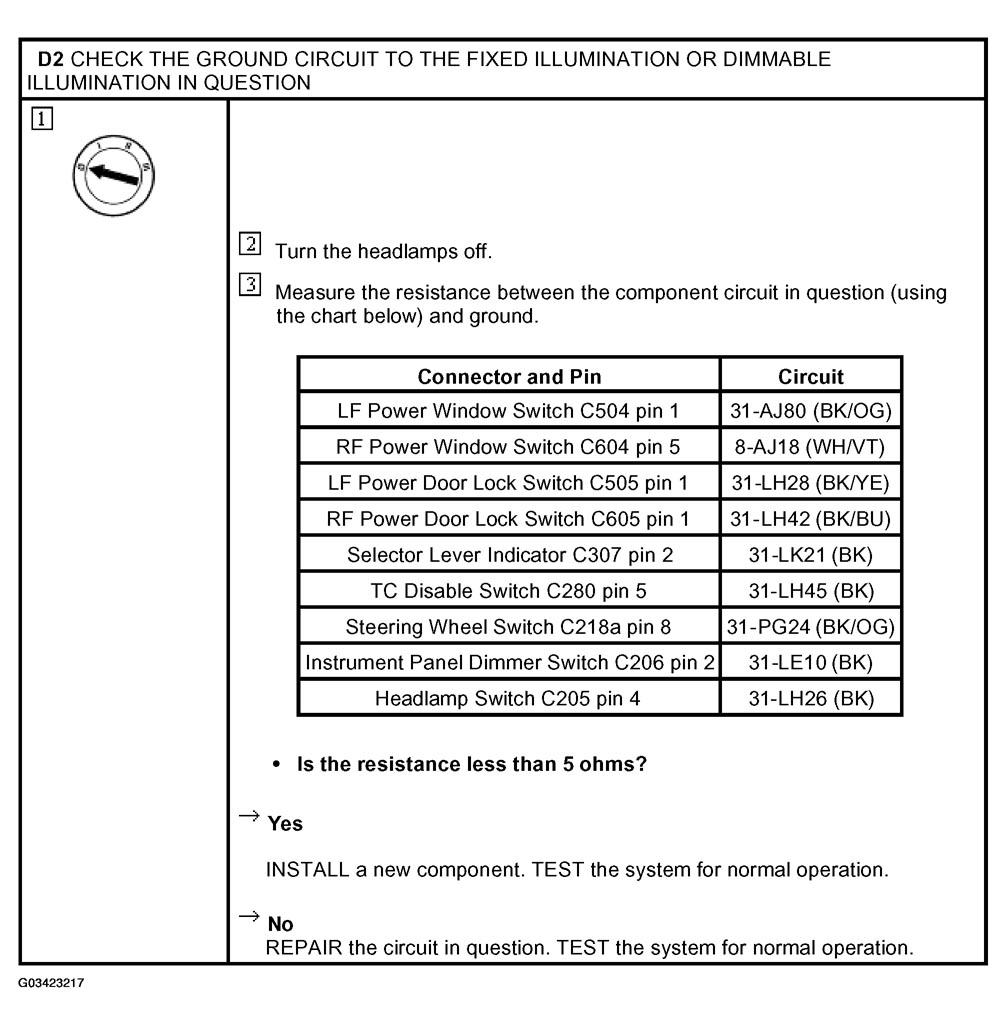

Fig 2: Pinpoint Test D: A Single Illumination Source Is Inoperative (D2)
G03423217Courtesy of FORD MOTOR CO.
