Pinpoint Test C: The Instrument Cluster Illumination Is Inoperative

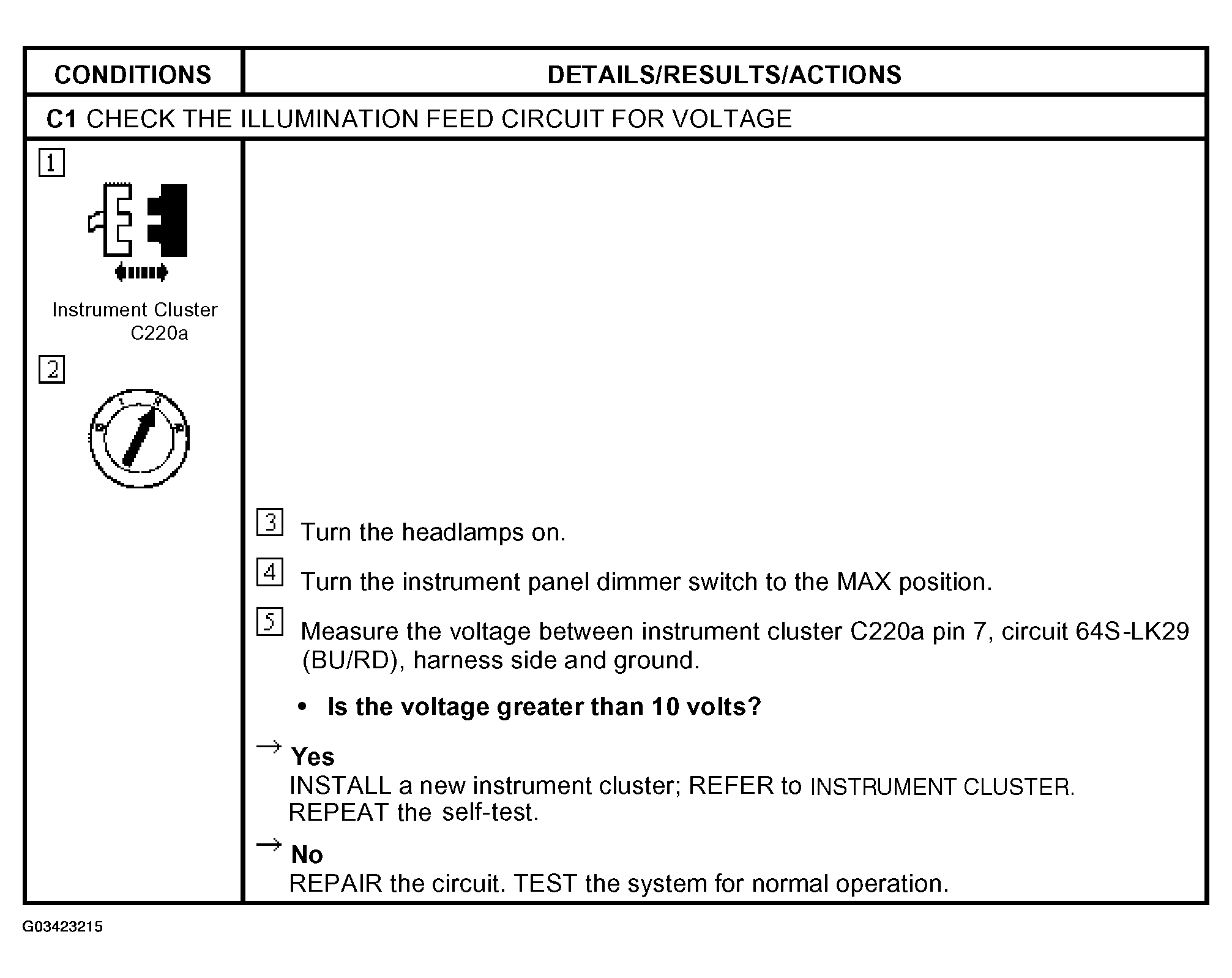

Fig 1: Pinpoint Test C: Instrument Cluster Illumination Is Inoperative (C1)

G03423215

Courtesy of FORD MOTOR CO.
