Pinpoint Test A: The Control Illumination Is Inoperative - All Fixed Illumination Or DIMMABLE Illumination

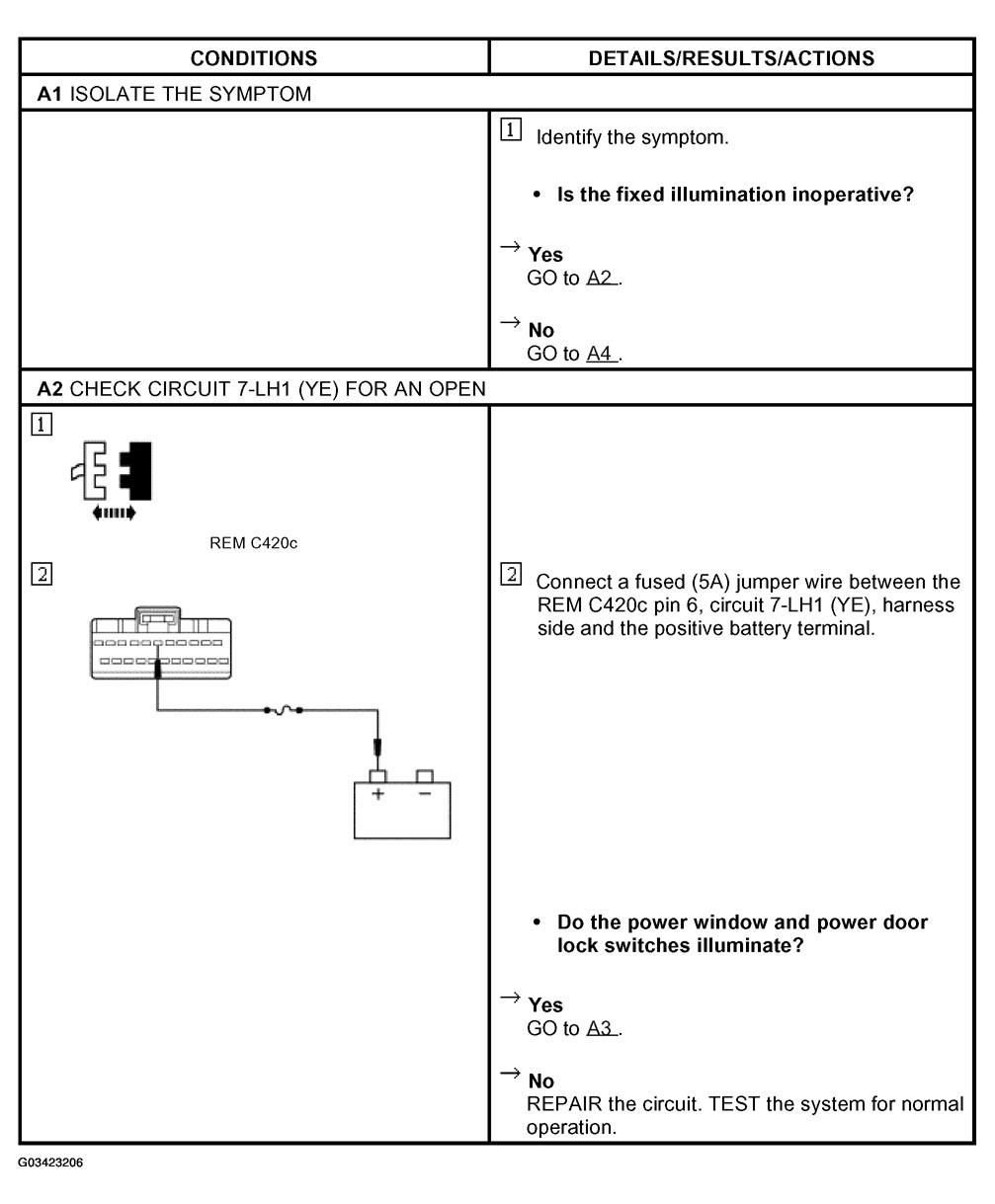

Fig 1: Pinpoint Test A: Control Illumination Is Inoperative (A1 - A2)

Courtesy of FORD MOTOR CO.

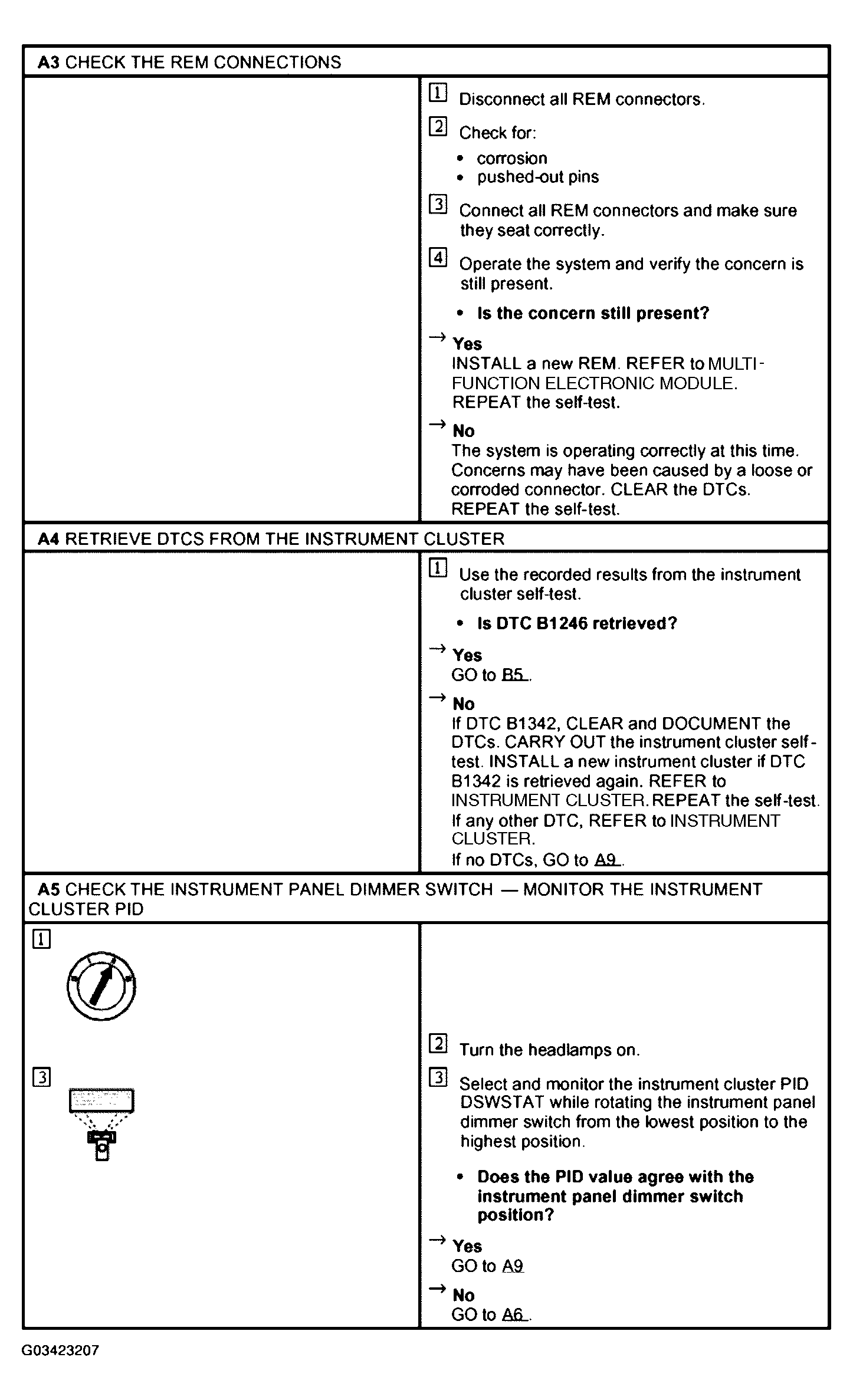

Fig 2: Pinpoint Test A: Control Illumination Is Inoperative (A3 - A5)

Courtesy of FORD MOTOR CO.

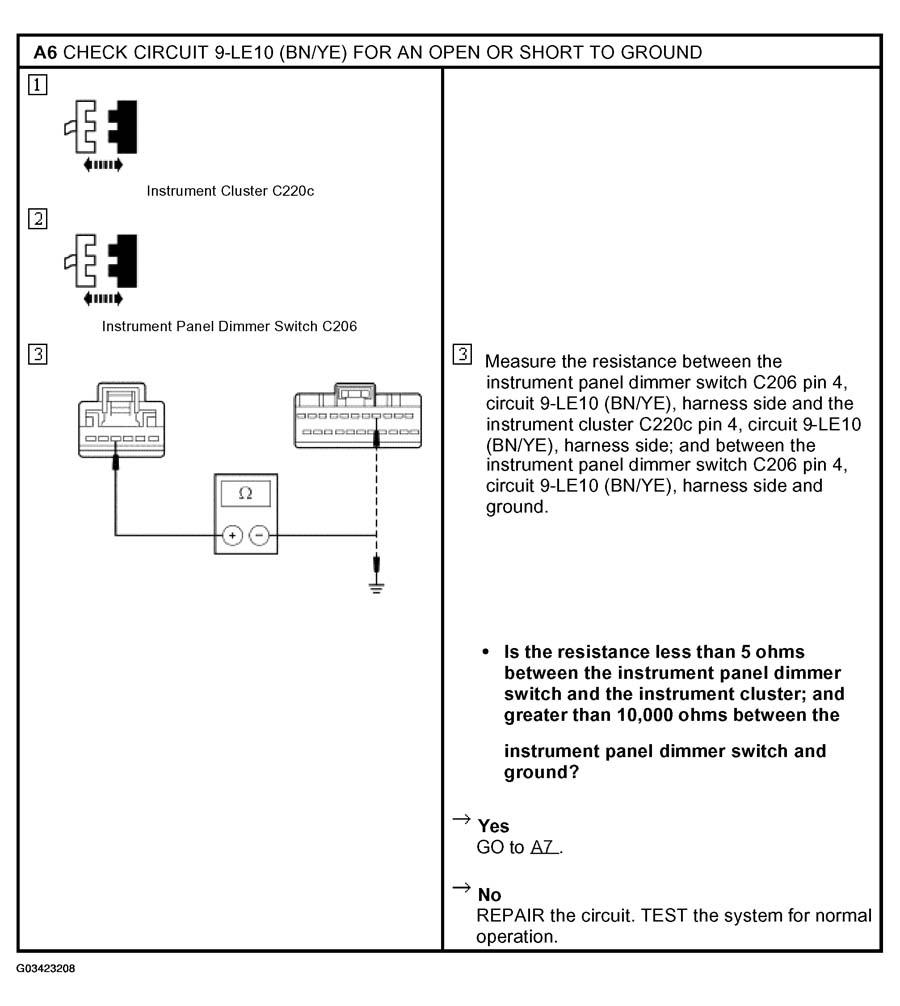

Fig 3: Pinpoint Test A: Control Illumination Is Inoperative (A6)

Courtesy of FORD MOTOR CO.

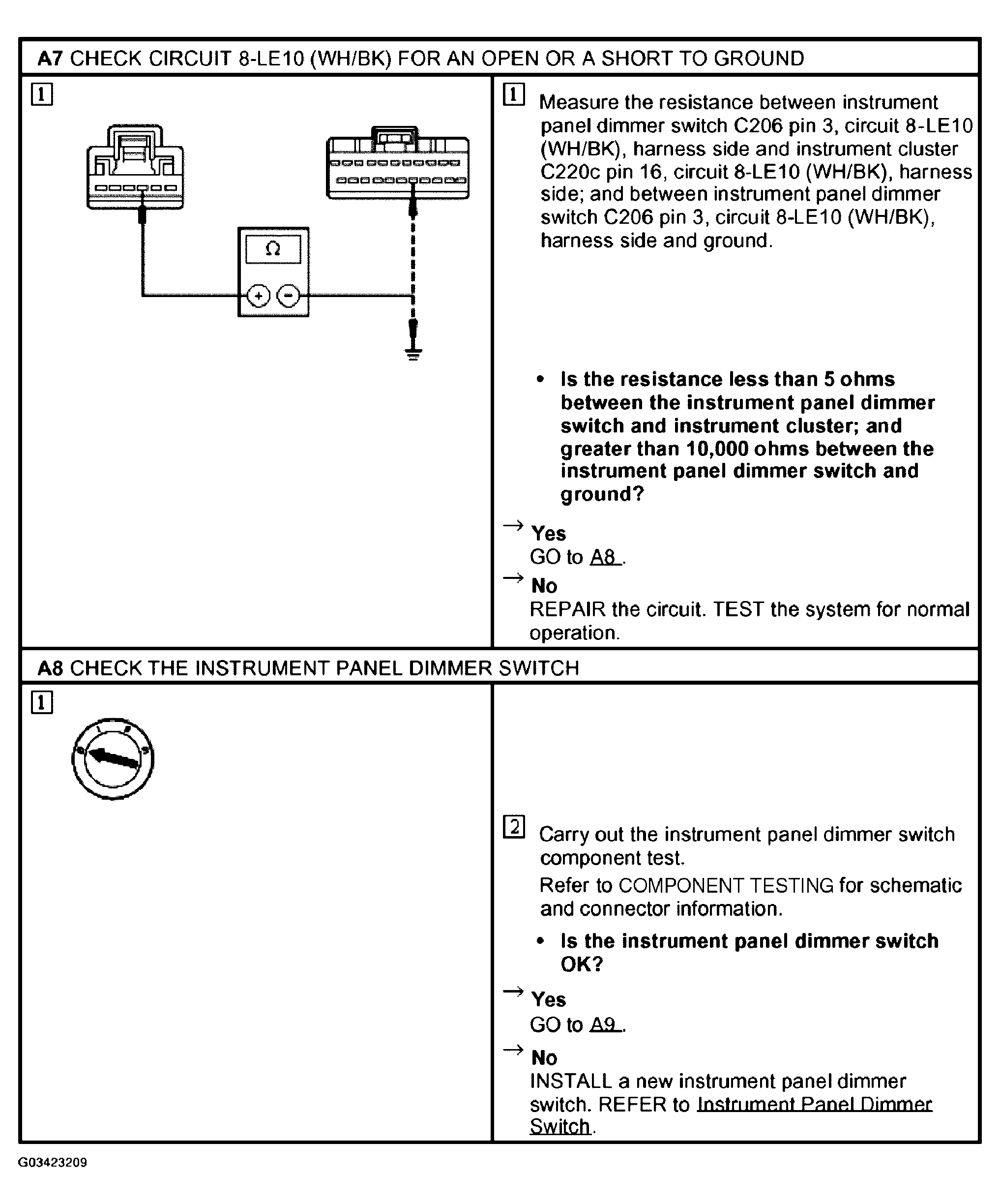

Fig 4: Pinpoint Test A: Control Illumination Is Inoperative (A7 - A8)

Courtesy of FORD MOTOR CO.

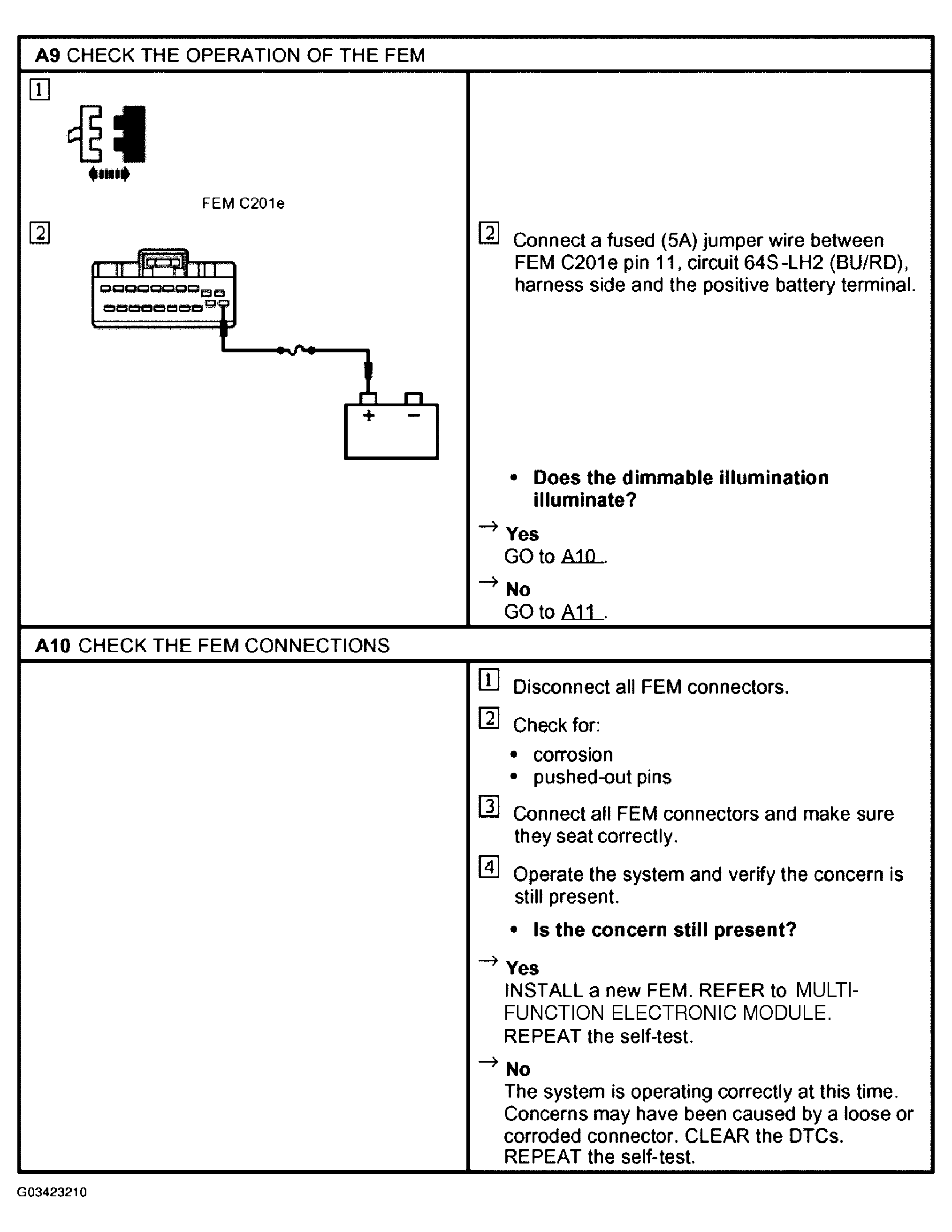

Fig 5: Pinpoint Test A: Control Illumination Is Inoperative (A9 - A10)

Courtesy of FORD MOTOR CO.

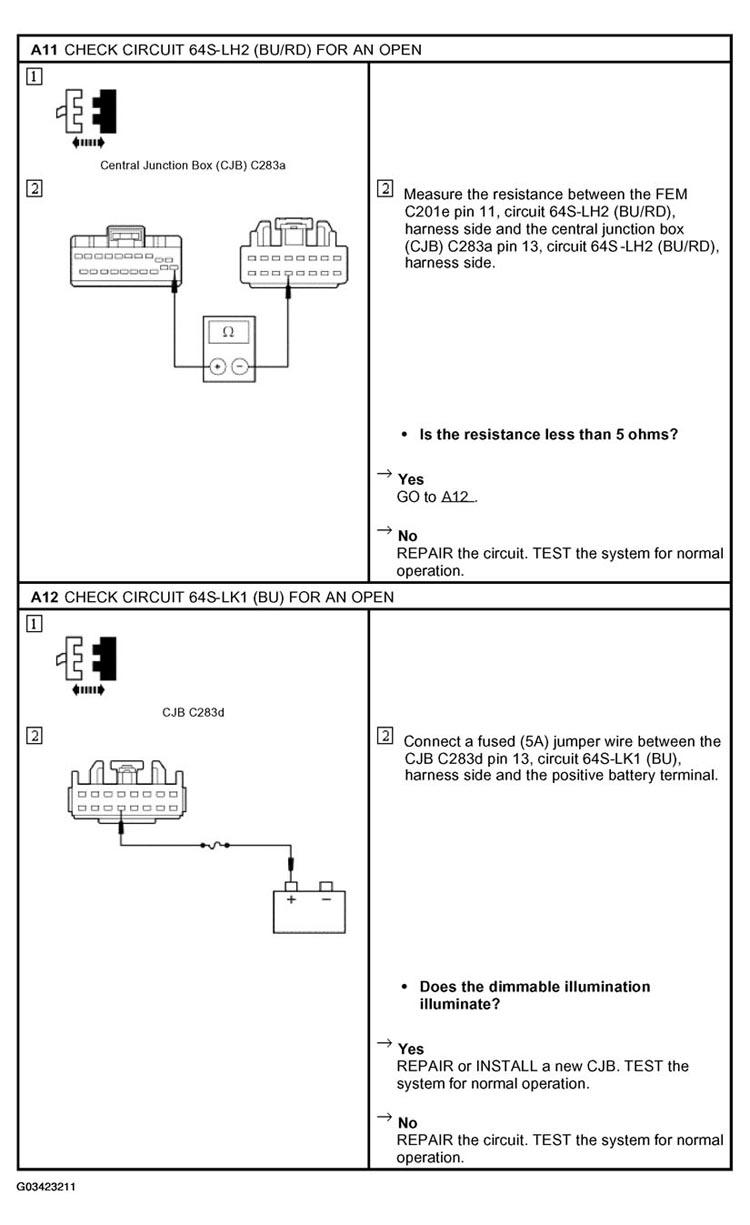

Fig 6: Pinpoint Test A: Control Illumination Is Inoperative (A11 - A12)

Courtesy of FORD MOTOR CO.
