Removal and Installation

  1. Remove the instrument cluster. Refer to INSTRUMENT CLUSTER .
  2. Remove the screws and remove the cluster lens.

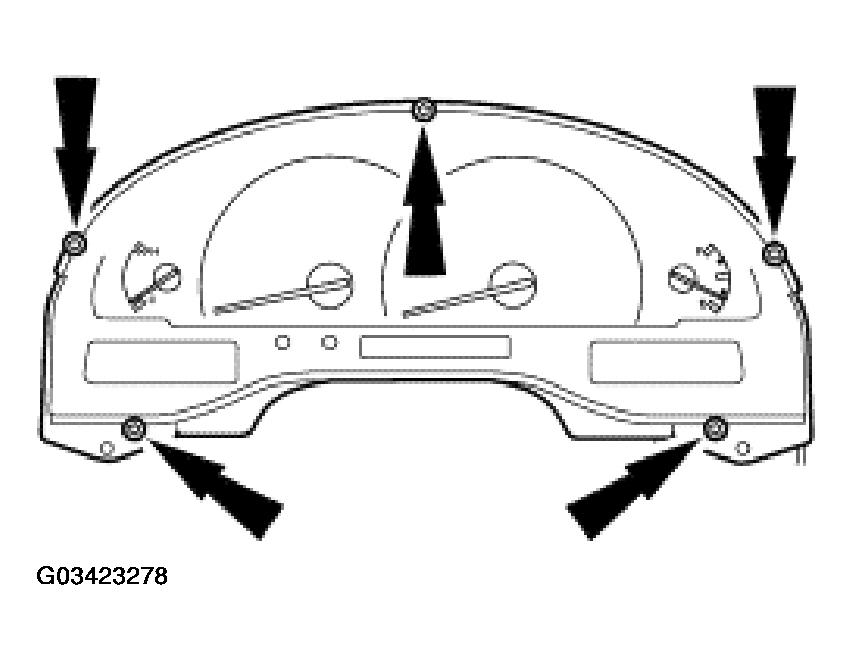

    Fig 1: Removing Screws And Cluster Lens
    G03423278Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
