Pinpoint Test Z: One Turn Signal/Hazard Lamp Is Never/Always On - Front

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

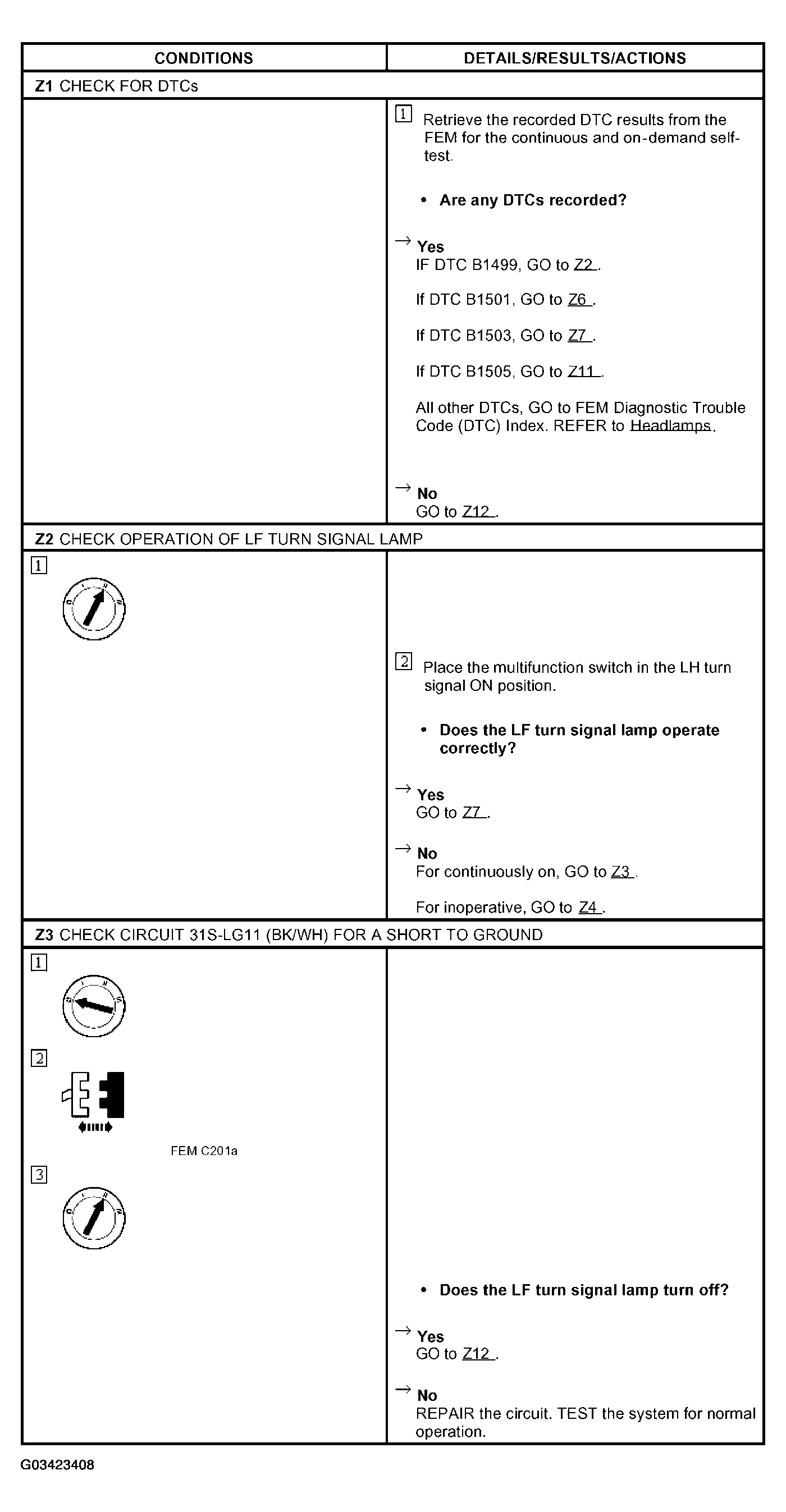

Fig 1: Pinpoint Test Z: One Turn Signal/Hazard Lamp Is Never/Always On - Front (Z1-Z3)

Courtesy of FORD MOTOR CO.

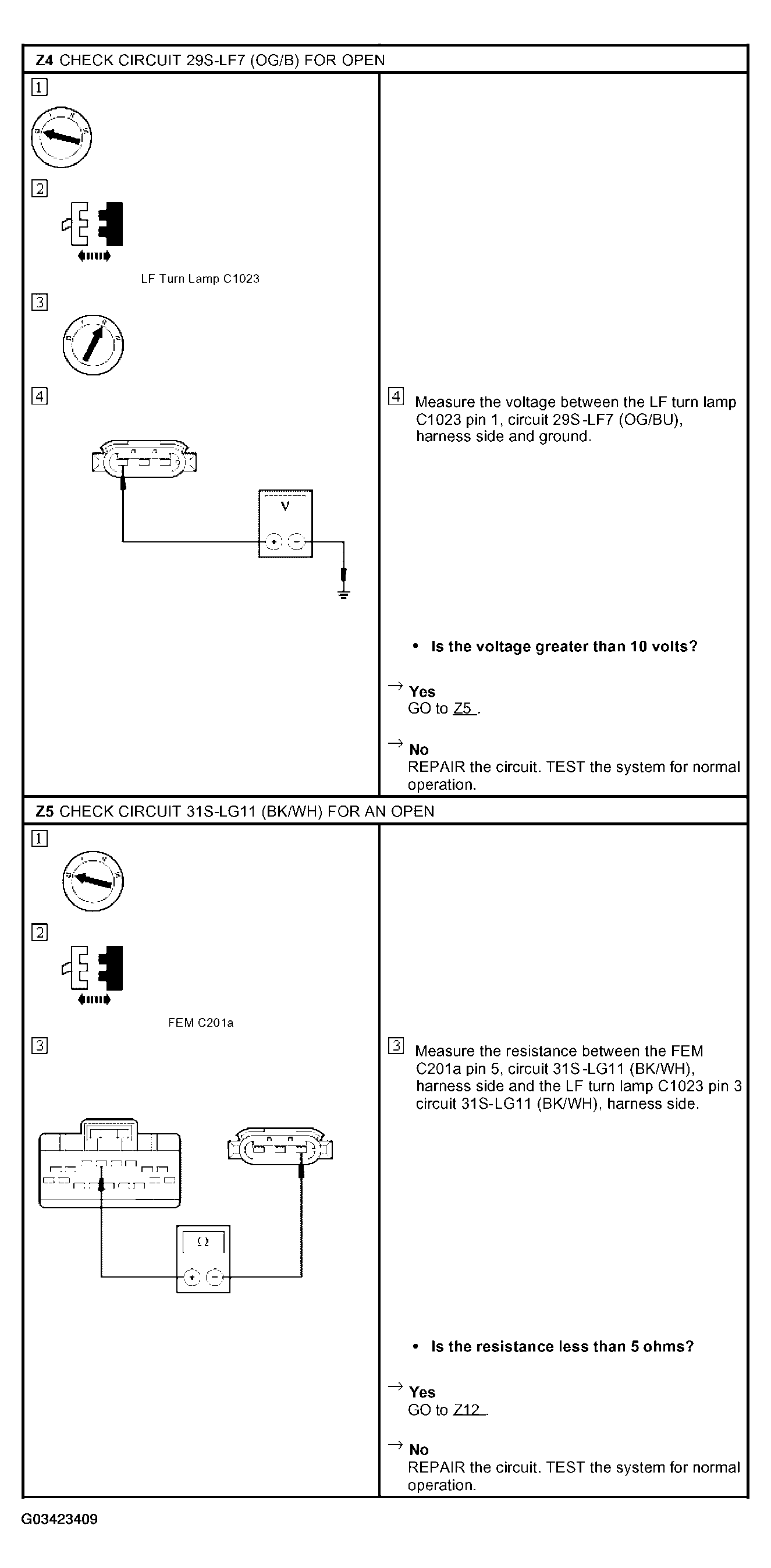

Fig 2: Pinpoint Test Z: One Turn Signal/Hazard Lamp Is Never/Always On - Front (Z4-Z5)

Courtesy of FORD MOTOR CO.

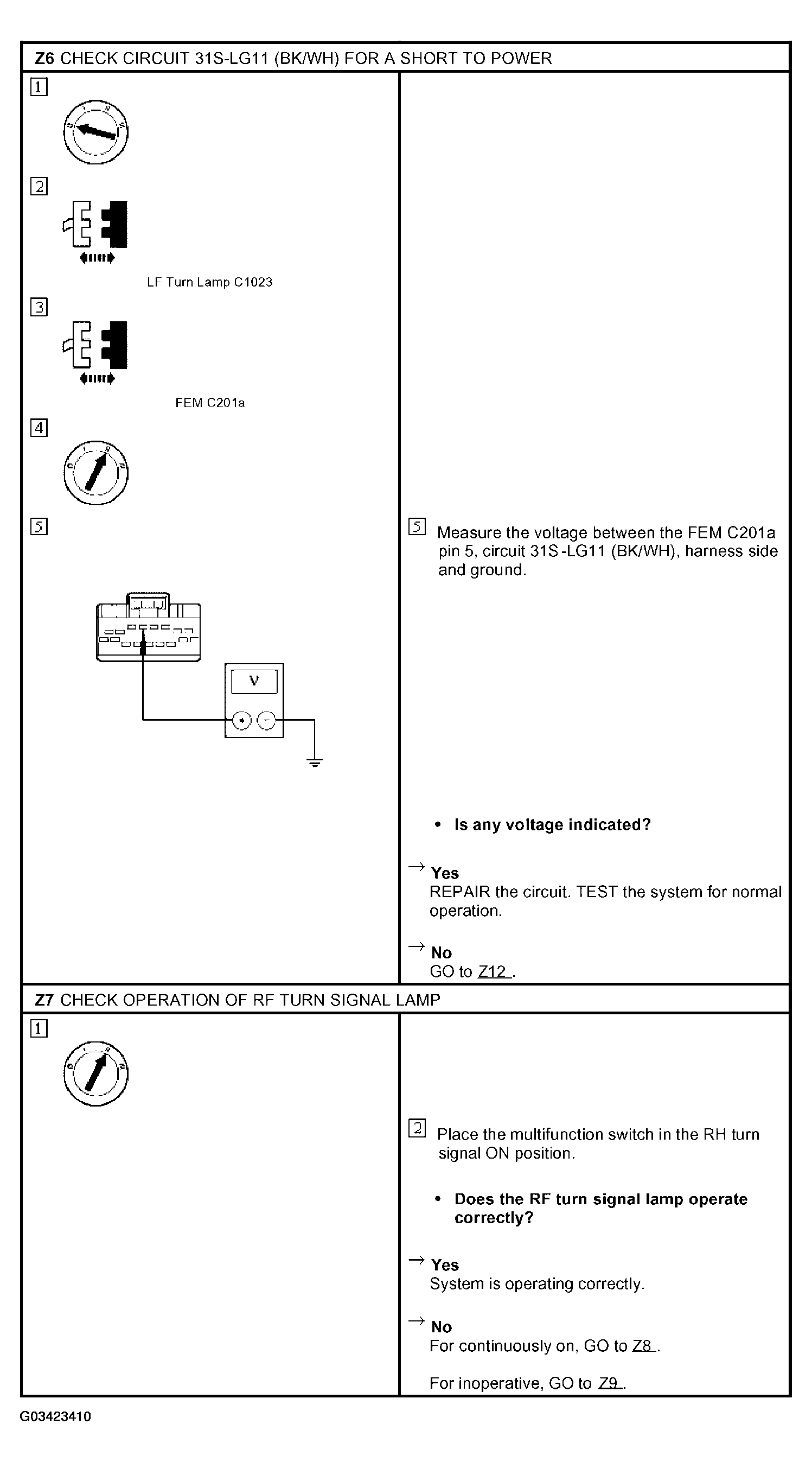

Fig 3: Pinpoint Test Z: One Turn Signal/Hazard Lamp Is Never/Always On - Front (Z6-Z7)

Courtesy of FORD MOTOR CO.

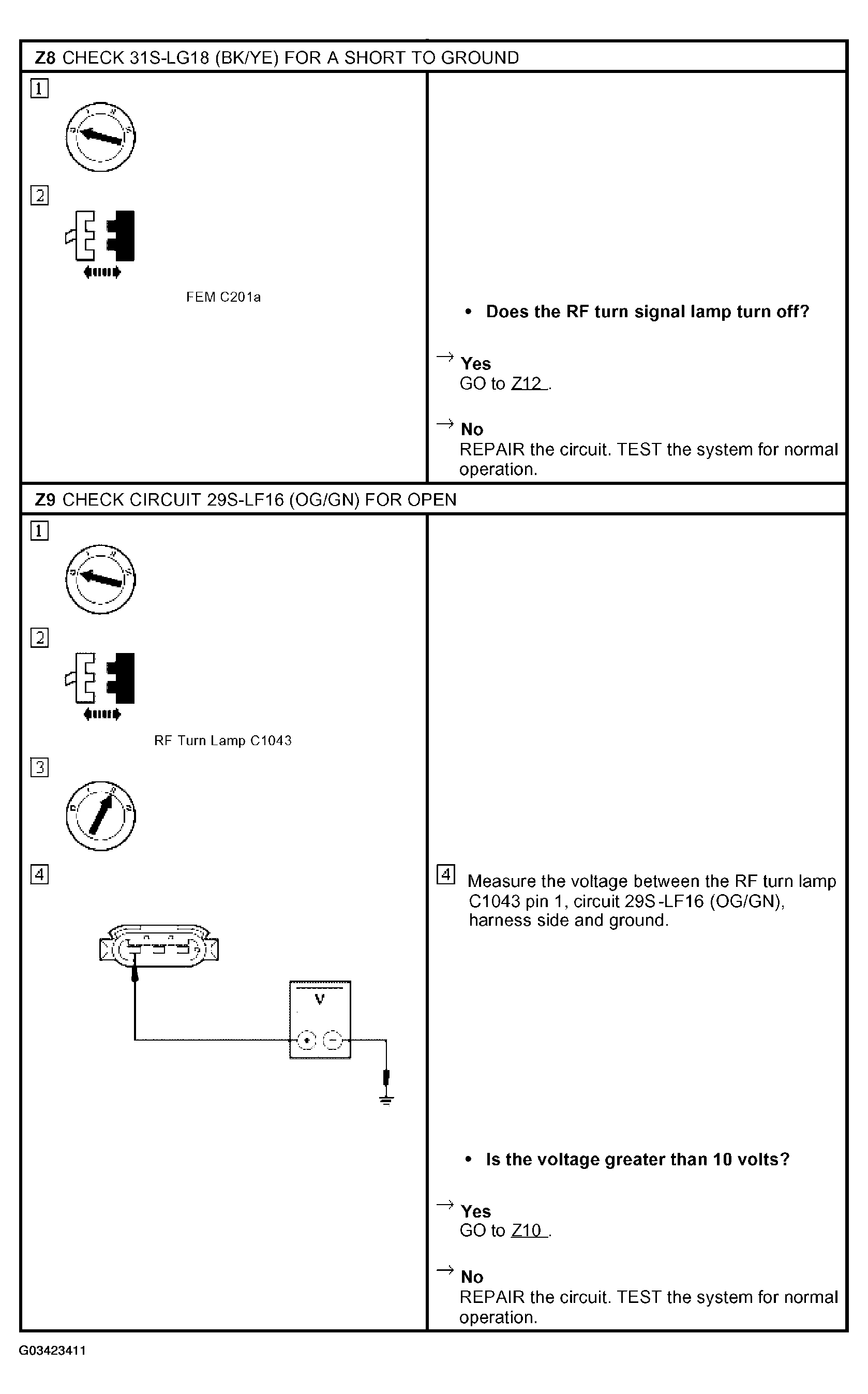

Fig 4: Pinpoint Test Z: One Turn Signal/Hazard Lamp Is Never/Always On - Front (Z8-Z9)

Courtesy of FORD MOTOR CO.

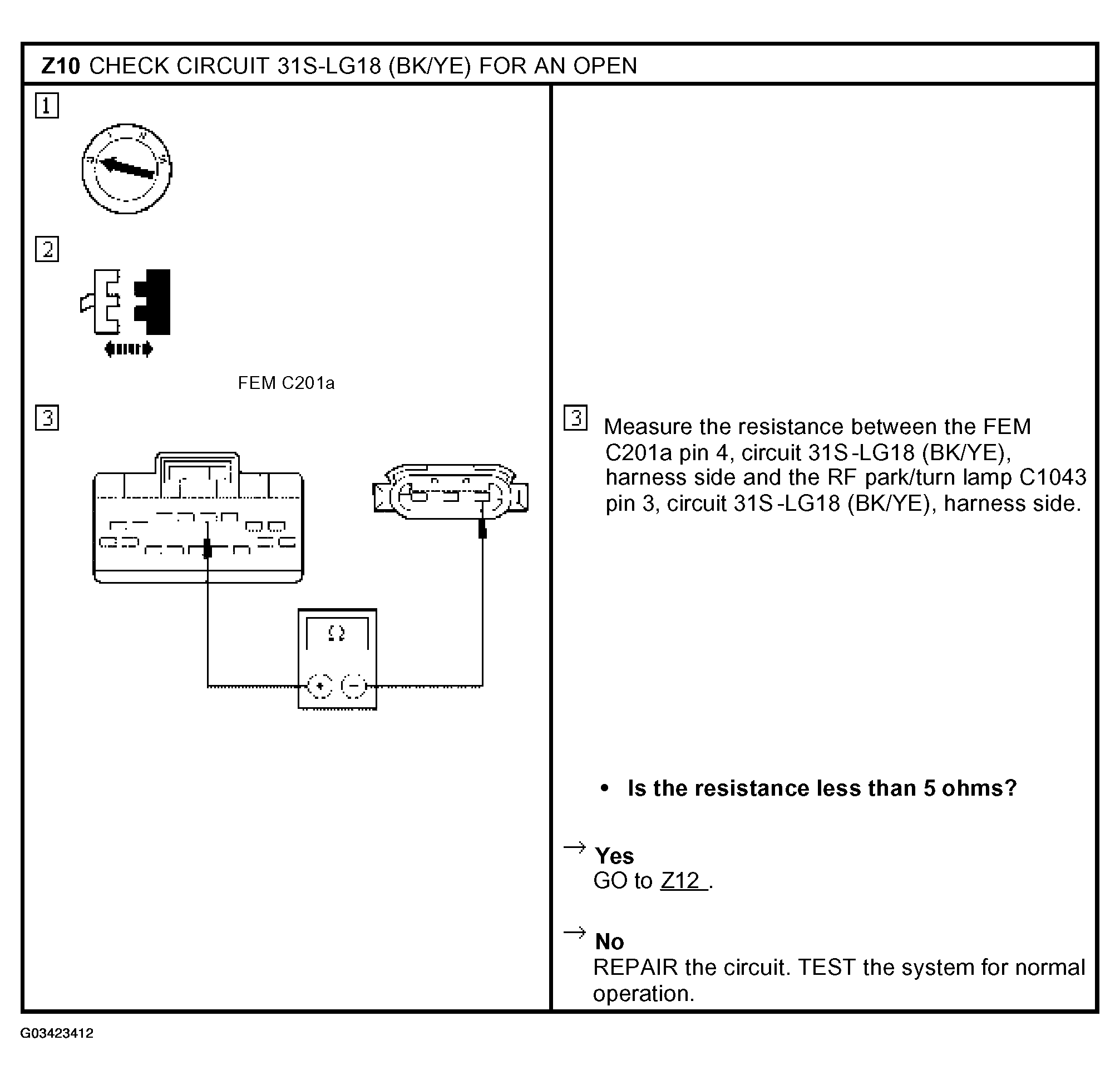

Fig 5: Pinpoint Test Z: One Turn Signal/Hazard Lamp Is Never/Always On - Front (Z10)

Courtesy of FORD MOTOR CO.

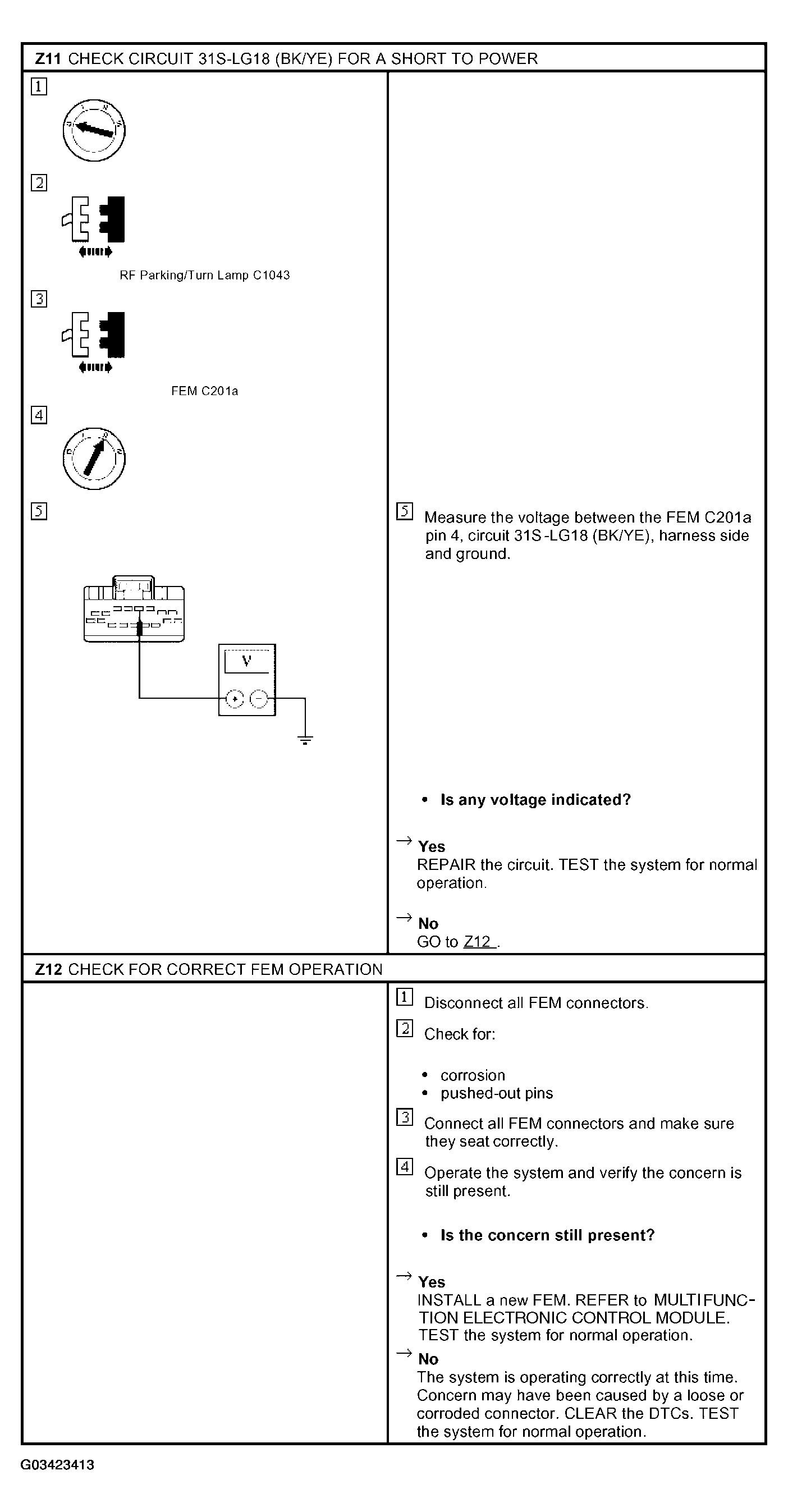

Fig 6: Pinpoint Test Z: One Turn Signal/Hazard Lamp Is Never/Always On - Front (Z11-Z12)

Courtesy of FORD MOTOR CO.
