Pinpoint Test Y: One Turn Signal Lamp Is Always On - RR Turn Lamp

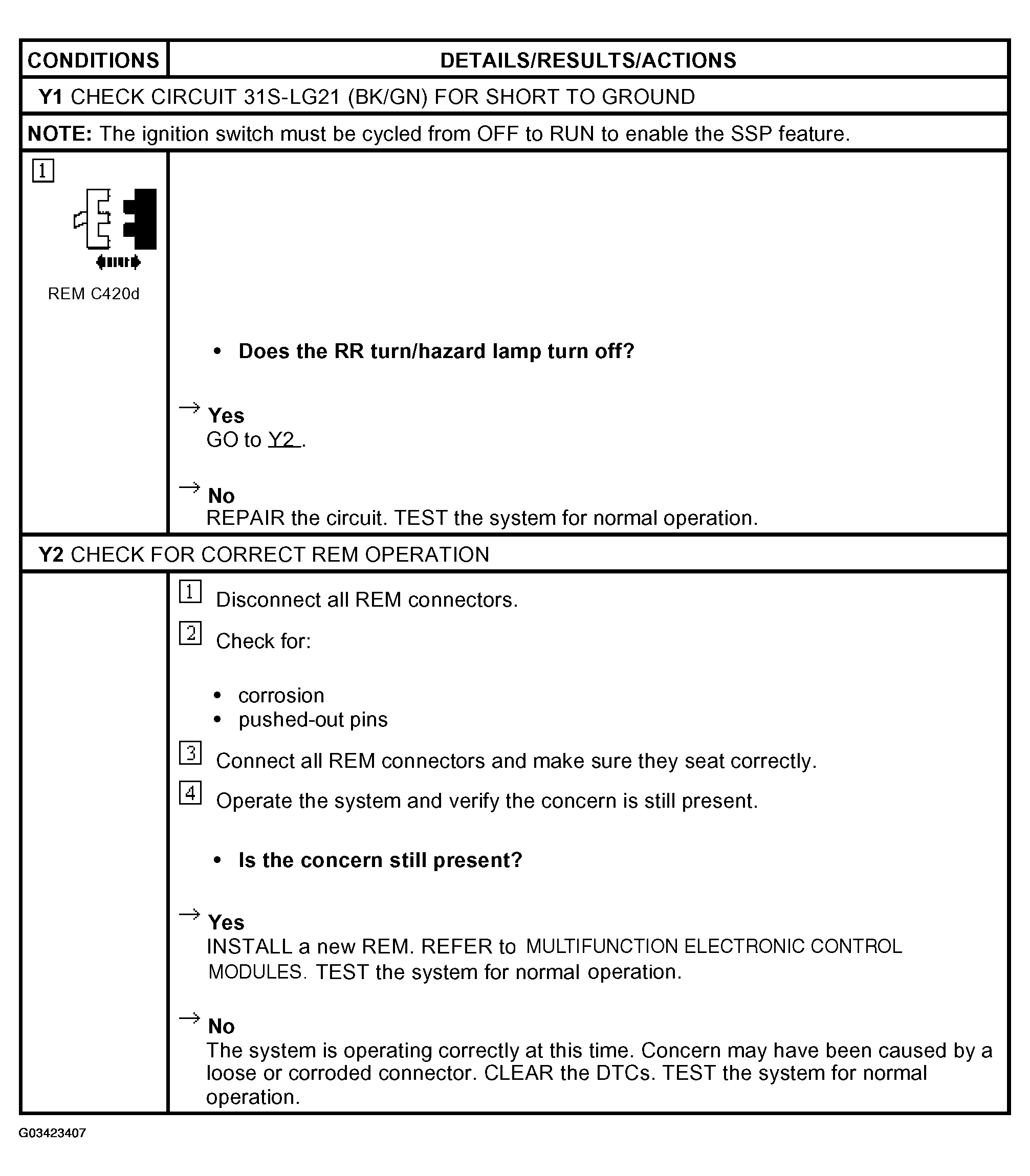

Fig 1: Pinpoint Test Y: One Turn Signal Lamp Is Always On - RR Turn Lamp

G03423407

Courtesy of FORD MOTOR CO.
